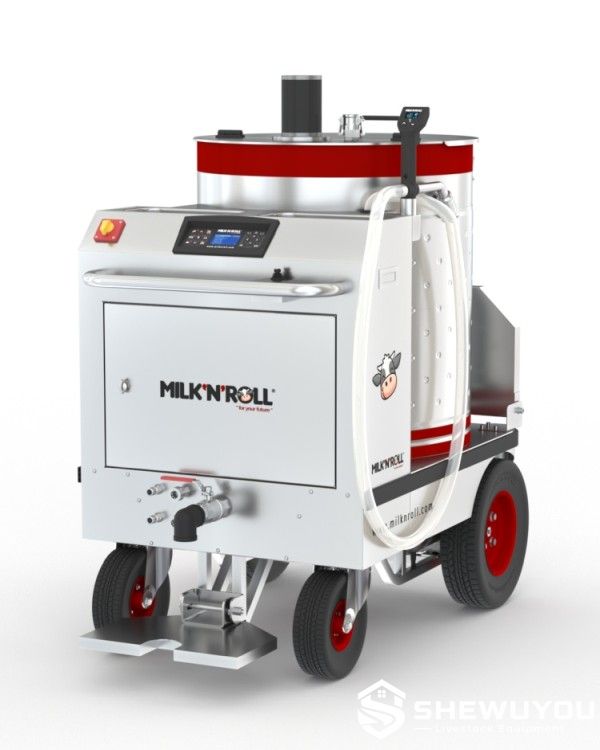

Powered Multi-Function Calf Feeding Trolley

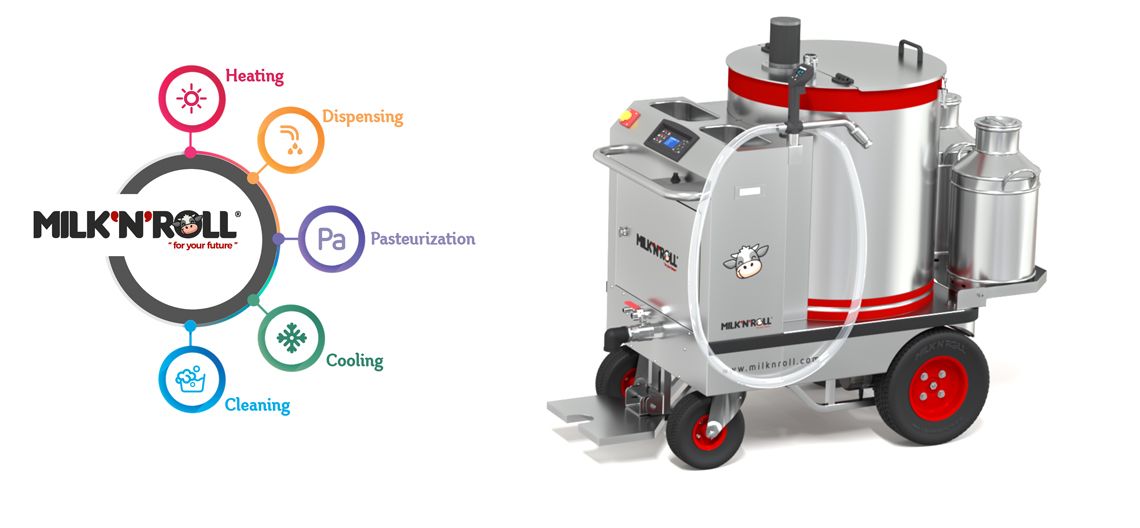

• All-in-one platform for milk preparation, heating, transportation, dispensing and cleaning.
• Milk pasteurization and cooling functions available on applicable configurations.
• Powered drive reduces physical effort when transporting large quantities of liquid feed.
• Two independent electric drive motors support controlled maneuvering around the farm.

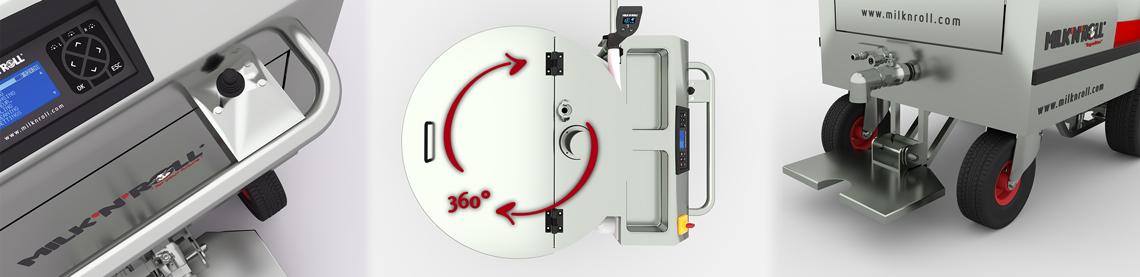

• Joystick-controlled configuration provides up to 360° maneuverability.
• Compact design can operate through passages approximately 80 cm wide in the referenced configuration.
• Four-wheel chassis with a balanced center of gravity provides stable movement.
• Large wheels and increased ground clearance support operation on typical farm surfaces.
• Adaptive agitator provides high-speed milk-replacer mixing and gentle low-speed whole-milk agitation.

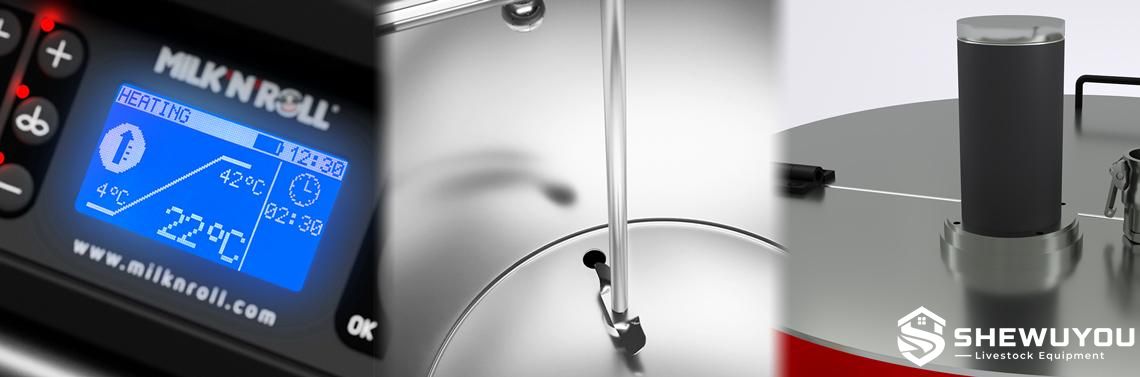

• Bottom-distributed heating technology helps reduce localized overheating of milk.

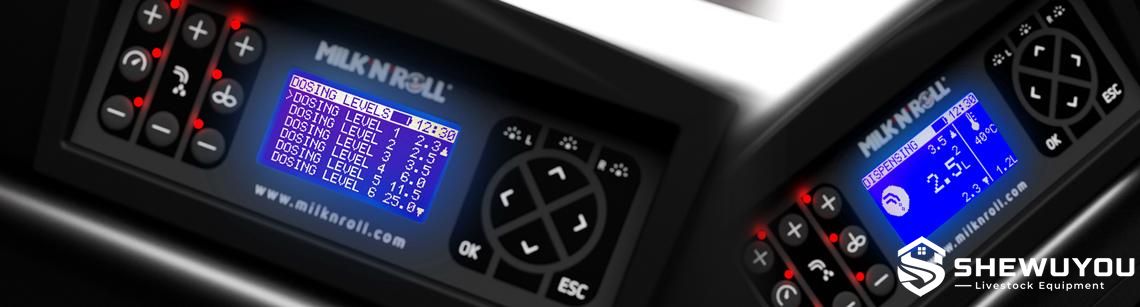

• Programmable dosing system can store multiple milk portions for different calf groups.
• Smart dispensing handle provides convenient feeding control away from the trolley.
• Semi-automatic cleaning program circulates cleaning water through the pump and hose system.
• High-grade stainless steel surfaces support durability and hygienic maintenance.

• Stainless Steel Milk Tank: Main vessel for whole milk, water and prepared liquid milk replacer.
• Wide Tank Lid: Provides convenient access for filling, inspection and manual cleaning.
• Adaptive Agitator: Top-mounted mixing system with operating modes suited to milk replacer and whole milk.
• Heating System: Distributed heating surface supports controlled temperature increase without a conventional immersion element.
• Dispensing Pump: Transfers prepared liquid feed from the tank through the hose circuit.
• Programmable Dosing Controller: Controls predefined feeding quantities for different calf groups.

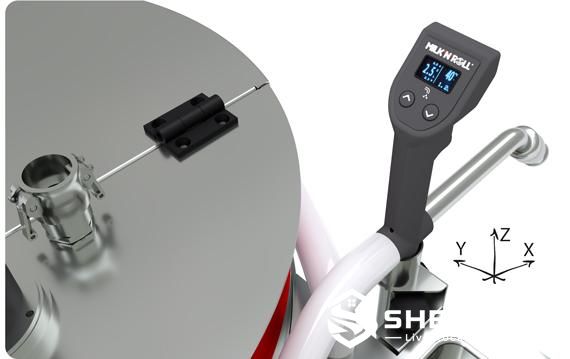

• Smart Dispensing Handle: Includes operator controls and display functions for convenient portion delivery.
• Swivel Support Arm: Adjusts dispensing-handle position, height and reach.
• Electric Drive Motors: Provide powered movement and maneuverability.
• Four-Wheel Chassis: Supports stable transport across livestock-farm operating areas.
• Parking System: Helps secure the trolley when stationary, including on suitable sloped surfaces.
• Electronic Control Panel: Manages milk preparation, temperature, dosing and cleaning functions.

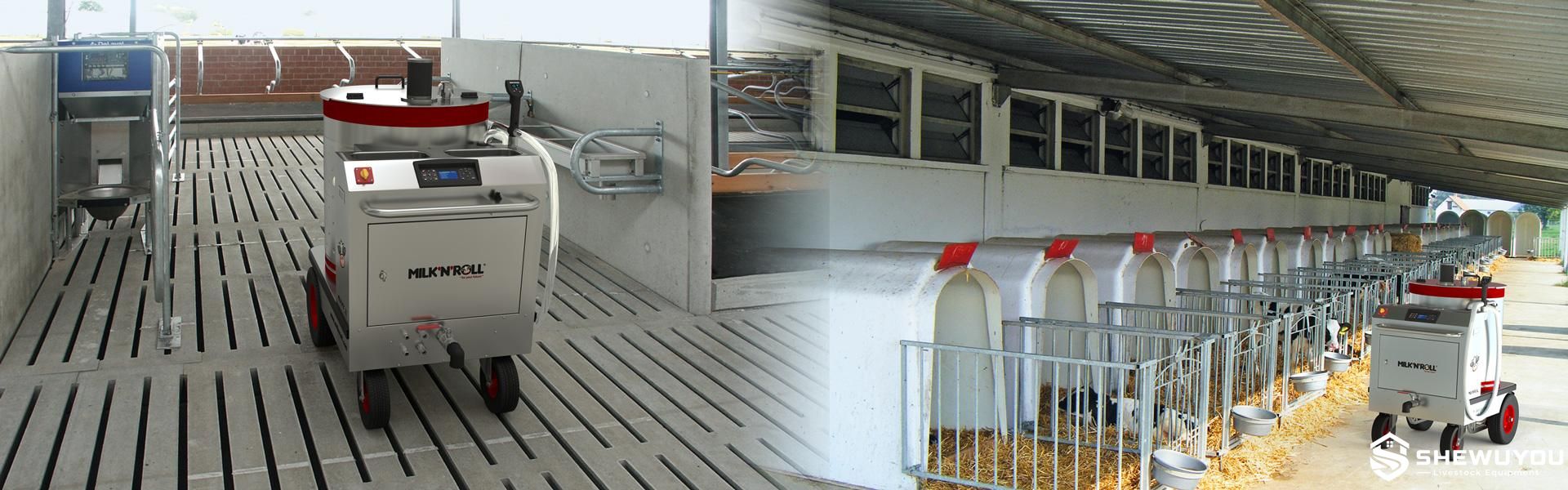

• Commercial dairy calf-rearing facilities.
• Individual outdoor calf hutches and igloos.
• Pair-housing and small-group calf pens.
• Replacement-heifer nursery barns.
• Whole-milk feeding programs.
• Milk-replacer preparation and distribution.
• Pasteurized calf-milk feeding programs with applicable configuration.
• Large calf facilities with long feeding routes.
• Farm projects focused on reducing repetitive milk handling and manual labor.

• Tank Capacity: Customizable according to calf numbers and daily milk demand.
• Drive Configuration: Simple powered drive or advanced maneuvering configuration available.
• Pasteurization: Available upon request.
• Cooling: Available with applicable pasteurization configuration.
• Heating Capacity: Selected according to tank size and electrical supply.
• Feeding Programs: Programmable dosing according to calf groups and feeding plans.
• Electrical Supply: Configurable according to destination-country standards.
• Dispensing Accessories: Hose, handle and supporting arm configurations available according to project requirements.
• Farm Integration: Designed according to calf housing layout, feeding routes and daily workload.
• Environmental Adaptation: Designed according to local climate and farm conditions.

• No permanent structural installation is normally required for the mobile trolley.
• Provide a suitable electrical supply in the milk-preparation and cleaning area.
• Verify that barn passages and doors provide sufficient clearance for the selected configuration.
• Inspect tires, drive components, parking brake and emergency controls before operation.
• Clean the tank, agitator, pump, hose and dispensing handle after each feeding cycle.
• Run the semi-automatic cleaning program according to the farm sanitation schedule.
• Use supplementary manual brushing where required for complete hygiene.
• Inspect milk-contact seals, hoses and pump components regularly.
• Keep electronic and drive components protected during high-pressure washing.
• Check dispensing accuracy periodically when precise calf-group dosing is required.
• Service batteries, drive motors and electrical components according to the maintenance schedule.

Q: What functions can the calf feeding trolley perform?
A: It can prepare milk replacer, heat liquid feed, transport milk, dispense programmed portions and assist cleaning. Pasteurization and cooling are available on selected configurations.

Q: Can it handle both whole milk and milk replacer?
A: Yes. The adaptive agitator uses different mixing modes for gentle whole-milk circulation and more intensive milk-replacer preparation.

Q: Is the trolley self-propelled?
A: Powered drive configurations use electric motors to reduce the effort required to move the trolley around the farm.

Q: Can it maneuver in narrow calf barns?
A: Yes. The referenced compact configuration can pass through passages approximately 80 cm wide, subject to the actual machine specification and site layout.

Q: Can different feeding portions be programmed?
A: Yes. The referenced control system stores up to nine dosage levels, allowing different portions to be assigned to different calf groups.

Q: Does milk flow stop automatically?
A: Yes. In programmable dosing mode, the system stops delivery after the selected quantity has been dispensed.

Q: Is milk pasteurization available?
A: Yes. Pasteurization and subsequent cooling can be provided on applicable configurations.

Q: Does the trolley include an automatic cleaning system?
A: It includes a semi-automatic cleaning program that circulates cleaning water through milk-contact components such as the pump and hoses.

Q: Can the system be customized for an overseas dairy project?
A: Yes. Tank capacity, drive configuration, heating, pasteurization, electrical supply and dispensing options can be selected according to project requirements.
