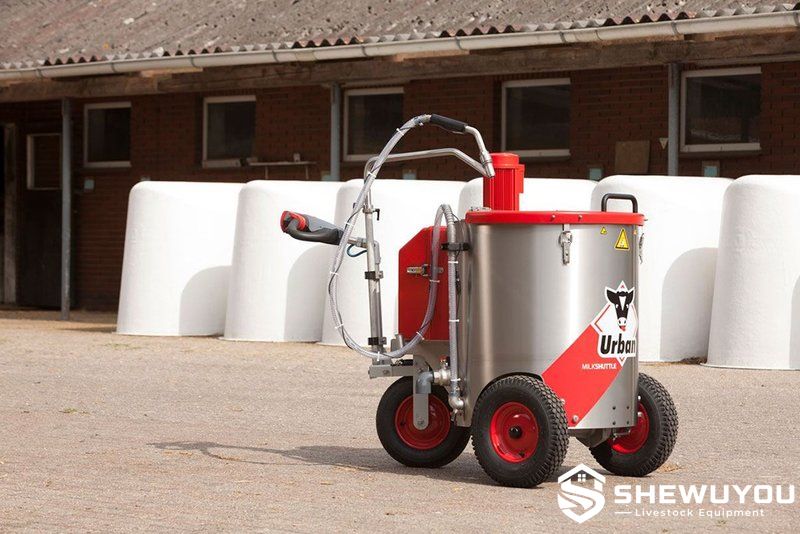

100–350L Three-Wheel Calf Milk Shuttle

• Available in 100 L, 150 L, 200 L, 250 L and 350 L tank capacities.
• Three-wheel chassis provides a small turning circle and high maneuverability.
• Puncture-resistant tires support dependable operation on typical farm surfaces.
• Optional powered chassis reduces physical effort during milk transportation.
• Two-speed agitator supports both whole-milk handling and milk-replacer preparation.
• Slow-speed mixing assists gentle heating of whole milk.
• Higher-speed mixing helps dissolve milk powder and reduce clumping.
• Integrated heating system brings liquid feed to the required feeding temperature.
• Precise metering supports consistent individual calf portions.
• Three preset dosing quantities simplify repetitive feeding routines.
• Internal measuring scale assists water and milk-volume control.
• Mixing information integrated into the lid assists milk-powder preparation.
• Semi-automatic rinsing program simplifies routine cleaning.
• Drain valve allows convenient emptying after feeding and cleaning.

• Milk Tank: Insulated or heated liquid-feed container sized according to the selected model.
• Two-Speed Agitator: Mixes whole milk or milk replacer according to the required preparation method.
• Heating System: Supports controlled warming of liquid calf feed before distribution.
• Dispensing Pump: Transfers prepared milk from the tank to the dosing system.
• Dosing Nozzle: Hand-operated delivery point for filling calf buckets or teat feeders.
• Metering System: Supports repeatable portion dispensing during feeding rounds.
• Control Panel: Provides access to heating, mixing, dosing and cleaning functions.
• Three-Wheel Chassis: Provides maneuverability and reliable wheel contact on uneven surfaces.
• Drive System: Powered chassis available depending on the selected configuration.
• Drain Valve: Enables complete drainage after feeding or cleaning.

• Commercial dairy calf-rearing facilities.
• Individual outdoor calf hutches.
• Pair-housing and small-group calf pens.
• Replacement-heifer nursery barns.
• Whole-milk feeding programs.
• Milk-replacer preparation and distribution.
• Calf facilities with long or uneven feeding routes.
• Farms seeking to reduce bucket carrying and repetitive manual work.
• Small, medium and large calf-rearing operations requiring different tank capacities.

• Tank Capacity: 100 L, 150 L, 200 L, 250 L or 350 L.
• Drive Configuration: Powered chassis available according to project requirements.
• Dosing Configuration: Feeding portions can be configured according to calf-management requirements.
• Heating Configuration: Selected according to tank size and feeding process.
• Pasteurization: Available for selected models upon request.
• Electrical Supply: Configurable according to destination-country standards.
• Feeding Accessories: Hose, nozzle and associated calf-feeding accessories available according to project requirements.
• Farm Integration: Selected according to calf numbers, barn layout and daily feeding routes.
• Environmental Adaptation: Designed according to local climate and farm conditions.

• No permanent structural installation is normally required for the mobile unit.
• Provide a suitable electrical connection in the milk-preparation and cleaning area.
• Confirm that doors, aisles and feeding routes provide sufficient clearance for the selected tank size.
• Check tires, drive components and safety controls before daily operation.
• Clean the milk tank, agitator, dosing hose and nozzle after each feeding cycle.
• Use the integrated rinsing program according to the required cleaning schedule.
• Set rinsing time and water temperature according to the farm hygiene program.
• Drain residual cleaning water completely through the drain valve.
• Inspect milk-contact seals, hoses and dispensing components regularly.
• Keep electrical controls and charging components protected during washing.
• Service powered drive and heating components according to the maintenance schedule.

Q: What tank capacities are available?
A: The system is available in 100 L, 150 L, 200 L, 250 L and 350 L configurations.

Q: Can the same milk shuttle handle both whole milk and milk replacer?
A: Yes. The two-speed agitator supports gentle whole-milk handling as well as higher-speed milk-replacer preparation.

Q: Does the machine heat milk?
A: Yes. An integrated heating system brings liquid feed to the required feeding temperature.

Q: Why does the milk shuttle use three wheels?
A: The three-wheel arrangement provides excellent maneuverability, reliable wheel contact and a small turning circle for operation around calf barns and farmyards.

Q: Are the tires puncture resistant?
A: Yes. The reference system uses puncture-resistant tires designed to minimize routine tire maintenance.

Q: Can feeding portions be controlled?
A: Yes. The dosing system provides preset dispensing quantities for repeatable individual calf feeding.

Q: Is an electric drive available?
A: Yes. Depending on the selected configuration, a powered chassis can assist movement around the farm.

Q: Does the system have a cleaning function?
A: Yes. An integrated semi-automatic rinsing program assists routine cleaning, with adjustable cleaning duration and water temperature.

Q: Can the milk shuttle be configured for an overseas dairy project?
A: Yes. Capacity, electrical specification, drive configuration, feeding accessories and other options can be selected according to project requirements.
