Product Showcase	Content
Product Name	340L ATV-Towed Calf Milk Cart with Mixer & Pump
Product Image
Product Overview	The 340L ATV-Towed Calf Milk Cart with Mixer & Pump is a high-capacity mobile calf-feeding solution designed for transporting, mixing and dispensing whole milk or calf milk replacer across commercial dairy farms and large calf-rearing facilities. The towable chassis connects to a suitable ATV or quad bike, allowing one operator to move up to 340 liters of prepared liquid feed efficiently between the milk preparation room, individual calf hutches and group calf barns. An electric mixer maintains a homogeneous milk-replacer blend, while the rechargeable dispensing pump, hose, nozzle and digital flow meter support fast and controlled filling of individual calf buckets or other feeding containers.
Key Features	340L High Capacity: Suitable for transporting bulk quantities of whole milk or prepared calf milk replacer during large feeding rounds. ATV-Towed Design: Trailer configuration allows efficient milk transport over longer distances around dairy farms and calf-rearing sites. Electric Mixing: The motorized mixer produces continuous liquid circulation to help maintain a uniform calf milk ration. Reduced Separation & Foaming: Controlled mixing helps minimize nutrient settling and excessive foam during milk-replacer preparation. Rechargeable Milk Pump: A dedicated 12 V pumping system supports rapid milk dispensing without relying on gravity alone. Digital Flow Meter: Hand-held metering allows the operator to monitor and control the amount delivered to individual calves or feeding points. Dispensing Nozzle & Hose: Flexible hose and hand nozzle simplify bucket filling along calf-hutch rows. Heavy-Duty Road Wheels: Two 4-ply wheels provide stable towing on common farm tracks and uneven livestock-yard surfaces. Jockey Wheel: Supports convenient parking, positioning and hitch connection when the milk cart is detached from the towing vehicle. Secure Tank Lid: A large lid helps reduce contamination and milk spillage during transportation.

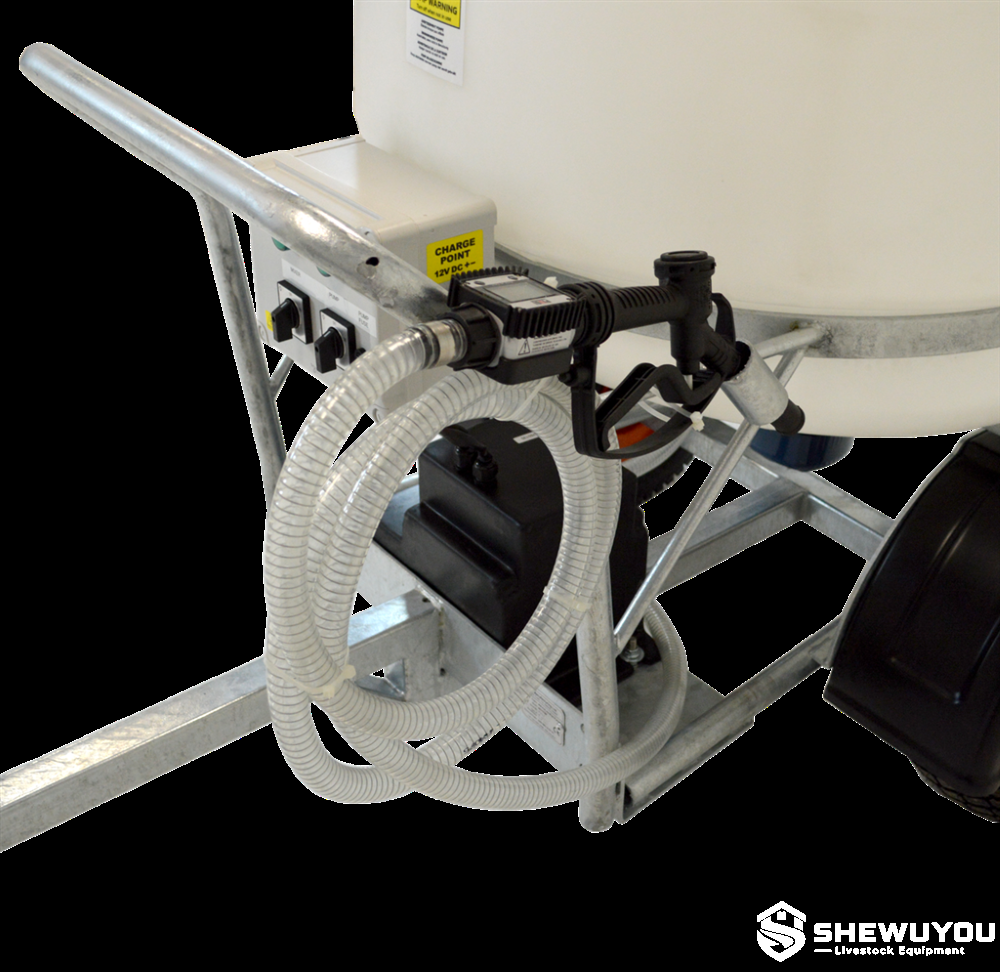

Structural Components	340L molded milk tank Heavy-duty galvanized trailer frame ATV / quad towing hitch Adjustable jockey wheel Two heavy-duty road wheels Electric milk-replacer mixer Electrical mixer control box 12 V centrifugal dispensing pump Rechargeable battery and protective housing Digital milk flow meter Flexible dispensing hose Hand-held dispensing nozzle Large milk outlet valve Hinged tank lid Wheel mudguards

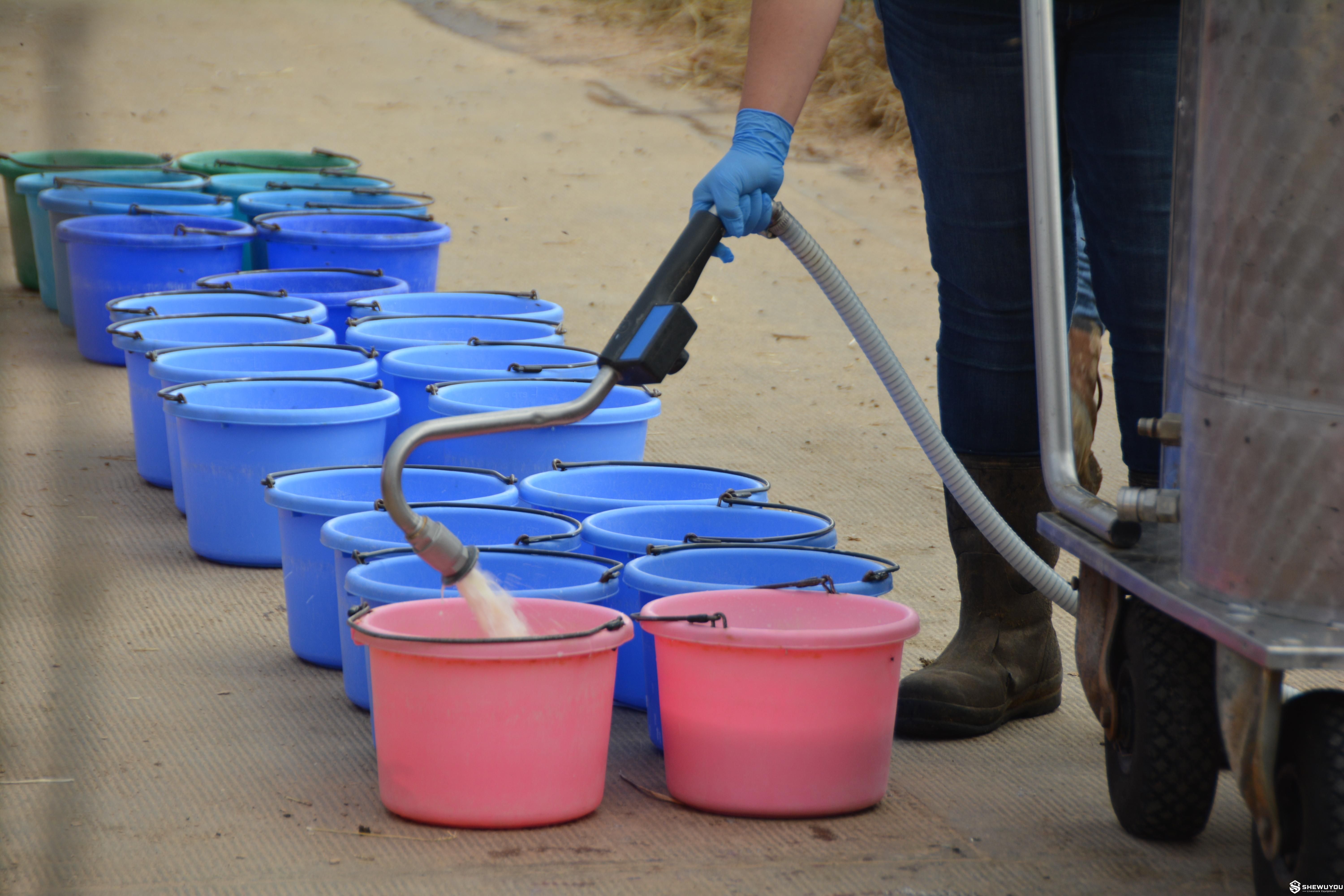

Working Principle	Milk Preparation: Whole milk or the required quantity of warm water is added to the tank. Milk replacer can then be introduced according to the farm's feeding formula. Electric Mixing: The electric mixer circulates the liquid and disperses milk-replacer powder to produce a consistent feeding mixture. Farm Transport: After preparation, the lid is secured and the cart is connected to a compatible ATV or quad bike for transport to calf-rearing areas. Precision Dispensing: The rechargeable pump transfers milk through the hose and dispensing nozzle. The digital flow meter helps the operator control the quantity delivered at each feeding point. Cleaning: After the feeding round, residual milk is drained and the tank, outlet, pump circuit, hose and nozzle are cleaned according to the farm's calf-feeding hygiene protocol.
Technical Specifications	Product Type ATV-towed calf milk cart with mixer and pump Reference Configuration A-MK340MP3 type Tank Capacity 340 L Reference Dimensions 1970 × 1050 × 1271 mm Reference Net Weight 122 kg Towing Method ATV / quad bike Mixer Type Electric motorized milk mixer Reference Mixer Power 0.55 kW Reference Mixer Voltage 220 V AC Pump Type Rechargeable centrifugal milk pump Pump Voltage 12 V DC on referenced configuration Reference Dispensing Rate Up to approximately 27 L/min on the referenced product configuration Reference Battery 12 V, 42 Ah Flow Measurement Hand-held digital flow meter Reference Hose 3 m × 3/4 in Main Outlet 1.5 in outlet valve Reference Lid Opening 455 mm Wheel Configuration Two 4-ply heavy-duty road wheels Support Wheel Jockey wheel Certification CE-certified reference configuration

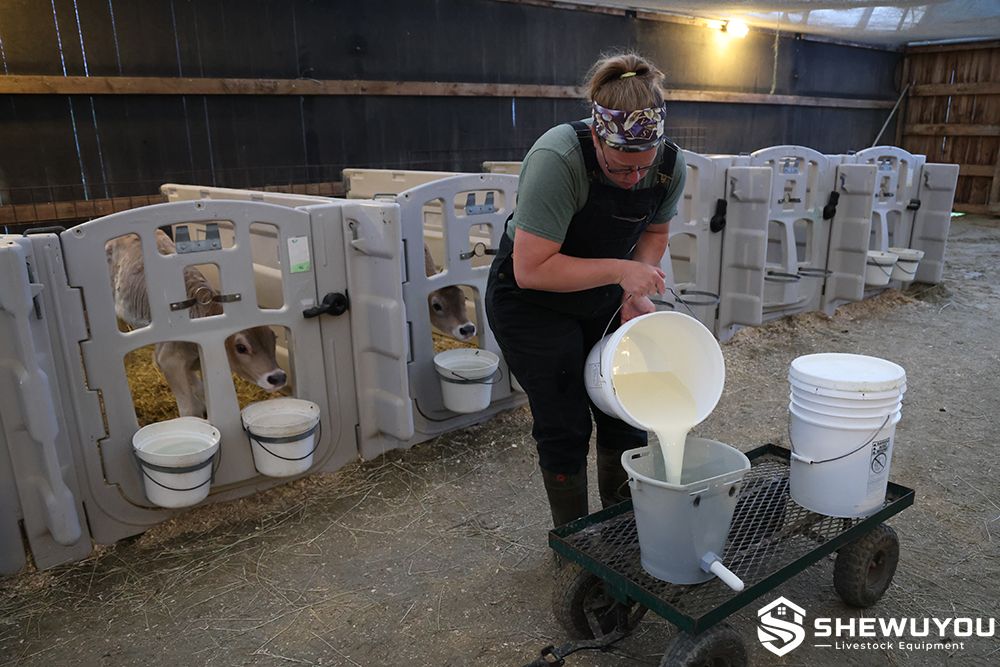

Applications	Commercial dairy farms Large calf-rearing centers Individual calf hutch feeding routes Group calf barns Replacement-heifer facilities Whole-milk transportation Calf milk-replacer preparation and distribution Long-distance farm feeding routes Outdoor calf-rearing areas Farm modernization and labor-saving projects
Customization Options	Tank capacity Electrical voltage and plug specification Electric mixer configuration Pump capacity and battery configuration Milk hose length Digital flow-meter configuration Dispensing nozzle arrangement Towing hitch specification Wheel and tyre configuration Optional milk-heating equipment Customizable according to project requirements Designed according to local climate and farm conditions
Installation & Maintenance	The milk cart requires no permanent farm installation. Confirm that the towing hitch is compatible with the selected ATV or quad bike and that the towing vehicle is suitable for the fully loaded cart and local ground conditions. Use the jockey wheel when connecting, disconnecting or parking the unit. Before each feeding round, inspect the hitch, tyres, wheel bearings, milk hose, nozzle, battery condition and electrical controls. The electric mixer should only be operated with the appropriate electrical supply and with sufficient liquid in the tank. Disconnect electrical power before cleaning or servicing the mixer. After feeding, drain residual milk and thoroughly rinse the tank, pump, flow meter, hose, outlet valve and dispensing nozzle. Carry out scheduled detergent cleaning using products suitable for dairy feeding equipment.
Product FAQ	Q: Why choose an ATV-towed milk cart instead of a hand-pushed milk trolley? A: The larger 340L capacity and towable chassis are better suited to farms with long feeding routes, larger calf populations or widely separated calf-housing areas. Q: Can the cart handle both whole milk and milk replacer? A: Yes. It can transport whole milk and can also mix and distribute appropriately prepared calf milk replacer. Q: Does the cart include both a mixer and a pump? A: Yes. The referenced configuration combines an electric mixer with a rechargeable milk-dispensing pump. Q: Can the operator control the amount delivered to each calf? A: Yes. A digital flow meter and hand-held dispensing nozzle help the operator monitor and control milk delivery. Q: Can it travel on uneven farm surfaces? A: The heavy-duty 4-ply wheels are designed for normal farm tracks and uneven livestock-yard conditions, subject to safe towing practices. Q: Can heating equipment be added? A: Compatible milk-heating options can be supplied according to project requirements.
