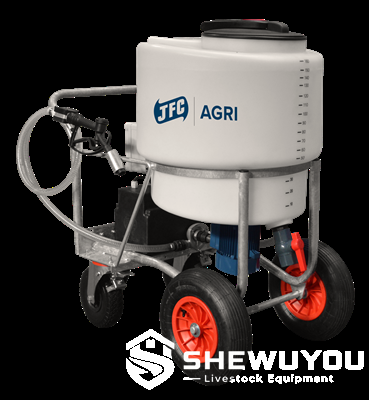

170L Calf Milk Cart with Mixer & Pump

• 170-liter tank for whole milk or prepared milk replacer.
• Integrated electric mixer reduces manual milk-replacer preparation.
• Vortex-type mixing action promotes a smooth and consistent milk-replacer blend.
• High-output pump provides fast milk dispensing during calf-feeding rounds.
• Flexible hose and dispensing nozzle allow milk to be delivered directly into calf feeders.
• Digital flow meter supports controlled milk dispensing.
• Battery-powered pump allows mobile dispensing away from a fixed electrical supply.
• Pump and battery are protected within a dedicated housing mounted to the cart frame.
• Braked swivel caster wheels provide good maneuverability and stable parking.
• Large non-corrosive front wheels support operation on typical dairy-farm surfaces.
• Secure lid helps reduce milk spillage and external contamination during transport.
• Suitable for farms seeking to reduce manual bucket lifting and calf-feeding labor.

• 170L Milk Tank: Large-capacity tank for whole milk or liquid milk replacer.
• Motorized Mixer: Electric mixing assembly positioned beneath the tank for direct milk-replacer preparation.
• Centrifugal Pump: Battery-powered pump transfers milk from the tank to the dispensing hose.
• Digital Flow Meter: Measures milk flow during dispensing.
• Dispensing Hose: Flexible hose enables convenient feeding at individual calf pens or hutches.
• Dispensing Nozzle: Hand-operated nozzle allows controlled delivery at each feeding point.
• Battery System: Provides independent power for mobile pump operation.
• Electrical Control Box: Provides mixer and pump operating controls.
• Protective Pump Housing: Shields the pump and battery from routine farm contact.
• Galvanized Frame: Supports the tank, drive components and mobile chassis.
• Wheel System: Large front wheels and braked rear swivel casters provide mobility and directional control.

• Commercial dairy calf-rearing facilities.
• Individual calf hutches and outdoor calf-housing rows.
• Pair and small-group calf housing.
• Replacement-heifer nursery barns.
• Whole-milk transportation and distribution.
• On-cart milk-replacer preparation and dispensing.
• Large calf groups requiring several feeding points per round.
• Dairy farms seeking to reduce manual bucket transport and lifting.
• Livestock equipment distributors and integrated dairy-farm projects.

• Tank Capacity: Alternative capacities available according to project requirements.
• Mixer Configuration: Customizable according to milk-replacer preparation requirements.
• Pump Configuration: Flow and dispensing arrangement available upon request.
• Battery Configuration: Selected according to daily feeding workload.
• Electrical Specification: Configurable according to destination-country requirements.
• Dispensing Hose: Length and accessories available according to project requirements.
• Flow Meter: Digital dispensing measurement options available.
• Wheel Configuration: Selected according to barn floor and operating conditions.
• Project Adaptation: Designed according to calf numbers, feeding routes and farm conditions.

• No permanent structural installation is normally required for the mobile cart.
• Use the mixer only with the specified electrical supply and suitable protected outlet.
• Charge the pump battery according to the recommended charging procedure.
• Check pump, hose, flow meter and nozzle connections before each feeding cycle.
• Clean the tank and all milk-contact components immediately after feeding.
• Flush the pump, hose and nozzle thoroughly to prevent milk residue buildup.
• Inspect the mixer shaft and agitator regularly for cleanliness and secure fastening.
• Keep electrical components and battery housing protected during washing.
• Inspect wheels, swivel casters and brakes periodically.
• Recalibrate or verify the flow meter when accurate portion control is required.
• Allow cleaned components to drain and dry before the next feeding cycle.

Q: What is the tank capacity?
A: The reference mixer-and-pump model has a 170-liter milk tank.

Q: Can milk replacer be mixed directly in the cart?
A: Yes. The integrated electric mixer is designed for preparing liquid milk replacer directly inside the tank.

Q: How fast can the pump dispense milk?
A: The referenced pump delivers up to approximately 36 liters per minute.

Q: Does the pump require a mains power connection during feeding?
A: No. The pump operates from an onboard 12 V battery, allowing mobile dispensing around the calf-rearing area.

Q: How is the dispensing quantity controlled?
A: Milk is delivered through a hose and nozzle, with a digital flow meter providing dispensing information.

Q: Can the cart transport whole milk?
A: Yes. It can be used for both whole milk and properly prepared liquid milk replacer.

Q: Is the machine suitable for large calf groups?
A: Yes. The 170-liter tank and high-flow pump are designed to improve feeding efficiency where many calves must be served during each round.

Q: Can SHEWUYOU configure other milk-cart versions?
A: Yes. Capacity, mixer, pump, electrical specification, dispensing equipment and other options can be configured according to project requirements.
