Product Name	500–3000L Electric Calf Milk Feeding Vehicle
Product Image

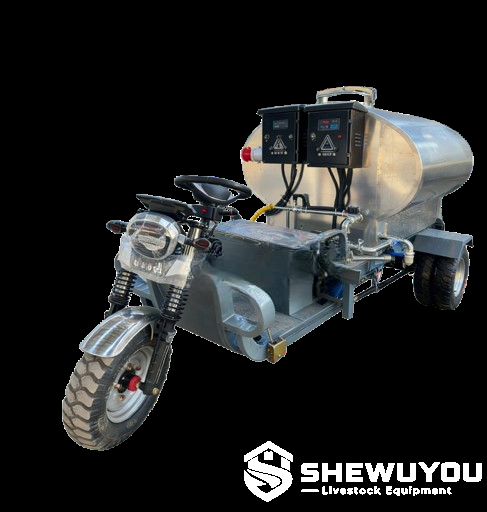

Product Overview	The 500–3000L Electric Calf Milk Feeding Vehicle is a high-capacity mobile feeding solution designed for efficient milk preparation, transport and distribution across commercial dairy farms and centralized calf-rearing facilities. The system combines an electric mobile chassis with an insulated stainless steel milk tank, mixing equipment and a controlled dispensing system. Available reference capacities from 500 to 3000 liters allow the vehicle to serve different herd sizes, from medium-scale calf units to large dairy operations with multiple calf barns. Electric propulsion provides quiet operation and eliminates local engine exhaust inside livestock buildings. The mobile platform can move prepared whole milk, milk replacer or other approved liquid calf diets from the preparation area directly to individual pens, calf hutches or group feeding areas.
Key Features	Available in reference capacities from 500 to 3000 liters for different calf-rearing scales. Electric mobile chassis supports quiet, low-emission operation around livestock buildings. Food-contact stainless steel tank construction supports hygienic milk handling. Insulated tank structure helps maintain suitable milk temperature during feeding rounds. Integrated mixing system keeps milk replacer and liquid feed uniformly blended. Quantitative dispensing system supports consistent feeding volumes for individual calves or groups. Optional weighing system assists with milk loading and ration-control management. Digital temperature monitoring is available according to configuration. Automatic or semi-automatic cleaning systems can reduce sanitation labor. Optional intelligent controls can record operational and feeding-related data. Large-capacity models reduce repeated refill trips on commercial dairy farms. Multiple tank, battery and chassis configurations are available according to project requirements.
Structural Components	Electric Vehicle Chassis: Provides mobile transport between milk preparation areas and calf feeding locations. Stainless Steel Milk Tank: Stores prepared whole milk or milk replacer during transport and feeding. Insulation Layer: Polyurethane or equivalent insulation can reduce temperature loss during extended feeding rounds. Agitation System: Motor-driven mixing blades help maintain uniform concentration and minimize sedimentation. Milk Pump: Transfers liquid feed from the tank to the dispensing line. Quantitative Dispensing Gun: Delivers preset or measured portions to individual feeding buckets or troughs. Weighing Sensors: Available on compatible configurations for monitoring milk quantity. Temperature Display: Provides real-time monitoring of liquid temperature according to selected control package. Cleaning Spray System: Optional internal spray head supports Clean-In-Place sanitation. Control Panel: Manages mixing, pumping, feeding, cleaning and other automated functions. Rechargeable Battery System: Powers vehicle movement and electrical operating functions.
Working Principle	Whole milk, prepared milk replacer or another approved liquid calf ration is loaded into the stainless steel tank. The mixing system circulates and agitates the liquid to maintain an even concentration throughout the batch. Depending on configuration, the system can monitor tank weight and milk temperature before the feeding round begins. Optional heating or pasteurization equipment can be integrated where required by the farm feeding program. The operator then drives the electric vehicle along the calf housing route. At each individual pen, hutch or group feeding station, the milk pump transfers liquid through the delivery hose to the quantitative dispensing gun. The required portion is dispensed directly into the feeding bucket, trough or compatible feeding system. After feeding is completed, the tank, pump, pipelines and dispensing components are cleaned according to the farm sanitation program. Compatible configurations can use an integrated spray-cleaning or CIP cycle.
Technical Specifications	Product Type Electric Mobile Calf Milk Feeding Vehicle Reference Tank Capacity 500–3000 L Tank Material Food-Contact Stainless Steel / 304 Stainless Steel on Reference Configurations Tank Construction Double-Layer Insulated Tank Available Insulation Polyurethane Insulation on Reference Configurations Drive Type Battery Electric Mixing System Motorized Agitation / Mixing Quantitative Feeding Available Weighing System Available according to Configuration Temperature Monitoring Available according to Configuration Automatic Cleaning Available upon Request Pasteurization Available upon Request Data / Cloud Functions Available upon Request Reference Model DNC-500L DNC-01T DNC-02T DNC-03T Tank Capacity 500 L 1000 L 2000 L 3000 L Reference Dimensions 2500 × 1150 × 1200 mm 3700 × 1850 × 1300 mm 4300 × 1500 × 1850 mm 4600 × 1600 × 2300 mm Reference Rated Load 1000 kg 2000 kg 2500 kg 3000 kg Reference Range 80 km 80 km 100 km 100 km Reference Drive Power 2 kW 4 kW 5 kW 7.5 kW Reference Battery 60 V / 120 Ah 60 V / 140 Ah 72 V / 220 Ah 72 V / 220 Ah Reference Speed 0–25 km/h 0–30 km/h 0–30 km/h 0–30 km/h
Applications	Commercial dairy cattle farms. Large-scale calf-rearing centers. Individual calf pens and outdoor calf hutches. Group calf housing and automated calf-management areas. Whole-milk and milk-replacer feeding programs. Replacement-heifer development facilities. Steel-structure dairy barns with long feeding lanes. Multi-building farms requiring mobile milk distribution. Livestock engineering and turnkey dairy farm projects.
Customization Options	Tank capacity can be selected according to calf numbers, daily milk requirement, feeding frequency and transport distance. Available project options may include insulated 304 stainless steel tanks, milk-replacer mixing systems, weighing sensors, quantitative dosing guns, temperature monitoring, automatic cleaning, pasteurization, acidified-milk preparation, remote data functions and alternative tire configurations. Battery capacity, motor power, electrical charging interface, vehicle dimensions, tank configuration and control system can be customized according to project requirements.
Installation & Maintenance	The vehicle is supplied as an integrated mobile feeding unit and normally requires no fixed installation inside the calf barn. Provide a dry, ventilated charging location with an electrical supply compatible with the selected charger. Confirm barn aisle width, turning radius, floor slope and doorway clearance before selecting vehicle capacity. Calibrate weighing and quantitative dispensing equipment during commissioning where fitted. Clean and sanitize the milk tank, pump, hoses and dispensing gun after feeding according to farm hygiene procedures. Operate the automatic cleaning cycle regularly on configurations equipped with CIP. Inspect the agitator, pump and valves for milk residue or abnormal wear. Check battery condition, charger connections and electrical cables routinely. Inspect tires, steering, brakes and chassis fasteners as part of preventive maintenance. Protect electronic displays and electrical connectors during high-pressure washing. Verify dispensing accuracy periodically to maintain consistent milk portions.
Product FAQ	Q: What capacities are available? A: Reference models are available in 500, 1000, 2000 and 3000 liter configurations. Q: What types of liquid feed can be handled? A: The vehicle is suitable for whole milk and properly prepared calf milk replacer. Acidified-milk or pasteurized-milk configurations are available according to the selected system. Q: Can the vehicle dispense a preset quantity for each calf? A: Yes. Compatible configurations use a quantitative dispensing system to deliver controlled portions through the milk gun. Q: How is milk kept uniform during transport? A: A motor-driven agitator continuously or periodically mixes the liquid to reduce separation and sedimentation. Q: Is the tank insulated? A: Double-layer stainless steel tanks with polyurethane insulation are available to help maintain feeding temperature during distribution. Q: Can an automatic cleaning system be supplied? A: Yes. Compatible models can be equipped with internal spray cleaning and circulation-based CIP functions. Q: Is pasteurization available? A: Pasteurization equipment can be integrated according to the farm's milk-management program and project requirements. Q: Can feeding data be recorded or uploaded? A: Intelligent control and remote data functions are available on selected configurations. Q: Which capacity should a large dairy farm choose? A: Selection should be based on calf numbers, milk volume per feeding round, feeding frequency, travel distance and barn layout. Larger 2000–3000 L models are generally intended for high-volume feeding routes. Q: Can the vehicle be customized for different countries? A: Yes. Capacity, battery system, charging interface, tank equipment and control functions can be configured according to project requirements.
Product Gallery
