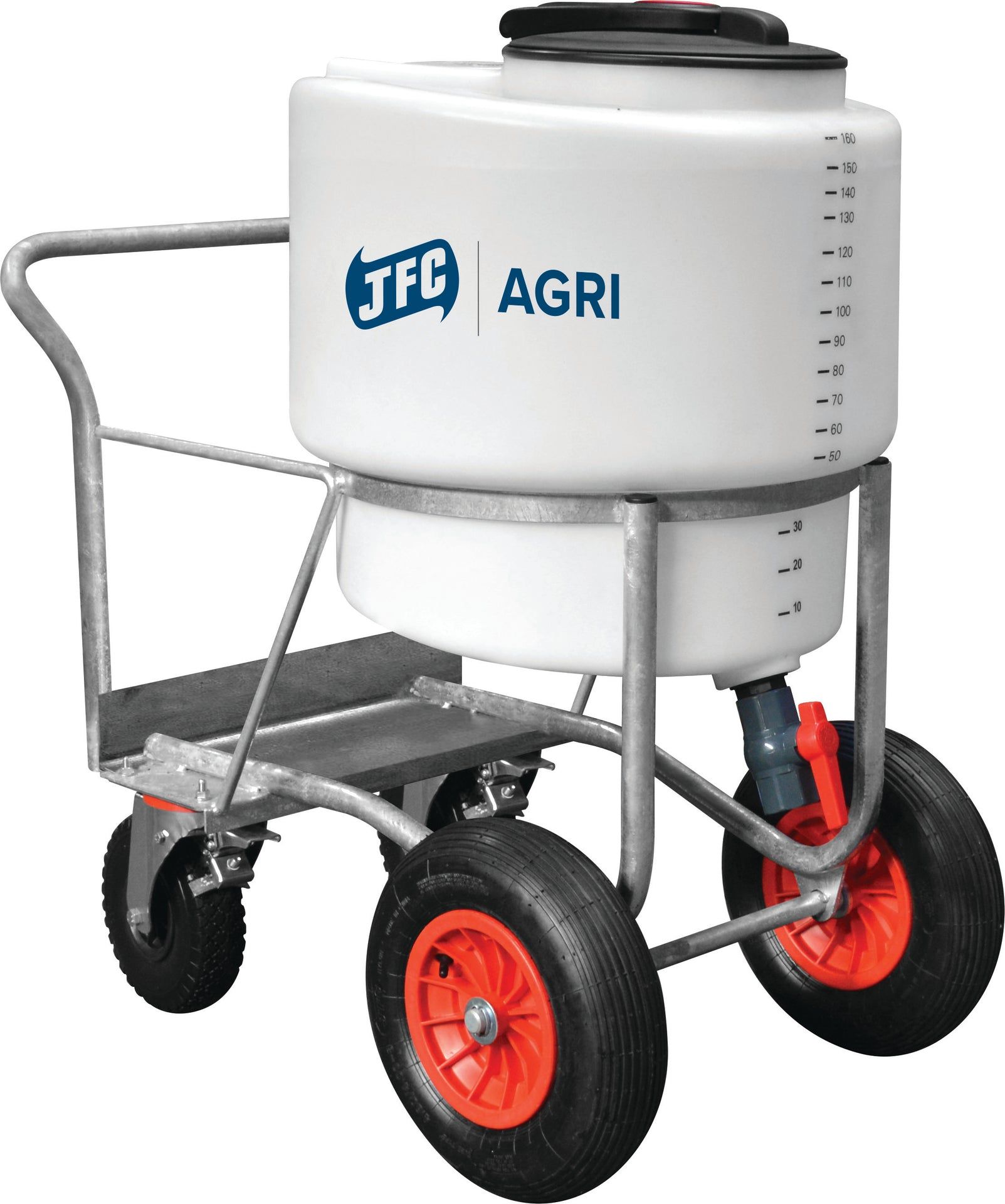

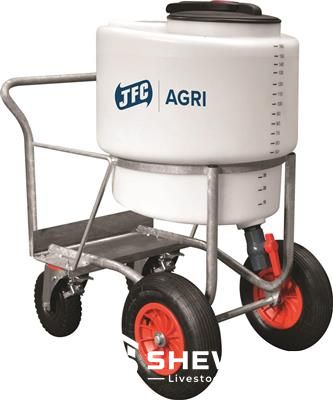

170L Manual Calf Milk Cart

• 170-liter tank for transporting bulk quantities of whole milk or liquid milk replacer.
• Manual configuration requires no onboard electric dispensing pump.
• 1.5-inch lever valve provides controlled milk discharge.
• Twist-on lid helps reduce accidental spillage and external contamination during transport.
• Braked swivel caster wheels improve maneuverability in calf barns and feeding passages.
• Large non-corrosive plastic-rimmed front wheels are suitable for typical farm surfaces.
• Galvanized support frame provides a durable mobile platform for routine dairy-farm use.
• Large handle allows convenient manual pushing and directional control.
• Suitable for farms feeding multiple calves from a centralized milk preparation area.
• Simple mechanical design reduces routine maintenance requirements.

• 170L Milk Tank: Large-capacity molded container for whole milk or prepared liquid milk replacer.
• Tank Lid: Secure top closure helps protect the contents during movement around the farm.
• Graduation Markings: External level markings assist operators in monitoring approximate liquid volume.
• Outlet Valve: Manually operated valve controls milk discharge from the lower section of the tank.
• Support Frame: Metal chassis supports the filled tank and transfers the load to the wheel system.
• Front Wheels: Large plastic-rimmed wheels provide rolling capability over typical farm surfaces.
• Rear Swivel Casters: Braked caster wheels assist turning, positioning and parking.
• Push Handle: Integrated handle provides operator control during manual transportation.

• Commercial dairy calf-rearing facilities.
• Individual calf hutches and outdoor calf housing rows.
• Pair and small-group calf pens.
• Replacement-heifer nursery barns.
• Whole-milk transportation from dairy rooms to calf housing areas.
• Prepared liquid milk-replacer distribution.
• Farms replacing manual bucket-by-bucket milk transportation.
• Livestock equipment dealers and integrated dairy-farm projects.

• Tank Capacity: Alternative capacities available according to project requirements.
• Mixing System: Powered mixing configurations available upon request.
• Milk Pump: Electric dispensing pump configurations available upon request.
• Heating Equipment: Compatible milk-heating equipment can be selected according to feeding requirements.
• Wheel Configuration: Selected according to farm floor and operating conditions.
• Outlet Accessories: Hose and dispensing accessories available according to project requirements.
• Electrical Specification: Configurable for powered versions according to destination-country requirements.
• Project Configuration: Designed according to calf numbers, barn layout and feeding workflow.

• No permanent installation is normally required for the manual mobile cart.
• Check that all wheels rotate freely and that caster brakes operate correctly before use.
• Inspect the outlet valve and fittings regularly for leakage or damage.
• Clean the tank, lid, valve and milk-contact surfaces after each feeding cycle according to the farm hygiene program.
• Flush the lower outlet thoroughly to prevent milk residue from accumulating.
• Keep the lid closed during transportation to reduce contamination risk.
• Inspect wheel fasteners, chassis connections and push handle periodically.
• Lubricate appropriate moving chassis components according to maintenance requirements.
• Store the cart in a clean area when not in use.
• Allow cleaned milk-contact components to drain and dry before the next feeding cycle.

Q: What is the capacity of the manual calf milk cart?
A: The reference model has a nominal tank capacity of 170 liters.

Q: Can it transport both whole milk and milk replacer?
A: Yes. It is designed for transporting whole milk or previously prepared liquid milk replacer around the farm.

Q: Does the basic manual model have an electric pump?
A: No. The basic configuration uses a manually operated outlet valve and gravity dispensing. Pump-equipped versions can be supplied separately.

Q: Is a mixer included?
A: The basic manual model does not include a powered mixer. Mixer-equipped configurations are available for farms requiring onboard milk-replacer preparation.

Q: How is milk dispensed?
A: The operator controls milk flow through the lower 1.5-inch lever valve.

Q: Can the cart be used on uneven farm surfaces?
A: The large front wheels and swivel rear casters are designed for practical farm maneuverability, although very rough or steep surfaces should be assessed before operation.

Q: Is the tank easy to clean?
A: Yes. The accessible top opening and simple gravity outlet allow routine washing and flushing of milk-contact surfaces.

Q: Can SHEWUYOU supply other milk-cart configurations?
A: Yes. Capacity, mixing, pumping, heating and dispensing configurations can be selected according to calf numbers and project requirements.
