Product Showcase	Content
Product Name	Automatic Poultry House Rail Inspection System
Product Image
Product Overview	The Automatic Poultry House Rail Inspection System is an intelligent monitoring solution developed for multi-level commercial poultry housing where elevated areas are difficult and time-consuming to inspect manually. A compact inspection unit travels along a dedicated rail installed parallel to the poultry housing row. An integrated camera monitors designated sections as the unit moves through the house, allowing difficult-to-reach upper areas to be inspected automatically. When the monitoring system identifies a location requiring operator attention, visual indication can guide farm personnel directly to the relevant section. This reduces unnecessary searching and supports more consistent daily inspection routines.

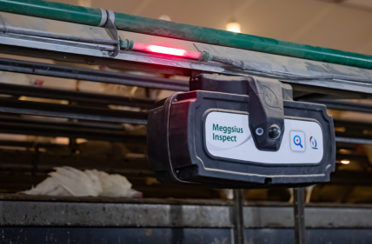

Key Features	Automatic Rail Travel: The inspection unit moves along a dedicated guide rail for systematic monitoring of poultry housing rows. Camera-Based Inspection: Integrated imaging equipment provides visual monitoring of elevated and difficult-to-access poultry areas. Section-by-Section Monitoring: The inspection route can be organized into individual sections for repeatable observation. Automatic Bird Detection: Compatible configurations can identify dead birds in designated inspection zones. Visual Location Indication: LED or project-specific indicators can identify the section requiring operator attention. Reduced Manual Searching: Automated inspection decreases repetitive climbing and unnecessary movement through poultry equipment. Consistent Inspection Routine: Programmed travel supports repeatable monitoring across long poultry-house rows. Suitable for Automation Projects: Designed for integration into modern precision poultry farming and livestock equipment systems.

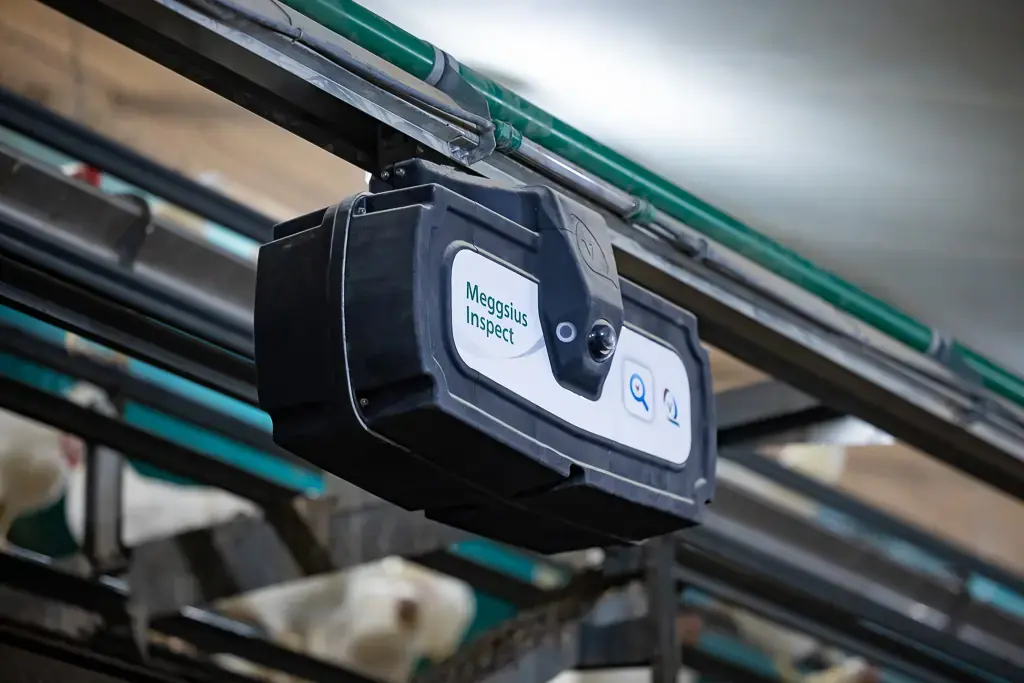

Structural Components	Inspection Robot: Compact moving unit carrying the camera, control and indication components. Guide Rail: Longitudinal track installed along the poultry housing system to define the inspection route. Camera Module: Captures visual information from the designated monitoring area. Drive Assembly: Provides controlled movement of the inspection unit along the rail. Detection Module: Processes monitoring information according to the selected inspection function. LED Indication System: Highlights the relevant location when intervention is required. Electrical Control System: Coordinates robot movement, camera operation and detection functions. Rail Stops and Supports: Define the travel area and secure the rail structure to the poultry equipment.

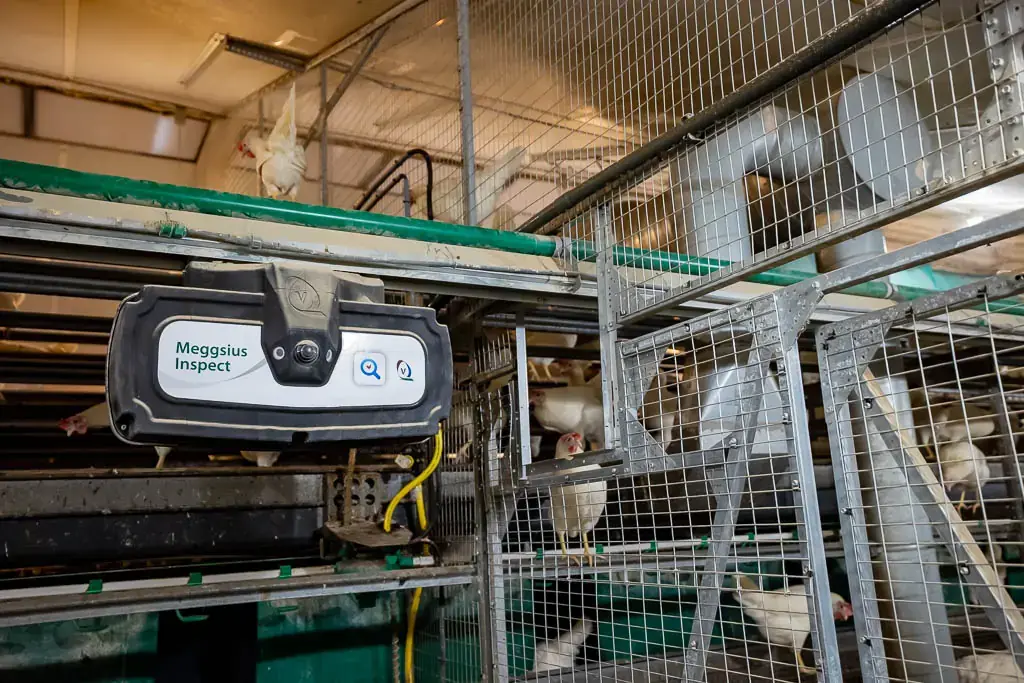

Working Principle	The inspection robot travels automatically along a rail installed beside or within the poultry housing structure. During movement, the integrated camera scans the designated upper level section by section. Image information is processed by the monitoring system to identify conditions requiring operator attention. When a configured event is detected, visual indicators mark the relevant location. Farm personnel can then move directly to the affected section instead of inspecting the complete upper tier manually. After completing one inspection cycle, the robot can continue according to the programmed monitoring routine.
Technical Specifications	Product Type: Automatic Rail-Mounted Poultry Inspection System Inspection Method: Camera-based automatic monitoring Travel Method: Automatic rail-mounted movement Inspection Route: According to poultry-house layout Monitoring Position: Upper tier or designated inspection area Scanning Method: Section-by-section Detection Function: Available according to project requirements Location Indication: LED or customizable visual indication Rail Length: Customizable Operating Speed: Available upon request Electrical Supply: According to project requirements Communication Interface: Available upon request Control Configuration: Automatic / project-specific Installation: New-build integration or compatible retrofit
Applications	- Multi-tier layer aviary houses - Commercial egg production farms - Layer breeder facilities - Multi-level poultry housing systems - Precision livestock farming projects - Smart poultry-house automation - Upper-tier bird inspection - Dead bird detection - Hard-to-reach area monitoring - Routine flock observation - Labour-saving inspection systems - Commercial steel structure poultry houses
Customization Options	The Automatic Poultry House Rail Inspection System can be configured according to the poultry housing structure and project monitoring requirements. Available customization may include: - Rail length - Rail installation position - Robot travel range - Inspection height - Camera configuration - Detection functions - LED indication arrangement - Electrical interface - Communication interface - Control integration - New poultry-house installation - Compatible retrofit installation Final specifications are determined according to project requirements and the confirmed poultry equipment layout.
Installation & Maintenance	Before installation, the rail route should be coordinated with poultry housing equipment, feeding lines, drinking systems, lighting, electrical services and the steel structure building layout. Adequate clearance should be maintained throughout the complete robot travel path. Rail sections and support brackets should be aligned accurately to provide reliable movement. Routine maintenance should include inspection of rail joints, running wheels, drive components, electrical connections, camera surfaces, sensors and indication lights. Dust, feathers and poultry-house contamination should be removed regularly from optical and moving components. Camera surfaces should remain clean to maintain reliable image acquisition.
Project Cases	Automatic rail inspection systems are particularly suitable for large commercial poultry houses where upper levels are difficult to monitor consistently from floor level. The reference technology is designed for compatible multi-tier aviary installations and supports both integration into new poultry systems and retrofit installation on suitable existing equipment. During new project design, the inspection rail can be coordinated with poultry housing, feeding, drinking, egg collection, lighting and electrical systems to create an integrated farm automation solution.
Product FAQ	Q: What is an automatic poultry rail inspection system? A: It is a rail-mounted monitoring system that automatically travels along poultry equipment and uses camera technology to inspect designated areas. Q: Can it detect dead birds automatically? A: Dead bird detection can be included in compatible camera-based inspection configurations. Q: How is the inspection location identified? A: Visual indicators can highlight the relevant section so operators can respond directly to the required location. Q: Can the rail length be customized? A: Yes. Rail length and inspection route can be designed according to poultry-house dimensions. Q: Can the system be installed in an existing poultry house? A: Retrofit installation can be evaluated for compatible existing poultry housing systems. Q: What information is required before quotation? A: Poultry housing type, number of tiers, row length, inspection position, rail installation area, equipment layout and electrical requirements are recommended for technical confirmation.
