Product Name	Aviary Rail Inspection Trolley
Product Image
Product Overview	The Aviary Rail Inspection Trolley is a mobile service-access solution designed for multi-level aviary and cage-free poultry systems. It travels along a dedicated inspection rail positioned beside the housing structure, allowing farm personnel to reach elevated areas for flock observation, equipment inspection and routine maintenance. In multi-tier aviary systems, upper levels may be difficult to inspect efficiently from floor level. A rail-guided trolley provides controlled longitudinal movement along the system and improves access to nests, feeding lines, drinking systems, lighting and structural components. The trolley can be integrated into new poultry house projects or engineered for compatible existing aviary installations according to rail position, service aisle width and required working height.
Key Features	Rail-Guided Inspection: Travels along a dedicated structural rail for controlled movement beside multi-level aviary equipment. Upper-Level Access: Provides improved access to top tiers for flock observation and maintenance. Suitable for Aviary Systems: Designed for multi-tier cage-free poultry houses with nests, perches, feeding and drinking equipment. Compact Service Design: Suitable for restricted poultry house service aisles where floor space is limited. Lightweight Construction: Aluminum or project-specific corrosion-resistant materials can be selected according to project requirements. Stable Working Position: Brake or locking components can secure the trolley during inspection. Easy Integration: Rail layout can be coordinated with aviary frames, catwalks and poultry house steel structures. Customizable Configuration: Platform dimensions, working height and wheel arrangement can be adapted to the project.
Structural Components	Main Trolley Frame: Aluminum or steel structural frame supporting the operator platform. Working Platform: Elevated standing area used for poultry and equipment inspection. Guide Wheels: Rollers or wheels that follow the dedicated inspection rail. Rail Interface: Structural connection components matched to the aviary system. Access Steps: Steps or ladder sections available according to working height. Safety Handrails: Protective rails or support frames available upon request. Brake Mechanism: Mechanical locking or braking device used during stationary inspection work. Support Rollers: Additional guidance components can improve trolley stability during travel.
Working Principle	The inspection trolley travels longitudinally along a rail installed beside the aviary housing system. Guide wheels maintain alignment while the operator moves the trolley to the required inspection position. Once positioned, the trolley can be secured using the brake or locking mechanism. From the elevated platform, personnel can inspect upper aviary levels, nests, feeders, drinking lines, lighting equipment and structural components. After inspection, the trolley is released and moved along the rail to the next working section.
Technical Specifications	Product Type: Aviary Rail Inspection Trolley Application: Multi-level aviary and cage-free poultry systems Main Frame Material: Aluminum or according to project requirements Movement Type: Rail-guided Working Levels: Multi-level Working Height: Customizable Platform Dimensions: According to project requirements Overall Dimensions: According to poultry house and aviary layout Wheel Configuration: Available upon request Rail Spacing: According to project requirements Brake System: Available upon request Safety Handrails: Available upon request Operating Method: Manual or project-specific configuration Aviary Compatibility: Designed according to system structure
Applications	The Aviary Rail Inspection Trolley is suitable for commercial cage-free layer houses, aviary pullet rearing systems, breeder facilities and other multi-level poultry installations. Typical applications include inspection of top tiers, bird observation, nest maintenance, feeder checks, drinking-line servicing, lighting inspection, equipment adjustment and routine poultry house maintenance. It is especially useful in long aviary houses where repeated access to elevated system levels is required.
Customization Options	Working height: Customizable Platform dimensions: According to project requirements Main frame material: Available upon request Inspection rail position: Customizable Rail spacing: According to project requirements Wheel arrangement: Available upon request Access steps: Available upon request Safety handrails: Available upon request Brake configuration: According to project requirements Aviary system compatibility: Customizable Steel structure poultry house integration: Available upon request
Installation & Maintenance	Before installation, aviary dimensions, rail elevation, aisle clearance and required inspection height should be confirmed. The rail system should be securely supported and correctly aligned with the poultry housing structure. The trolley should travel freely along the complete inspection route without interference from feeders, nests, drinking lines or structural members. Routine maintenance includes checking wheels, rollers, bearings, rail alignment, structural fasteners and braking components. Poultry dust and debris should be removed regularly to maintain smooth operation.
Project Cases	Rail inspection trolleys can be integrated into new aviary projects during poultry house and equipment layout design. VAL-CO's Piramide system, for example, uses an inspection trolley attached to the nest side to provide efficient access to the top level. Trolley and rail dimensions can be coordinated with multi-tier aviary structures, intermediate catwalks, feeding systems, drinking equipment and steel structure poultry buildings.
Product FAQ	Q: What is an Aviary Rail Inspection Trolley used for? A: It provides mobile access to elevated aviary levels for flock inspection and poultry equipment maintenance. Q: Can it be used with multi-tier aviary systems? A: Yes. Rail and trolley dimensions can be engineered according to the aviary structure. Q: Can the trolley access the top tier? A: Yes. The working position can be designed to provide access to upper system levels according to project requirements. Q: Can safety handrails be installed? A: Yes. Handrails, guard frames and anti-slip platform options are available upon request. Q: Can the inspection rail be integrated during aviary installation? A: Yes. Rail position and structural supports can be coordinated during project engineering. Q: Can the trolley be supplied with a complete poultry house project? A: Yes. It can be coordinated with aviary systems, feeding, drinking, egg handling and steel structure poultry houses.

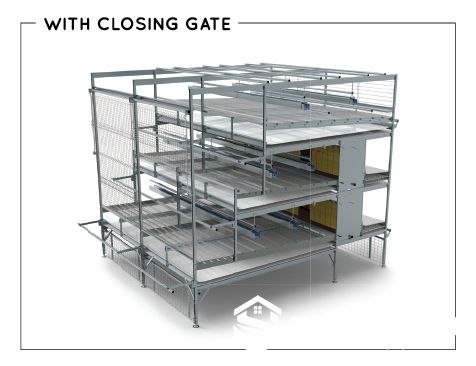

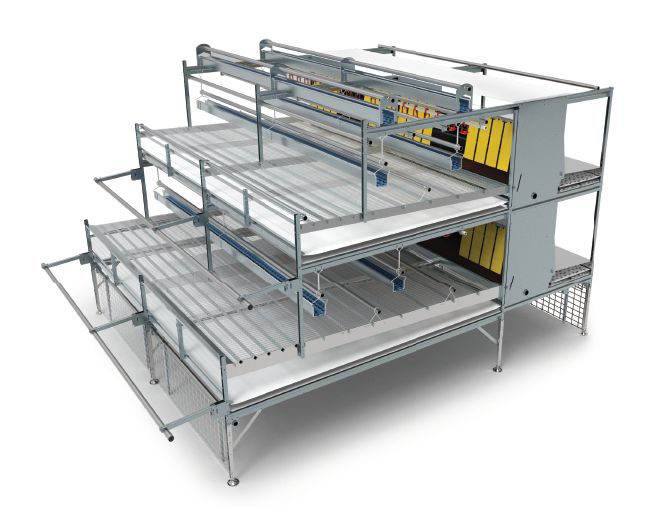

Product Gallery
