Product Showcase	Content
Product Name	Camera-Based Rail Inspection System for Poultry Houses
Product Image

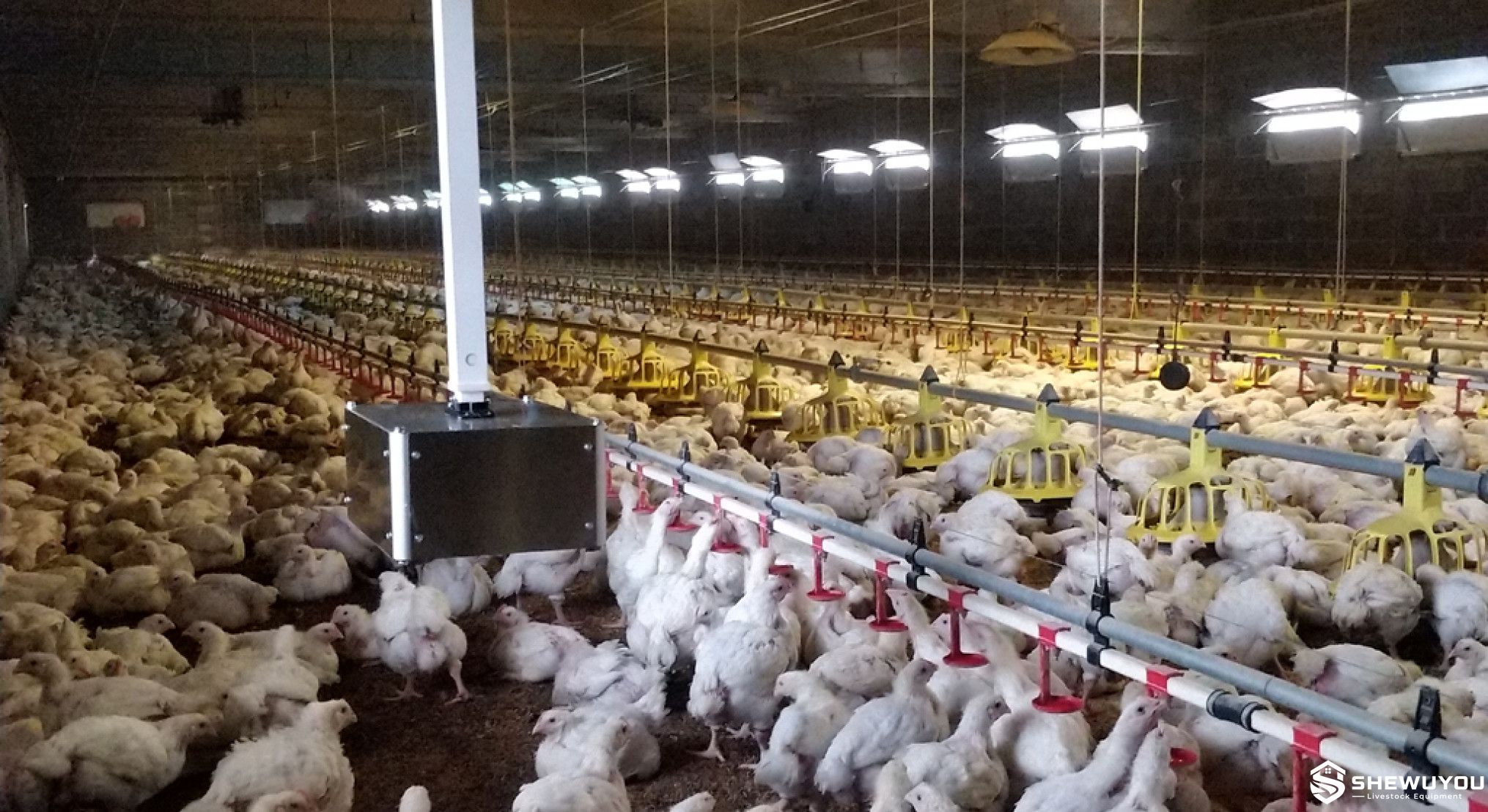

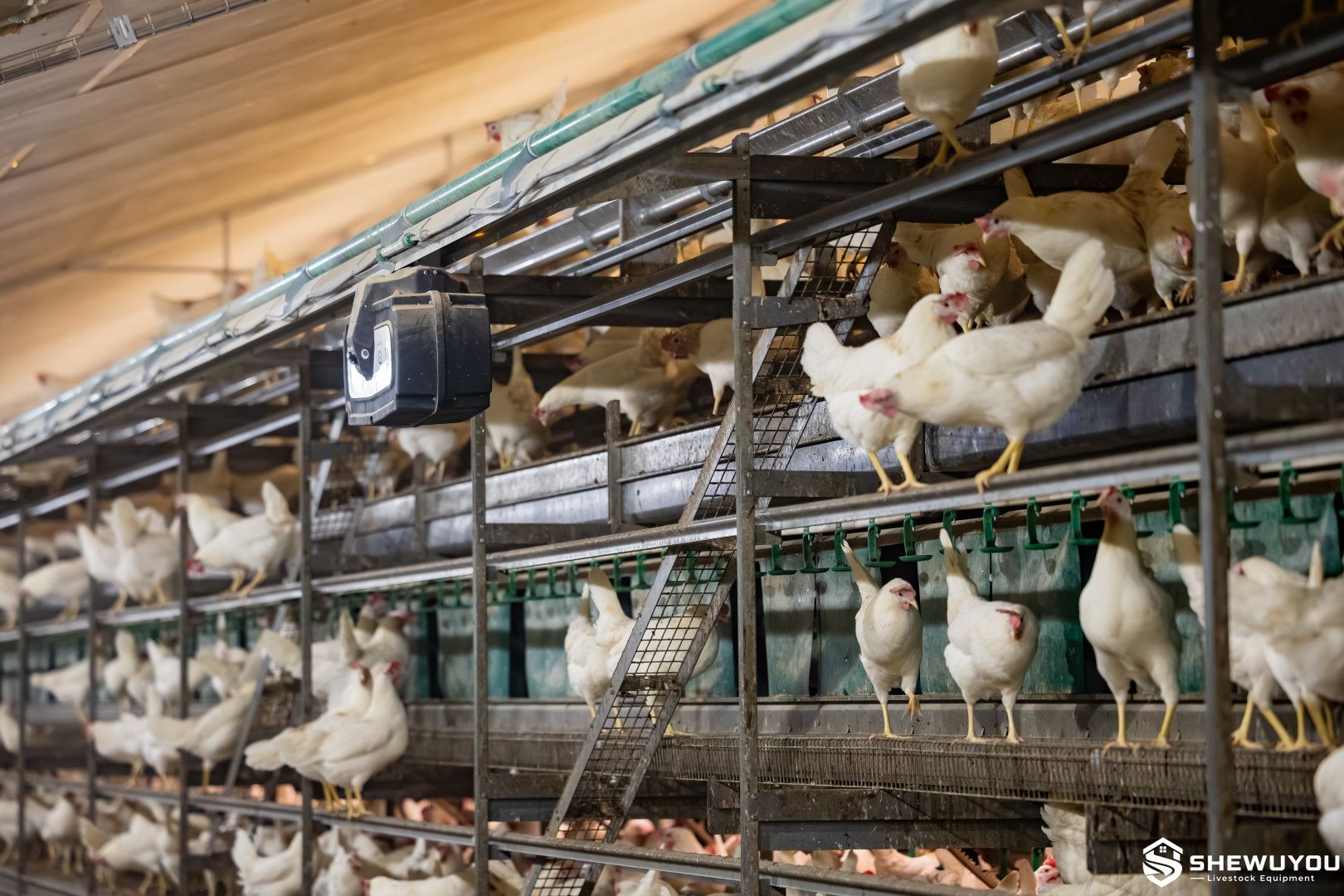

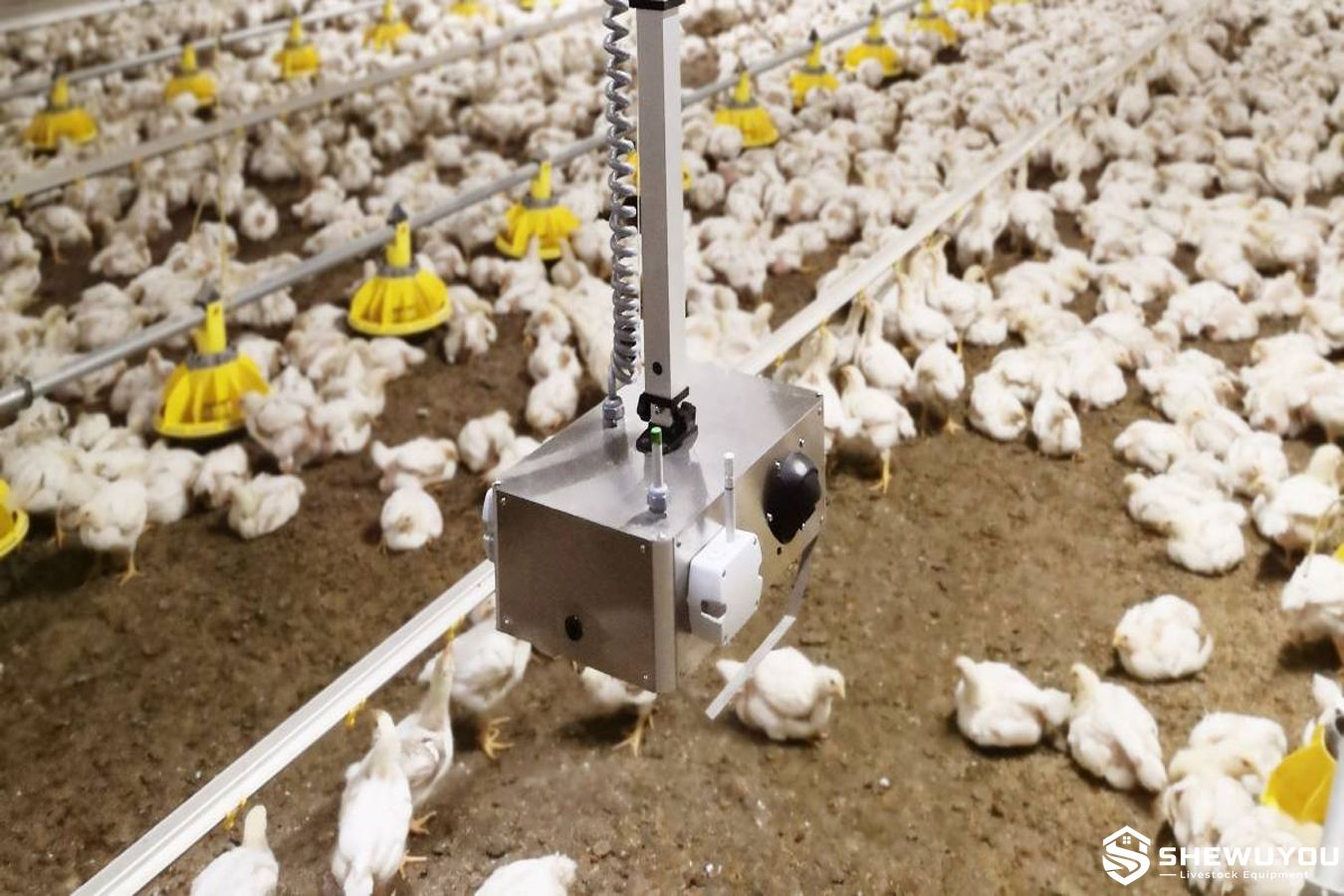

Product Overview	The Camera-Based Rail Inspection System for Poultry Houses is an automated monitoring solution designed for commercial poultry facilities with elevated or difficult-to-access equipment areas. A compact inspection unit travels along a dedicated rail installed beside or above the poultry housing system. An integrated camera continuously captures images of selected sections, allowing the system to identify conditions that require operator attention without relying exclusively on manual inspection. The system is particularly suitable for multi-tier layer and aviary houses where upper levels can be difficult to inspect efficiently from the floor. Rail layout, inspection coverage and system integration can be configured according to poultry house dimensions and project requirements.
Key Features	Rail-Mounted Automatic Inspection: The mobile inspection unit travels along a fixed rail to provide repeatable monitoring along poultry equipment rows. Integrated Camera Monitoring: The onboard camera captures visual information from difficult-to-access poultry house sections. Automatic Abnormality Detection: Image-analysis functions can identify specified conditions and direct farm personnel to areas requiring attention. Targeted Location Indication: Compatible configurations can use visual indicators to identify the affected section and simplify follow-up inspection. Reduced Manual Climbing: Automated upper-level inspection helps reduce the need for personnel to climb into elevated poultry equipment. Consistent Inspection Routine: Rail-guided travel provides a repeatable inspection path and supports standardized poultry house management. Reduced Flock Disturbance: Less manual access to sensitive areas can help reduce unnecessary human movement around the birds. New Project or Retrofit Integration: The inspection system can be engineered for new poultry houses or compatible existing installations.
Structural Components	Rail-mounted inspection unit Integrated vision camera Rail and guide structure Drive and running mechanism Inspection control module Image processing system Position detection components Visual indication or LED module where configured Power supply components Communication interface End-of-row docking or service position where required Structural mounting brackets and fasteners
Working Principle	The inspection unit automatically travels along the poultry house rail and scans selected sections with its integrated camera. Captured images are processed according to the configured inspection function. When a condition requiring attention is detected, the system records or indicates the corresponding location so farm personnel can perform a targeted follow-up check. In multi-level poultry housing, the system can be positioned to monitor upper sections that are difficult to observe from floor level. The automatic travel route helps maintain consistent inspection coverage throughout the poultry house. After completing an inspection cycle, the unit can return to a designated service or docking position according to system configuration.
Technical Specifications	Product Type: Camera-Based Rail Inspection System Application: Automated poultry house inspection and monitoring Inspection Method: Rail-mounted camera scanning Travel Method: Automatic rail-guided movement Camera Configuration: Integrated vision camera Inspection Coverage: According to poultry house and equipment layout Rail Length: Customizable Rail Position: According to project requirements Detection Functions: Configurable according to application Position Indication: Available upon request Communication Interface: According to project requirements Control Integration: Available upon request Power Supply: According to project requirements Installation Type: New installation or compatible retrofit
Applications	Multi-tier layer poultry houses Aviary egg production systems Cage-free poultry facilities Upper-tier poultry inspection Bird condition monitoring Mortality detection support Poultry equipment condition checks Routine farm inspection automation Precision livestock farming projects Smart poultry house management Steel structure poultry buildings
Customization Options	SHEWUYOU can configure the Camera-Based Rail Inspection System according to poultry house length, equipment height, number of housing levels, inspection route and required monitoring coverage. Customization options can include rail length, rail mounting position, inspection unit configuration, camera arrangement, communication interface, visual indication method and integration with compatible poultry farm control systems. System design can be adapted for new steel structure poultry houses or compatible retrofit projects according to site conditions.
Installation & Maintenance	Rail alignment and mounting position should be confirmed according to the poultry housing structure and required camera field of view before installation. The rail should remain straight, securely supported and free from obstructions throughout the inspection route. Electrical and communication connections should be protected from dust, moisture and mechanical damage. Routine maintenance includes cleaning the camera lens, checking running wheels and guide components, inspecting rail connections and confirming reliable operation of sensors, indicators and communication components. Dust, feathers and other poultry house residues should be removed regularly to maintain clear imaging and reliable movement.
Project Cases	Camera-based rail inspection systems are suitable for modern poultry projects where upper-level observation requires frequent manual access. Project engineering normally considers poultry house length, equipment layout, rail installation height, camera coverage, lighting conditions, inspection frequency and communication infrastructure. The system can be coordinated with aviary equipment, layer housing systems, feeding lines, drinking systems, egg collection equipment and other precision livestock farming technologies.
Product FAQ	Q: What does a camera-based rail inspection system do? A: It automatically moves a camera along a fixed rail to inspect selected areas of the poultry house and identify conditions requiring operator attention. Q: Is the system suitable for upper-tier inspection? A: Yes. Rail-mounted camera systems are particularly useful for monitoring elevated and difficult-to-access poultry housing levels. Q: Can the system help detect dead birds? A: Yes. Compatible vision configurations can be designed for automated mortality detection and location indication. Q: Does the system eliminate all manual poultry house inspections? A: No. It is designed to automate specific repetitive inspection tasks and help personnel perform more targeted follow-up checks. Q: Can the rail length be customized? A: Yes. Rail length and installation position can be designed according to poultry house dimensions and equipment layout. Q: Can the system be installed in an existing poultry house? A: Yes. Retrofit installation is possible when the existing structure and poultry equipment are compatible with the required rail and inspection configuration.
Product Gallery
