Product Showcase	Content
Product Name	Smart Rail-Mounted Poultry Inspection Robot
Product Image

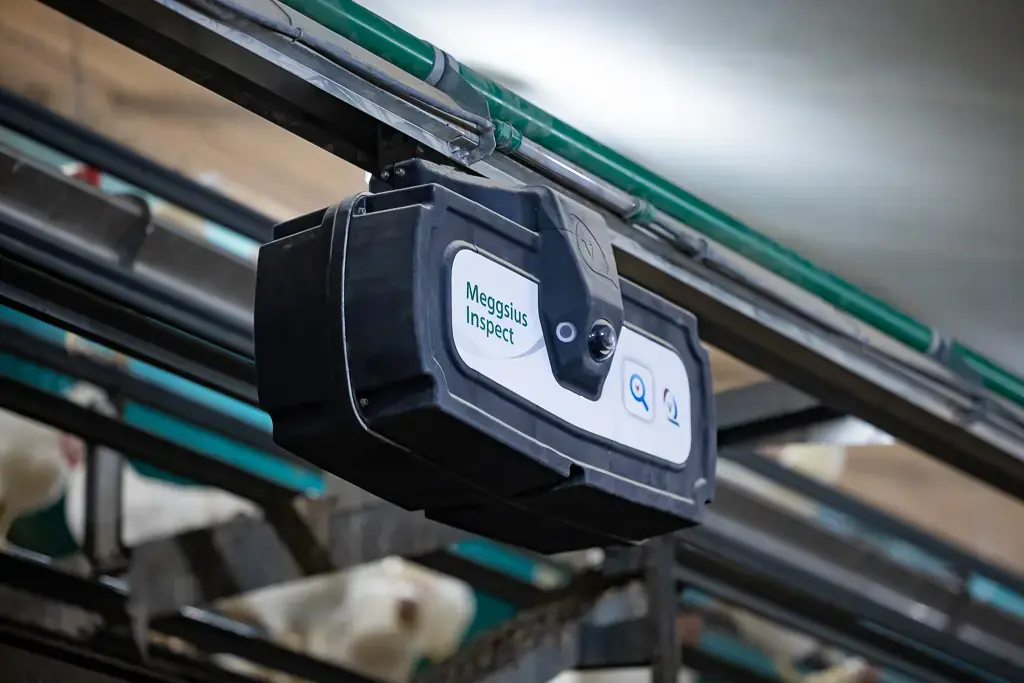

Product Overview	The Smart Rail-Mounted Poultry Inspection Robot is an automated monitoring solution developed for multi-level commercial poultry housing systems where upper sections can be difficult and time-consuming to inspect manually. Mounted on a dedicated rail along the poultry equipment row, the robot travels through the house and uses an integrated camera to inspect the upper level section by section. When an abnormal condition requiring operator attention is detected, visual indication can identify the relevant location for targeted follow-up. This inspection concept helps reduce repetitive manual searching, improves access to hard-to-reach areas and supports more consistent inspection routines in modern layer and breeder facilities.
Key Features	Automatic Rail Inspection: The robot travels along the poultry equipment row to perform repetitive inspection tasks automatically. Integrated Camera Monitoring: Camera-based inspection provides visual monitoring of difficult-to-reach upper sections. Section-by-Section Scanning: The inspection route is organized by individual housing sections for systematic monitoring. Targeted LED Indication: Visual indicators can identify the affected section and help operators locate the area requiring attention quickly. Reduced Manual Climbing: Automatic upper-level inspection helps reduce the need for personnel to repeatedly climb or enter difficult access areas. Lower Flock Disturbance: Reduced human movement through sensitive areas can support calmer daily poultry-house operation. Consistent Inspection Routine: Automated travel and scanning support repeatable monitoring throughout the production cycle.
Structural Components	Rail-Mounted Robot Body: Compact inspection unit designed to travel longitudinally along the poultry equipment row. Guide Rail System: Provides the operating path and supports accurate movement along the inspection route. Camera Module: Captures visual information from the target inspection area. Detection System: Processes inspection information to identify conditions requiring operator attention. LED Indication System: Provides targeted visual location guidance after detection. Drive and Guidance Components: Enable controlled travel along the rail according to the system configuration. Electrical and Control Components: Support robot movement, camera operation, detection and indication functions.

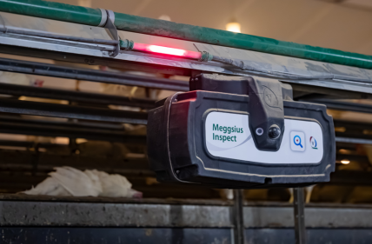

Working Principle	The inspection robot travels automatically along a rail installed parallel to the poultry housing system. During travel, the integrated camera scans the designated upper level one section at a time. Visual information is analyzed by the inspection system. When a dead bird or another configured inspection condition is identified, the system marks the relevant location using targeted LED indication. The operator can then go directly to the indicated section instead of manually searching the entire upper tier, improving inspection efficiency and reducing unnecessary movement inside the poultry house.
Technical Specifications	Product Type: Smart Rail-Mounted Poultry Inspection Robot Inspection Method: Camera-based automatic inspection Travel Method: Rail-mounted automatic movement Inspection Area: Upper tier of compatible poultry housing systems Scanning Method: Section-by-section Detection Function: Automatic dead bird detection in compatible applications Location Indication: Targeted LED indication Rail Length: According to project requirements Electrical Configuration: Available upon request Communication Configuration: According to project requirements Installation: New project integration or compatible retrofit Housing Compatibility: According to poultry equipment system and project layout
Applications	- Multi-tier layer aviary houses - Commercial egg production facilities - Layer breeder poultry houses - Multi-level poultry housing systems - Automated poultry inspection projects - Precision livestock farming systems - Upper-tier bird inspection - Dead bird detection - Hard-to-reach area monitoring - Routine flock management - Labour-saving poultry-house automation
Customization Options	Project configuration should be matched to the poultry housing system and inspection requirements. Available project options may include: - Rail length and route - Robot operating range - Poultry housing compatibility - Inspection position - Electrical interface - Communication interface - Visual indication arrangement - Control integration - New-build installation - Compatible retrofit installation Final specifications are determined according to project requirements and the confirmed poultry-house equipment layout.
Installation & Maintenance	The rail position should be coordinated with the poultry housing structure before installation. Clearance around feeders, drinkers, perches, cage components and other fixed equipment must be confirmed throughout the complete inspection route. The reference inspection concept supports both integration into suitable new poultry systems and retrofit installation on compatible existing systems. Routine maintenance should include inspection of the rail, running components, camera window, electrical connections, sensors and indicator lights. Dust and poultry-house contamination should be removed from optical and moving components according to the maintenance schedule. Camera surfaces should remain clean to maintain reliable image acquisition during daily inspection.

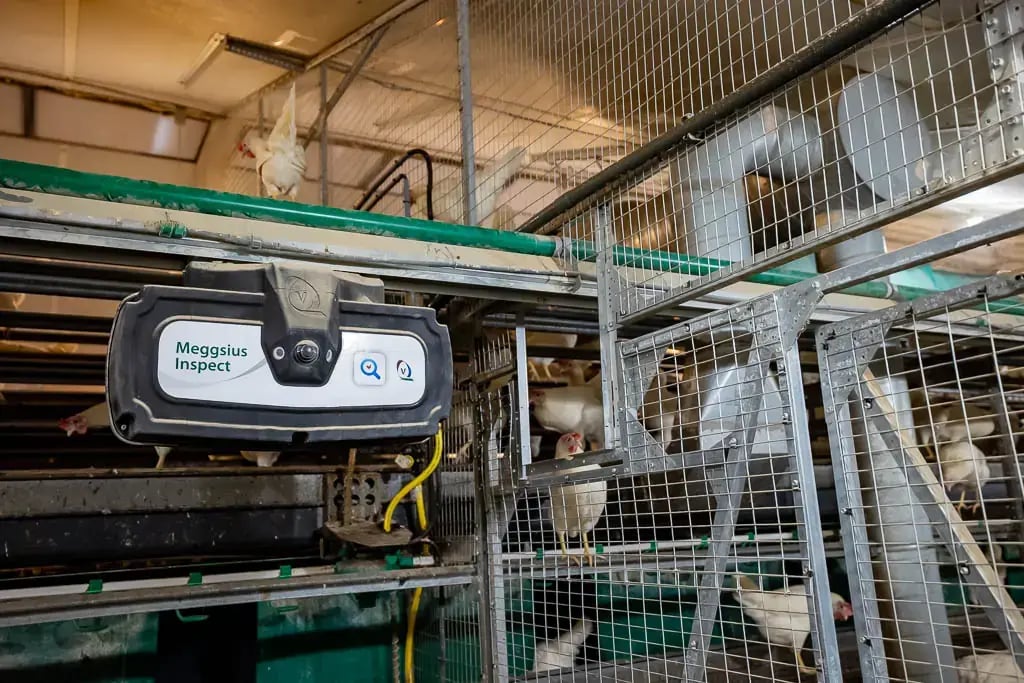

Project Cases	Rail-mounted poultry inspection robots are especially suitable for multi-tier housing systems where the upper level is difficult to inspect consistently from the poultry-house floor. The reference solution is designed for compatible Bolegg Gallery 3-tier and Bolegg Terrace 2-tier poultry systems and can be integrated into new installations or retrofitted to compatible existing systems. For new commercial poultry projects, the inspection rail can be coordinated with housing equipment, feeding and drinking systems, lighting, electrical services and the steel structure building layout during the engineering stage.
Product FAQ	Q: What does a rail-mounted poultry inspection robot do? A: It travels automatically along a poultry housing row and uses camera-based monitoring to inspect difficult-to-reach sections. Q: Can it automatically detect dead birds? A: Yes. The reference inspection system is specifically designed to detect dead birds in the upper tier automatically. Q: How does the operator locate a detected bird? A: LED indicators identify the relevant section so personnel can go directly to the required location. Q: Does the system reduce manual inspection? A: Yes. Automatic upper-tier monitoring reduces the need for repeated manual searching in difficult access areas. Q: Can the system be installed in an existing poultry house? A: Retrofit installation can be considered for compatible existing poultry housing systems. Q: What information is required before quotation? A: Poultry housing type, number of tiers, row length, rail installation area, equipment layout, electrical requirements and inspection objectives are recommended for technical confirmation.
Product Gallery
