Product Showcase	Content
Product Name	Rail-Mounted Dead Bird Detection System
Product Image

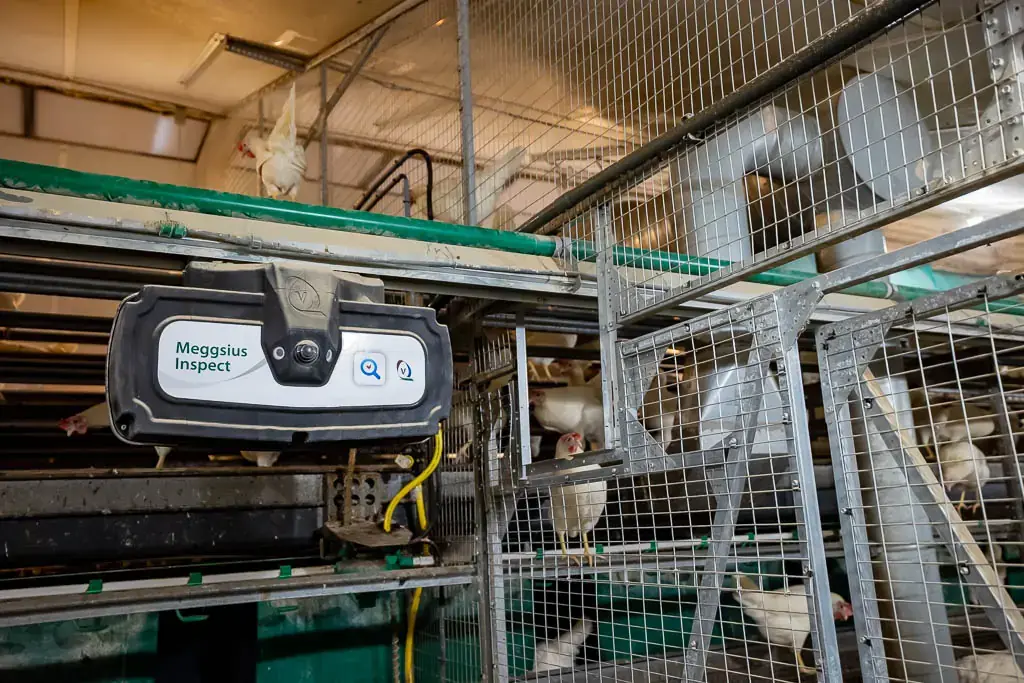

Product Overview	The Rail-Mounted Dead Bird Detection System is an automated poultry inspection solution designed to reduce manual searching in hard-to-reach areas of multi-level aviary housing. A compact inspection unit travels along a dedicated rail installed beside the poultry housing system. Its integrated camera scans elevated housing sections and helps identify locations requiring attention. When a dead bird is detected, a targeted visual indication guides farm personnel to the affected position, reducing unnecessary manual checking and improving inspection efficiency in commercial poultry houses.
Key Features	Automated Dead Bird Detection: Camera-based inspection helps identify mortality in difficult-to-access poultry housing areas. Rail-Mounted Movement: The inspection unit travels along a dedicated rail installed parallel to the poultry housing row. Section-by-Section Inspection: Automated scanning supports repeatable coverage of elevated housing sections. Visual Location Indication: LED or other visual indicators can identify the area requiring operator attention. Reduced Manual Access: Automated inspection reduces the need for repeated climbing or manual searching at upper levels. Lower Flock Disturbance: Reduced personnel movement through elevated housing sections may help minimize unnecessary disturbance. Consistent Inspection Routine: Rail-guided travel supports regular and repeatable monitoring. Project Integration: Rail length, mounting position and system interface can be configured according to project requirements.

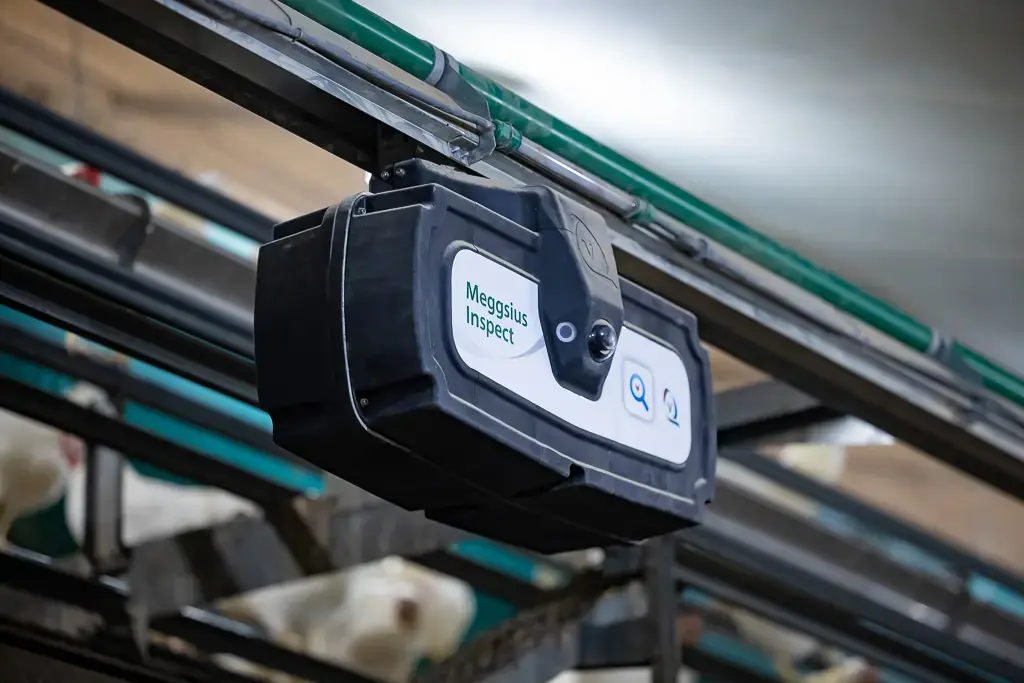

Structural Components	Rail-Mounted Inspection Unit: Compact mobile housing containing the camera, controls and drive components. Integrated Camera: Provides visual monitoring of poultry housing sections during automatic inspection. Guide Rail: Supports controlled longitudinal movement of the inspection unit. Visual Indicator System: Provides location guidance when an abnormal condition is detected. Guide Wheels and Rollers: Maintain alignment and stable travel along the rail. Electronic Control Unit: Coordinates movement, image acquisition and inspection functions. Mounting Hardware: Rail supports and structural interfaces are configured according to the poultry housing system.

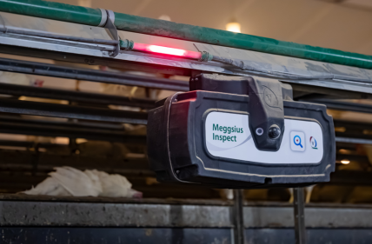

Working Principle	The inspection unit moves automatically along a rail installed beside the poultry housing row. During travel, the integrated camera scans elevated housing sections for conditions associated with dead birds. The system analyzes the inspected area and identifies positions requiring intervention. When a target location is detected, the visual indication system marks the relevant section. Farm personnel can then proceed directly to the indicated area for removal or further inspection, reducing unnecessary searching across the full housing system.
Technical Specifications	Product Type: Rail-Mounted Automated Poultry Inspection System Primary Function: Dead bird detection and location assistance Inspection Method: Camera-based visual scanning Movement Method: Rail-mounted automatic travel Inspection Area: Elevated poultry housing sections Scanning Method: Section-by-section inspection Location Indication: Visual indication Rail Length: According to project requirements Rail Position: Customizable Electrical Configuration: According to project requirements Control Configuration: Available upon request System Integration: Customizable Housing Compatibility: According to project requirements
Applications	The Rail-Mounted Dead Bird Detection System is suitable for multi-level layer houses, aviary systems, cage-free poultry projects and other commercial poultry facilities where upper sections are difficult to inspect efficiently from floor level. Typical applications include automated mortality inspection, routine flock monitoring, upper-tier visual inspection and precision poultry management. It is especially useful in long poultry houses where manual inspection of elevated equipment rows would require significant time and repeated access.
Customization Options	Rail length: According to project requirements Rail mounting position: Customizable Poultry housing compatibility: According to project requirements Electrical configuration: Available upon request Control interface: Available upon request Detection configuration: Customizable Visual indication method: Available upon request New poultry house integration: Available upon request Retrofit configuration: According to existing system compatibility Installation hardware: According to project requirements
Installation & Maintenance	Before installation, poultry housing type, tier configuration, rail position, equipment clearance and inspection route should be confirmed. The rail must be securely mounted and correctly aligned to provide smooth movement along the complete poultry row. The camera should maintain a clear field of view toward the required inspection area. Routine maintenance should include cleaning the camera window, checking rail alignment, inspecting guide components, verifying visual indicators and removing poultry dust from the inspection unit. Electrical connections and structural mounting points should also be inspected periodically according to farm operating conditions.
Project Cases	Rail-mounted detection systems can be integrated into new poultry projects during equipment and steel structure building design, allowing rail supports and inspection routes to be coordinated with the housing layout. Retrofit configurations may also be considered for compatible existing aviary systems where repeated manual mortality inspection creates labour or access challenges.
Product FAQ	Q: What does the Rail-Mounted Dead Bird Detection System do? A: It automatically scans poultry housing sections and helps identify locations where dead birds may be present. Q: How does the system identify the required intervention area? A: The system uses camera-based inspection together with a visual indication method to guide personnel to the relevant section. Q: Does the operator need to manually inspect every upper section? A: No. Automated rail-guided scanning reduces the need for full manual inspection of each elevated section. Q: Can the system be installed in an existing poultry house? A: Retrofit installation may be possible where the existing housing structure and available clearance are compatible. Q: Can it be integrated into a new poultry project? A: Yes. Rail layout and mounting points can be coordinated during new poultry house and livestock equipment planning. Q: Can rail length and mounting position be customized? A: Yes. Rail dimensions and installation layout can be configured according to project requirements.
Product Gallery
