Product Showcase	Content

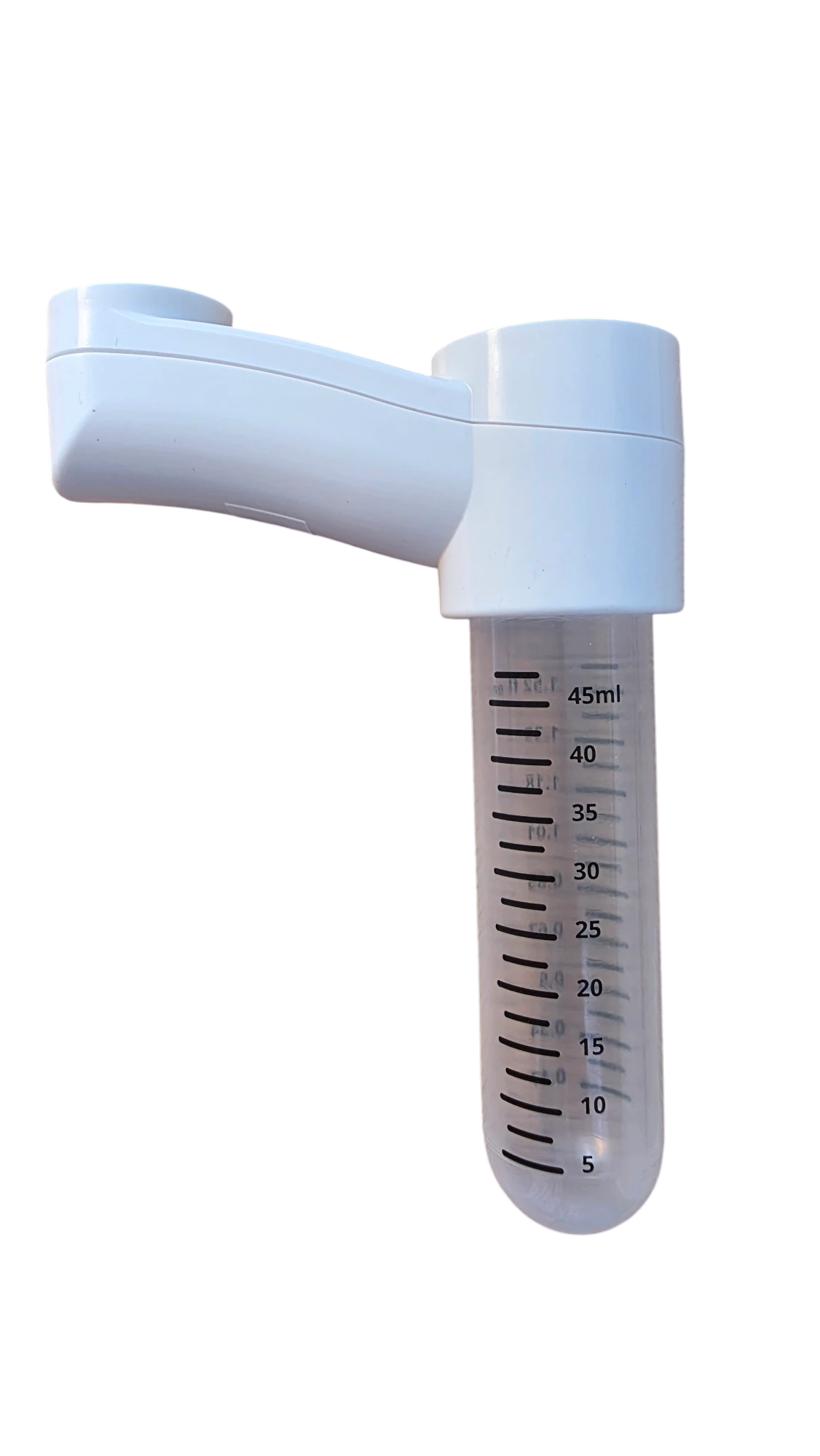

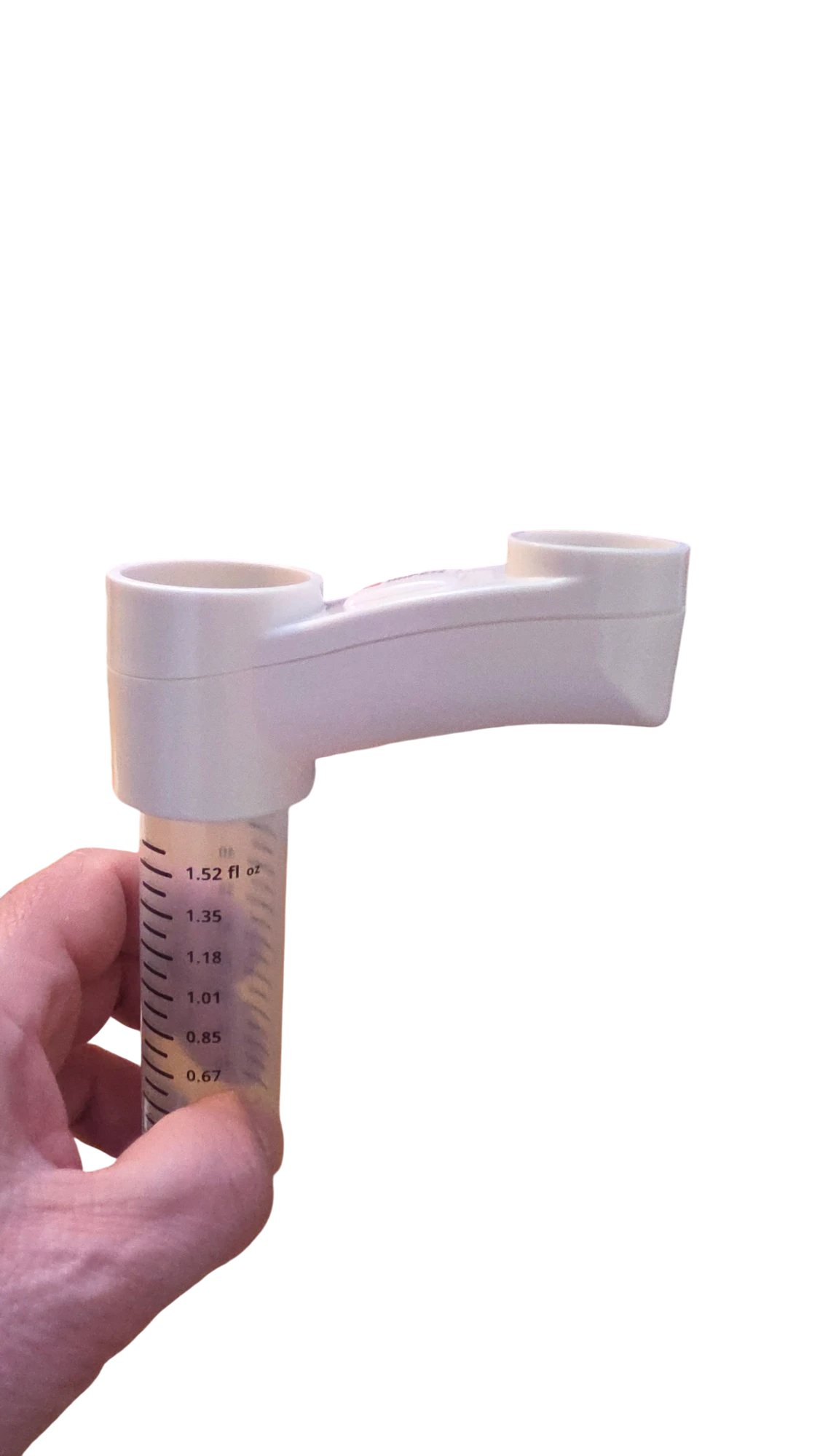

Product Name	Poultry Nipple Water Flow Gauge
Product Image
Product Overview	The Poultry Nipple Water Flow Gauge is a practical maintenance and inspection tool used to check the water output of individual nipple drinkers in commercial poultry drinking systems. Proper nipple flow is important because insufficient water delivery can restrict bird water intake, while excessive output or incorrect system pressure may contribute to water wastage and wet litter. Regular flow checks help poultry farm personnel identify inconsistent nipples, pressure variation and drinking-line sections requiring adjustment or maintenance. The compact handheld design allows the operator to test nipples directly inside broiler, layer, pullet and breeder houses without dismantling the drinking line.
Key Features	Direct Nipple Flow Testing: Measures water discharged from an individual poultry drinking nipple during a timed test. Simple Manual Operation: Does not require electricity, compressed air or permanent installation. Graduated Measuring Tube: Transparent graduations allow the collected water quantity to be read quickly. Integrated Nipple Activator: The upper contact area allows the operator to trigger the drinker nipple while collecting the discharged water. Fast Routine Inspection: Suitable for checking multiple nipples along long commercial drinking lines. Portable Farm Tool: Compact construction makes it convenient for poultry house maintenance teams, farm managers and service technicians. Supports Waterline Management: Helps identify low-flow or abnormal nipples before they affect flock water availability. Suitable for Multiple Poultry Systems: Can be used with compatible broiler, layer, breeder and pullet nipple drinking lines.
Structural Components	Nipple Activation Head: Contacts and activates the poultry nipple during testing. Water Collection Passage: Directs discharged water into the measuring chamber. Graduated Measuring Tube: Provides a visible indication of collected water volume. Transparent Measurement Chamber: Allows quick visual reading after each test. Handheld Body: Provides convenient positioning directly underneath the nipple drinker.

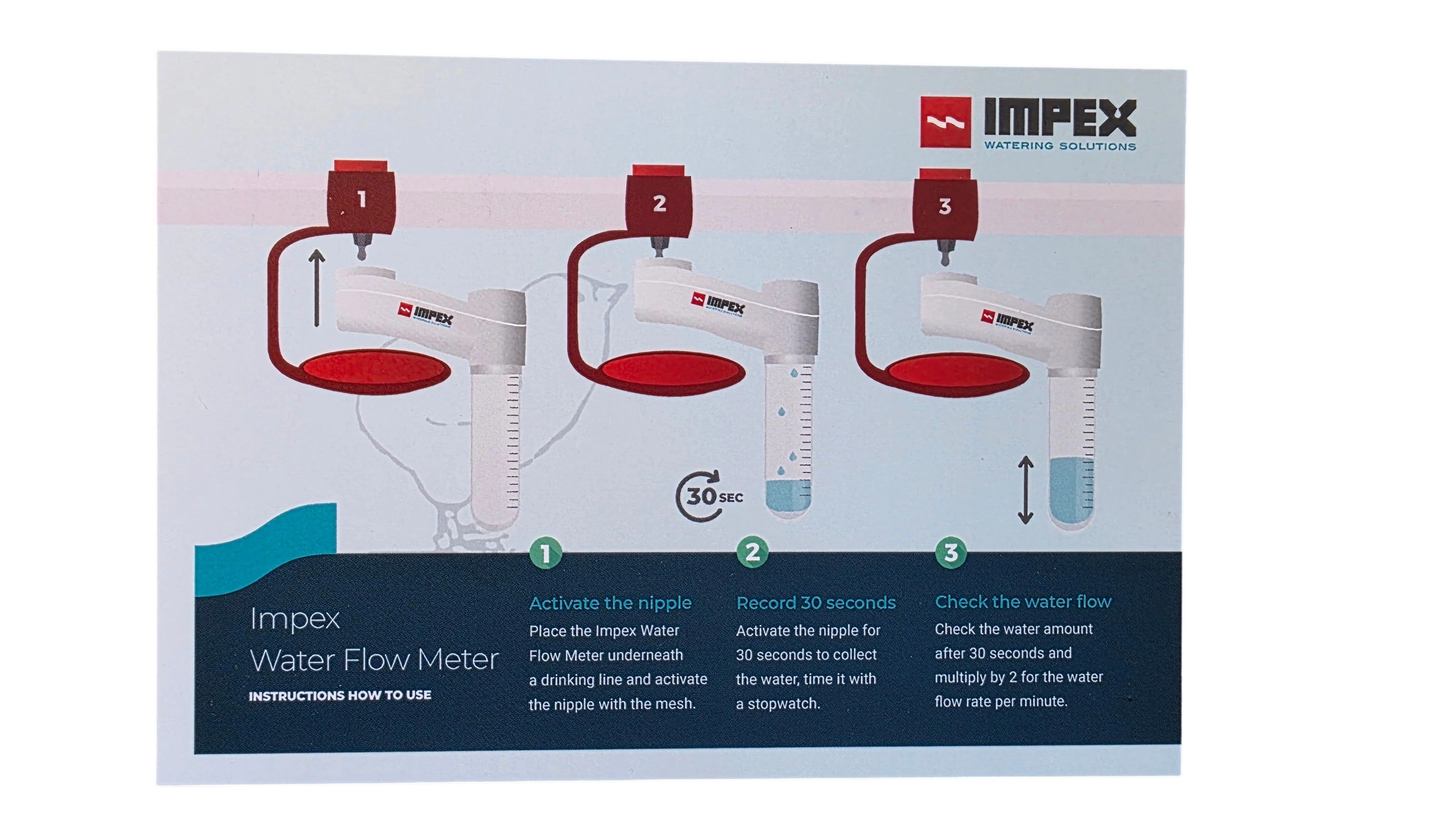

Working Principle	Position the flow gauge directly underneath the nipple drinker and use the activation surface to open the nipple valve. Allow the nipple to discharge into the graduated tube for 30 seconds. Read the collected water volume and multiply the result by two to obtain the approximate flow rate per minute. The measured value can then be compared with the target flow requirement for the bird age, drinking system and farm management program. Repeating the test at different positions along the drinking line helps identify pressure or flow inconsistencies.
Technical Specifications	Product Type: Poultry Nipple Water Flow Gauge Application: Poultry nipple drinking system inspection Measurement Method: Timed volumetric collection Reference Test Time: 30 seconds Flow Calculation: Collected volume x 2 for approximate volume per minute Display Type: Graduated transparent measuring tube Power Requirement: None Installation: Not required Operation: Handheld manual testing Nipple Compatibility: According to drinking system configuration Packaging: Available upon request
Applications	The Poultry Nipple Water Flow Gauge is suitable for broiler houses, layer farms, breeder houses, pullet rearing facilities and other commercial poultry operations using nipple drinking systems. Typical applications include commissioning new drinking lines, routine nipple flow inspection, checking pressure adjustments, troubleshooting uneven water delivery, verifying replacement nipples and supporting preventative poultry house maintenance. It is also useful for poultry equipment installation companies, livestock equipment distributors and after-sales service teams carrying out waterline inspection in new or existing steel structure poultry houses.
Customization Options	Packaging configuration: Customizable Maintenance tool kit combination: Available upon request Bulk farm supply: According to project requirements Drinking system spare parts package: Available upon request OEM supply configuration: Available upon request
Installation & Maintenance	No permanent installation is required. Before testing, make sure the measuring tube is clean and empty and confirm that the poultry drinking line is operating at its normal pressure. Keep the gauge vertically positioned beneath the nipple during measurement to reduce collection error. Test several nipples at different positions along the line rather than relying on a single measurement. After use, empty the collected water, rinse the measuring chamber with clean water and remove mineral deposits or poultry house contamination when necessary. Store the gauge in a clean, dry location where the graduated tube will not be scratched, crushed or exposed to unnecessary chemical contamination.
Project Cases	Poultry nipple flow gauges can be included in maintenance kits supplied with automatic drinking-line projects for commercial broiler, layer and breeder farms. During poultry house commissioning, technicians can use the gauge to compare nipple output at the beginning, middle and end of each drinking line and confirm that pressure regulation provides suitable water delivery throughout the system.
Product FAQ	Q: What is a poultry nipple water flow gauge used for? A: It measures the amount of water delivered by an individual nipple drinker during a timed test. Q: How is the nipple flow rate checked? A: Position the gauge beneath the nipple, activate the nipple for 30 seconds, read the collected volume and multiply the result by two to estimate the flow per minute. Q: Does the gauge require batteries? A: No. It is a manual measuring tool and requires no electrical power. Q: Why should several nipples be tested? A: Testing nipples at different locations can help identify inconsistent pressure, restricted nipples or uneven water delivery along the line. Q: Can it be used during drinking-line commissioning? A: Yes. It is useful for checking nipple output after line installation, regulator adjustment or maintenance. Q: Is one target flow rate suitable for every flock? A: No. Required flow depends on bird type, age, drinker design, water pressure and farm management recommendations.
Product Gallery
