Product Name	Heavy-Duty Pneumatic Poultry Cage Ring Gun
Product Image
Product Overview	The Heavy-Duty Pneumatic Poultry Cage Ring Gun is a professional compressed-air fastening tool designed for repetitive C-ring installation in poultry cages, wire mesh panels, livestock enclosures and related agricultural equipment. Compared with manual hog ring pliers, pneumatic operation significantly reduces hand force during high-volume fastening work. The extended nose provides better access to confined cage joints, while the long magazine supports continuous installation with fewer reload interruptions. This tool is suitable for poultry house construction, cage assembly, repair work and after-sales maintenance where consistent ring closure and efficient production are required.
Key Features	Heavy-Duty Pneumatic Drive: Uses compressed air to close large C-rings efficiently during repetitive cage and wire mesh fastening. Extended Nose Design: Reaches recessed or difficult fastening points inside poultry cage structures and livestock enclosures. Large Magazine Capacity: The reference MTC560 configuration holds up to 125 rings for reduced reloading frequency. 14-Gauge Fastener Compatibility: Designed for heavy-duty C-rings with a 2 mm wire diameter. Comfortable Rubber Grip: Helps reduce vibration and operator fatigue during extended use. Steel Magazine Structure: Provides reliable fastener guidance and durability during industrial fastening work. High-Volume Cage Assembly: Suitable for commercial poultry equipment factories, farm installation crews and maintenance teams. Portable Air Tool Format: Can be used throughout poultry houses wherever a suitable compressed-air supply is available.

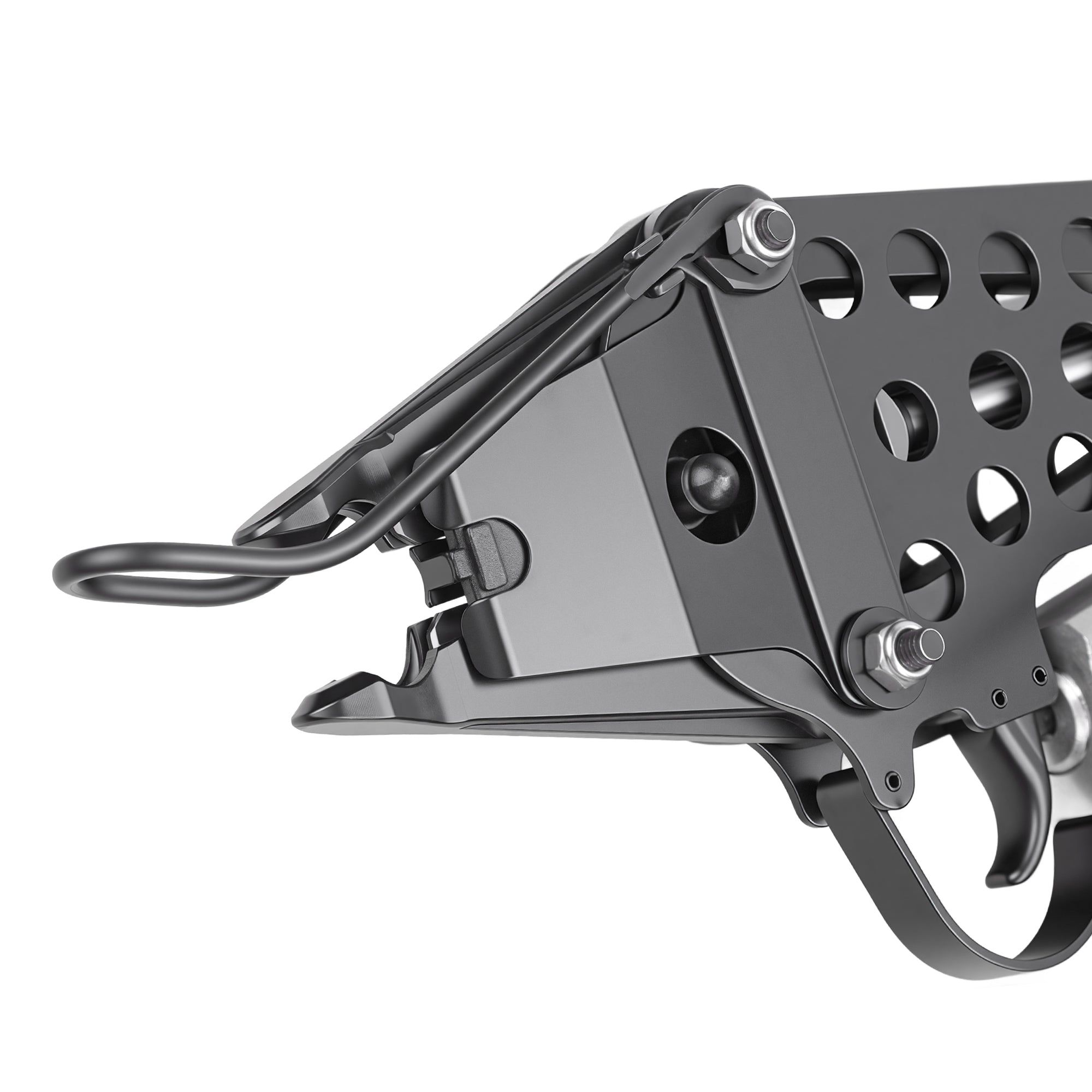

Structural Components	Extended Forming Jaws: Position and close the C-ring around the wire connection. Pneumatic Cylinder: Converts compressed-air pressure into mechanical fastening force. Trigger Assembly: Controls each fastening cycle. Steel Fastener Magazine: Stores and guides collated hog rings toward the forming head. Fastener Pusher: Maintains forward pressure on the ring strip for continuous feeding. Tool Body: Supports the pneumatic drive, jaw mechanism and magazine structure. Rubber Grip: Improves handling and helps reduce vibration during repetitive work. Air Inlet: Connects the tool to a regulated compressed-air supply.

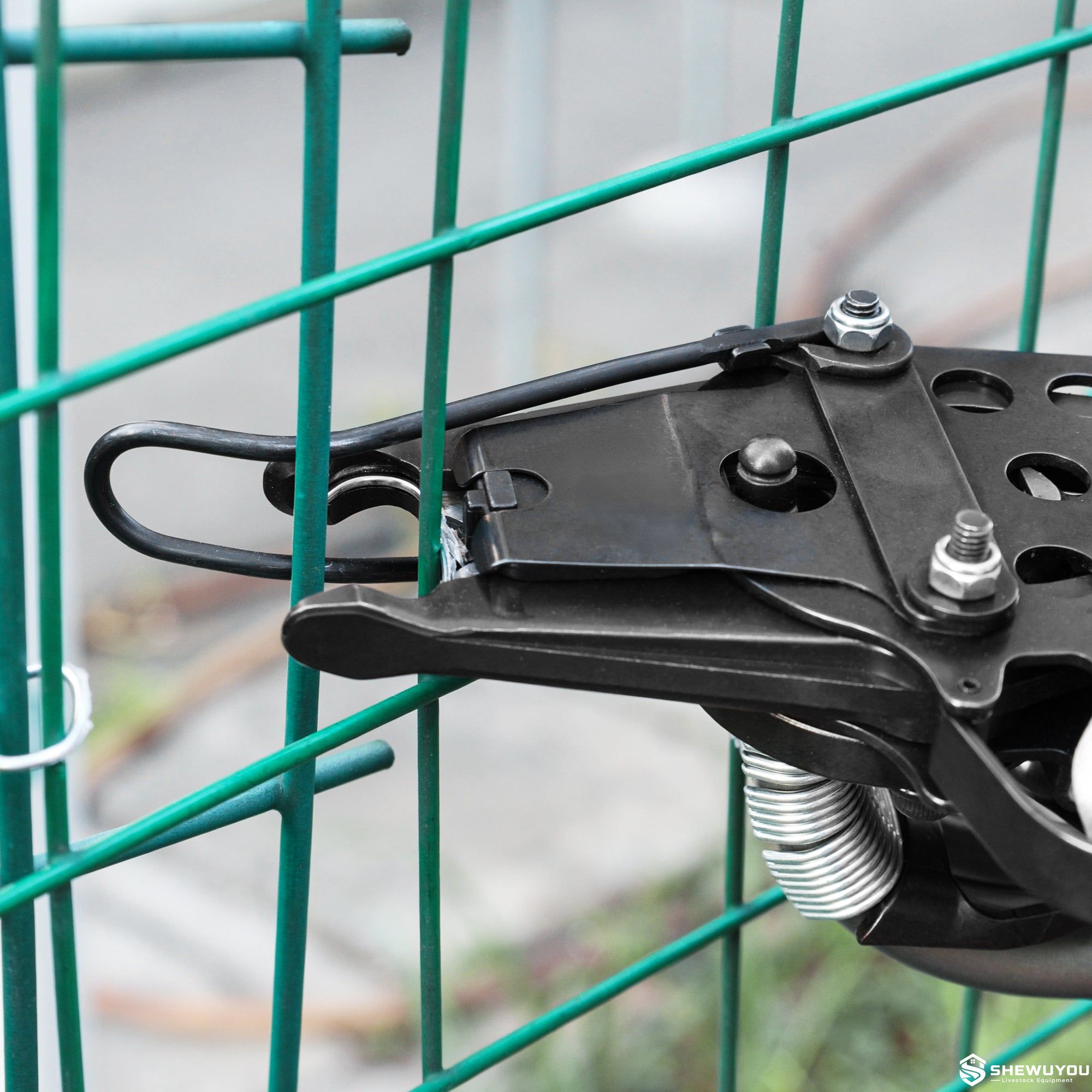

Working Principle	Compatible C-rings are loaded into the magazine and pushed toward the forming jaws. The operator positions the extended nose around the overlapping cage wires or mesh components that require fastening. When the trigger is activated, regulated compressed air drives the internal pneumatic mechanism. The jaws close the C-ring around the wire joint and form it to the required closure diameter. After the fastening cycle, the tool returns to its ready position and the next ring advances automatically from the magazine for the following connection point.
Technical Specifications	Product Type: Pneumatic C-Ring Plier / Hog Ring Gun Reference Model: MTC560 Operation: Pneumatic Reference Weight: 2.8 kg Reference Dimensions: 422 x 131 x 243 mm Magazine Capacity: 125 PCS Magazine Material: Steel Air Inlet: 1/4 inch NPT Operating Pressure: 80-120 psi Fastener Gauge: 14 Gauge Fastener Wire Diameter: 2 mm Inner Crown: 39 mm Outer Crown: 43 mm Reference Closure Diameter: 15-18 mm Air Supply Configuration: According to project requirements
Applications	The Heavy-Duty Pneumatic Poultry Cage Ring Gun is suitable for poultry cage fabrication, cage panel connection, cage repair, wire mesh fastening, partition reinforcement and livestock enclosure assembly. It can also be used for agricultural fencing, wire baskets, industrial mesh products and other applications requiring heavy-duty C-ring fastening. In commercial poultry projects, the tool is especially useful for equipment manufacturers, installation contractors, farm maintenance teams, distributors and after-sales service personnel.
Customization Options	Tool kit configuration: Customizable Compatible ring supply: Available upon request Spare jaw components: Available upon request Air hose and connector configuration: According to project requirements Maintenance spare parts package: Available upon request OEM packaging: Customizable Bulk project supply: Available upon request

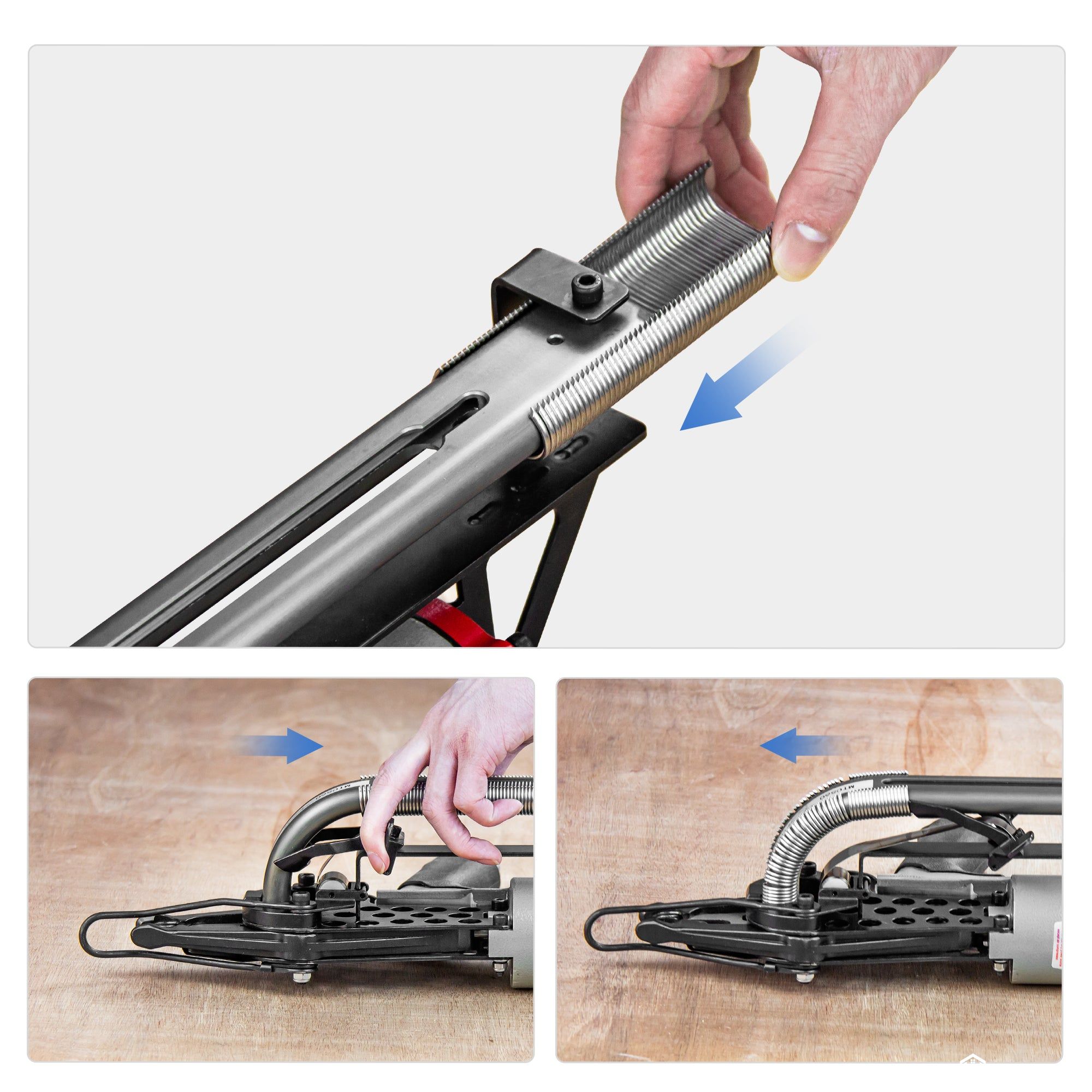

Installation & Maintenance	Connect the tool to a clean, dry and regulated compressed-air supply using a compatible 1/4 inch NPT fitting. Operating pressure should remain within the specified range. Before loading fasteners, disconnect the air supply and confirm that the selected C-rings match the tool specification. Rings should be inserted in the correct direction and the pusher should move freely. Routine maintenance includes cleaning the jaw and magazine, inspecting the air connection, checking moving components for wear and maintaining pneumatic parts according to the service schedule. Clean and dry compressed air is recommended to support stable tool performance and extend the service life of seals, valves and pneumatic components.
Project Cases	Pneumatic hog ring guns are commonly included in poultry cage production lines, farm installation tool kits and maintenance packages for large commercial poultry projects. For new poultry house construction, the tool can support efficient fastening of wire cage components during equipment installation. For existing farms, it provides a practical solution for localized mesh repair and replacement of damaged cage connections.
Product FAQ	Q: What type of fastener does the reference tool use? A: The reference MTC560 uses 14-gauge C-rings with a 39 mm inner crown and 43 mm outer crown. Q: What operating pressure is required? A: The reference operating pressure is 80-120 psi. Q: How many rings can the magazine hold? A: The reference magazine capacity is 125 rings. Q: Is the tool suitable for poultry cage assembly? A: Yes. It is suitable for wire cages, mesh panels and other heavy-duty fastening work. Q: Why use an extended nose? A: The extended nose improves access to recessed joints and confined areas inside cage structures. Q: Can rings and spare parts be supplied with the tool? A: Compatible fasteners and maintenance components are available according to purchasing and project requirements.
