Poultry Drinking Water Filter

The Poultry Drinking Water Filter is an upstream filtration component for automatic poultry drinking systems. It is installed between the farm water source and downstream drinking equipment to reduce suspended particles, sediment and other solid impurities before water enters the nipple drinking lines.

Reliable filtration is particularly important in commercial poultry houses because nipple drinkers, pressure regulators, water meters and dosing equipment contain relatively small water passages. Reducing particulate contamination helps protect these components and supports stable water distribution throughout the house.

The filter can be integrated into a complete poultry main water connection unit for broilers, layers, pullets, breeders and turkeys. Filter size, connection type, filtration grade and installation accessories can be configured according to project water quality and flow requirements.

• Effective Pre-Filtration: Helps remove sediment and suspended particles before water enters the poultry drinking line.
• Nipple Drinker Protection: Reduces the amount of solid contamination reaching small nipple-valve passages.
• Pressure Regulator Protection: Helps keep downstream regulator components cleaner for reliable operation.
• Visual Inspection: Transparent filter housings on compatible models make contamination easier to monitor.
• Serviceable Filter Element: Screen or cartridge elements can be removed for cleaning or replacement according to model.
• Drain and Flushing Options: Selected configurations allow accumulated sediment to be discharged during maintenance.
• Modular Waterline Integration: Suitable for installation with pressure reducers, water meters, medicators and main water connection units.
• Low-Maintenance Structure: Straightforward housing construction simplifies routine inspection and servicing.
• Durable Materials: Engineering plastic components are suitable for humid commercial poultry-house environments.
• Flexible Configuration: Connection size and filtration specification can be selected according to project requirements.

• Filter head
• Filter housing
• Screen or cartridge filtration element
• Water inlet connection
• Water outlet connection
• Housing sealing ring
• Optional sediment drain valve
• Optional flushing valve
• Mounting bracket
• Pipe connection adapters
• Optional pressure gauge
• Optional isolation valves

Incoming water enters the filter housing and passes through the internal filtration element. Suspended particles larger than the selected screen or filter opening are retained while filtered water continues toward the downstream poultry drinking equipment.

As contaminants accumulate, the filter element can be inspected and serviced. Transparent housing configurations make it easier for farm personnel to observe sediment accumulation without immediately dismantling the unit.

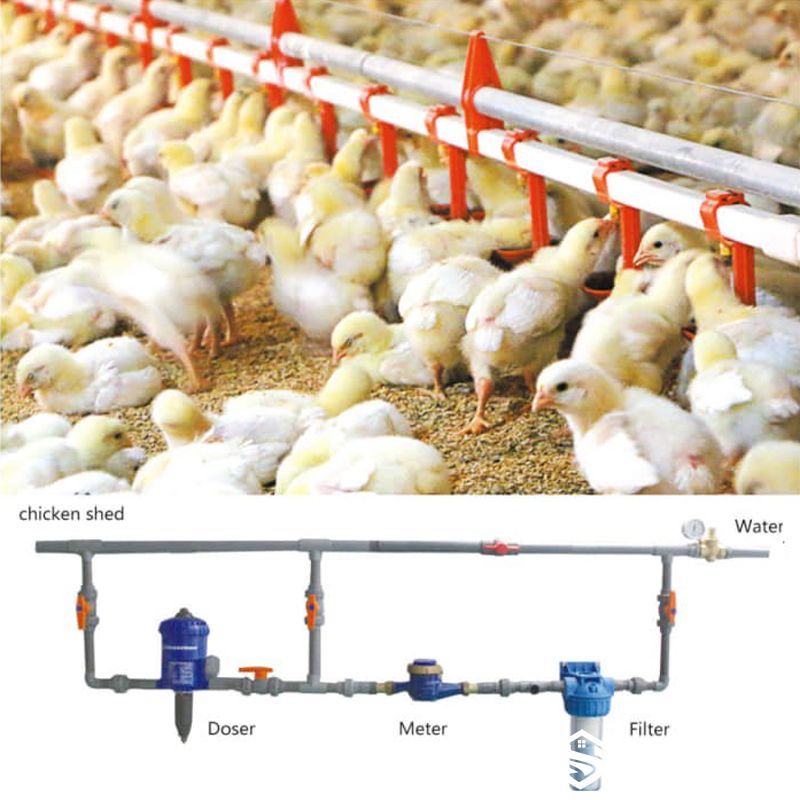

After filtration, water can pass through additional equipment such as water meters, medication dosing systems and pressure regulators before entering the nipple drinking lines.

Final filtration grade, connection size and flow capacity should be selected according to source-water quality, poultry-house water demand and downstream drinking equipment.

• Broiler nipple drinking systems
• Layer drinking lines
• Pullet rearing houses
• Broiler breeder houses
• Layer breeder facilities
• Turkey drinking systems
• Main poultry water connection units
• Medication and dosing systems
• Automatic waterline flushing systems
• Environmentally controlled poultry houses
• Steel structure poultry buildings
• Commercial poultry farm construction projects

SHEWUYOU can configure poultry drinking water filters according to source-water quality, drinking-line quantity, required flow rate and poultry-house installation layout.

• Filter housing size
• Inlet and outlet connection size
• Screen filtration grade
• Cartridge configuration
• Drain-valve arrangement
• Manual flushing configuration
• Mounting bracket
• Pressure gauge
• Isolation valves
• Water meter integration
• Medication dosing equipment
• Pressure regulator integration
• Complete main water connection unit
• OEM / ODM supply

The filter should be installed in the main water supply before sensitive downstream drinking-line components and in a location that provides sufficient space for routine inspection and servicing.

• Confirm the required water-flow direction before installation.
• Flush the incoming water pipe before connecting the filter.
• Secure the filter using a suitable mounting bracket.
• Install isolation valves where required for easier maintenance.
• Keep transparent housings visible for routine inspection.
• Inspect the filter element regularly for accumulated sediment.
• Clean or replace the element before excessive blockage occurs.
• Use the drain or flushing valve where fitted to remove accumulated solids.
• Inspect O-rings and sealing surfaces whenever the housing is opened.
• Avoid excessive tightening of transparent plastic housings.
• Restore water pressure gradually and inspect all connections for leakage.
• Protect the filter from freezing where required by local climate conditions.

Q1: Why does a poultry drinking system need a water filter?

A filter reduces suspended particles before they reach nipple drinkers, regulators and other waterline components, helping support reliable system operation.

Q2: Where should the filter be installed?

It is normally installed in the main water supply upstream of pressure regulators and poultry nipple drinking lines.

Q3: Can the filter element be cleaned?

Many screen-type filter elements can be removed, cleaned and reinstalled when they remain in serviceable condition.

Q4: What filtration grade should be used?

The appropriate filtration grade depends on source-water quality, flow requirements and the downstream poultry drinking equipment.

Q5: Can a flushing valve be added?

Yes. Drain or manual flushing configurations are available according to project requirements.

Q6: Can the filter work with a poultry medicator?

Yes. It can be integrated with water meters, medication dosing equipment, pressure reducers and other main water connection components.

Q7: How often should the filter be cleaned?

Cleaning frequency depends on source-water quality and sediment load. The element should be inspected regularly and serviced before water flow becomes restricted.

Q8: Can SHEWUYOU supply a complete poultry water supply assembly?

Yes. Filters, water meters, medicators, pressure regulators, flushing components and nipple drinking lines can be configured according to project requirements.
