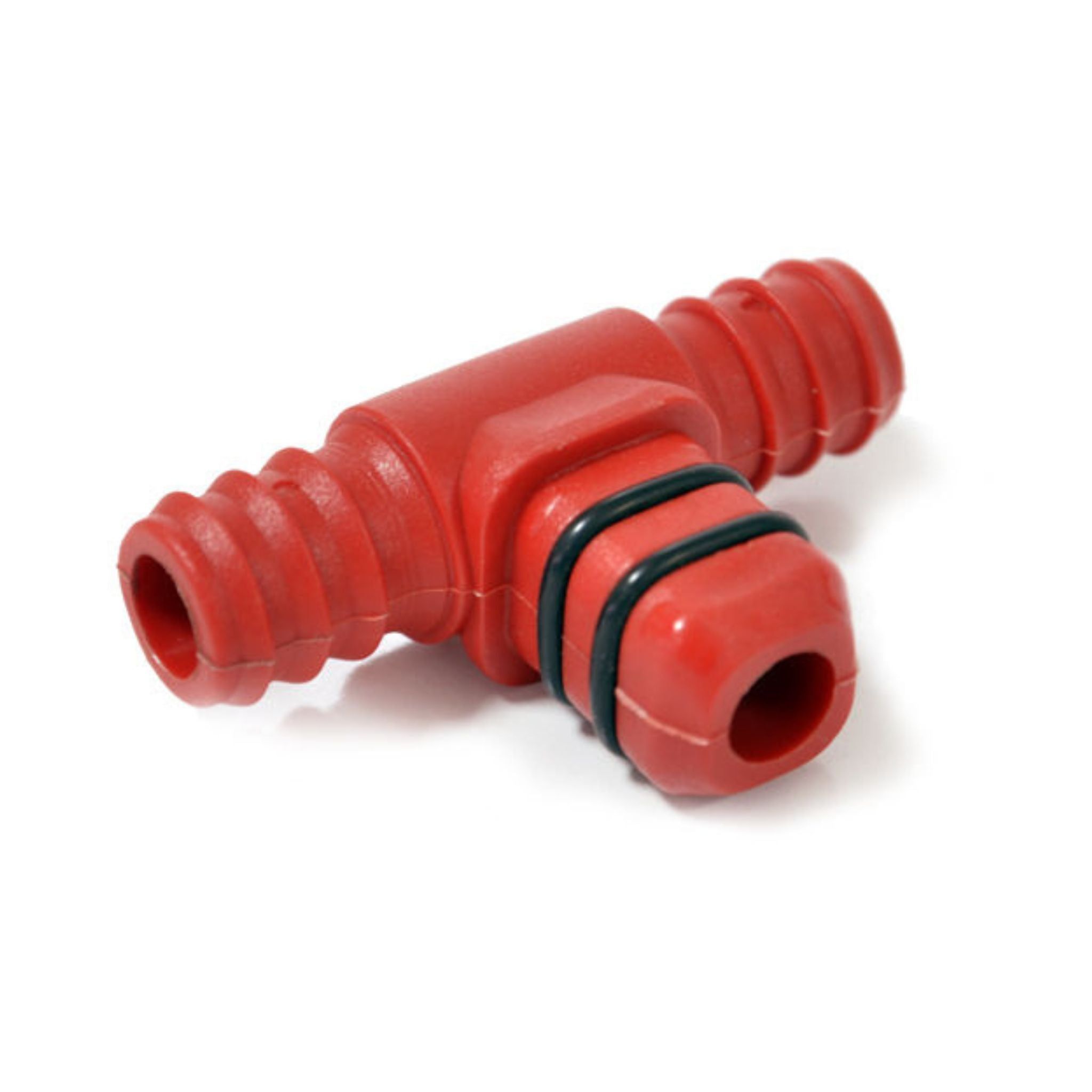

Poultry Waterline T Connector for Drinking Systems

The Poultry Waterline T Connector is a three-way fitting designed to branch or redirect water flow within poultry drinking systems. It connects a main water supply line with an additional branch line, allowing drinking water to be distributed efficiently to different nipple lines, sections or watering zones.

Its compact T-shaped structure is suitable for commercial broiler, layer, breeder and pullet houses as well as livestock equipment projects requiring modular water distribution. Connector dimensions, sealing configuration and connection style can be selected according to the drinking-line design and project requirements.

• Three-way water distribution: Creates a branch connection between the main waterline and secondary drinking-line sections.
• Compact T-shaped structure: Suitable for space-efficient poultry water-distribution layouts.
• Reliable sealing: Compatible sealing elements help reduce leakage at connection points.
• Corrosion-resistant construction: Engineering plastic materials are suitable for humid livestock-house environments.
• Easy installation: Barbed, push-fit or project-specific connection structures simplify assembly and replacement.
• Modular system design: Suitable for extending, dividing or reorganizing poultry drinking-water circuits.
• Maintenance friendly: Individual connectors can be inspected or replaced without rebuilding the complete water distribution system.
• Project customization: Connection size, material and sealing configuration are customizable according to project requirements.

Water enters the connector through one port and is directed through the internal T-shaped passage. Depending on the system layout, the fitting can divide one supply line into two branches or combine compatible waterline sections around a common junction.

Properly matched connection surfaces and sealing components help maintain hydraulic continuity while reducing leakage. The simple three-port structure allows poultry-house water networks to be arranged in modular zones for easier construction and maintenance.

• Commercial broiler houses
• Layer poultry houses
• Broiler and layer breeder farms
• Pullet-rearing facilities
• Duck and turkey drinking systems
• Nipple drinking-line distribution networks
• Water tank and header-line connections
• Steel structure poultry-house projects
• Waterline extension and renovation projects
• Livestock equipment spare-parts inventories

• Connection diameter: Customizable according to poultry waterline requirements.
• Port configuration: Equal or project-specific branch dimensions available upon request.
• Connection structure: Barbed, push-fit or compatible project-specific options.
• Sealing system: Selected according to pipe structure and operating conditions.
• Material: Available according to project requirements and water-system design.
• Packaging: Bulk packaging available for distributors and agricultural engineering projects.
• Complete system supply: Can be supplied with pipes, nipple drinkers, pressure regulators, valves, filters and other poultry waterline parts.

Installation

1. Confirm that the connector size matches the poultry water pipe or flexible tubing.
2. Shut off the water supply and release pressure before installation.
3. Inspect all ports and sealing elements for damage or contamination.
4. Insert the main waterline securely into the two straight connector ports.
5. Connect the secondary waterline to the branch port.
6. Make sure all connections are fully seated and correctly aligned.
7. Restore the water supply gradually.
8. Inspect all three connections for leakage before normal operation.

Maintenance

• Inspect the connector regularly for leakage or mechanical damage.
• Check sealing rings for wear, deformation or mineral deposits.
• Keep water passages free from sediment and foreign material.
• Avoid excessive bending or pulling forces on connected tubing.
• Replace damaged connectors or seals promptly.
• Flush the drinking-water network after installation or major maintenance.

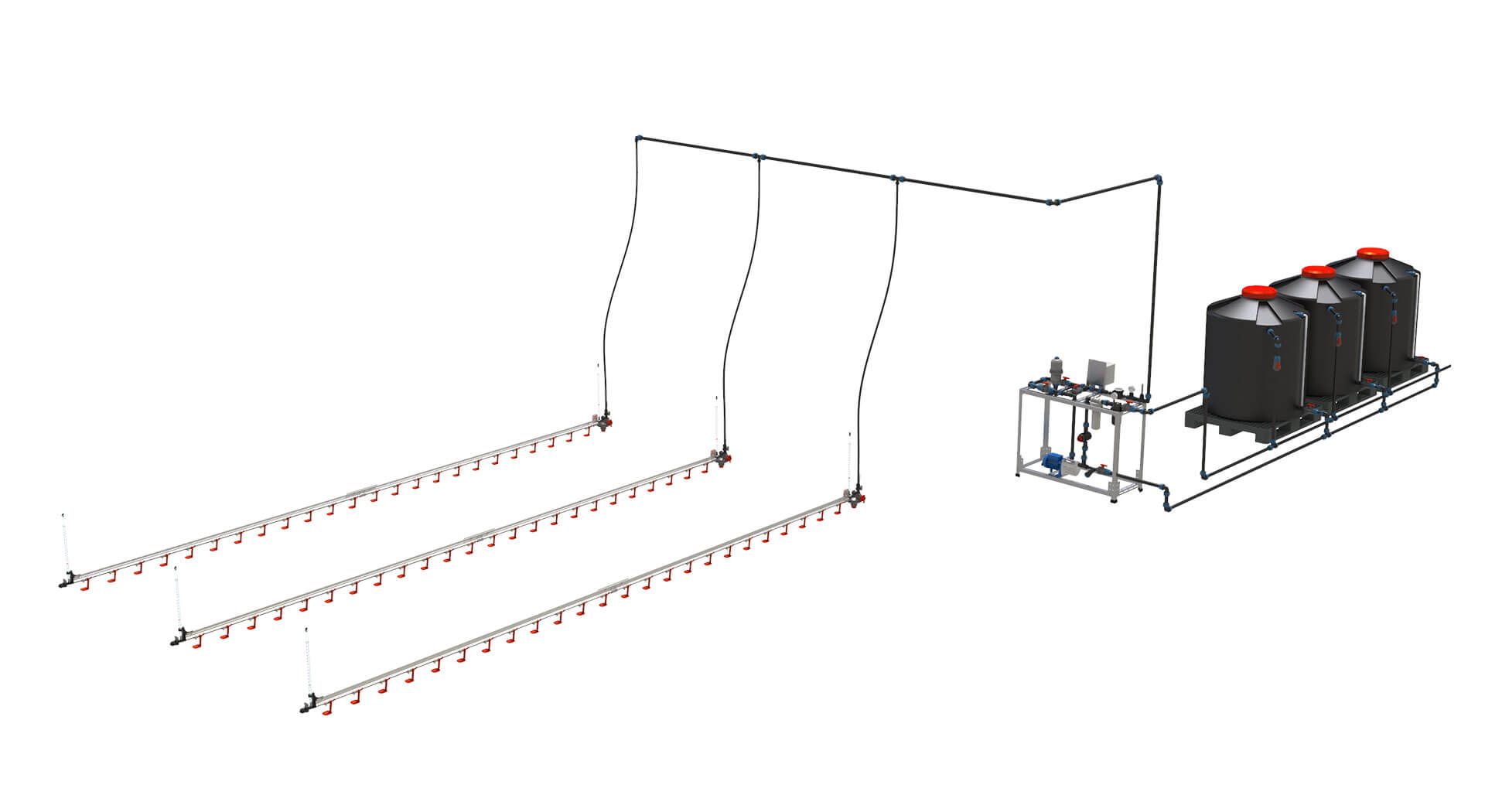

Poultry waterline T connectors are suitable for commercial poultry projects where one water supply must be divided among several drinking lines or watering zones. SHEWUYOU can configure connector quantities and compatible waterline accessories according to poultry-house dimensions, water-source location and drinking-system layout.

Q1: What is a poultry waterline T connector used for?

It creates a three-way junction that allows one poultry water supply line to branch into an additional drinking-line section.

Q2: Can the connector be installed horizontally or vertically?

Yes. Installation orientation can be selected according to the poultry-house water-distribution layout and compatible pipe configuration.

Q3: Are different connector sizes available?

Yes. Connection dimensions can be selected according to project requirements and existing poultry waterline specifications.

Q4: How is leakage prevented?

Depending on the connector design, closely matched fitting surfaces and elastomer sealing rings provide a secure water-tight connection.

Q5: Can it be used when extending an existing poultry waterline?

Yes. T connectors are suitable for compatible extension, branching and renovation projects after pipe dimensions have been confirmed.

Q6: Can T connectors be supplied in bulk?

Yes. Bulk quantities are available for poultry farms, livestock equipment distributors, engineering companies and agricultural project procurement.
