Poultry Drinker Line Suspension System

The Poultry Drinker Line Suspension System is designed to support, level, raise and lower nipple drinking lines in commercial poultry houses. The complete system can combine a cable winch, steel cable, pulleys, suspension cords, line hangers, cable clamps and structural fastening hardware.

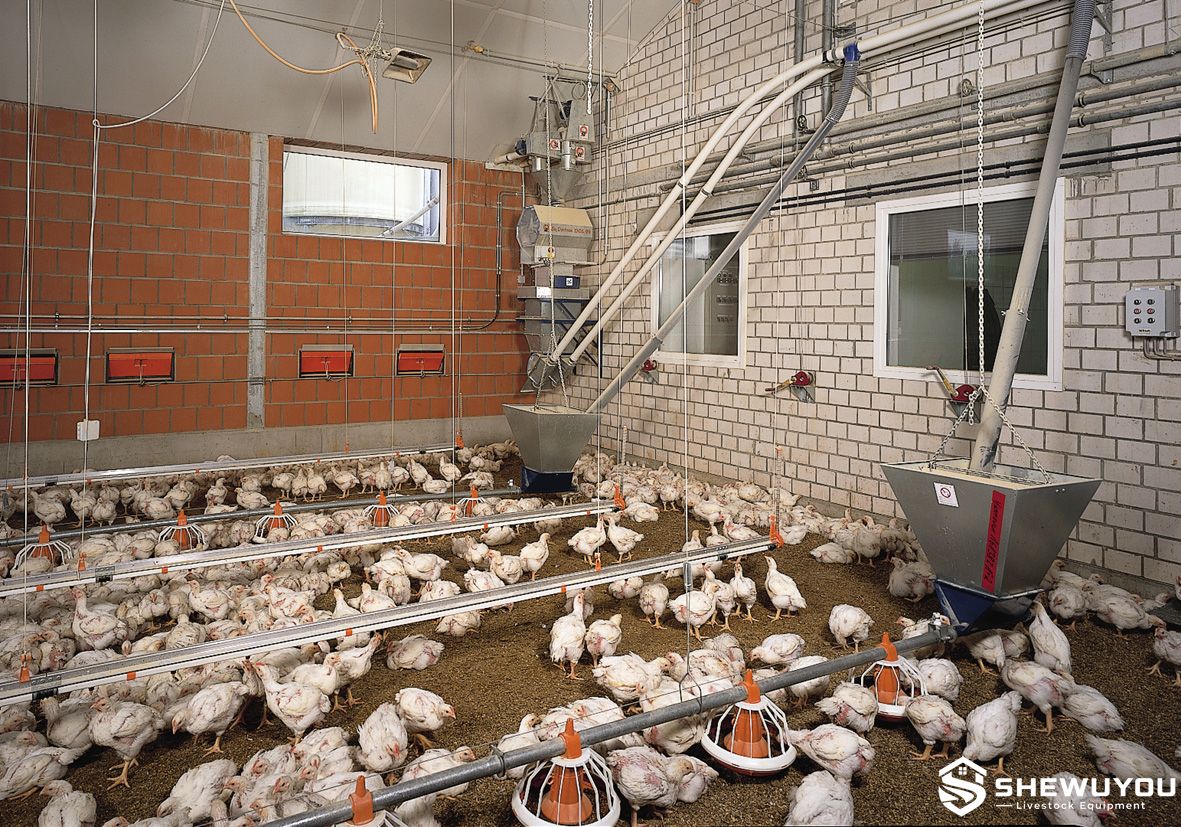

Height adjustment allows the nipple line to follow bird growth throughout the production cycle. The drinking equipment can also be raised toward the poultry-house ceiling during litter removal, washing, disinfection and flock changeover, improving floor access and simplifying livestock-house management.

• Adjustable Drinking Height: enables the nipple drinking line to be positioned according to bird age, body size and management requirements.
• Centralized Lifting: a manual or electric cable winch can raise and lower the suspended drinking line efficiently.
• Stable Multi-Point Suspension: distributed hanging points support the water pipe or aluminum profile and help maintain consistent line alignment.
• Fine Level Adjustment: suspension cords and adjusters allow individual hanging points to be corrected for a level installation.
• Improved Cleaning Access: drinking lines can be lifted away from the floor during washing, litter removal and house preparation.
• Flexible Building Integration: suitable for installation on appropriate roof trusses, steel structure building frames and other livestock-house support structures.
• Replaceable Components: winches, pulleys, hangers, cords and cable clamps can be serviced individually.
• Project-Based Design: suspension spacing, cable routing and lifting configuration can be selected according to poultry-house dimensions and equipment layout.

• Manual or electric cable winch
• Main steel lifting cable
• Ceiling and guide pulleys
• Nylon suspension cords
• Cord height adjusters
• Drinker pipe or aluminum-profile suspension clips
• Cable clamps
• Ceiling hooks and fastening hardware
• Winch mounting bracket
• End anchoring and tensioning accessories

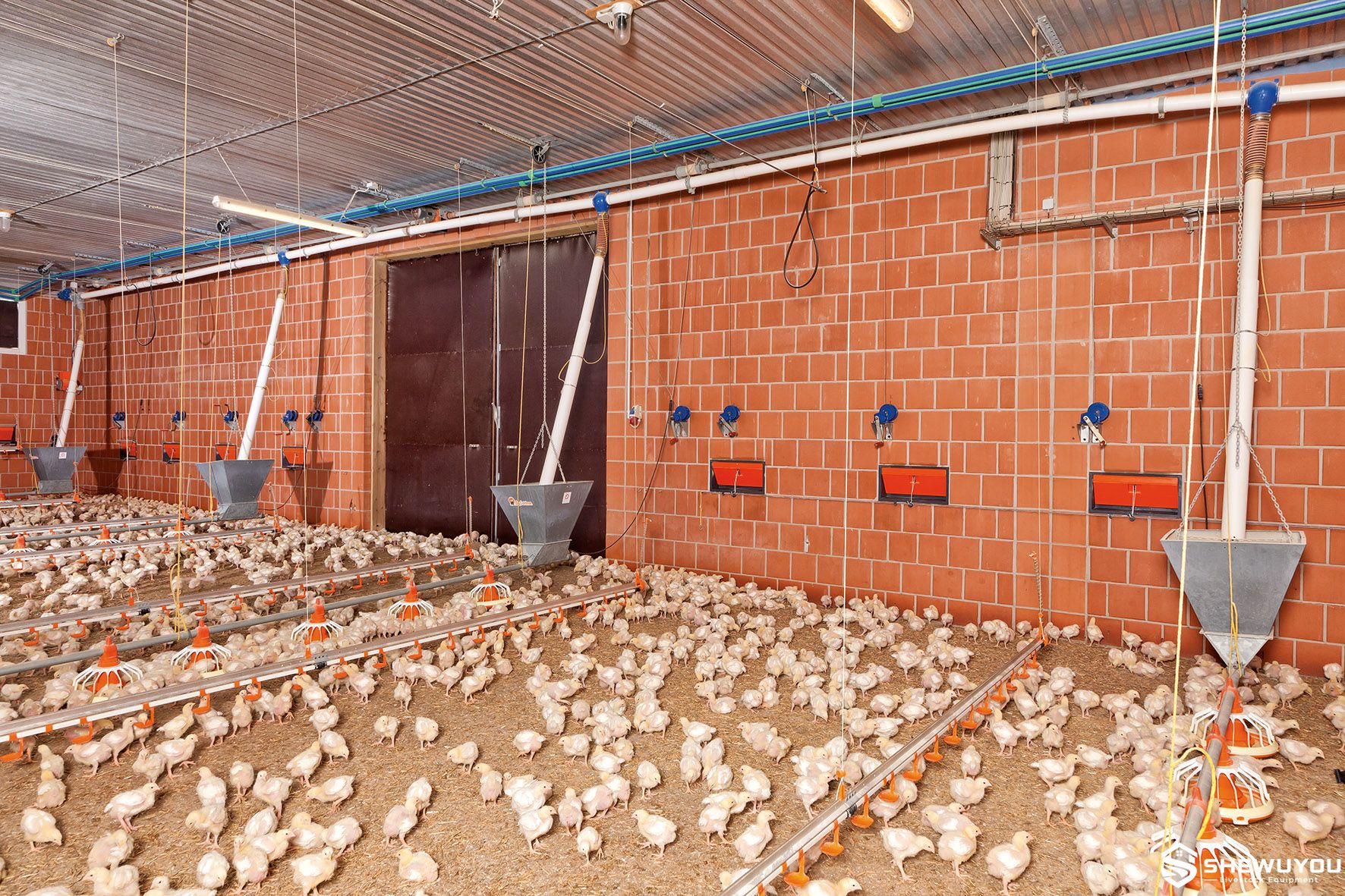

The nipple drinking line is supported at multiple points by vertical suspension cords attached to line hangers or clips. These cords are connected to an overhead cable system guided through pulleys mounted to the poultry-house structure.

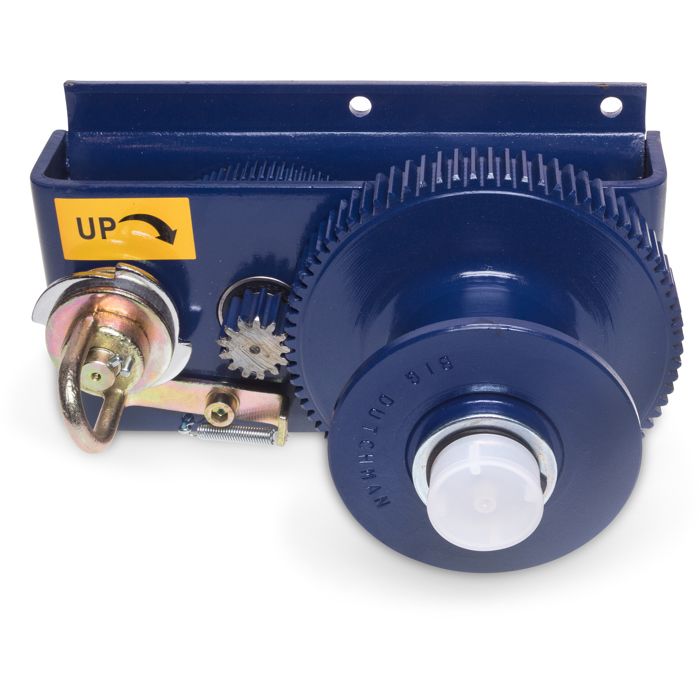

Operating the winch winds or releases the main cable, changing the effective length of the suspension system and raising or lowering the drinking line. Individual cord adjusters can then be used for final leveling.

Correct drinker-line height allows poultry to reach upward toward the nipples while helping limit unnecessary splashing, bird contact with the line and litter moisture.

• Commercial broiler houses
• Broiler breeder houses
• Pullet rearing facilities
• Floor-reared layer houses
• Turkey production houses
• Duck and waterfowl nipple drinking systems
• Environmentally controlled poultry houses
• Steel structure livestock buildings
• New poultry farm construction
• Existing drinking-line repair, renovation and retrofit projects

• Manual or electric winch configuration
• Winch lifting capacity
• Steel cable diameter and length
• Nylon suspension cord length
• Pulley quantity and arrangement
• Suspension clip profile
• Suspension-point spacing
• Ceiling, wall or steel-frame fixing design
• Single-line or multi-line lifting configuration
• Special hardware available upon request

Before installation, verify that the poultry-house roof truss, wall or steel building structure is suitable for the intended suspension load. Position the winch and pulleys so that the lifting cable follows a clear route without unnecessary sharp angles.

Install suspension clips along the drinking line and connect them to the overhead cable using nylon cords and suitable adjusters. The suspension points should be distributed evenly according to the drinking-line structure and engineering requirements.

After installation, operate the winch through the required lifting range and level the complete drinking line. Check that all suspension cords share the load properly and that the water pipe is not twisted or excessively deflected.

Routine maintenance should include inspection of the winch, cable, pulleys, clamps, cords, suspension clips and structural fixing points. Replace worn or damaged lifting components promptly and keep moving parts serviced according to their operating requirements.

Q: Why does a poultry drinking line need a suspension system?

A: The suspension system supports the drinking line and allows its height to be adjusted as birds grow while maintaining a level installation.

Q: Can the drinking line be raised during house cleaning?

A: Yes. Raising suspended drinking lines toward the ceiling increases floor clearance for washing, litter removal, bird movement and house preparation.

Q: What components are normally included?

A: A typical system includes a winch, pulleys, main cable, cable clamps, suspension cords, height adjusters, line clips and structural fastening hardware.

Q: Are manual and electric winches available?

A: Yes. The lifting method can be selected according to house size, line quantity, equipment load and project requirements.

Q: Can the suspension system fit different drinking-line profiles?

A: Yes. Hangers and clips can be selected for compatible round pipes, square nipple pipes and aluminum support profiles.

Q: Can several drinking lines be lifted from one system?

A: Multi-line lifting arrangements can be engineered when the winch capacity, cable routing and building structure are suitable for the combined load.

Q: Can individual suspension parts be supplied separately?

A: Yes. Winches, pulleys, cables, clamps, cords, adjusters and drinking-line suspension clips can be supplied as replacement parts or project components.
