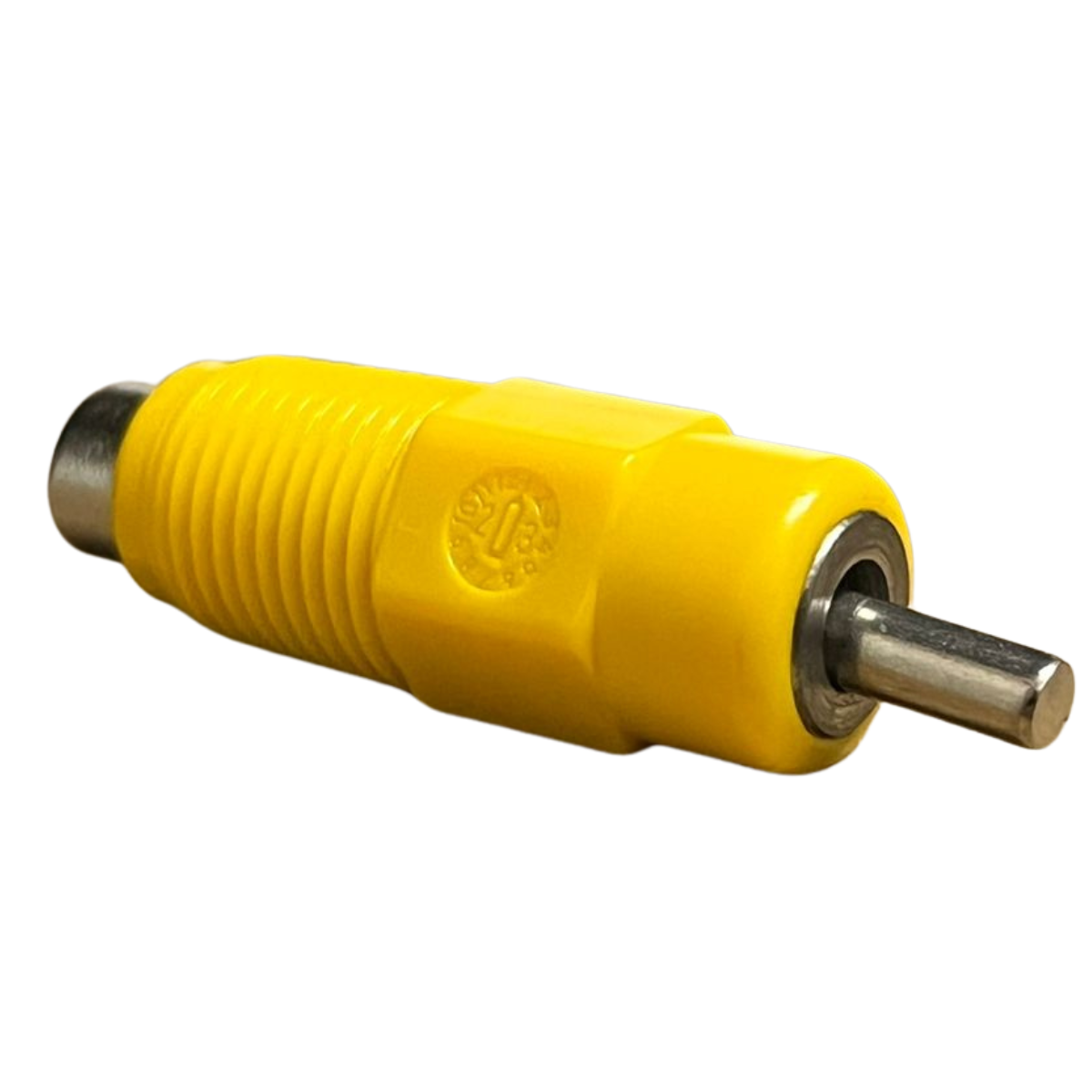

Poultry Drinking Nipple Adapter for Water Lines

The Poultry Drinking Nipple Adapter is a connection component used to install compatible drinking nipples securely into poultry water pipes. It provides the mechanical interface between the nipple body and the drinking-line pipe while supporting accurate nipple positioning and reliable sealing.

Adapter configurations can be selected for stainless-steel nipples, plastic-body combination nipples and other poultry nipple designs. Threaded, plug-in and locking versions are available according to pipe profile, nipple type and commercial poultry-house requirements.

• Secure Nipple Connection: provides a stable interface between the poultry drinking nipple and water pipe.
• Accurate Positioning: helps maintain correct nipple orientation beneath the drinking line for consistent bird access.
• Leak-Resistant Installation: precision connection surfaces help support reliable sealing when matched with the correct nipple and pipe configuration.
• Multiple Nipple Compatibility: versions are available for stainless-steel, plastic-body and combination poultry drinking nipples.
• Flexible Pipe Integration: suitable configurations can be used with square or other dedicated poultry drinking pipes.
• Quick Replacement: damaged nipples or adapters can be serviced without replacing the complete drinking-line pipe.
• Durable Engineering Plastic: suitable adapter bodies provide corrosion resistance in humid livestock-house environments.
• Commercial Farm Application: suitable for new drinking-line assembly, maintenance stock and poultry-house retrofit projects.

• Engineering plastic adapter body
• Nipple receiving bore
• Threaded, plug-in or locking connection
• Pipe seating surface
• Hexagonal or gripping section, depending on design
• Retaining or locking feature
• Compatible poultry drinking nipple, supplied separately or as an assembled unit

The adapter is installed at a prepared opening or compatible connection point in the poultry drinking pipe. The drinking nipple is then threaded, inserted or locked into the adapter according to the selected system design.

The adapter maintains the nipple in the required downward orientation and transfers installation loads to the pipe connection. Correct dimensional matching between the nipple, adapter and pipe is essential for reliable operation.

When the bird activates the nipple pin, water passes through the nipple valve while the adapter remains a fixed mechanical connection between the nipple assembly and the drinking line.

• Commercial broiler drinking lines
• Broiler breeder water systems
• Pullet rearing houses
• Layer drinking systems
• Turkey drinking lines
• Floor-reared poultry houses
• Cage and aviary drinking systems
• Environmentally controlled poultry buildings
• Steel structure livestock houses
• Waterline assembly, maintenance and retrofit projects

• Nipple compatibility
• Threaded or plug-in connection
• J-lock or other locking configuration
• Pipe profile compatibility
• Adapter body dimensions
• Engineering plastic specification
• Color available upon request
• Bulk packaging for distributors and poultry projects
• Special configurations designed according to project requirements

Select an adapter matched to both the poultry drinking nipple and the water-pipe profile. Do not mix adapters and nipples with incompatible thread, diameter or locking geometry.

Prepare the pipe opening using the recommended drill or installation tool where required. Remove plastic chips and burrs before fitting the adapter so debris does not enter the nipple valve or drinking line.

Install the adapter square to the water pipe and secure the nipple according to the specified tightening or locking method. Excessive tightening should be avoided because it can damage plastic threads or distort the pipe connection.

After installation, pressurize the drinking line and inspect every connection for leakage. During routine maintenance, replace adapters showing cracking, thread damage, deformation or loose nipple retention.

Q: What is a poultry drinking nipple adapter?

A: It is the fitting that provides the mechanical connection between a compatible nipple drinker and the poultry water pipe.

Q: Do all poultry nipples use the same adapter?

A: No. Different nipple bodies and drinking-line systems can require different adapter geometries, threads or locking arrangements.

Q: Are separate adapters available for stainless-steel and plastic-body nipples?

A: Yes. Poultry drinking-system component ranges include different adapter versions for stainless-steel and combination nipple designs.

Q: Can an adapter be replaced without changing the entire drinking line?

A: In compatible systems, individual adapters and nipples can be replaced during maintenance without replacing the complete water pipe.

Q: How can leakage around the adapter be prevented?

A: Use the correct adapter and pipe opening, keep connection surfaces clean and install the component using the recommended tool and tightening method.

Q: Can adapters be supplied with complete nipple drinking lines?

A: Yes. Nipple adapters can be supplied together with nipple drinkers, water pipes, drip cups, regulators, connectors and suspension parts according to project requirements.
