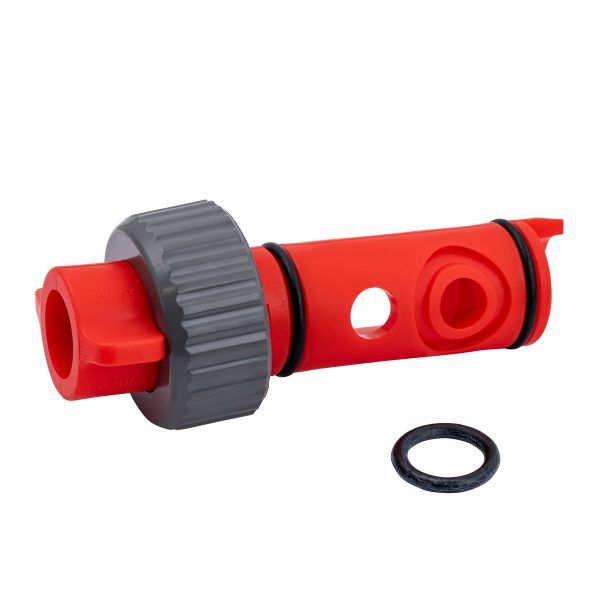

Poultry Drinking Line Flushing Valve for Nipple Systems

The Poultry Drinking Line Flushing Valve is designed for use in poultry nipple drinking systems to provide a controlled flushing path through the line-head pressure regulator or compatible water-management assembly. During flushing, the valve allows a higher water flow to pass through the drinking line so that stagnant water, sediment and loose residues can be discharged from the system.

The valve is suitable for broiler, breeder, layer, pullet, duck and turkey drinking systems and can be used for routine maintenance, line cleaning and compatible automatic flushing projects. Plasson lists flushing valves as dedicated components within poultry nipple drinking and water-management systems. :contentReference[oaicite:0]{index=0}

• Efficient flushing: Provides a dedicated flow path for cleaning poultry nipple drinking lines.
• Sediment removal: Higher flushing flow helps move loose deposits and debris toward the line end.
• Waterline hygiene: Supports routine drinking-system sanitation and water-management procedures.
• Pressure regulator integration: Designed for installation in compatible line-head regulator assemblies.
• Reliable sealing: O-rings and sealing surfaces help maintain controlled water flow between normal and flushing modes.
• Easy servicing: Compact modular construction allows individual valve components to be inspected or replaced.
• Corrosion-resistant construction: Engineering plastic and compatible sealing materials are suitable for livestock drinking-system environments.
• Project compatibility: Valve configuration can be selected according to regulator model and drinking-line requirements.

Typical Plasson flushing-valve assemblies list the valve nut, split ring, peripheral O-ring and inlet O-ring as related service components. :contentReference[oaicite:1]{index=1}

During normal drinking operation, the pressure regulator supplies water to the nipple line at the required low operating pressure. The flushing valve remains in its normal operating position while birds receive water through the nipple drinkers.

When flushing is activated, the valve opens a bypass path that allows higher-pressure water to enter the drinking line. The increased water velocity carries sediment, loose deposits and residual material toward the line-end discharge point.

In automatic systems, the flushing valve can be incorporated into a regulator assembly controlled by a farm controller or dedicated flushing controller. Plasson describes automatic flushing systems in which an electric flushing valve acts as a bypass to direct higher-pressure water through the drinking line. :contentReference[oaicite:2]{index=2}

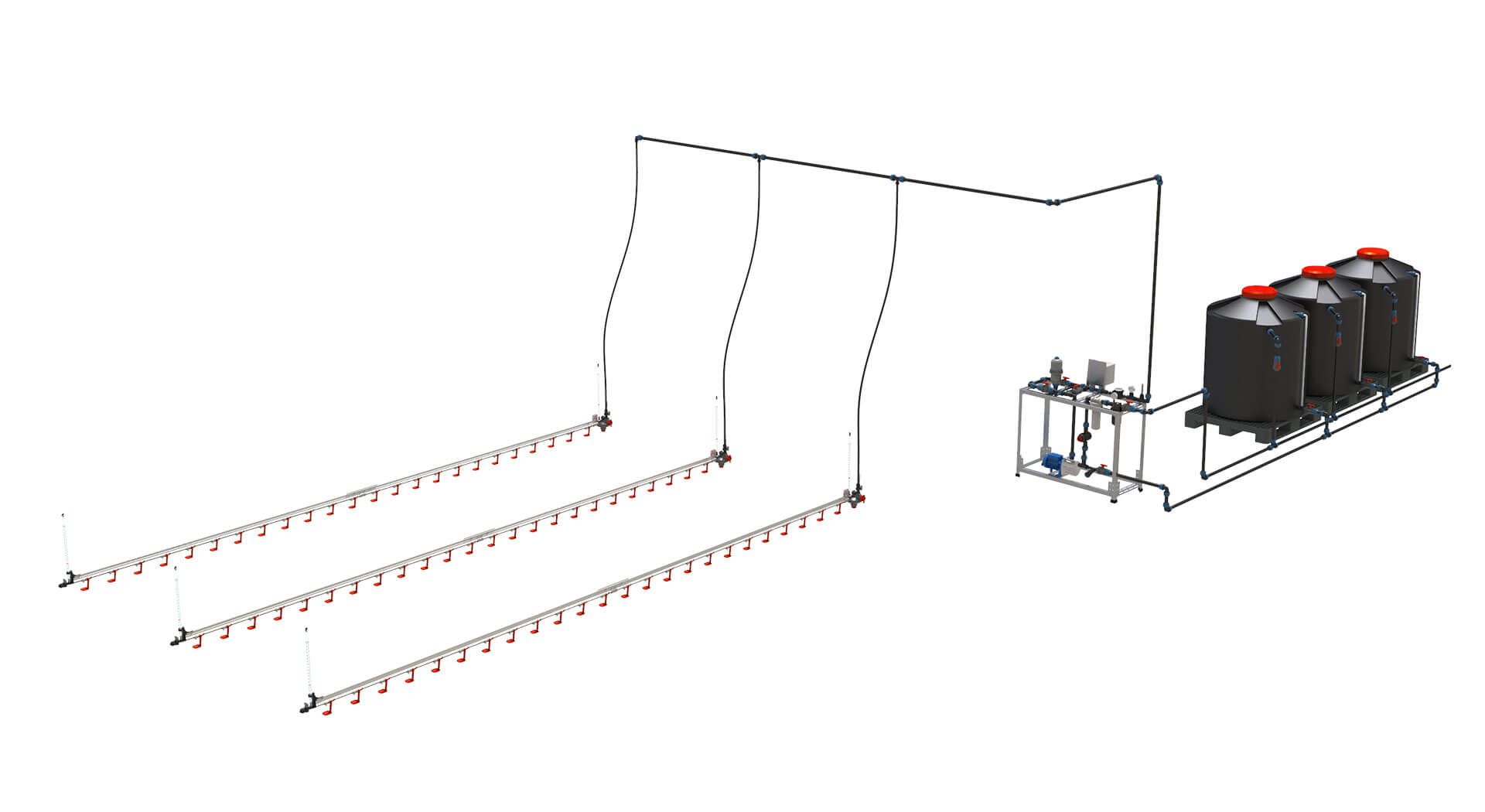

• Commercial broiler drinking systems
• Layer poultry houses
• Broiler and layer breeder farms
• Pullet-rearing houses
• Duck and turkey nipple drinking systems
• Automatic poultry waterline flushing systems
• Steel structure poultry houses
• Drinking-system renovation projects
• Livestock equipment spare-parts inventories

• Regulator compatibility: Selected according to pressure regulator model.
• Valve configuration: Manual or automatic flushing versions available according to project requirements.
• Seal specification: Available according to regulator design and water conditions.
• Repair kit: Valve, O-rings, split ring and related components available upon request.
• Packaging: Individual or bulk project packaging available.
• Complete waterline supply: Can be supplied together with pressure regulators, nipple pipes, connectors, line ends, filters and suspension accessories.

Installation

1. Shut off the poultry-house water supply and release pressure from the drinking line.
2. Confirm that the flushing valve matches the pressure regulator model.
3. Inspect O-rings and sealing surfaces before assembly.
4. Insert the valve into the regulator in the correct orientation.
5. Install the retaining ring and valve nut according to the regulator configuration.
6. Restore water supply gradually and inspect the assembly for leakage.
7. Test both normal drinking and flushing modes before returning the system to operation.

Maintenance

• Inspect sealing rings for wear, deformation or mineral deposits.
• Clean internal water passages during routine drinking-line maintenance.
• Check that the valve moves freely between operating positions.
• Replace damaged O-rings or worn valve components promptly.
• Flush the drinking line regularly according to farm water-quality conditions.
• Keep common valve and sealing components in stock for large commercial poultry farms.

Poultry drinking-line flushing valves are commonly used in commercial poultry houses equipped with nipple watering systems and line-head pressure regulators. For large livestock equipment projects, SHEWUYOU can supply valve quantities and compatible regulator accessories according to poultry-house layout, drinking-line quantity and maintenance requirements.

Q1: What does a poultry drinking-line flushing valve do?

It opens a flushing flow path that allows higher water flow through the drinking line to help remove sediment, stagnant water and loose residues.

Q2: Is the flushing valve installed at the line head or line end?

This type of flushing valve is typically integrated with the line-head pressure regulator, while the line end provides the discharge path during flushing.

Q3: Can the valve be used for automatic flushing?

Yes, when used with a compatible regulator, electric valve and flushing controller. Automatic flushing systems can schedule line cleaning according to farm-management requirements. :contentReference[oaicite:3]{index=3}

Q4: Can the valve be used as a replacement part?

Yes. Replacement valves can be supplied for compatible regulator assemblies after confirming the regulator model and valve dimensions.

Q5: Which components should be checked during replacement?

The valve nut, O-rings, split ring, sealing surfaces and regulator housing should be inspected before reassembly.

Q6: Can flushing valves be supplied in bulk?

Yes. Bulk quantities and maintenance kits are available for poultry farms, engineering companies, distributors and agricultural project procurement.
