Poultry Drinking Line Suspension Clip

The Poultry Drinking Line Suspension Clip is a structural accessory used to secure the nipple drinking pipe to a supporting tube, aluminum profile or drinking-line suspension assembly. It helps maintain correct pipe orientation and provides consistent mechanical support along automatic poultry drinking lines.

In commercial broiler, layer, pullet and breeder houses, drinking lines extend over considerable distances and must remain straight, stable and correctly positioned. Properly spaced suspension clips reduce pipe sagging and unwanted movement while allowing the complete line to be raised or lowered with the poultry-house winching system.

Different clip geometries are available for common 22 × 22 mm square nipple pipes and round or profiled support rails. Material, dimensions, locking structure and support-pipe compatibility can be selected according to the drinking-line design and project requirements. Professional poultry systems use closely spaced suspension points to maintain drinking-line stability. :contentReference[oaicite:0]{index=0}

• Stable Drinking-Line Support: Holds the nipple pipe securely relative to the upper support rail or tube.
• Correct Pipe Alignment: Helps maintain a straight drinking line and consistent nipple orientation.
• Reduced Pipe Sagging: Proper clip spacing distributes the mechanical load along the complete waterline.
• 22 mm Square Pipe Compatibility: Common versions are designed for 22 × 22 mm poultry nipple drinking pipes. :contentReference[oaicite:1]{index=1}
• Round Support Tube Options: Compatible configurations are available for approximately 26.6-27 mm round support tubes. :contentReference[oaicite:2]{index=2}
• Quick Installation: Snap-fit or clip-type construction simplifies assembly during new poultry-house installation.
• Lightweight Construction: Engineering plastic clips add minimal weight to suspended drinking systems.
• Corrosion Resistance: Plastic materials are suitable for humid poultry-house environments.
• Height Adjustment Compatible: Allows the complete waterline to operate with cable, pulley and winch lifting systems.
• Maintenance Friendly: Individual clips can be inspected or replaced without changing the complete drinking line.
• Multiple Configurations: Versions for square pipe, round support tube, aluminum profile and anti-roost wire systems are available.

• Upper support-tube or profile holder
• Lower nipple-pipe retaining section
• Snap-fit locking structure
• Suspension or cable attachment point according to model
• Optional anti-roost wire holder
• Optional insulator section
• Optional fixing screw
• Optional tension-spring or turnbuckle connection

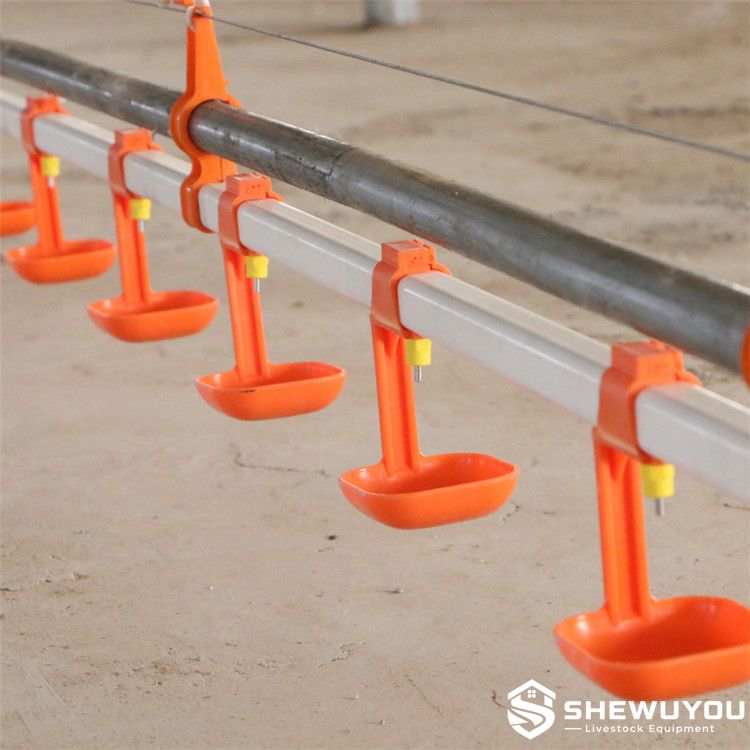

The suspension clip mechanically links the nipple drinking pipe to the supporting rail or tube above it. The lower section surrounds or grips the drinking pipe, while the upper section locks onto the structural support.

When multiple clips are installed at regular intervals, the weight of the water-filled pipe, nipple drinkers and optional drip cups is distributed across the supporting structure. This helps prevent localized bending and keeps the drinkers at a uniform height.

Some professional suspension clips also incorporate holders for anti-roost wires or insulating elements so the same component can support both drinking-line positioning and bird-perching control. :contentReference[oaicite:3]{index=3}

Final clip dimensions, support-pipe diameter and suspension spacing should be confirmed against the actual nipple pipe, support profile and drinking-line configuration before ordering.

• Broiler nipple drinking lines
• Layer poultry drinking systems
• Pullet rearing waterlines
• Broiler breeder houses
• Layer breeder houses
• Turkey drinking lines
• Automatic poultry drinking systems
• Steel structure poultry houses
• Poultry-house retrofit projects
• Drinking-line maintenance and spare-parts replacement
• Commercial poultry farm construction projects

SHEWUYOU can configure suspension clips according to nipple-pipe size, upper support profile, drinking-line layout and suspension-system requirements.

• 22 × 22 mm square pipe clip
• 25 × 25 mm square pipe configuration
• Round support-tube diameter
• Aluminum profile connection
• Square support-rail connection
• Single or double anti-roost wire holder
• Integrated insulator option
• Snap-fit or screw-secured design
• Clip color
• Complete drinking-line hanger set
• Bulk spare-parts packaging
• OEM / ODM configuration

Suspension clips should be installed at regular intervals along the drinking line so that the nipple pipe remains straight and adequately supported. The final spacing must follow the drinking-system design and load requirements.

• Confirm nipple-pipe and upper support-rail dimensions before installation.
• Position suspension clips uniformly along the complete drinking line.
• Snap or clamp the lower section securely around the nipple pipe.
• Connect the upper holder to the support tube or aluminum profile.
• Ensure the nipple pipe is not twisted during installation.
• Check that all nipples remain vertically aligned.
• Connect suspension cables or lifting components where applicable.
• Raise and lower the completed drinking line to verify free movement.
• Inspect clips regularly for cracking, deformation or loose attachment.
• Replace damaged clips before they allow the pipe to sag.
• Inspect suspension clips during every poultry-house turnaround.

Q1: What is a poultry drinking line suspension clip?

It is a hanger or retaining component used to support the nipple drinking pipe and connect it to an upper support rail or tube.

Q2: Why are suspension clips important?

They help prevent pipe sagging and keep the drinking line straight, stable and correctly aligned for consistent bird access.

Q3: Are clips available for 22 × 22 mm pipe?

Yes. 22 × 22 mm square nipple pipe is a common poultry drinking-line format, and compatible clips are widely used. :contentReference[oaicite:4]{index=4}

Q4: Can the same clip hold a round support tube?

Yes. Compatible versions can connect the square nipple pipe to round support tubes of approximately 26.6-27 mm. :contentReference[oaicite:5]{index=5}

Q5: Can clips support anti-roost wires?

Selected suspension clips include one or two holders for anti-roost wire and can incorporate insulating features. :contentReference[oaicite:6]{index=6}

Q6: How far apart should suspension clips be installed?

Spacing depends on the drinking-system design. One professional poultry system specifies suspension points every approximately 60 cm to maintain good stability. :contentReference[oaicite:7]{index=7}

Q7: Can a damaged clip be replaced separately?

Yes. Individual suspension clips can normally be replaced without replacing the nipple pipe or the complete drinking line.

Q8: Can SHEWUYOU supply a complete drinking-line suspension system?

Yes. Suspension clips, support rails, cables, pulleys, winches, anti-roost wires and related waterline components can be configured according to project requirements.
