Nipple Drinking Pipe Coupling

The Nipple Drinking Pipe Coupling is a connection fitting designed to join individual sections of poultry nipple drinking pipe into a continuous waterline. It provides accurate pipe alignment and a secure hydraulic connection between adjacent pipe sections in broiler, layer, pullet, breeder and other poultry drinking systems.

Common configurations include straight couplings, flexible expansion couplings, push-fit connectors and clamp-assisted joints for square PVC drinking pipes. A correctly selected coupling helps maintain line continuity while reducing the risk of leakage at pipe joints.

The component is suitable for new poultry-house construction, existing drinking-line extension and replacement maintenance. Coupling dimensions, sealing method and clamp configuration can be supplied according to the pipe profile and project requirements.

• Secure Pipe Connection: Joins adjacent poultry drinking pipes while maintaining correct waterline alignment.
• Leak-Resistant Joint: Compatible sealing, adhesive or clamp systems help reduce leakage at pipe connections.

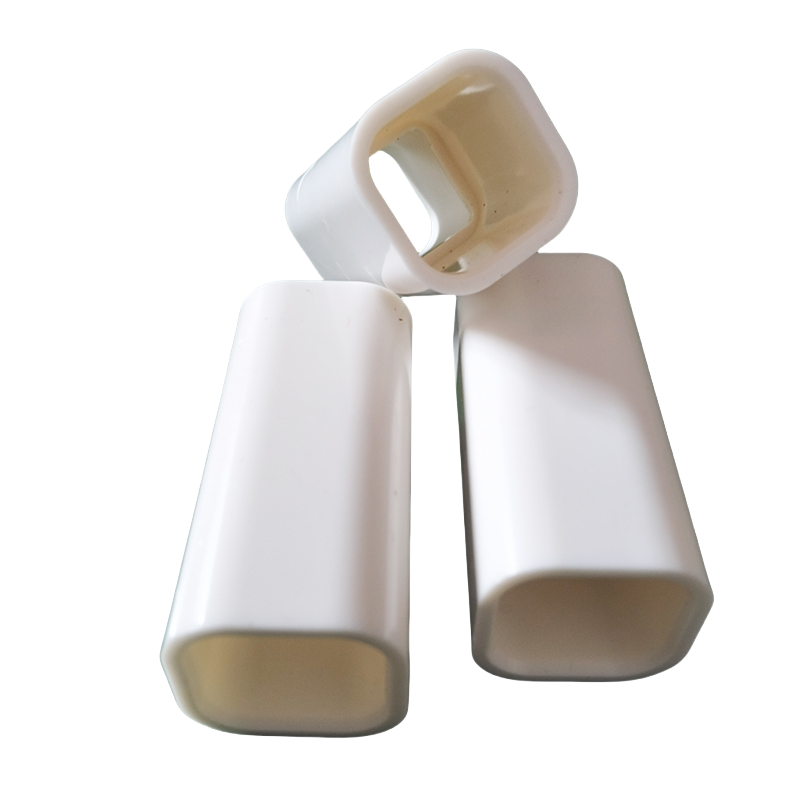

• Square Pipe Compatibility: Suitable configurations are available for commonly used poultry square drinking pipes.

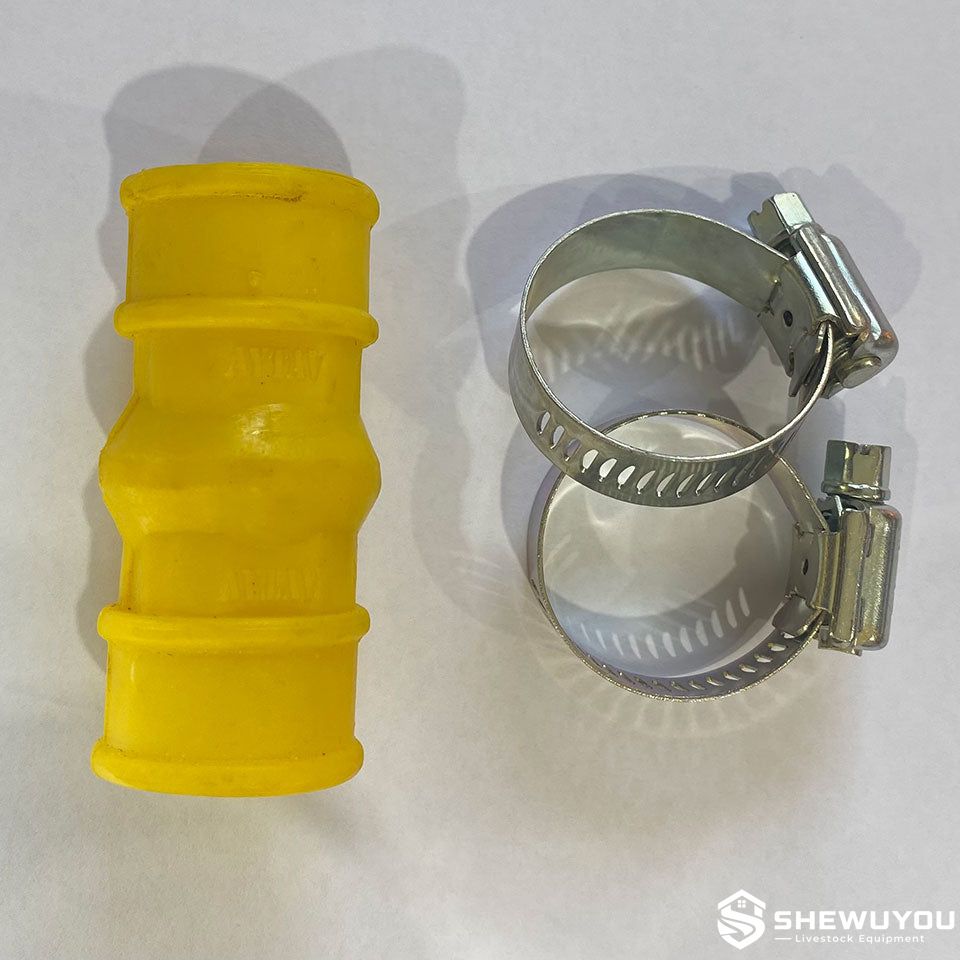

• Clamp-Assisted Installation: Selected models use stainless steel clamps to reinforce the connection.
• Expansion Compensation Option: Flexible coupling designs can accommodate limited dimensional movement in long drinking lines.
• Low Flow Restriction: Smooth internal passage helps maintain water distribution through the drinking line.
• Corrosion-Resistant Materials: Engineering plastic and stainless steel hardware are suitable for humid poultry-house environments.
• Fast Installation: Simple coupling structure helps reduce assembly time during poultry-house construction.
• Easy Replacement: Individual connectors can be serviced without replacing the complete drinking line.
• Project Flexibility: Straight, transition and special connection configurations are available according to project requirements.

• Plastic coupling body
• Square pipe insertion sockets
• Internal water passage
• Sealing surfaces
• Optional O-ring or sealing sleeve
• Optional stainless steel hose clamps
• Optional expansion section
• Optional reducing transition section
• Optional adhesive bonding area

Two drinking-pipe sections are inserted into opposite ends of the coupling. The coupling maintains the pipes on a common centerline while providing a continuous internal passage for water.

Depending on the selected design, the connection may be secured by adhesive bonding, elastic compression, push-fit engagement or external clamps. Clamp-assisted designs apply uniform pressure around the coupling sleeve to improve joint stability.

Expansion-type couplings provide limited axial compensation where temperature changes, installation tolerances or long waterline layouts may cause dimensional movement.

Final coupling dimensions, pipe compatibility, clamp size and sealing method should be confirmed against the actual poultry drinking-pipe specification before ordering.

• Broiler nipple drinking lines
• Layer drinking systems
• Pullet rearing waterlines
• Broiler breeder houses
• Layer breeder houses
• Turkey drinking systems
• Automatic poultry watering systems
• Drinking-line extension projects
• Poultry waterline maintenance and repair
• Steel structure poultry buildings
• Commercial poultry farm construction projects

SHEWUYOU can configure nipple drinking pipe couplings according to drinking-pipe dimensions, waterline layout and installation requirements.

• 22 × 22 mm square pipe coupling
• 28 × 28 mm square pipe coupling
• Straight coupling
• Long coupling
• Flexible expansion coupling
• Push-fit coupling
• Clamp-assisted coupling

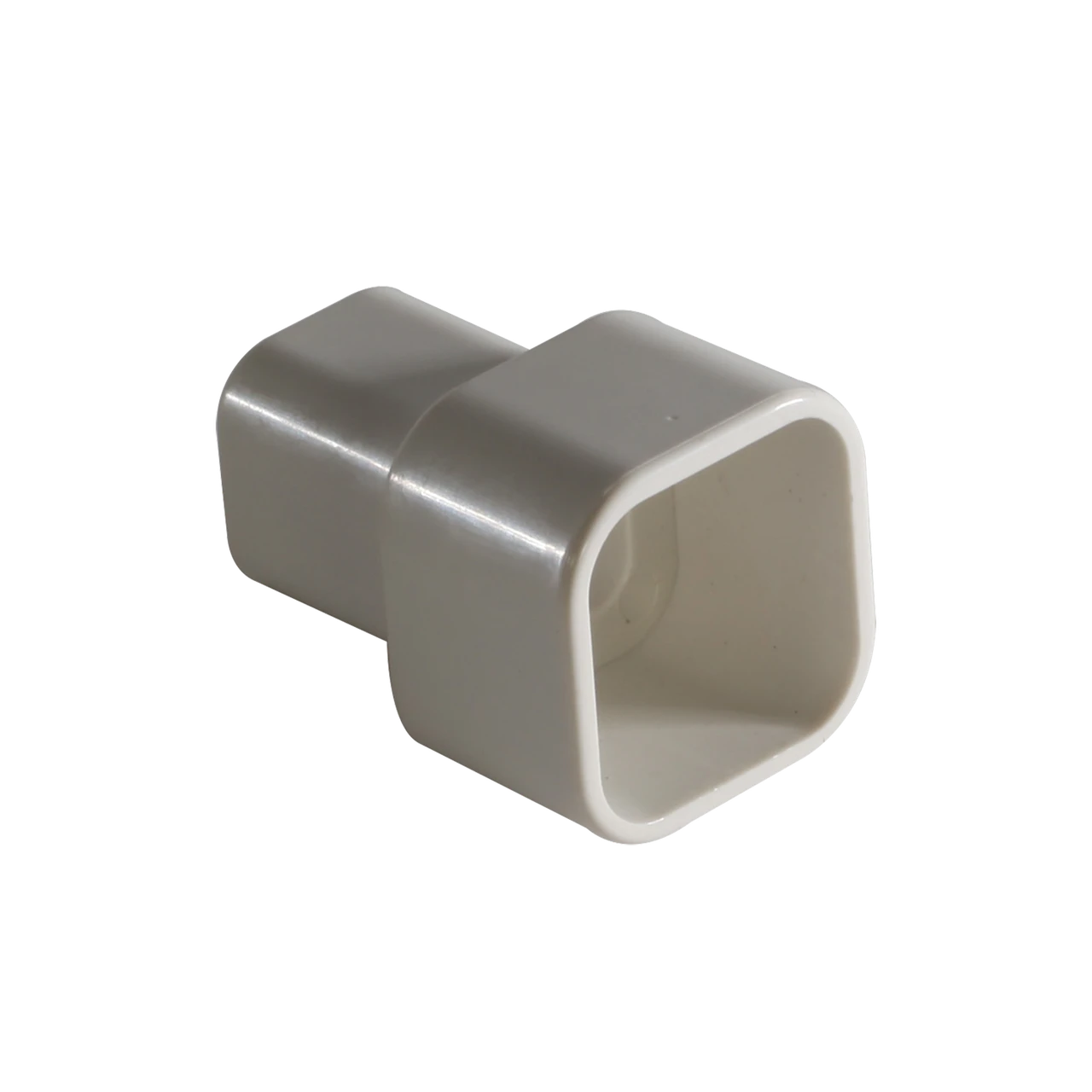

• Square-to-square transition coupling
• Adhesive bonding configuration
• Sealing gasket specification
• Clamp size and material
• OEM color and bulk packaging

Correct pipe preparation and alignment are important for a reliable coupling connection. Pipe ends should be clean, square and free from damage before assembly.

• Shut off and drain the drinking line before installation.
• Confirm that both pipe sections match the coupling dimensions.
• Cut pipe ends square and remove burrs or sharp edges.
• Clean dirt, adhesive residue and mineral deposits from the connection area.
• Insert both pipe sections fully into the coupling.
• Apply approved adhesive where required by the selected coupling design.
• Install and tighten clamps evenly where clamp-assisted connectors are used.
• Keep both pipe sections correctly aligned to prevent mechanical stress.
• Restore water pressure gradually and inspect the joint for leakage.
• Flush the drinking line after installation.
• Inspect couplings, clamps and seals during routine flock-turnaround maintenance.

Q1: What is a nipple drinking pipe coupling used for?

It connects two poultry nipple drinking-pipe sections to form a continuous waterline.

Q2: Is it available for 22 × 22 mm square pipe?

Yes. 22 × 22 mm is a commonly used square drinking-pipe size, and compatible couplings are available.

Q3: Are couplings available for 28 × 28 mm pipe?

Yes. Couplings for compatible 28 × 28 mm poultry drinking pipes can also be supplied.

Q4: Why do some couplings include clamps?

External clamps reinforce the connection and help maintain compression around the coupling sleeve.

Q5: Does every coupling require adhesive?

No. Installation depends on the coupling design. Some models are bonded, while others use push-fit, elastic or clamp-assisted connections.

Q6: What is an expansion coupling?

An expansion coupling allows limited axial movement between pipe sections to compensate for installation tolerance or dimensional changes.

Q7: Can a coupling be replaced without changing the entire drinking line?

Yes. A damaged or leaking coupling can normally be replaced independently when the surrounding pipe remains serviceable.

Q8: Can SHEWUYOU supply other poultry waterline fittings?

Yes. Straight couplings, transition fittings, elbows, T-connectors, end pieces, pipe clamps and other poultry waterline parts are available according to project requirements.
