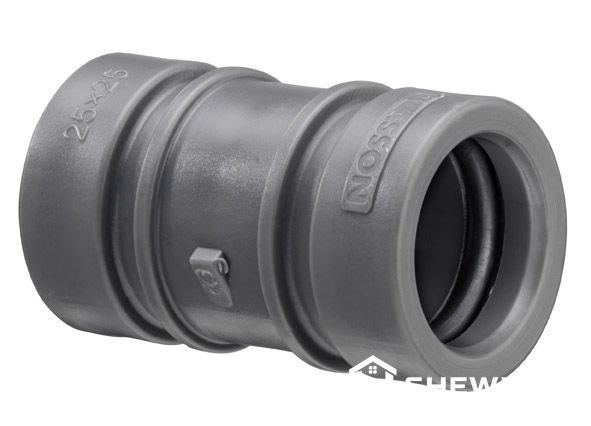

Poultry Waterline Pipe Connector

The Poultry Waterline Pipe Connector is designed to join adjacent sections of PVC nipple drinking pipe in commercial poultry watering systems. It provides a compact and reliable connection between waterline sections while helping maintain correct alignment and continuous water flow through the drinking line.

The connector can be used in broiler, breeder, layer, pullet, turkey and other poultry drinking systems. Depending on project requirements, external, internal or combined connector configurations can be supplied together with seals, support-profile connectors and related installation accessories.

• Secure pipe connection: Designed to connect separate nipple drinking-line pipe sections into one continuous waterline.
• Reliable sealing: Compatible sealing elements help reduce leakage at pipe joints.
• Easy installation: Simple push-fit or mechanical assembly reduces installation time during poultry-house construction.
• Stable alignment: Helps maintain straight positioning of adjacent drinking-line sections.
• Durable construction: Manufactured from engineering plastic or other corrosion-resistant materials according to application requirements.
• Maintenance friendly: Connector sections can be inspected or replaced without changing the complete drinking line.
• Modular system design: Suitable for extending new or existing nipple drinking lines.
• Project customization: Dimensions and connector configurations can be supplied according to pipe size and project requirements.

The connector receives the ends of two adjacent drinking pipes and holds them concentrically in a common coupling body. Internal sealing surfaces or sealing rings form a water-tight joint while allowing water to pass continuously through the assembled drinking line.

In suspended poultry nipple systems, the water pipe may also be supported by an aluminum profile. A separate profile connector is then installed across the joint to maintain longitudinal rigidity and keep the drinking line straight during lifting, lowering and routine operation.

• Commercial broiler drinking lines
• Breeder poultry houses
• Layer and pullet drinking systems
• Turkey and duck nipple drinking lines
• Floor-rearing poultry houses
• Cage and aviary drinking systems
• Steel structure poultry farm projects
• Drinking-line extension and renovation projects
• Livestock equipment spare-parts inventories

• Pipe diameter: Available according to project requirements.
• Connector structure: External, internal and project-specific configurations available.
• Seal type: Selected according to pipe and connector design.
• Support profile connection: Aluminum profile coupling components available upon request.
• Material: Customizable according to application and water-system requirements.
• Packaging: Bulk packaging available for distributors, dealers and poultry equipment projects.
• Complete system supply: Can be supplied together with nipple pipes, drinkers, drip cups, pressure regulators, line ends and suspension accessories.

Installation

1. Check that both drinking-line pipe ends are clean, straight and free from burrs.
2. Inspect the connector and sealing components before installation.
3. Insert the first pipe end into the connector to the required installation depth.
4. Align the second pipe section and insert it into the opposite side of the connector.
5. Install the aluminum support-profile connector and fasteners where required.
6. Check that the complete drinking line remains straight and level.
7. Pressurize the system gradually and inspect the joint for leakage.

Maintenance

• Inspect pipe joints during routine drinking-line maintenance.
• Check seals for wear, deformation or mineral deposits.
• Replace damaged connectors or sealing components promptly.
• Keep pipe joints aligned to avoid unnecessary mechanical stress.
• Flush the drinking line after installation or servicing.
• Maintain spare connectors and seals on site for large commercial poultry projects.

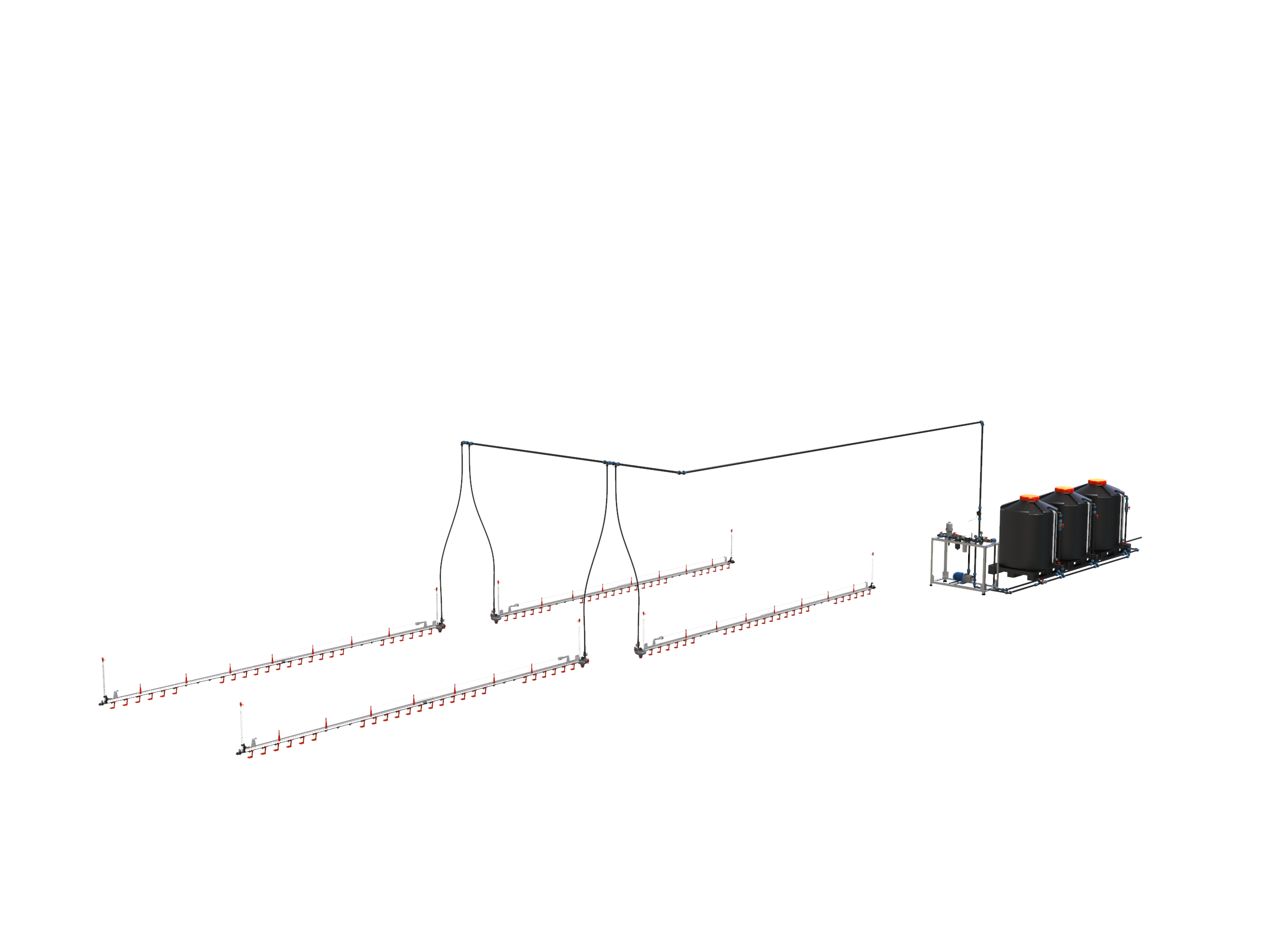

Poultry waterline pipe connectors are routinely used in large commercial poultry houses where multiple drinking-line sections are assembled into long suspended waterlines. SHEWUYOU can supply connector quantities and compatible accessories according to poultry-house length, drinking-line layout and project drawings.

Q1: What is a poultry waterline pipe connector used for?

It connects two sections of nipple drinking pipe to create a continuous poultry waterline.

Q2: Which pipe sizes are available?

Common poultry drinking systems use 25 mm pipe connectors, while other sizes can be supplied according to project requirements.

Q3: Does the connector require a seal?

The sealing method depends on the connector design. Many external coupling systems use an internal sealing element to maintain a water-tight joint.

Q4: Can the connector be used for drinking-line extensions?

Yes. It is suitable for joining new drinking-line sections during installation, extension or compatible renovation projects.

Q5: Is an aluminum profile connector also required?

For suspended systems using an aluminum support profile, a separate profile connector may be required to maintain structural alignment across the pipe joint.

Q6: Can connectors be supplied in bulk?

Yes. Bulk quantities and project-specific spare-parts packages are available for poultry farms, engineering companies, distributors and equipment dealers.
