Product Name	Digital Cattle Estrus & Ovulation Detector
Product Image

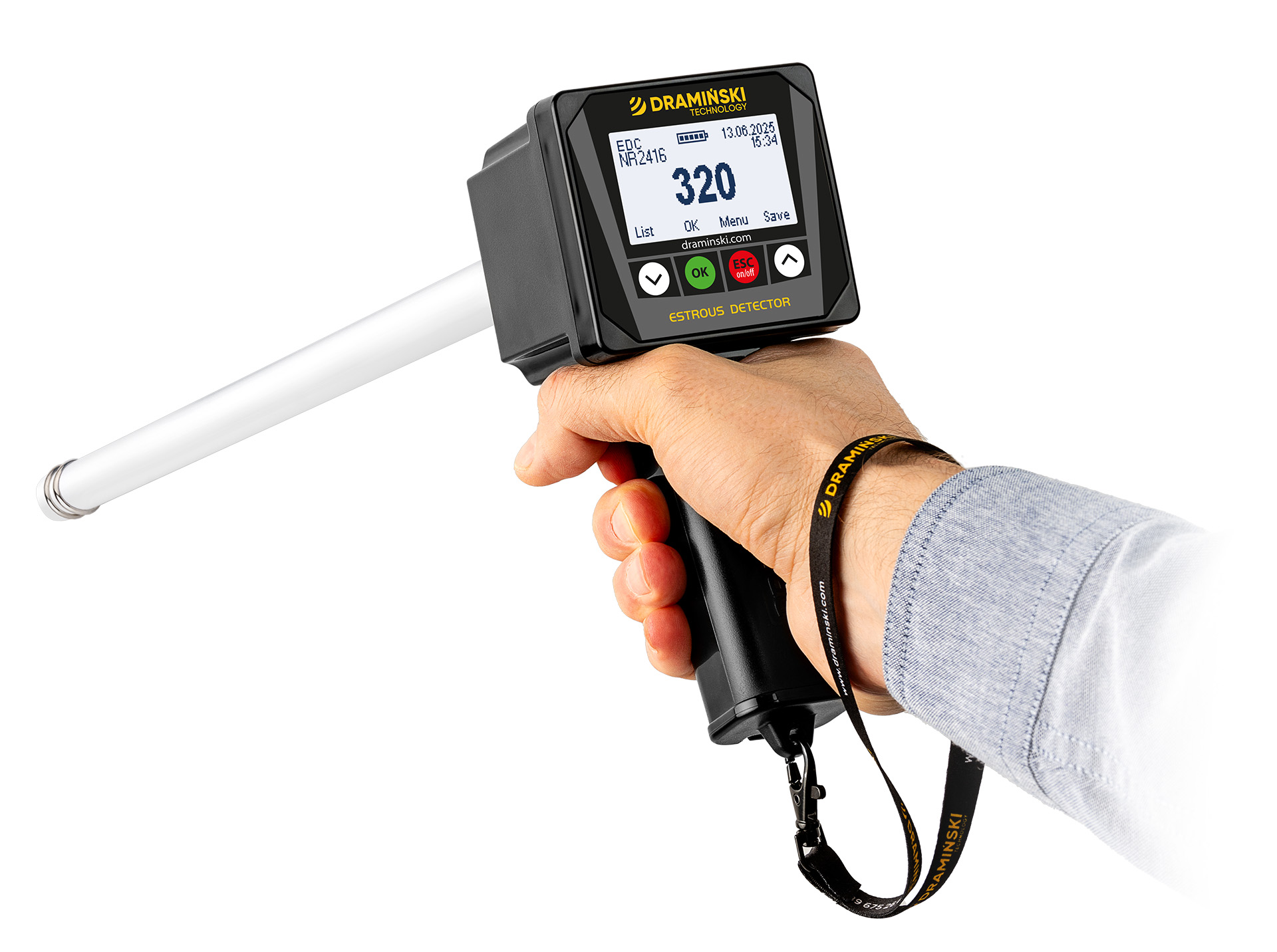

Product Overview	The Digital Cattle Estrus & Ovulation Detector is a portable electronic reproductive management instrument designed to help determine the optimum mating or artificial insemination period in cattle. The detector measures characteristic changes in the electrical resistance of vaginal mucus during the estrous cycle. By recording measurements over time and observing the resistance trend, farm personnel can obtain additional objective information for identifying estrus and selecting an appropriate insemination window. The system is particularly useful for dairy farms, beef cattle breeding operations, artificial insemination centers and veterinary reproduction services where silent or atypical estrus can make visual heat detection difficult.
Key Features	Electrical Resistance Measurement: Detects cyclic changes in the electrical resistance of vaginal mucus associated with the bovine estrous cycle. Insemination Timing Support: Repeated measurements help operators identify characteristic resistance trends and determine a more appropriate mating or artificial insemination period. Silent Estrus Detection Support: Provides an additional objective measurement method for cows showing weak, atypical or difficult-to-observe heat signs. Digital Measurement Display: Measurement results are clearly displayed for convenient field interpretation and recording. High-Capacity Data Storage: Compatible configurations can store records for up to 250 animals and approximately 200,000 measurements with date and time. Computer Data Transfer: Stored measurement records can be transferred through USB to compatible computer software for reviewing, graphing and archiving. Portable Farm Design: Handheld construction supports routine use in cattle barns, breeding facilities and mobile reproductive services. Durable Housing: Designed for repeated professional use under normal livestock farm operating conditions.
Structural Components	Measurement Probe: Elongated vaginal probe designed for positioning near the cervical area during reproductive examination. Measurement Electrodes: Two electrodes located near the probe tip measure the electrical resistance of vaginal mucus. Electronic Control Unit: Processes the electrical resistance measurement and converts it into a digital reading. Digital Display: Shows measurement results, operating information and stored records according to system configuration. Control Keyboard: Provides access to measurement, animal identification, memory and operating functions. Handle and Battery Compartment: Provides secure handheld operation and houses the replaceable battery supply. USB Interface: Allows compatible versions to transfer stored measurements to a computer for further analysis.

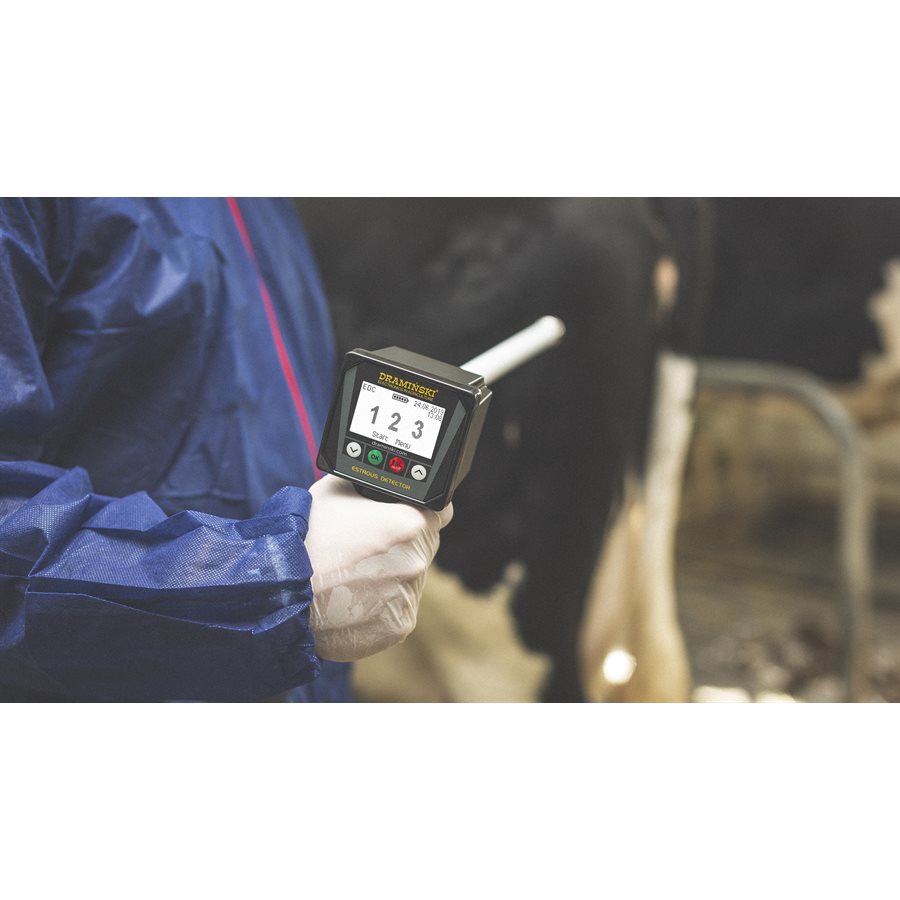

Working Principle	Changes in the reproductive cycle are accompanied by changes in the properties of vaginal and cervical mucus. These physiological changes alter the electrical resistance measured between the electrodes at the end of the probe. During examination, the cleaned and disinfected probe is carefully introduced into the vagina and positioned according to the operating procedure. The electrodes contact the mucus and the electronic system measures electrical resistance. A series of measurements taken at consistent intervals is more useful than interpreting a single reading. The operator follows the measurement trend to identify the characteristic change associated with approaching estrus and ovulation. The detector provides reproductive management information and should be used together with herd records, behavioral observations and appropriate veterinary assessment when required.
Technical Specifications	Product Type Digital cattle estrus and ovulation detection instrument Measurement Principle Electrical resistance of vaginal mucus Primary Application Estrus detection and insemination timing support Applicable Animals Cattle; selected configurations may also support other large-animal reproductive applications Measurement Range 0–1,000 units according to reference system configuration Measurement Resolution 10 units according to reference system configuration Probe Length Approximately 43 cm according to reference system configuration Overall Dimensions Approximately 51 × 8 × 19 cm according to reference system configuration Approximate Weight Approximately 540 g according to reference system configuration Display Digital display with backlighting Memory Capacity Up to 250 animals and approximately 200,000 measurements with date and time Data Transmission USB according to system configuration Power Supply 4 × 1.5 V AA batteries Recommended Working Temperature Approximately 10°C to 45°C according to reference system configuration Configuration Available according to project requirements
Applications	Dairy Cattle Estrus Detection: Supports reproductive monitoring of cows and heifers where accurate timing of artificial insemination is important. Silent Heat Identification: Useful as an additional measurement tool when behavioral signs of estrus are weak or difficult to recognize. Artificial Insemination Programs: Helps breeding personnel compare reproductive measurements when scheduling semen insemination. Beef Cattle Breeding: Suitable for controlled mating and reproductive management programs in beef herds. Post-Insemination Monitoring: Repeated resistance measurements may provide supporting information during early post-insemination reproductive monitoring according to the established operating protocol. Veterinary Reproduction Services: Suitable for veterinarians, breeding technicians and mobile livestock reproduction teams. Breeding Centers: Measurement records can support structured reproductive management in cattle genetics and breeding programs.
Customization Options	Product configuration can be selected according to farm size, reproductive management requirements and distributor procurement specifications. Available options may include: • Digital estrus detector main unit • Data storage configuration • USB data transfer function • Computer analysis software package • Protective transport case • Replacement batteries • Probe cleaning and disinfection accessories • Veterinary lubricating gel • Operating language according to available system versions • OEM packaging available upon request • Bulk supply for breeding projects and distributors
Installation & Maintenance	The detector requires no permanent installation. Install the specified batteries and check the display and battery status before beginning examination. Before every measurement, thoroughly clean and disinfect the probe according to veterinary hygiene procedures. Proper sanitation is essential because the probe is used intravaginally. Safely restrain the animal and use an appropriate veterinary lubricant where required. Introduce the probe carefully according to the operating instructions and avoid unnecessary force. Measurements should be performed using a consistent technique and preferably at similar times of day when comparing sequential results. After each animal, clean and disinfect the probe before examining another animal to reduce cross-contamination risk. Keep the electrode surfaces free from dried mucus, dirt and disinfectant residue. Store the instrument clean and dry in its protective case. Remove batteries before long-term storage when recommended by the equipment instructions.
Project Cases	Digital cattle estrus detectors can be incorporated into reproductive management programs for dairy farms, beef cattle farms, breeding stations, artificial insemination centers and veterinary service organizations. On commercial farms, sequential measurements can be combined with animal identification records, observed heat signs and insemination history to create a more structured reproductive monitoring process. For larger breeding projects, stored measurement data can be transferred to a computer for reporting, graphical review and long-term reproductive record management where supported by the selected configuration.
Product FAQ	Q: What does the cattle estrus detector measure? A: It measures changes in the electrical resistance of vaginal mucus during the reproductive cycle. Q: How does it help determine insemination timing? A: Repeated measurements show a resistance trend associated with the estrous cycle. This trend provides additional information for identifying the period when insemination may be appropriate. Q: Can it help identify silent estrus? A: Yes. Electrical resistance measurements can provide useful supporting information when external behavioral signs are weak or difficult to observe. Q: Is one measurement enough? A: Sequential measurements are recommended because changes in the measurement trend are generally more informative than an isolated reading. Q: Can measurement records be saved? A: Compatible configurations can store records for up to 250 animals and approximately 200,000 measurements with date and time. Q: Can results be transferred to a computer? A: Yes. Compatible configurations support USB data transfer for analysis, reporting and archiving. Q: Can the detector confirm pregnancy? A: Changes in resistance can provide supporting information during post-insemination monitoring, but reproductive status should be confirmed using an appropriate veterinary diagnostic method when a definitive diagnosis is required. Q: Does the probe need to be disinfected? A: Yes. The probe should be thoroughly cleaned and disinfected before use and between animals to maintain appropriate reproductive hygiene. Q: Is the detector suitable for commercial cattle farms? A: Yes. Its portable design, digital records and repeatable measurement method are suitable for dairy farms, beef operations, breeding centers and artificial insemination programs.
Product Gallery
