Product Name	Automatic Pasture Livestock Water Trough

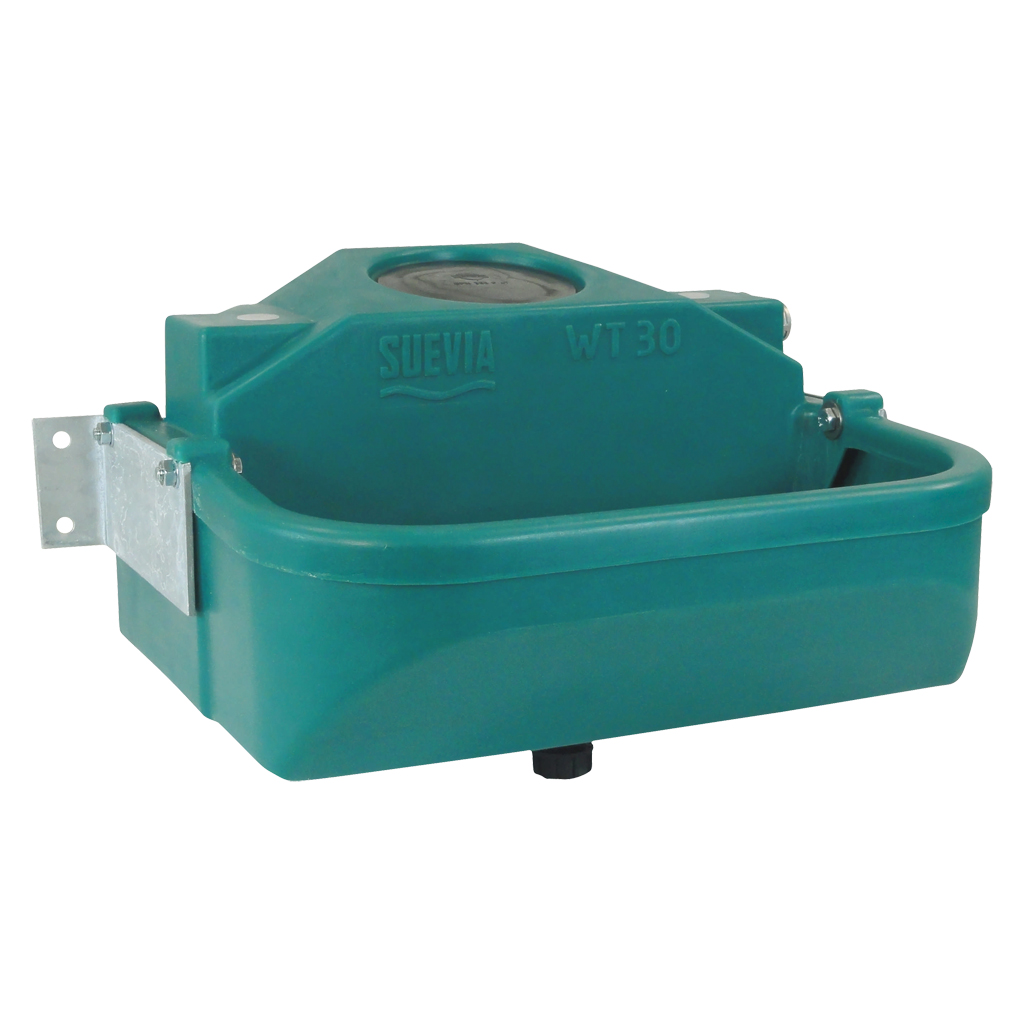

Product Image
Product Overview	The Automatic Pasture Livestock Water Trough is designed to provide a continuous and dependable drinking-water supply for animals in pasture, free-stall, and outdoor livestock environments. An integrated float valve automatically replenishes water as the level drops, reducing the need for manual filling. The trough concept is suitable for cattle, goat-farming-equipment/" target="_blank" class="keylink">sheep, goats, horses, and other farm animals. Durable UV-resistant polyethylene is commonly used for pasture trough construction because it offers good resistance to outdoor exposure and is easy to clean. Configuration, capacity, and installation method can be adapted according to project requirements.
Key Features	• Automatic water-level control through a mechanical float valve • Durable UV-resistant polyethylene trough construction • Designed for pasture and free-stall livestock applications • Large drainage outlet supports fast emptying and routine cleaning • Service access allows convenient inspection of the float valve • Rounded internal edges help reduce water spillage • Suitable for fixed or project-specific installation arrangements • Available in different capacities and configurations according to project requirements
Structural Components	The water trough system generally consists of a UV-resistant polyethylene trough body, automatic float valve, water inlet connection, service access cover, drainage outlet, and mounting or protection components. For larger pasture watering systems, the trough can be connected to a water supply line, storage tank, or suitable water distribution network. Optional protection brackets, support structures, and frost-protection components can be selected according to site conditions.
Working Principle / Structural Principle	The trough uses a float-controlled water inlet system. When livestock consume water and the water level falls, the float moves downward and opens the inlet valve. Fresh water then enters the trough until the preset water level is restored. As the water level rises, the float moves upward and closes the valve, automatically stopping the water supply. This mechanical operating principle maintains a relatively constant drinking-water level without requiring continuous electrical control.
Technical Specifications	Product Type: Automatic pasture livestock water trough Water Level Control: Float valve Trough Material: UV-resistant polyethylene or equivalent project-specified material Water Supply: Pressurized water pipeline or suitable water storage system Trough Capacity: Customizable according to livestock population and project requirements Water Inlet Connection: Customizable according to local water supply system Operating Pressure: According to selected float valve configuration Drainage: Large drainage outlet for emptying and cleaning Installation Type: Wall, ground, pedestal, or pasture-specific installation according to model and project design
Applications	The Automatic Pasture Livestock Water Trough is suitable for: • Cattle and dairy farm pasture watering • Sheep and goat grazing systems • Horse paddocks and equestrian facilities • Free-stall livestock housing • Outdoor livestock pens and holding areas • Agricultural water supply projects • Livestock farm construction and renovation projects • Large-scale pasture and commercial animal production facilities
Customization Options	SHEWUYOU can provide project-oriented configurations for different livestock watering requirements. Available options may include trough capacity, dimensions, water inlet position, float valve type, drainage arrangement, mounting structure, protective brackets, water storage integration, and frost-protection solutions. Configurations are designed according to livestock numbers, local climate, water pressure, pasture layout, and farm construction requirements.
Installation & Maintenance	Install the trough on a stable wall, ground base, pedestal, or other engineered support according to the selected configuration. Connect the inlet to the farm water supply and adjust the float valve to achieve the required operating water level. Before commissioning, flush the water line to reduce debris entering the valve. During routine maintenance, inspect the float mechanism, inlet connection, seals, drainage outlet, and mounting hardware. Empty and clean the trough regularly to maintain good water hygiene. For cold-climate projects, exposed water lines and the trough should be protected against freezing using a suitable circulation or heating solution where required.
Product FAQ	Q: How does the automatic water trough maintain the water level? A: A mechanical float valve opens when the water level falls and closes when the preset level is restored. Q: Which livestock can use this type of water trough? A: It is suitable for cattle, sheep, goats, horses, and other farm animals, subject to the selected trough size and configuration. Q: Does the trough require electricity? A: The standard float-controlled filling function does not require electrical power. Optional heating or frost-protection systems may require electricity. Q: Can the trough be connected to a water storage tank? A: Yes. It can be configured for connection to a suitable water tank or other farm water supply system according to project requirements. Q: Can the capacity and installation configuration be customized? A: Yes. Dimensions, capacity, connections, float valve configuration, mounting, and accessories can be customized according to project requirements.
