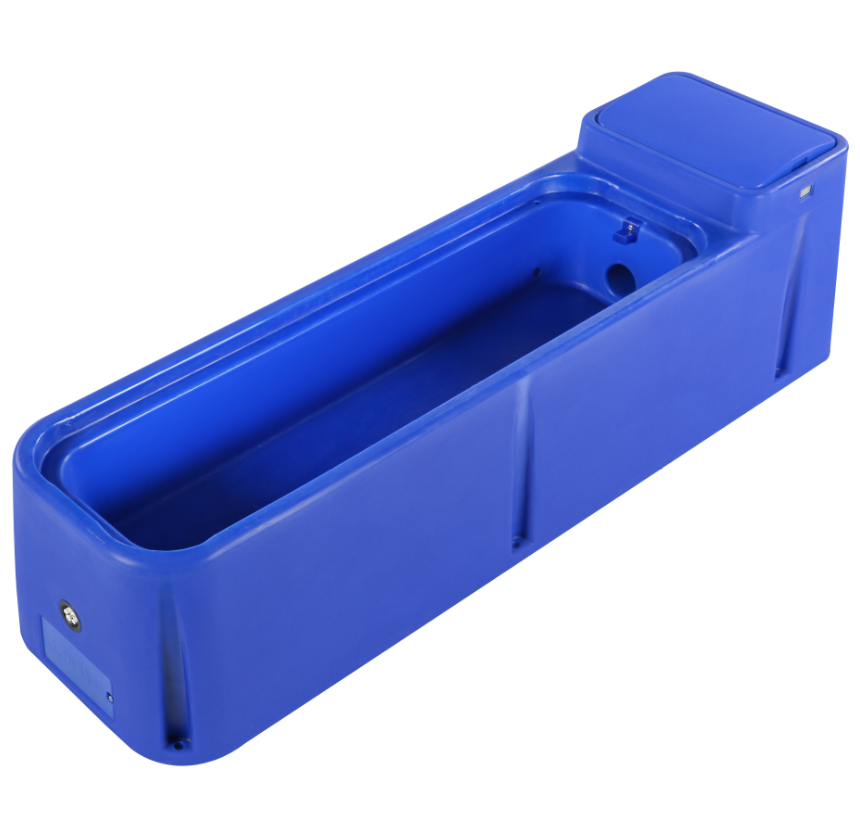

Product Name	High-Capacity Livestock Waterer
Product Image
Product Overview	The High-Capacity Livestock Waterer is an automatic drinking system designed for large beef cattle herds, dairy farms, feedlots, breeding farms and commercial livestock facilities. Its high-throughput water supply and large drinking area help provide reliable access to fresh drinking water during periods of heavy herd demand. The reference configuration uses an all-around drinking surface that allows livestock to approach the waterer from multiple sides, making it especially suitable for fence-line installations, central pen positions and high-traffic watering points. A float-controlled quick-refill valve automatically restores the water level as animals drink. A durable insulated body helps protect the internal water supply from temperature changes. Optional cold-weather protection can be incorporated according to local climate and project requirements. The waterer can be supplied as part of complete livestock equipment, cattle housing, pig farm construction or steel structure building projects.
Key Features	High-capacity design for large commercial livestock herds. Automatic float-controlled refill maintains the required drinking level. All-around drinking access supports use by multiple animals. Suitable for fence-line, pen-divider and central watering installations. Impact-resistant livestock-grade body provides durability in demanding farm environments. Insulated construction helps reduce temperature fluctuations in stored water. Low stored-water volume combined with rapid refill helps promote fresher drinking water. Sloped internal surfaces can guide sediment and debris toward drain areas during cleaning. Large service access area simplifies valve inspection and routine maintenance. Optional frost-protection equipment is available for cold-climate projects.
Structural Components	A typical high-capacity livestock waterer may include: Heavy-duty insulated waterer body Large livestock drinking trough Central valve compartment Automatic high-flow inlet valve Water-level float assembly Water inlet connection Drain openings and removable drain plugs Service access cover Foundation anchoring points Optional heater and supply-line frost-protection components Materials, valve configuration and accessory packages can be selected according to project requirements.
Working Principle	The livestock waterer connects directly to a pressurized farm water supply. A mechanical float monitors the water level inside the trough. When cattle drink and the water level drops, the float lowers and opens the inlet valve. Fresh water enters the trough until the preset operating level is restored, after which the float closes the valve automatically. This demand-controlled refill system reduces the need for manual filling and helps maintain a continuous supply during peak drinking periods. In cold regions, optional electric heating, insulated thermal risers or other frost-protection methods can be configured according to local climate and water-line depth.
Technical Specifications	Product Type High-Capacity Automatic Livestock Waterer Primary Application Beef cattle, dairy cattle and compatible large livestock Reference Water Capacity 22 US gal / approximately 83 L Reference Length 42 in / approximately 107 cm Reference Width 42 in / approximately 107 cm Reference Overall Height 32 in / approximately 81 cm Reference Drinking Height 26 in / approximately 66 cm Reference Weight 129 lb / approximately 59 kg Reference Herd Capacity Up to 275 beef cattle or 135 dairy cattle under reference manufacturer sizing guidance Water Level Control Automatic float-operated valve Drinking Access Multi-side / all-around configuration Cold-Climate Protection Optional heating system available upon request Installation Configuration According to project requirements
Applications	Large beef cattle farms Commercial dairy farms Feedlots and finishing yards Cattle breeding facilities Large livestock pens Pasture watering stations Fence-line drinking points Livestock holding and handling areas Steel structure cattle buildings Integrated livestock farm construction projects
Customization Options	Waterer dimensions: Customizable Water capacity: According to project requirements Body material and structure: Available upon request Water inlet size: According to farm water-supply design Valve configuration: Customizable Drinking height: According to livestock type Heating system: Available upon request Electrical voltage: According to local electrical standards Thermal tube and water-line protection: Available upon request Anchoring accessories: According to installation requirements Complete system configuration: Designed according to local climate and farm conditions
Installation & Maintenance	The waterer should be installed on a stable and level concrete foundation with sufficient access for livestock and maintenance personnel. Fence-line installation can allow one waterer to serve adjacent cattle groups where the selected configuration permits multi-side access. The underground water supply should be sized according to herd demand, available water pressure and valve flow requirements. In freezing climates, the supply pipe should be routed below the local frost depth and protected with an appropriate insulated riser or thermal tube. Before commissioning, the inlet valve, float level, pipe joints, drainage system and anchoring points should be checked. Where optional heating equipment is installed, electrical connections should comply with local electrical regulations. Routine maintenance includes removing feed debris and sediment, flushing the trough, checking drain plugs, inspecting the float valve and verifying that the service compartment remains clean and accessible.
Project Cases	High-capacity automatic waterers are suitable for livestock projects where individual drinking bowls cannot provide sufficient simultaneous access or refill capacity. Multiple units can be positioned according to pen population, barn layout, animal flow and water-supply capacity. For complete commercial livestock projects, SHEWUYOU can configure waterers together with underground water pipelines, valves, thermal risers, drainage systems, cattle pen equipment and steel structure livestock buildings according to project requirements.
Product FAQ	Q: What livestock is this high-capacity waterer suitable for? A: It is primarily designed for beef cattle and dairy cattle. Other livestock applications can be evaluated according to drinking height, access requirements and project conditions. Q: Does the waterer refill automatically? A: Yes. A float-controlled inlet valve automatically opens when the water level drops and closes when the preset level is restored. Q: How many cattle can one waterer serve? A: The referenced professional configuration is rated for up to 275 beef cattle or 135 dairy cattle. Actual project sizing should consider animal weight, climate, water consumption, available pressure and the number of watering points. Q: Can it be installed on a fence line? A: Yes. Multi-side drinking access makes this type of waterer well suited to fence-line and shared-pen installations. Q: Can it be used in freezing weather? A: Optional heating and water-line protection can be provided. The final frost-protection configuration should be designed according to local minimum temperature, frost depth and electrical conditions. Q: Can the dimensions and valve system be customized? A: Yes. Dimensions, water connections, valve configuration and installation accessories can be customized according to project requirements.
Product Gallery
