Portable Liquid Nitrogen Dewar for Livestock AI

Published: 2026-09-03 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Image Portable liquid nitrogen dewar tank
Product Name Portable Liquid Nitrogen Dewar
Product Overview The Portable Liquid Nitrogen Dewar is designed for cryogenic storage of livestock semen and other biological materials. Its lightweight aluminum construction and vacuum-insulated structure provide a practical solution for cattle breeding farms, dairy operations, veterinary facilities and artificial insemination programs.

The portable format allows convenient handling between breeding areas while the insulated vessel helps maintain stable cryogenic storage conditions.
Key Features
  • Lightweight aluminum alloy construction
  • Vacuum-insulated cryogenic storage structure
  • Low liquid nitrogen consumption
  • Portable handle for convenient movement
  • Internal canisters for organized semen storage
  • Easy access for sample retrieval
  • Suitable for farm and field AI operations
  • Customizable capacity and canister configuration
Structural Components
  • Outer vessel: Lightweight protective aluminum housing.
  • Inner vessel: Reservoir for liquid nitrogen and stored samples.
  • Vacuum space: Thermal insulation between the vessel walls.
  • Neck tube: Narrow opening designed to reduce heat transfer.
  • Insulated lid: Helps limit heat ingress during storage.
  • Canisters: Used to organize semen straws and biological samples.
  • Carry handle: Supports convenient manual handling and transportation.
Working Principle Liquid nitrogen is stored inside the inner vessel to create the cryogenic environment required for frozen semen preservation. The vacuum-insulated space between the inner and outer vessels minimizes heat transfer from the surrounding environment.

Frozen semen straws are placed inside suitable canes, goblets and canisters for organized storage. The internal arrangement supports efficient sample identification and retrieval during livestock artificial insemination.
Technical Specifications
Product Type Portable liquid nitrogen dewar
Storage Medium Liquid nitrogen (LN2)
Application Livestock semen and biological sample storage
Construction Vacuum-insulated aluminum construction
Storage Capacity Customizable according to project requirements
Canister Configuration According to selected model
Evaporation Rate Available upon request
Holding Time According to selected model and operating conditions
Dimensions & Weight According to selected model
Applications
  • Dairy cattle breeding and artificial insemination
  • Beef cattle breeding programs
  • Commercial livestock breeding farms
  • Veterinary reproduction facilities
  • Livestock genetic improvement programs
  • Mobile artificial insemination services
  • Livestock semen storage and distribution
Customization Options The Portable Liquid Nitrogen Dewar can be configured according to farm scale, semen inventory and operating conditions.
  • Liquid nitrogen capacity
  • Tank dimensions
  • Canister quantity and arrangement
  • Goblet and cane configuration
  • Protective cover and handling accessories
  • Export packaging requirements

Available upon request and designed according to local climate and farm conditions.
Installation & Maintenance The dewar is normally used as a standalone cryogenic storage container and does not require permanent electrical installation. Place it upright on a stable, dry and well-ventilated surface.

During transportation, keep the tank upright and protect it from impact, dropping or excessive vibration. Inspect the vessel, lid, neck and base regularly for visible damage or abnormal frost formation.

Liquid nitrogen filling and semen handling should be carried out by trained personnel using suitable cryogenic protective equipment and established safety procedures.
Product FAQ

Q: What is a liquid nitrogen dewar used for?
A: It is used to maintain cryogenic conditions for storing frozen semen and other suitable biological materials.

Q: Is it suitable for cattle breeding?
A: Yes. Suitable configurations can be used for cattle semen storage and artificial insemination programs.

Q: Is the dewar portable?
A: Yes. The lightweight construction and carry handle support convenient movement around farms and breeding facilities.

Q: Can the capacity be customized?
A: Yes. Capacity and internal storage configuration can be selected according to project requirements.
Product Gallery
Portable liquid nitrogen dewar container

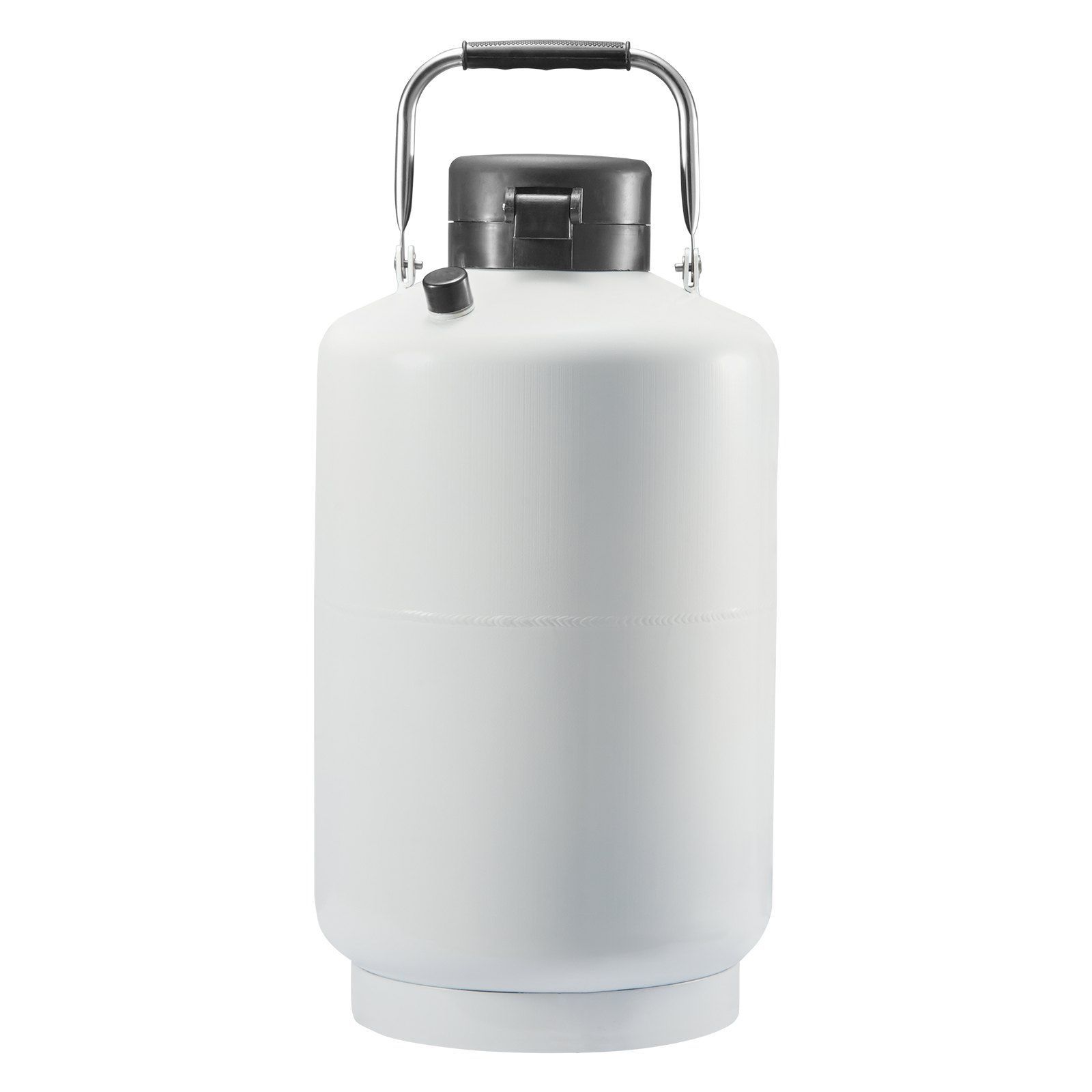

Aluminum liquid nitrogen dewar for semen storage

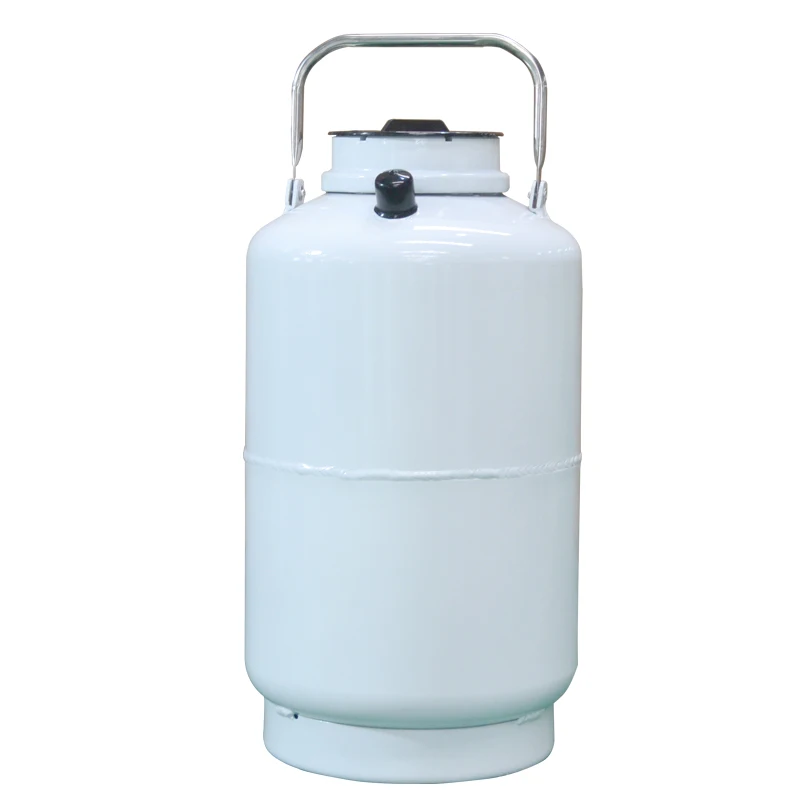

Livestock semen storage liquid nitrogen dewar
