Liquid Nitrogen Semen Storage Tank

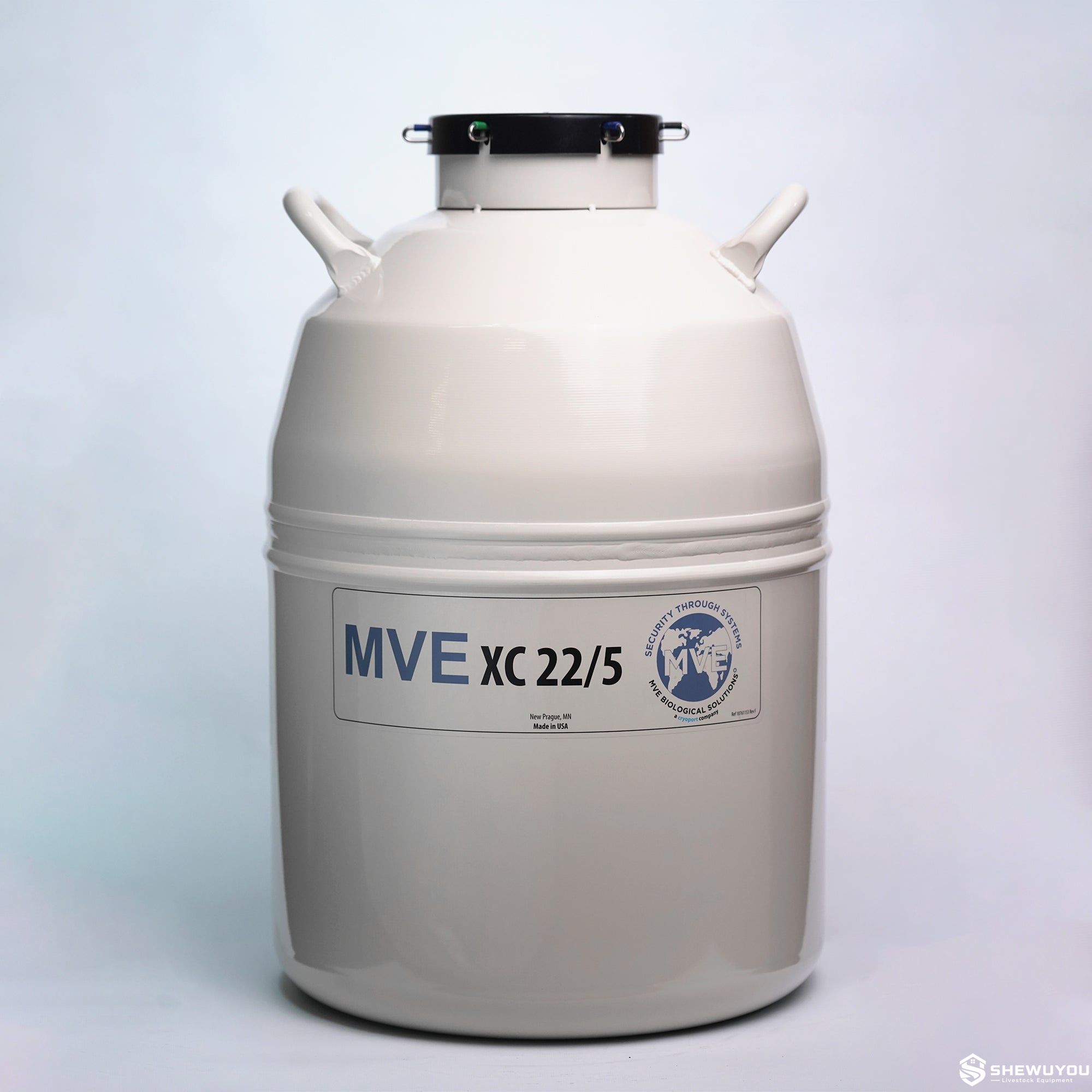

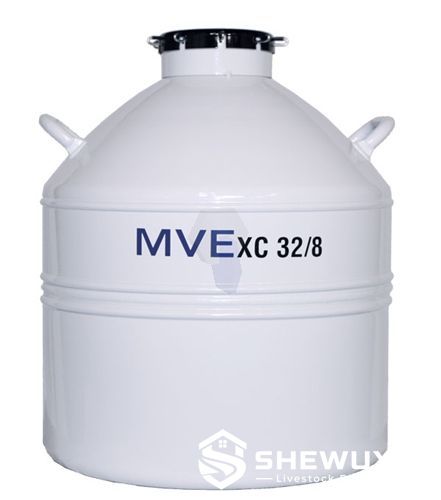

Representative cryogenic semen storage tank configuration. Final appearance, capacity and internal inventory system can be customized according to project requirements.

The Liquid Nitrogen Semen Storage Tank is designed for controlled cryogenic storage of frozen semen used in livestock genetic improvement and artificial insemination programs. The tank uses a vacuum-insulated structure and liquid nitrogen as the cryogenic medium to maintain a stable ultra-low-temperature storage environment.

For commercial pig farms, nucleus breeding farms, boar stations, veterinary reproductive centers and agricultural breeding projects, the system provides an organized method for storing semen straws and related genetic materials while supporting routine inventory access.

Different tank capacities, neck openings, canister arrangements and accessories can be selected according to herd size, semen inventory, handling frequency, transportation requirements and local operating conditions.

• Vacuum-insulated cryogenic construction helps reduce heat transfer and liquid nitrogen consumption.
• Durable lightweight body is suitable for demanding livestock breeding and veterinary environments.
• Organized canister storage allows semen straws and other breeding samples to be classified by boar, batch, date or genetic line.
• Convenient sample access supports frequent inventory inspection and semen retrieval during artificial insemination operations.
• Multiple capacity configurations are available for small breeding units through high-volume commercial operations.
• Practical handling design supports movement, routine filling and inventory management where required.
• Project-oriented customization allows configuration around farm workflow, storage capacity and local climate conditions.

• Outer vessel: Durable metal construction designed for routine farm and laboratory handling.
• Vacuum-insulated space: Reduces conductive and convective heat transfer between the ambient environment and the LN2 reservoir.
• Inner LN2 reservoir: Holds liquid nitrogen for cryogenic preservation.
• Neck tube: Provides access to the storage area while helping limit unnecessary heat ingress.

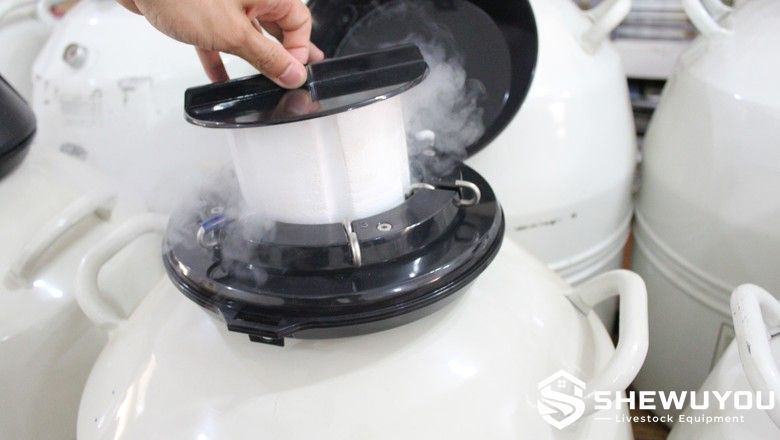

• Protective lid and neck plug: Help reduce heat exchange and protect the storage opening during normal operation.
• Canisters and cane system: Provide structured storage for semen straws, vials or other compatible sample containers.
• Internal support platform: Facilitates positioning and retrieval of storage canisters.
• Handles and external protection: Support safe handling and routine movement where the selected configuration requires portability.

Liquid nitrogen is maintained inside the inner reservoir and provides the cryogenic environment required for long-term preservation of frozen genetic materials. The vacuum-insulated space surrounding the reservoir significantly limits heat transfer from the external environment.

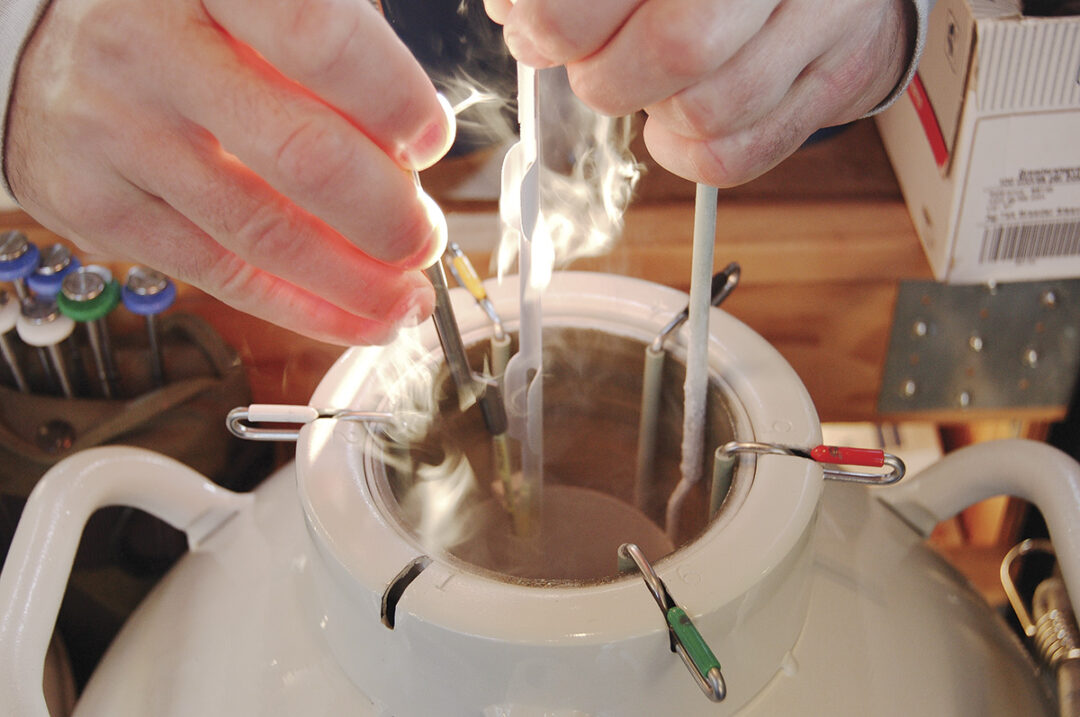

Semen straws are placed in dedicated canisters or cane assemblies and positioned inside the tank. The neck and lid arrangement helps minimize unnecessary heat ingress during normal storage, while the internal organization system enables operators to locate and retrieve samples efficiently.

Actual holding time and evaporation performance depend on tank configuration, LN2 level, usage frequency, ambient conditions, handling practices and manufacturing tolerances. Final performance data should be confirmed for the selected model.

Final technical data should be confirmed against the selected configuration and project specification before procurement.

The tank is suitable for professional livestock genetics and reproductive management programs, including:

• Commercial pig farms and integrated swine production systems
• Boar stations and livestock breeding centers
• Artificial insemination (AI) laboratories and reproductive service centers
• Nucleus farms and genetic improvement programs
• Veterinary reproductive facilities
• Livestock research institutions and agricultural universities
• Large-scale agricultural projects and farm construction programs
• Breeding material distribution and professional semen inventory facilities

For international livestock projects, the storage system can be configured around the farm's actual breeding workflow rather than using a one-size-fits-all solution.

• Tank capacity and overall dimensions: Customizable
• Canister quantity and storage arrangement: According to project requirements
• Straw or vial storage configuration: Available upon request
• Handles, protective accessories and handling equipment: Optional according to configuration
• Labeling and inventory identification: Customizable
• Packaging and shipping configuration: According to project requirements
• Environmental adaptation: Designed according to local climate and farm conditions

Installation: The tank is generally a floor-standing or movable cryogenic storage unit and does not require permanent connection to the livestock building structure. Position it on a stable, level and suitable surface in a clean, dry and well-ventilated area. The installation location should allow sufficient clearance for lid opening, canister handling, LN2 filling and routine inspection.

Farm layout: In a commercial pig farm or breeding center, the tank can be located within a dedicated genetics, AI or veterinary service area. Keep it away from high-traffic routes, heat sources and conditions that may increase the risk of impact or contamination.

Maintenance: Check LN2 levels at a defined frequency, inspect the tank exterior and neck area for abnormal frost or damage, keep the lid and neck plug correctly positioned, and maintain accurate semen inventory records. Follow the manufacturer's operating and safety instructions for filling, sample retrieval, cleaning and inspection.

Safety: Liquid nitrogen can cause severe cold burns and can displace oxygen in poorly ventilated areas. Operators should use appropriate cryogenic PPE and ensure adequate ventilation and safe handling procedures.

Q1: What is a liquid nitrogen semen storage tank used for?

It is used to preserve frozen semen and other compatible biological materials in a liquid nitrogen cryogenic environment for livestock breeding and artificial insemination programs.

Q2: Can it be used in commercial pig farms?

Yes. It is suitable for commercial swine farms, boar stations, genetic nucleus farms and integrated breeding operations where frozen semen inventory must be stored and accessed systematically.

Q3: How do I choose the correct tank capacity?

Selection should consider the number of semen straws, inventory growth, required holding time, retrieval frequency, available floor space and farm logistics. The final model can be selected according to project requirements.

Q4: Can the canister arrangement be customized?

Yes. Canister quantity, storage arrangement and compatible sample formats can be configured according to the selected tank and inventory management requirements.

Q5: Does the tank require a complicated installation?

No permanent building installation is normally required. The main requirements are a stable location, suitable ventilation, safe operating clearance and proper access for LN2 filling and sample handling.

Q6: Can the tank be supplied for overseas livestock projects?

Yes. Configuration, packaging and documentation can be arranged according to project requirements, destination conditions and applicable shipping requirements.
