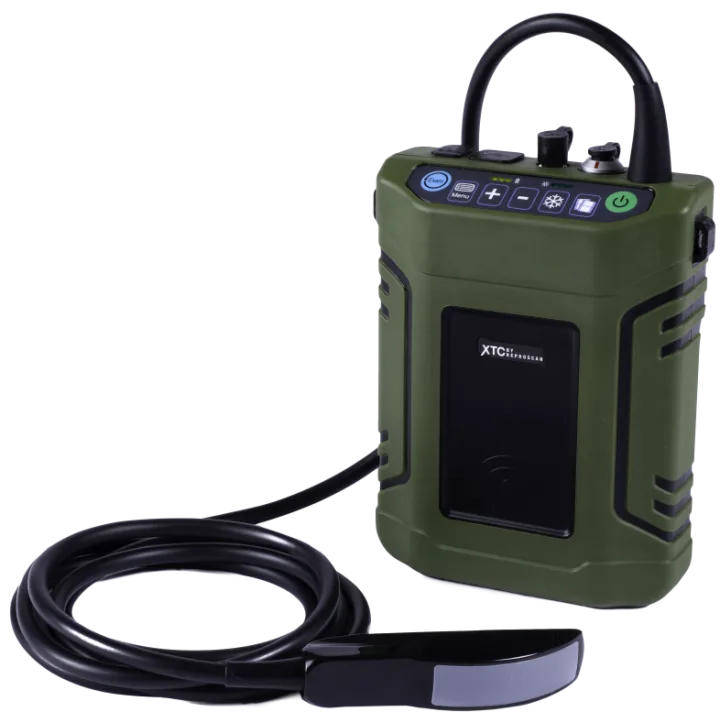

Portable Veterinary Ultrasound Scanner for Cattle

The Portable Veterinary Ultrasound Scanner for Cattle is a field-ready diagnostic system designed for bovine pregnancy checking, reproductive examination and fetal assessment. Its compact configuration allows veterinarians, breeding technicians and livestock managers to perform ultrasound examinations directly in cattle handling facilities, breeding areas and field environments.

The system can be configured with a rectal convex or linear probe according to the required examination method. Convex rectal probes provide a broad field of view for efficient pregnancy diagnosis and fetal aging, while linear rectal probes are commonly selected for detailed reproductive examinations and conventional arm-in-cow scanning.

Portable battery operation, rugged housing and flexible viewing options make this type of equipment suitable for commercial dairy farms, beef ranches, breeding centers, veterinary practices and large-scale livestock projects where mobility and rapid reproductive decision-making are important.

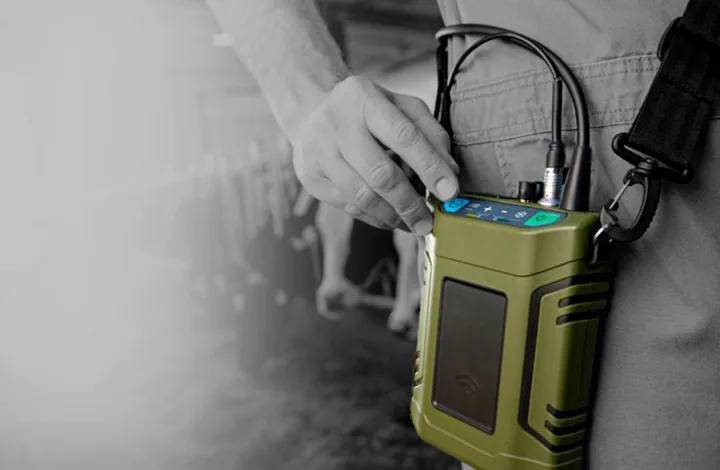

• Portable Field Design: Compact and lightweight construction supports chute-side, barn and mobile veterinary use.
• Cattle Pregnancy Diagnosis: Designed for reproductive ultrasound examinations of dairy and beef cattle.
• Convex or Linear Probe Options: Probe configuration can be selected according to pregnancy checking and reproductive examination requirements.
• Clear B-Mode Imaging: Provides real-time grayscale ultrasound images for examination of reproductive structures and pregnancy status.
• Fetal Assessment: Compatible configurations can support fetal aging and other reproductive evaluations when performed by trained operators.
• Battery Powered: Rechargeable battery operation reduces dependence on fixed electrical outlets during field examinations.
• Wireless Viewing Option: Selected configurations can transmit ultrasound images to a compatible external monitor.
• Rapid Examination Settings: Preset examination modes and zoom controls simplify routine pregnancy-checking workflows.
• Rugged Construction: Housing is designed for demanding livestock and veterinary field environments.
• Extension Arm Compatibility: Selected rectal probes can be used with compatible extension-arm systems to support efficient cattle pregnancy testing.

• Portable veterinary ultrasound main unit
• Rectal convex or linear transducer according to configuration
• Probe cable and reinforced connector

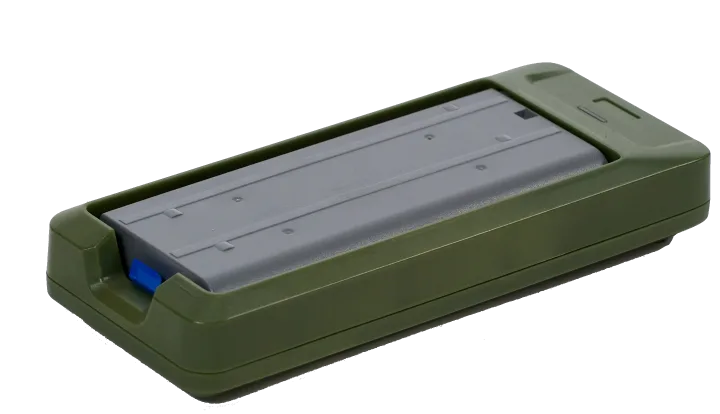

• Rechargeable lithium battery system
• Ultrasound operating controls
• Freeze and image adjustment controls
• External monitor interface according to model
• Wireless image transmission module according to configuration
• Battery charger / power adapter
• Optional vehicle charging adapter
• Shoulder, waist or carrying system according to configuration
• Optional protective transport case
• Optional cattle ultrasound extension arm

The ultrasound scanner generates high-frequency sound waves through the veterinary transducer. These sound waves pass through animal tissues and are reflected differently by reproductive structures, fluids and fetal tissues. The returning echoes are processed electronically to create a real-time grayscale image.

For cattle pregnancy diagnosis, a compatible rectal probe is positioned according to professional veterinary examination procedures. The operator evaluates the reproductive tract and ultrasound image for pregnancy-related structures and fetal development.

Convex rectal probes provide a relatively wide viewing field and are widely used for rapid cattle pregnancy diagnosis and fetal aging. Linear rectal probes are suitable for detailed reproductive examinations and early pregnancy evaluation according to operator technique and system configuration.

Pregnancy diagnosis and interpretation should be performed by trained veterinarians or qualified livestock reproduction personnel.

• Cattle pregnancy diagnosis
• Early pregnancy examination
• Pregnant / open cow identification
• Fetal viability assessment
• Fetal aging according to operator technique
• Reproductive tract examination
• Artificial insemination follow-up
• Breeding herd management
• Dairy cow reproductive programs
• Beef cattle pregnancy checking
• Veterinary field services
• Livestock breeding centers

Portable ultrasound equipment is particularly useful in commercial cattle farms where animals are examined in headlocks, breeding pens, palpation rails or cattle handling chutes. For new steel structure livestock projects, examination areas can be planned together with cattle handling systems, veterinary rooms and breeding facilities.

Multi-species ultrasound configurations may also be available for swine reproduction. Pig farms should select a probe and scanner configuration specifically suitable for sow pregnancy diagnosis rather than assuming a cattle rectal probe is appropriate.

• Convex rectal probe
• Linear rectal probe
• Probe frequency according to diagnostic requirements
• Built-in or external viewing device
• Wireless monitor configuration
• Veterinary viewing goggles according to requirements
• Cattle ultrasound extension arm
• Shoulder strap, waist strap or backpack
• Vehicle charger
• Spare rechargeable battery
• Protective carrying case
• Destination-country power adapter
• OEM labeling and packaging available upon request

The ultrasound package can be configured according to animal species, herd size, examination method, farm handling facilities and veterinary project requirements.

Pre-Use Inspection: Check the scanner, transducer, probe cable, connectors and battery before each working session. Do not use damaged probe cables or connectors.

Battery Preparation: Charge the ultrasound unit before field use and keep a spare battery or vehicle charging option available for high-volume pregnancy-checking programs where applicable.

Animal Restraint: Cattle should be safely restrained in suitable headlocks, palpation rails or handling chutes before rectal ultrasound examination.

Probe Preparation: Use appropriate veterinary examination procedures and sufficient compatible lubricant. The transducer should be handled carefully to protect the probe face and cable.

Image Adjustment: Select the appropriate examination preset, depth and image settings according to gestation stage and the reproductive structure being examined.

Cleaning: After use, remove organic contamination from the probe and cable and clean them according to the equipment manufacturer's instructions.

Storage: Keep the scanner, probe and accessories clean and dry. Use a protective transport case when equipment is carried between farms or veterinary service locations.

Portable bovine ultrasound systems are used by veterinarians, cattle producers and breeding technicians for pregnancy diagnosis in commercial dairy and beef herds. Early identification of pregnant and open cows can support breeding decisions, herd grouping and reproductive management.

Extension-arm ultrasound systems are also used in high-volume cattle pregnancy testing to improve examination efficiency and reduce repetitive shoulder and arm strain. Compatible monitors can be mounted near the cattle chute to provide convenient image viewing during field examinations.

For large livestock projects, the ultrasound package can be selected according to herd size, annual examination volume, cattle handling system, breeding program and veterinary workflow.

Q1: What is a portable cattle ultrasound scanner used for?
It is primarily used for cattle pregnancy diagnosis, reproductive examination and fetal assessment.

Q2: Can the scanner identify open cows?
Yes. Ultrasound examination can help trained operators distinguish pregnant animals from non-pregnant animals as part of a reproductive management program.

Q3: What type of probe is used for cattle pregnancy diagnosis?
Rectal convex and linear probes are commonly used. The appropriate probe depends on examination technique, gestation stage and operator preference.

Q4: Can the scanner be used for fetal aging?
Yes. Suitable ultrasound systems can support fetal measurement and aging when used by trained operators.

Q5: Is a wireless monitor available?
Yes. Wireless viewing is available with selected scanner and monitor configurations.

Q6: Can the scanner operate away from mains electricity?
Yes. Portable veterinary ultrasound scanners commonly use rechargeable batteries for field operation.

Q7: Can it be used with a cattle ultrasound extension arm?
Yes. Selected rectal probes can be paired with compatible extension-arm systems for high-volume cattle pregnancy checking.

Q8: Is the equipment suitable for commercial dairy farms?
Yes. Portable ultrasound is widely suited to dairy reproductive management, including pregnancy diagnosis and breeding follow-up.

Q9: Can you supply different probes and accessories?
Yes. Probe type, viewing device, carrying system, battery package, extension arm and transport case can be configured according to project requirements.
