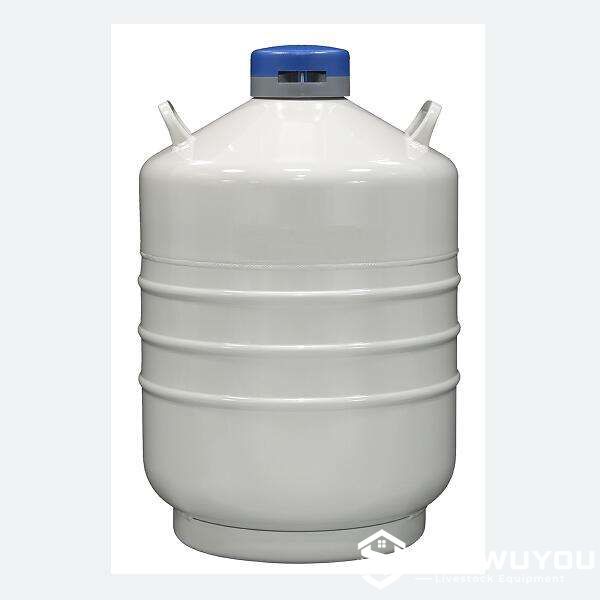

Large Capacity Liquid Nitrogen Storage Tank

Large Capacity Liquid Nitrogen Storage Tank

The Large Capacity Liquid Nitrogen Storage Tank is designed for stable cryogenic preservation of frozen semen, reproductive materials and other compatible biological samples used in livestock breeding programs.

Its vacuum-insulated vessel structure helps limit heat transfer and supports efficient liquid nitrogen storage. Internal canisters or cane-based inventory systems allow breeding materials to be organized by boar, batch, date, genetic line or other farm management criteria.

The solution is suitable for commercial pig farms, breeding centers, boar stations, artificial insemination facilities, veterinary reproductive facilities and large-scale livestock genetics projects. Capacity, neck opening, internal storage arrangement and accessories can be configured according to project requirements.

• Vacuum-insulated cryogenic construction helps reduce heat transfer and liquid nitrogen consumption.
• Large-capacity configuration supports high-volume semen inventory for commercial breeding operations.
• Wide-access storage configurations can improve routine sample handling and retrieval.
• Organized canister and cane storage simplifies semen classification and inventory management.
• Durable metal vessel construction is suitable for professional livestock breeding environments.
• Floor-standing or movable configurations can be selected according to the selected model and project workflow.
• Customizable capacity, storage arrangement and handling accessories support different farm scales.
• Suitable for integration into dedicated artificial insemination, genetics or veterinary service areas.

• Outer Vessel: Durable metal construction for routine handling and long-term service.
• Vacuum-Insulated Space: Provides thermal insulation around the cryogenic reservoir.
• Inner LN2 Reservoir: Holds liquid nitrogen as the cryogenic storage medium.
• Neck Tube: Provides access to the internal storage area while helping limit heat ingress.
• Protective Lid: Helps protect the storage opening during normal operation.
• Canisters and Cane System: Provides organized storage for semen straws, vials and compatible breeding materials.
• Internal Support System: Keeps storage components properly positioned for sample retrieval.
• Handling Components: Handles, casters or other accessories can be selected according to configuration.

Liquid nitrogen is stored inside the insulated inner reservoir to create the ultra-low-temperature environment required for preservation of frozen semen and compatible biological materials.

The vacuum-insulated space between the inner reservoir and outer vessel limits heat transfer from the surrounding environment. The neck and lid arrangement further helps reduce unnecessary heat ingress during routine operation.

Semen straws or compatible containers are positioned in dedicated canisters or cane assemblies. This internal organization allows operators to identify, retrieve and manage breeding materials efficiently while maintaining an orderly semen inventory.

Final technical data should be confirmed against the selected configuration and project specification before procurement.

The storage tank is designed for professional livestock genetics and reproductive management applications, including:

• Commercial pig farms and integrated swine production systems
• Boar stations and livestock breeding centers
• Artificial insemination laboratories and reproductive service centers
• Nucleus farms and genetic improvement programs
• Veterinary reproductive facilities
• Livestock research institutions and agricultural universities
• Large-scale agricultural and pig farm construction projects
• Professional semen inventory and breeding material distribution facilities

For international livestock projects, the storage system can be configured around the actual breeding workflow instead of relying on a one-size-fits-all specification.

• Tank Capacity and Dimensions: Customizable
• Canister Quantity and Arrangement: According to project requirements
• Straw or Vial Storage Configuration: Available upon request
• Handles and Protective Accessories: Optional according to configuration
• Inventory Identification: Customizable
• Packaging and Shipping Configuration: According to project requirements
• Environmental Adaptation: Designed according to local climate and farm conditions

Installation: The tank is generally installed as a floor-standing or movable cryogenic storage unit. Place it on a stable, level surface in a clean, dry and well-ventilated area.

Farm Layout: In a commercial pig farm, breeding center or boar station, the tank can be positioned in a dedicated genetics, artificial insemination or veterinary service area. Provide adequate clearance for lid opening, LN2 filling, canister handling and routine inspection.

Routine Maintenance: Check LN2 levels at the required frequency, inspect the vessel and neck area for abnormal frost or physical damage, keep the lid correctly positioned, and maintain accurate semen inventory records.

Safety: Liquid nitrogen can cause severe cold burns and may displace oxygen in poorly ventilated areas. Operators should use appropriate cryogenic PPE, follow safe filling and sample-handling procedures, and maintain adequate ventilation.

Q1: What is a liquid nitrogen semen storage tank used for?
It is used to preserve frozen semen and other compatible biological materials in a liquid nitrogen cryogenic environment for livestock breeding and artificial insemination programs.

Q2: Is it suitable for commercial pig farms?
Yes. It is suitable for commercial swine farms, boar stations, nucleus breeding farms and integrated breeding operations where frozen semen inventory needs systematic storage and access.

Q3: How should the tank capacity be selected?
Selection should consider current semen inventory, expected inventory growth, required holding performance, retrieval frequency, available floor space and farm logistics. The final model can be selected according to project requirements.

Q4: Can the internal canister arrangement be customized?
Yes. Canister quantity, storage arrangement and compatible sample formats can be configured according to the selected tank and inventory management requirements.

Q5: Does the tank require complicated installation?
No permanent building installation is normally required. The main requirements are a stable installation location, suitable ventilation, safe operating clearance and convenient access for LN2 filling and sample handling.

Q6: Can the tank be supplied for overseas livestock projects?
Yes. Configuration, packaging and documentation can be arranged according to project requirements, destination conditions and applicable shipping requirements.
