Product Showcase	Content

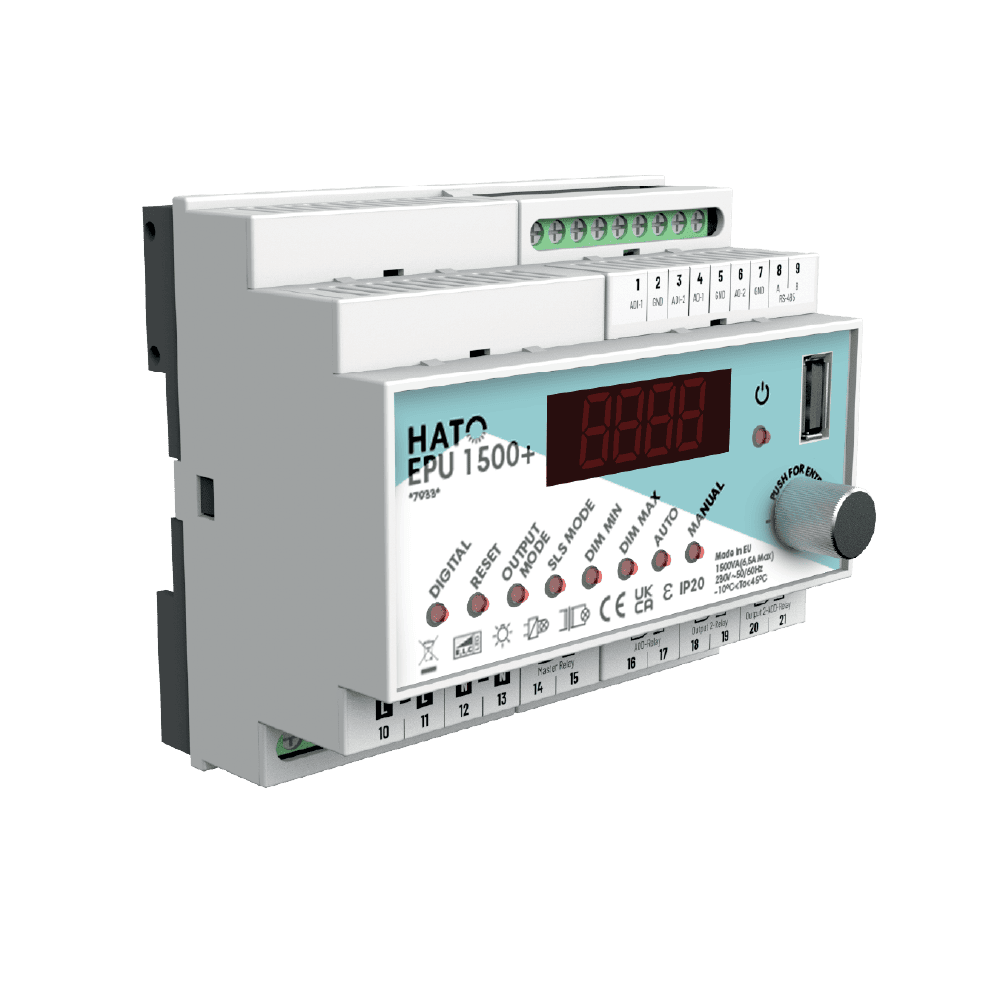

Product Name	High-Capacity Livestock House Lighting Dimmer
Product Image
Product Overview	The High-Capacity Livestock House Lighting Dimmer is designed for centralized brightness control in commercial poultry houses, pig barns, dairy facilities and other intensive livestock buildings. It provides smooth regulation of compatible dimmable lighting circuits and can be integrated with farm climate computers, lighting controllers or other automation systems through a 0-10V control signal. Its high load capability makes it suitable for larger lighting zones where multiple luminaires are operated from one control point. Manual adjustment capability also allows farm personnel to operate or commission the lighting system locally when required.
Key Features	High-capacity dimming for larger livestock-house lighting circuits. Smooth and deep dimming for compatible LED livestock lighting. Supports 0-10V analog control for integration with farm automation systems. Manual operating mode for local adjustment, commissioning and service. Suitable for poultry, pig and cattle housing lighting applications. Integrated protection functions can include overload, short-circuit, over-temperature and over-voltage protection according to configuration. Alarm output functionality can be configured for integration with farm monitoring systems. Suitable for new livestock buildings and lighting-system renovation projects.
Structural Components	A typical high-capacity livestock lighting dimmer consists of a power-control module, control-signal terminals, lighting output terminals, local adjustment interface, status indicators, protective electronics and mounting components. Depending on the selected configuration, alarm contacts and communication interfaces can also be incorporated. The dimmer is normally installed inside a suitable electrical control cabinet or protected service area as part of the livestock-house electrical and automation system.
Working Principle / Structural Principle	The dimmer receives a brightness command from a compatible livestock-house controller, climate computer or manual adjustment device. A 0-10V control signal represents the required lighting level, and the electronic power-control circuit regulates the output supplied to compatible dimmable luminaires. This arrangement allows lighting intensity to be changed according to programmed photoperiod schedules, production stages, inspection requirements or animal-management procedures. Stable low-level dimming is particularly useful where gradual sunrise, sunset or low-intensity night lighting is required.
Technical Specifications	Product Type High-capacity livestock lighting dimmer Typical Control Signal 0-10V analog control Manual Control Available Reference LED Dimming Capacity Up to 1300VA for compatible dimmable LED lighting Reference Maximum Connected Load Up to 1500VA depending on lamp type and electrical configuration Protection Functions Overload, short-circuit, over-temperature and over-voltage protection available according to configuration Alarm Contact Available according to project requirements Lighting Compatibility Compatible dimmable livestock-house lighting; final compatibility should be confirmed before installation Installation Electrical control cabinet, DIN-rail or panel configuration according to selected model Electrical Configuration Customizable according to project requirements
Applications	Commercial broiler and layer poultry houses Breeder and pullet-rearing houses Farrowing, gestation, nursery and finishing pig barns Dairy barns and cattle housing facilities Livestock-house renovation and LED lighting upgrade projects Steel structure livestock buildings with centralized electrical control systems Farm climate-control and lighting automation projects Multi-zone livestock production facilities
Customization Options	Lighting-control solutions can be configured according to the livestock species, house dimensions, number and type of luminaires, lighting-zone layout, local electrical supply and required automation level. Available options may include control interfaces, alarm outputs, electrical cabinet integration, lighting schedules, system wiring arrangements and compatibility with designated farm controllers. Final electrical configuration is designed according to local climate and farm conditions.
Installation & Maintenance	The dimmer should be installed by qualified electrical personnel in accordance with the project wiring diagram, local electrical regulations and the requirements of the selected luminaires. Correct load calculation and confirmation of lamp-dimmer compatibility are essential before commissioning. Install the unit in a suitable electrical cabinet or protected service location with adequate ventilation and convenient access for inspection. Signal wiring should be routed separately from high-current power cables where practical to reduce electrical interference. Routine maintenance should include inspection of terminals, wiring, protective devices, ventilation conditions and lighting response. Disconnect electrical power before servicing the dimmer or connected lighting circuits.
Project Cases	For large commercial livestock projects, high-capacity dimmers can be incorporated into the main environmental-control cabinet and connected to multiple lighting zones. Typical projects include poultry-house LED upgrades, pig-farm lighting renovation, breeder-house lighting programs and new steel structure livestock buildings. Project engineering can be based on the number of luminaires, connected electrical load, required dimming range, house zoning, controller type and operating schedule. Detailed system design is available upon request.
Product FAQ	Q: Can this dimmer be connected to a farm climate computer? A: Yes. Configurations using a standard 0-10V control signal can be integrated with compatible livestock-house controllers and climate computers. Q: Is manual brightness adjustment available? A: Yes. Manual operation can be provided for commissioning, testing and local lighting adjustment. Q: Can one dimmer operate several LED lamps? A: Yes, provided the combined load, lamp type and electrical characteristics are compatible with the selected dimmer. Total connected load must be calculated before installation. Q: Can it be used in pig and cattle houses as well as poultry houses? A: Yes. The control concept is suitable for multiple livestock applications when the lighting fixtures and electrical system are correctly matched. Q: Can the specification be customized for different projects? A: Yes. Electrical configuration, control interface, cabinet integration and system layout can be customized according to project requirements.
Product Gallery
