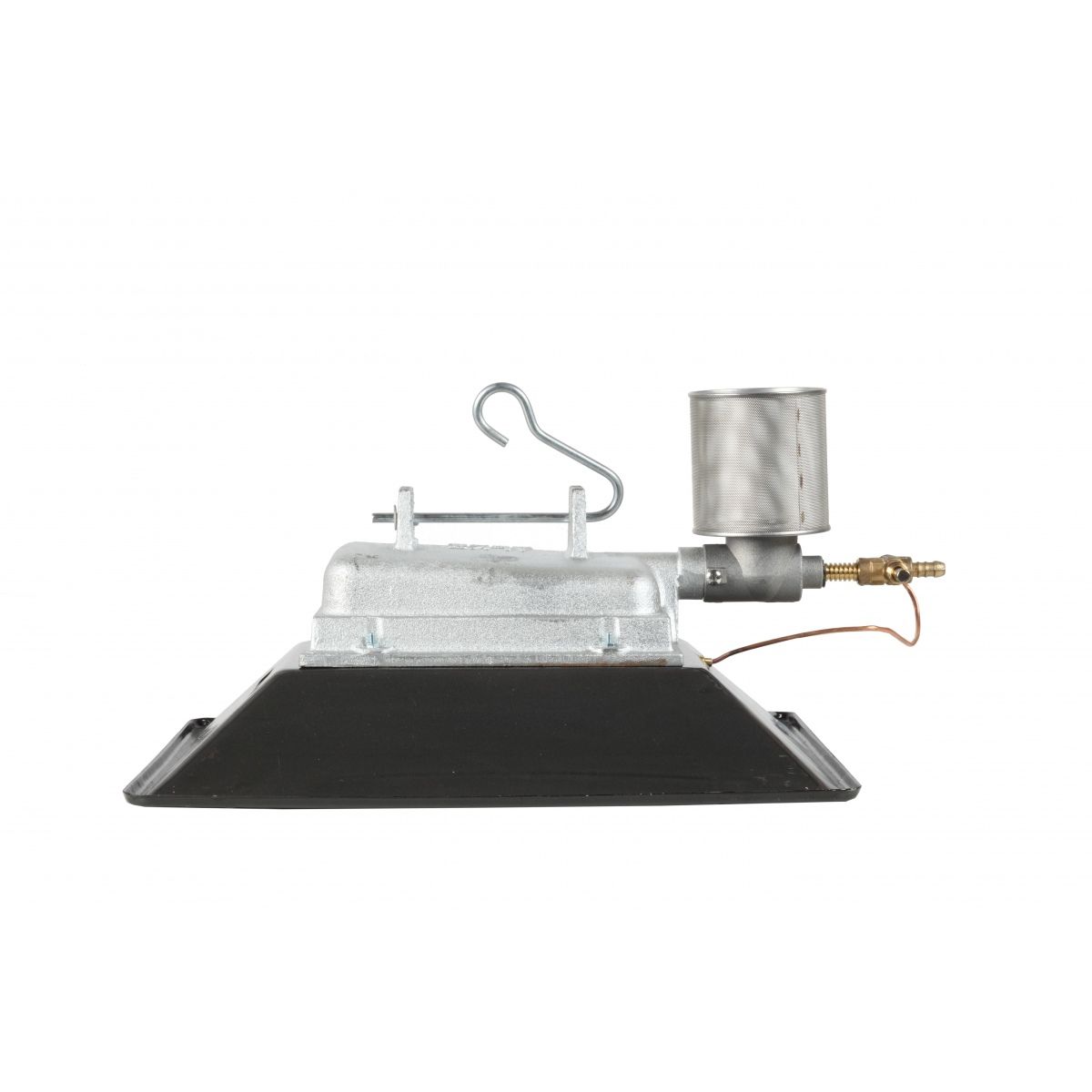

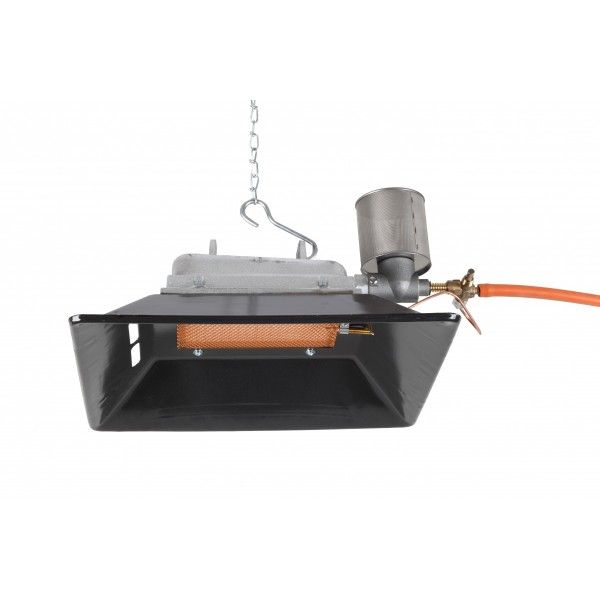

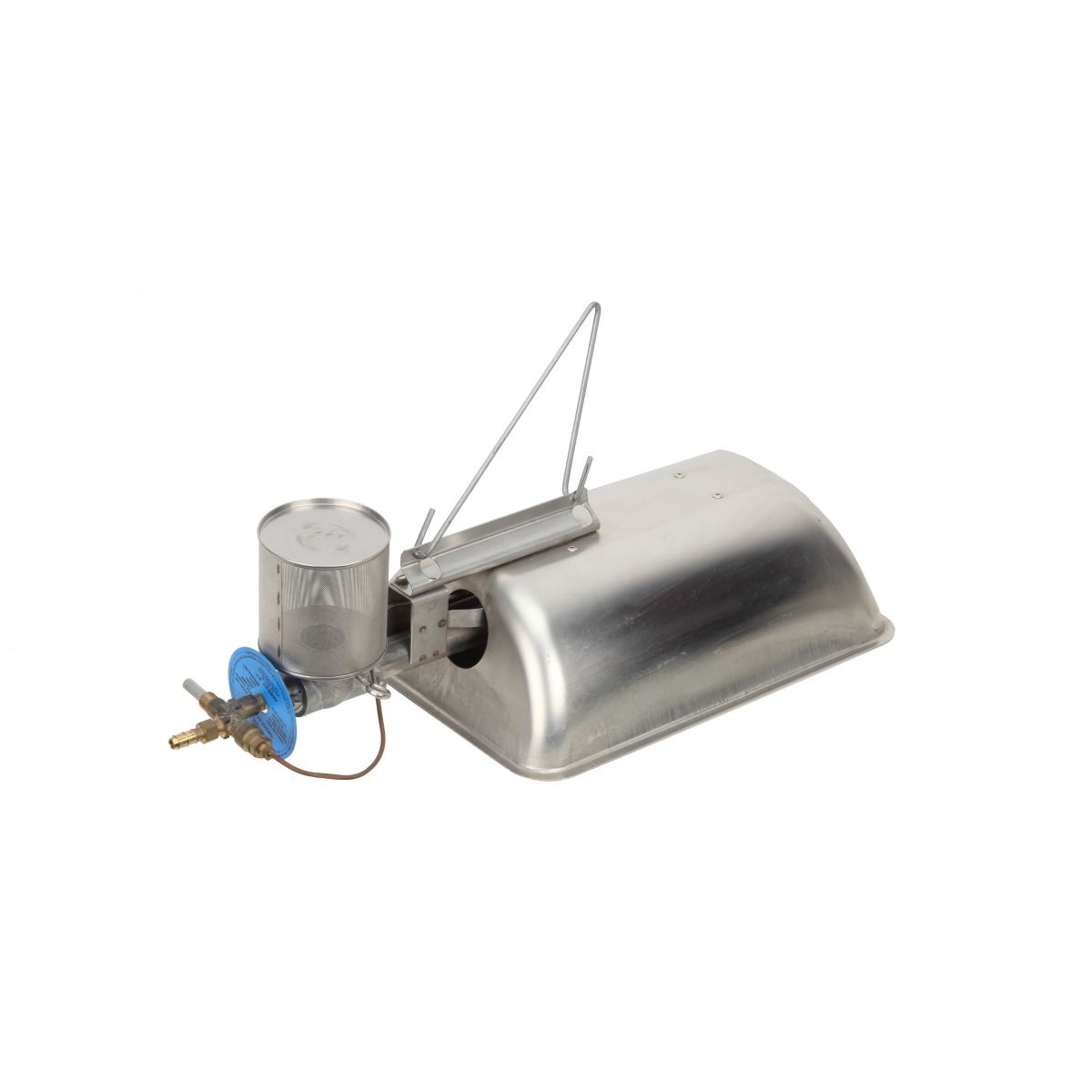

Single Jet Gas Brooder for Poultry Houses

The Single Jet Gas Brooder is a suspended poultry heating unit designed to provide concentrated radiant warmth during chick brooding and early-stage poultry rearing. A centrally located gas burner generates heat beneath a large reflector canopy, directing thermal energy toward birds, litter and the floor surface.

The single-jet structure combines a straightforward burner arrangement with a durable reflector, gas-control assembly and thermostatic regulation. This simple construction supports dependable operation, convenient inspection and efficient cleaning in demanding commercial poultry-house environments.

The brooder is suitable for broilers, breeders, pullets, turkeys and other floor-reared poultry. Fuel configuration, ignition method, canopy size, thermostat arrangement and zone-control options can be selected according to project requirements and local farm conditions.

• Single-Jet Heating Design: Provides a simple and reliable gas-fired heat source for poultry brooding areas.
• Radiant Floor Heating: Directs useful thermal energy toward birds, litter and floor surfaces.
• Large Reflector Canopy: Helps distribute heat across a broad brooding footprint.
• Modulating Thermostat Option: Supports controlled heat output according to brooding requirements.
• Independent Thermostat Option: Allows individual brooder or heating-zone management according to system configuration.
• Zone Control Available: Compatible systems can electronically control multiple brooders through a common thermostat.
• Direct Spark Ignition Option: Electronic ignition can eliminate the need for a continuously operating standing pilot.
• Corrosion-Resistant Components: Stainless steel components improve durability in humid poultry environments.
• Durable One-Piece Canopy: Robust reflector construction supports long-term commercial operation.
• Quick Installation: Simplified structure reduces assembly and installation complexity.
• Easy Washdown: Compatible protected control components support thorough poultry-house cleaning.
• Commercial Farm Integration: Suitable for steel structure poultry houses and centralized climate-control projects.

• Large reflector canopy
• Single-jet burner assembly
• Radiant heating section
• Gas burner tube
• Gas control valve
• Gas injector / orifice
• Thermostatic control assembly
• Pilot or direct spark ignition assembly according to model
• Gas supply hose or connector
• Gas pressure regulator according to fuel configuration
• Suspension chain or cable
• Leveling and mounting bracket
• Optional zone-control module
• Optional ignition transformer

Fuel gas is supplied to the burner through the regulator and gas-control assembly. The burner mixes gas with combustion air and produces a concentrated heat source beneath the reflector canopy.

Heat generated by the burner is directed downward and outward by the reflector. The floor, litter and birds absorb the radiant energy, creating a warm brooding zone without depending entirely on heating the full volume of house air.

With a modulating thermostat, heat output can respond to changes in the brooding-zone temperature. Optional zone control allows several brooders to operate as a coordinated heating group.

Direct spark ignition configurations provide electronic ignition and control, while other versions may use pilot-based ignition depending on the selected project specification.

Reference output and canopy dimensions are based on a professional single-jet brooder configuration. Final fuel type, gas pressure, control system, installation height and brooder spacing should be confirmed according to poultry-house design and local operating conditions.

• Broiler chick brooding houses
• Broiler breeder rearing facilities
• Layer pullet rearing houses
• Turkey brooding facilities
• Duck rearing houses
• Floor-reared poultry systems
• Environmentally controlled poultry houses
• Open-sided poultry buildings
• Steel structure poultry houses
• Cold-climate poultry projects
• New poultry farm construction
• Existing poultry-house heating upgrades

SHEWUYOU can configure single jet gas brooding systems according to poultry type, poultry-house dimensions, climate, available fuel supply and farm management requirements.

• Heating output
• 34 in or 46 in class reflector canopy
• LPG / propane / natural gas configuration
• Gas pressure specification
• Pilot ignition
• Direct spark ignition
• Modulating thermostat
• Independent thermostat
• Zone-control system
• Battery backup for compatible control systems
• Suspension chain and mounting hardware
• Gas hose and regulator package
• Brooder quantity and installation layout
• OEM / ODM supply

The gas brooder should be suspended from a suitable poultry-house structural member and installed according to the selected equipment specification and applicable local gas, ventilation and fire-safety requirements.

• Confirm the selected gas type before installation.
• Verify required gas pressure and regulator specification.
• Use suitable chain or cable for brooder suspension.
• Provide a separate safety chain where required.
• Maintain specified clearances from litter, combustible surfaces and building components.
• Use approved gas hoses, valves and fittings.
• Leak-test all gas connections before operation.
• Check burner ignition and flame condition before chick placement.
• Adjust brooder height according to bird behavior and heat distribution.
• Keep the burner and combustion-air openings free from dust and litter.
• Clean reflector surfaces between production cycles.
• Inspect burner tubes, gas controls and suspension components regularly.
• Protect electronic ignition equipment during poultry-house washdown.

Single jet gas brooders can be incorporated into complete poultry climate-control projects together with ventilation fans, air inlets, cooling systems, temperature sensors and environmental controllers. Final brooder quantity and spacing are designed according to house dimensions, heat loss, bird age, ventilation strategy and local winter climate.

Q1: What is a single jet gas brooder?

It is a suspended poultry heater using a concentrated gas burner and reflector canopy to create a radiant warm zone for young birds.

Q2: What is the reference heating output?

A professional single-jet poultry brooder configuration is rated at approximately 30,000 BTU/hr.

Q3: Which canopy sizes are commonly available?

Comparable professional single-jet brooders are available with approximately 34 in or 46 in reflector canopies.

Q4: Is automatic temperature control available?

Yes. Modulating thermostats, independent thermostats and zone-control configurations are available depending on the selected system.

Q5: Is direct spark ignition available?

Yes. Direct spark ignition can electronically ignite and control compatible single-jet brooders without a continuously operating standing pilot.

Q6: Can several brooders operate as one heating zone?

Yes. Compatible zone-control systems can regulate a group of brooders from one thermostat.

Q7: Which poultry can use single jet brooders?

They can be configured for broilers, breeders, pullets, turkeys, ducks and other floor-reared poultry.

Q8: Can SHEWUYOU design the complete poultry heating layout?

Yes. Brooder quantity, spacing, gas distribution, thermostat control, suspension arrangement and related climate equipment can be configured according to project requirements.
