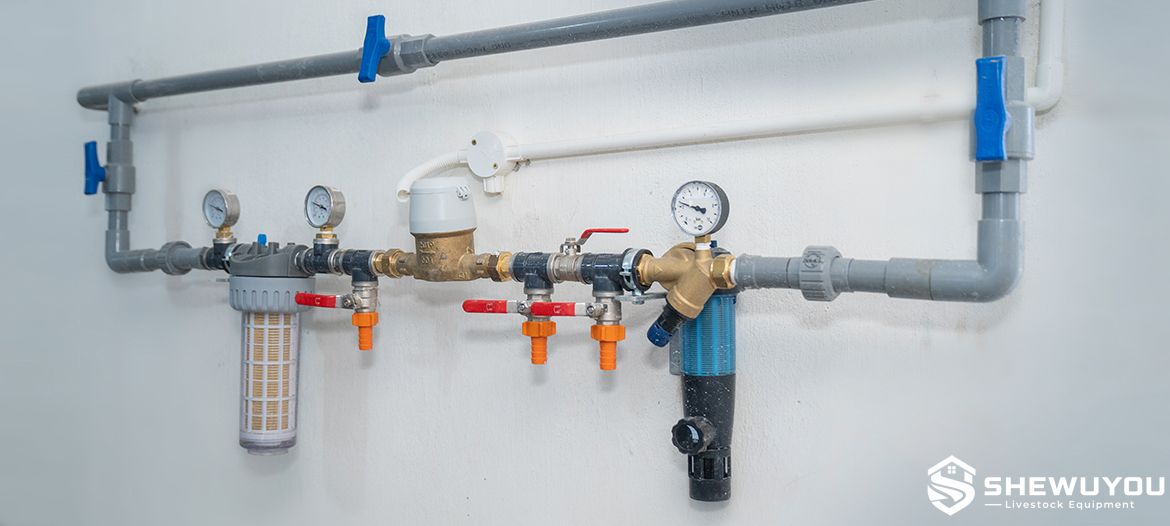

Poultry Vaccination Water Head Panel

The Poultry Vaccination Water Head Panel is a centralized water management assembly designed for commercial poultry drinking systems. Installed between the main farm water supply and the poultry house drinking lines, it provides an organized control point for water filtration, pressure regulation, flow monitoring and optional proportional vaccine dosing.

When configured for drinking water vaccination, the panel allows prepared vaccine stock solution to be introduced into the water stream through a compatible dosing pump or medicator. The treated water is then distributed through fill lines to nipple drinking lines throughout the poultry house.

The modular panel layout is suitable for broiler, layer, breeder, pullet and turkey projects and can be configured for new poultry house construction, steel structure building projects or drinking system upgrades.

• Centralized control point for poultry drinking water treatment and distribution.
• Suitable for drinking water vaccination, medication and routine water management.
• Modular configuration allows filtration, pressure regulation, metering and dosing functions to be integrated on one panel.
• Compatible with proportional dosing pumps and vaccine dilution tanks.
• Pressure monitoring helps provide stable operating conditions for downstream nipple drinking lines.
• Water filtration helps protect regulators, valves and nipple drinkers from suspended particles.
• Isolation and bypass valves can simplify vaccination, maintenance and flushing procedures.
• Wall-mounted or frame-mounted arrangements are available according to project requirements.
• Designed for convenient inspection and maintenance in poultry house service rooms.

• Water Inlet: Connects the panel to the poultry farm's main water supply.
• Water Filter: Removes suspended particles before water reaches sensitive downstream equipment.
• Pressure Regulator: Reduces and stabilizes supply pressure before water enters drinking lines.
• Pressure Gauge: Provides visual monitoring of operating pressure.
• Water Meter: Available for monitoring water flow and consumption.

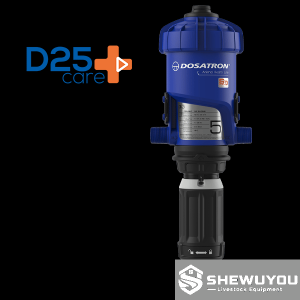

• Dosing Pump Connection: Provides integration with a compatible proportional medicator for vaccination or other approved water treatments.
• Bypass Valves: Allow selected equipment sections to be isolated or bypassed according to operating requirements.
• Water Outlet: Connects the treated water supply to poultry house fill lines.
• Support Panel or Frame: Keeps components organized and accessible for operation and maintenance.

Component selection and layout are customizable according to farm water quality, house capacity, dosing requirements and poultry drinking system design.

Incoming water first passes through the filtration section to remove suspended contaminants. The pressure regulation section then stabilizes water pressure before the water is directed toward the poultry house drinking system.

During vaccination, a compatible proportional dosing pump can draw prepared vaccine stock solution from a separate dilution tank and introduce it into the flowing water at the required dosing ratio. The treated water then passes through the outlet manifold and fill lines to the nipple drinking lines.

Bypass valves can allow the dosing section to be isolated during normal drinking periods or maintenance. Exact vaccine preparation, dosing ratio, administration duration and water-quality requirements should always follow the vaccine manufacturer's instructions and veterinary recommendations.

• Broiler drinking water vaccination systems.
• Layer and pullet production houses.
• Breeder poultry farms.
• Turkey production facilities.
• Commercial nipple drinking systems.
• Poultry house water treatment rooms.
• Large-scale integrated poultry production projects.
• New steel structure poultry house construction.
• Existing farm drinking water system modernization projects.

The Poultry Vaccination Water Head Panel can be configured according to flock size, water source, poultry house dimensions and vaccination management requirements.

• Panel size and mounting structure: Customizable.
• Water filter type and filtration grade: According to project requirements.
• Pressure regulator configuration: Available upon request.
• Mechanical or electronic water meter: Available upon request.
• Dosing pump bypass circuit: Customizable.
• Vaccine dilution tank connection: Available upon request.
• Additional sampling, drainage and flushing valves: According to project requirements.
• Complete drinking water vaccination station: Available as an integrated solution.

The panel should be installed in a clean, accessible service area between the main water supply and poultry house drinking lines. Wall or frame mounting should provide sufficient space for filter cleaning, valve operation, gauge inspection and dosing pump maintenance.

• Confirm correct flow direction before connecting the panel.
• Install suitable filtration upstream of sensitive drinking system components.
• Check pressure gauges and regulator settings regularly.
• Clean filter elements according to water quality and operating conditions.
• Inspect valves, fittings and flexible hoses for leakage.
• Flush drinking lines thoroughly after vaccination or medication programs.
• Clean the dosing circuit after use according to equipment and vaccine instructions.
• Protect the water head assembly from frost where required by local climate conditions.

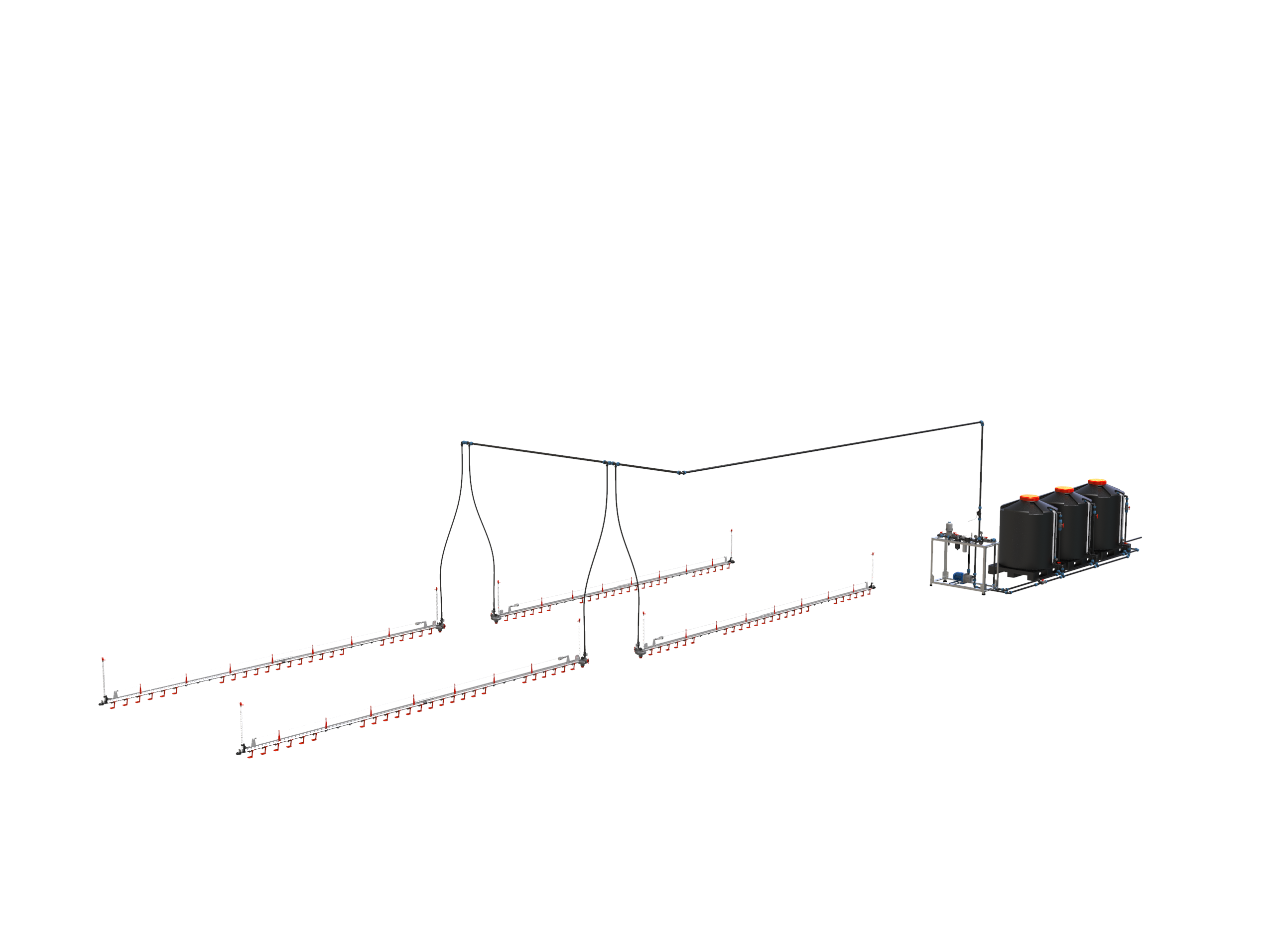

The water head panel can be integrated with poultry water reservoir tanks, vaccine dilution tanks, proportional medicators, water meters, pressure regulators, fill lines, nipple drinking lines and automatic flushing equipment.

For complete poultry farm projects, the water head layout can be coordinated with the steel structure poultry house, equipment service room and main water distribution network to provide an organized and maintainable installation.

Q: What is the function of a poultry water head panel?
A: It acts as the central water control point before water enters the poultry drinking lines, allowing filtration, pressure regulation, monitoring and optional dosing functions to be organized in one location.

Q: Can the panel be used for poultry vaccination?
A: Yes. When fitted with a compatible proportional dosing pump and bypass circuit, it can support drinking water vaccination programs.

Q: Is a dosing pump included as standard?
A: The configuration depends on project requirements. Panels can be supplied with or without a dosing unit.

Q: Can the panel connect to a vaccine dilution tank?
A: Yes. A dosing pump can draw prepared vaccine stock solution from a separate dilution tank and meter it into the drinking water stream.

Q: Can the water head panel be customized for large poultry houses?
A: Yes. Pipe size, filtration, water meter, valves, regulator configuration and panel layout can be selected according to required water flow and house capacity.

Q: Is regular flushing necessary after vaccination?
A: Yes. Drinking lines and dosing circuits should be flushed according to the vaccination protocol and equipment manufacturer's recommendations to reduce residues and maintain system hygiene.
