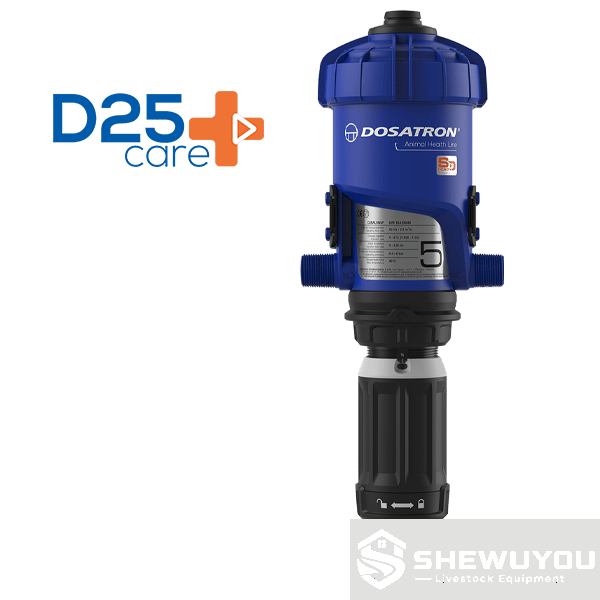

Poultry Drinking Water Vaccine Dosing Pump

The Poultry Drinking Water Vaccine Dosing Pump is a water-powered proportional medicator developed for controlled administration of drinking-water vaccines and approved animal-health treatments in commercial poultry production systems.

Installed directly in the poultry house water supply line, the pump uses the water flow itself as its driving force. A preset proportion of stock solution is drawn into the incoming water and mixed continuously, allowing treated water to be distributed through nipple drinking lines or other compatible poultry drinking systems without an electrical power supply.

This type of dosing equipment is suitable for broiler houses, layer farms, breeder farms, pullet-rearing facilities, hatchery support systems and other intensive poultry projects requiring centralized drinking-water vaccination or treatment management.

• Water-powered proportional dosing with no electrical power required.
• Designed for accurate and homogeneous administration through animal drinking-water systems.
• Dosing proportion automatically follows water consumption within the specified operating range.
• Suitable for poultry drinking-water vaccination and compatible animal-health treatment programs.
• Integrated dynamic mixing supports consistent distribution through the drinking circuit.
• Adjustable dosing concentration for different stock-solution preparation requirements.
• Self-priming operation simplifies integration with a separate stock-solution or vaccine preparation tank.
• Suitable for bypass installation for convenient priming, flushing, maintenance and clear-water operation.
• Compact design supports installation in poultry-house service rooms, water-control stations and steel-structure livestock buildings.
• Quick-access dosing components simplify routine inspection and maintenance.

• Hydraulic Motor: Uses incoming water pressure and flow to operate the dosing mechanism.
• Dosing Assembly: Draws concentrated stock solution and meters it proportionally into the water stream.
• Adjustment Mechanism: Allows the required injection percentage to be set within the specified dosing range.
• Integrated Mixing Section: Promotes homogeneous mixing of stock solution with drinking water.
• Suction Hose and Strainer: Connect the pump to the vaccine or treatment preparation tank.
• Water Inlet and Outlet Connections: Allow inline or bypass integration into the poultry water supply system.
• Mounting Bracket: Supports secure installation at the water treatment station.

Water passing through the dosing pump activates the hydraulic motor. The movement of the water-powered mechanism operates the dosing piston, which draws a measured quantity of concentrated stock solution through the suction hose.

The concentrate is injected into the water stream according to the selected proportional setting. Because the dosing action is linked to water flow, the amount of concentrate delivered changes automatically as flock water consumption changes, provided the installation remains within the specified operating conditions.

After injection, the solution is mixed within the dosing unit and distributed through the poultry drinking-water circuit. This principle is particularly useful in poultry houses where water demand varies continuously according to bird age, environmental conditions and drinking behavior.

Technical values above are based on the referenced D25AL5-N configuration. Final specifications should be confirmed for the selected model before ordering.

• Broiler drinking-water vaccination systems.
• Layer and pullet-rearing poultry houses.
• Breeder farm drinking-water management systems.
• Commercial chicken farms with nipple drinking lines.
• Centralized poultry medication and supplementation systems.
• Large livestock and agricultural construction projects.
• Water-control rooms in steel-structure poultry houses.
• Veterinary treatment and flock health management programs.

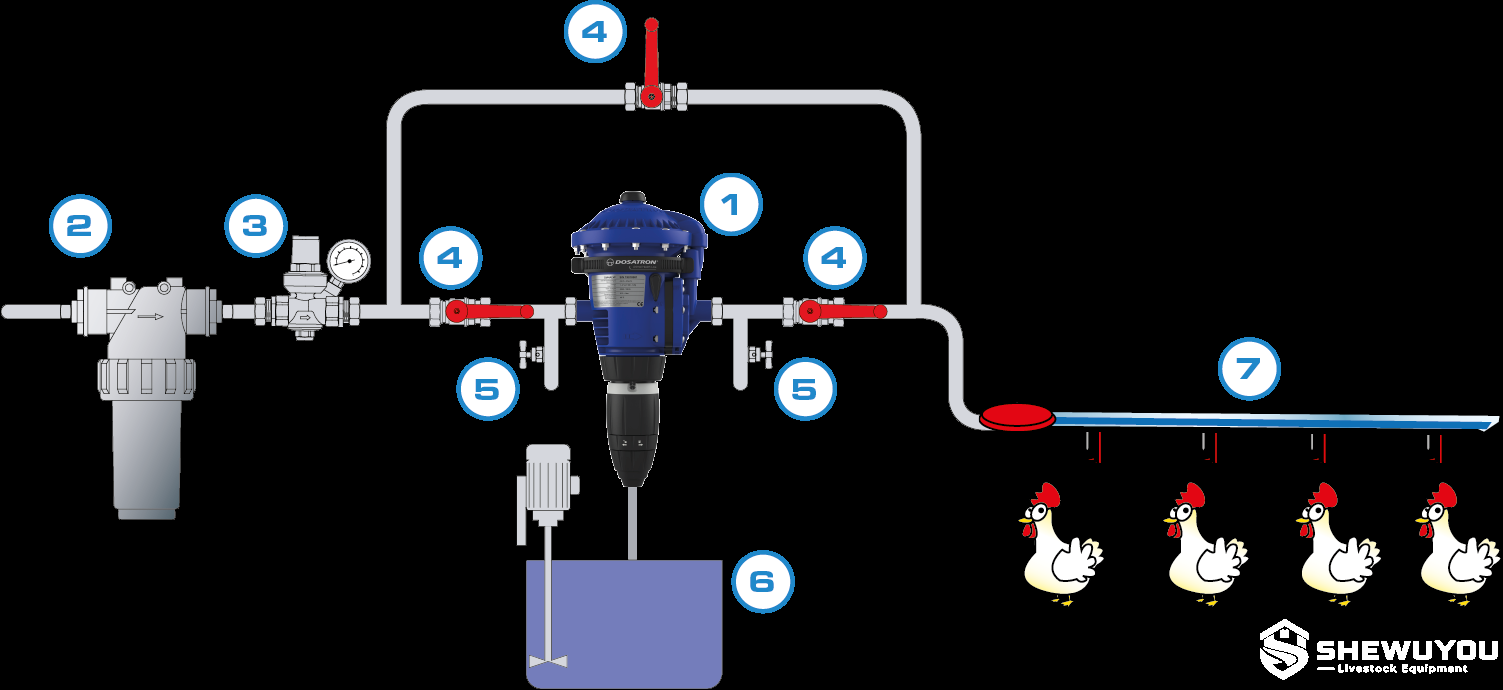

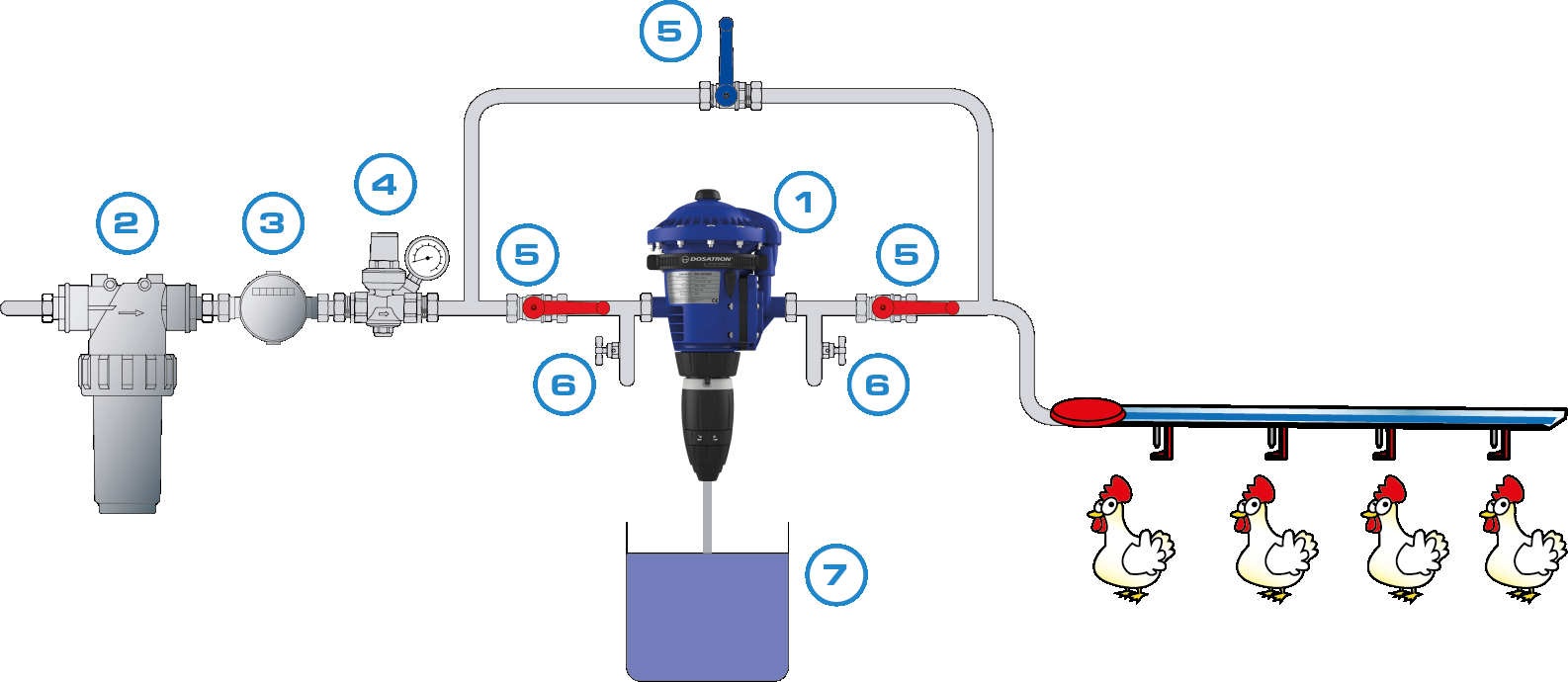

A professional poultry dosing station can be configured with the following components according to farm layout and water quality:

• Proportional dosing pump.
• Upstream water filter.
• Low-flow water meter.
• Pressure regulator when required.
• Bypass pipework and isolation valves.
• Dedicated vaccine or stock-solution preparation tank.
• Suction hose with strainer.
• Backflow prevention device according to local plumbing regulations.
• Main drinking-water line connected to poultry nipple drinker lines.

Poultry drinking-water dosing stations can be configured according to project requirements. Available system-level options may include dosing range selection, bypass layout, filtration equipment, pressure regulation, stock-solution tank capacity, pipe connection adapters, water meters and mounting arrangements.

Complete drinking-water vaccination layouts can be designed according to poultry-house capacity, water consumption, water quality, local climate, building arrangement and farm management requirements.

• Install the dosing pump vertically in the water supply line according to the flow direction.
• A bypass arrangement is recommended to facilitate priming, testing, flushing and maintenance.
• Install suitable filtration upstream of the dosing unit; the reference poultry guidance recommends an 80-micron filter.
• Use appropriate backflow protection according to applicable local drinking-water regulations.
• Position the stock-solution container where the suction line remains secure and accessible.
• Flush the dosing pump and drinking circuit with clean water after treatment when required by the operating procedure.
• Inspect suction tubing, strainers, dosing seals and connection fittings regularly.
• Check chemical compatibility before using disinfectants, acids, medicines or other concentrated additives.
• Maintain the poultry drinking lines and nipple drinkers according to the farm biosecurity program.

For drinking-water vaccination, the dosing pump should be used as part of a complete flock vaccination protocol. Vaccine preparation, dilution, water quality, drinking-line sanitation and administration time should follow the vaccine manufacturer's instructions and veterinary recommendations.

Only vaccines specifically approved for drinking-water administration should be used. Vaccine compatibility and preparation procedures must be confirmed before dosing, particularly where disinfectants, organic acids or other water-treatment chemicals are normally present in the drinking system.

Q: Does the dosing pump require electricity?
A: No. The proportional dosing mechanism is powered by water flow and water pressure within the specified operating range.

Q: Can the pump automatically adjust to changing poultry water consumption?
A: The proportional dosing principle links concentrate injection to water flow, allowing the delivered volume to follow changes in water consumption within the pump's operating range.

Q: Can it be used for poultry drinking-water vaccination?
A: Yes. This type of animal-health medicator is designed for vaccination and compatible treatment administration through drinking water. The specific vaccine must be approved for drinking-water use.

Q: What is the reference dosing range?
A: The referenced D25AL5-N configuration provides an adjustable range of 1-5%, equivalent to approximately 1:100 to 1:20.

Q: Can it be integrated into an existing poultry drinking line?
A: Yes. It can be incorporated into a suitable existing water supply using the correct fittings, filtration, bypass valves and backflow protection according to project requirements.

Q: Is a bypass installation recommended?
A: Yes. A properly designed bypass makes it easier to isolate the dosing pump, supply clear water, prime the unit, test operation and perform routine maintenance.

Q: Can the complete dosing station be customized?
A: Yes. Pipe connections, filtration, bypass configuration, preparation tank and supporting water-control components can be selected according to farm capacity and project requirements.
