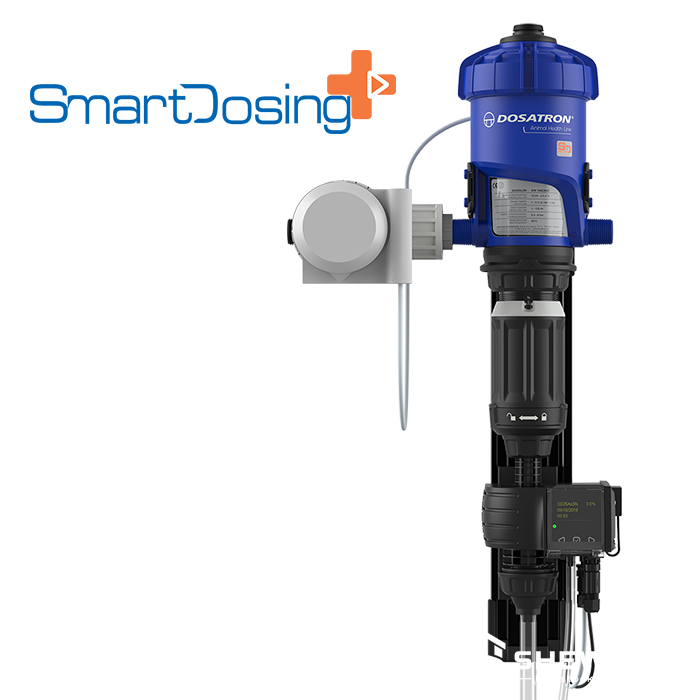

Smart Poultry Drinking Water Vaccination System

• Designed for poultry drinking-water vaccination and controlled treatment delivery.
• Proportional dosing responds to water flow to maintain a consistent dosing ratio.
• Supports uniform distribution of approved vaccines through connected drinking-water lines.
• Smart monitoring can track water consumption and treatment operation in real time.
• Alarm functions can help identify conditions such as empty treatment tanks, no water consumption or pump-related incidents.
• Digital treatment records support traceability, management review and production documentation.
• Water-powered proportional dosing technology can operate without a dedicated dosing motor.

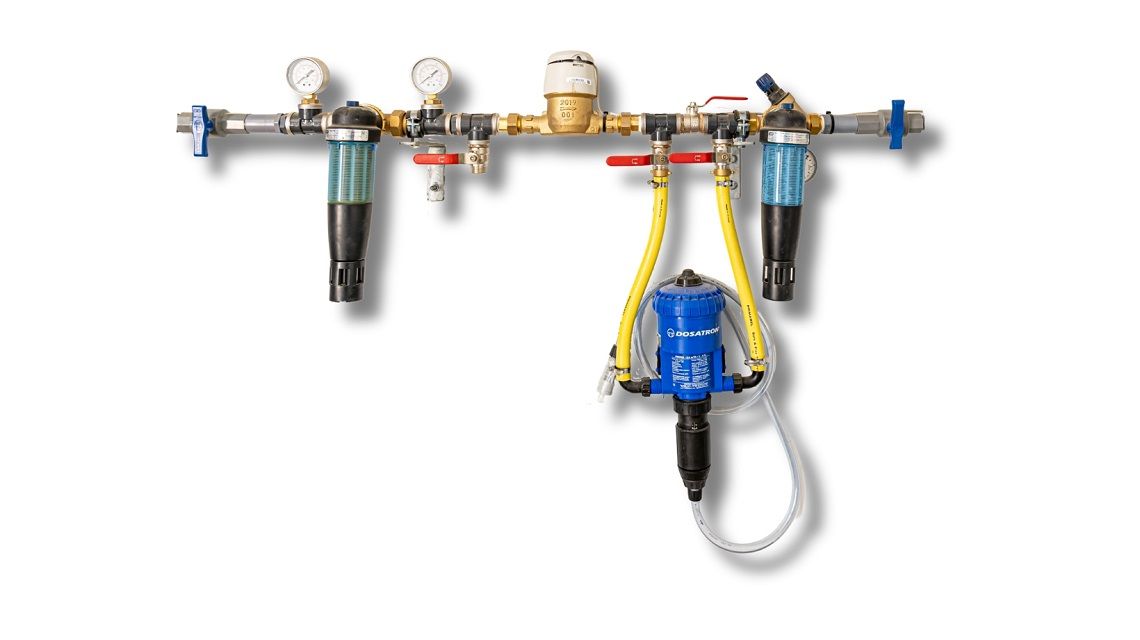

• Suitable for integration with poultry house waterline systems, filtration and pressure-control assemblies.
• Modular design facilitates installation, inspection and routine service.
• Configuration can be adapted to commercial poultry houses and multi-line drinking systems.
• OEM configuration, packaging and system accessories are available according to project requirements.

• Proportional Dosing Pump: Uses the water flow through the system to drive the dosing mechanism and introduce concentrated treatment solution into the water stream.
• Monitoring Module: Electronic monitoring hardware can collect operating information and support treatment supervision.
• Pulse Water Meter: Provides water-consumption data for monitoring and dosing verification.
• Treatment Tank: A dedicated graduated tank is recommended for preparing and holding the vaccine solution.
• Injection Assembly: Draws concentrated solution from the treatment tank into the main water flow.
• Water Filter: Removes suspended particles upstream of the dosing equipment to protect hydraulic components.
• Pressure Control: Pressure reducer and related valves can be incorporated according to the water supply conditions.
• Bypass and Isolation Valves: Allow the dosing pump to be isolated for flushing, maintenance or clear-water operation.
• Mounting Bracket: Provides secure installation on a suitable wall, frame or waterline support structure.
• Communication Interface: USB, RS485 or other communication arrangements may be supplied according to the selected smart configuration.

• Commercial broiler farms
• Layer and pullet production facilities
• Breeder farms and hatchery-linked production systems
• Large-scale poultry vaccination programs
• Drinking-water administration of approved poultry vaccines
• Controlled delivery of veterinary treatments and nutritional additives where permitted
• Multi-house poultry production complexes
• Integrated poultry farm water management systems
• Agricultural engineering and poultry house construction projects
• Livestock equipment distributors and poultry project contractors

Q1: What is a poultry drinking-water vaccination system?
It is a dosing system that introduces an approved vaccine into the poultry drinking-water supply at a controlled proportion so the prepared solution can be distributed through the drinking lines.

Q2: What is the advantage of proportional dosing?
The dosing mechanism responds to water flow, helping maintain a consistent treatment ratio when poultry water consumption varies during the vaccination period.

Q3: Does the smart system require a dedicated dosing motor?
The referenced proportional dosing technology is water-driven. Smart monitoring and communication components may require an electrical power supply according to the selected configuration.

Q4: What vaccines can be administered through drinking water?
Only vaccines specifically approved and labeled for drinking-water administration should be used. The applicable vaccine, preparation method and local veterinary requirements must always be followed.

Q5: Why is water quality important for poultry vaccination?
Water quality, disinfectant residues, pH and other factors can affect vaccine stability. The drinking-water system should therefore be prepared according to the vaccine manufacturer's instructions.

Q6: Can the system be connected to a poultry farm controller?
Yes. A smart configuration can communicate with a computer or compatible farm controller, depending on the selected monitoring and communication architecture.

Q7: Can the dosing system be customized for large poultry projects?
Yes. Flow capacity, dosing range, connection arrangement, monitoring functions, waterline accessories and installation configuration can be customized according to project requirements.
