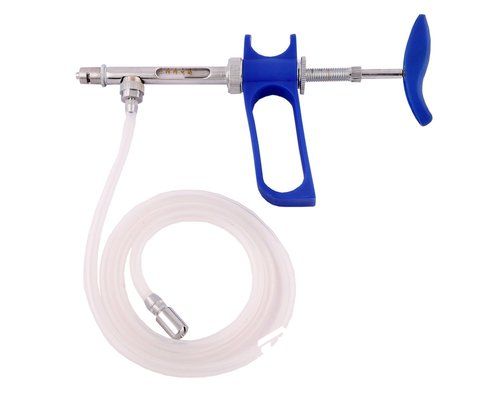

Tube-Fed Hand Poultry Vaccine Dropper

The Tube-Fed Hand Poultry Vaccine Dropper is a manually operated vaccination device designed to draw prepared vaccine from an external container through flexible tubing and deliver controlled individual doses to poultry. The tube-fed arrangement keeps the vaccine supply separate from the handpiece, reducing the need to repeatedly refill a small bottle during continuous vaccination work.

Its compact hand-held construction is suitable for hatcheries, broiler farms, layer farms, breeder operations and veterinary vaccination teams. Different dosing heads, tubing configurations and accessories can be supplied according to project requirements.

• Tube-fed design draws vaccine from an external reservoir or bottle.
• Hand-operated dosing supports continuous individual bird vaccination.
• Compact handpiece provides convenient operation in hatcheries and poultry houses.
• External vaccine supply reduces frequent manual refilling of the applicator.
• Flexible tubing allows convenient positioning of the vaccine container.
• Dosing configuration can be selected according to vaccination requirements.
• Replaceable tubing, seals and dispensing components simplify maintenance.
• Suitable for professional poultry vaccination and livestock equipment projects.

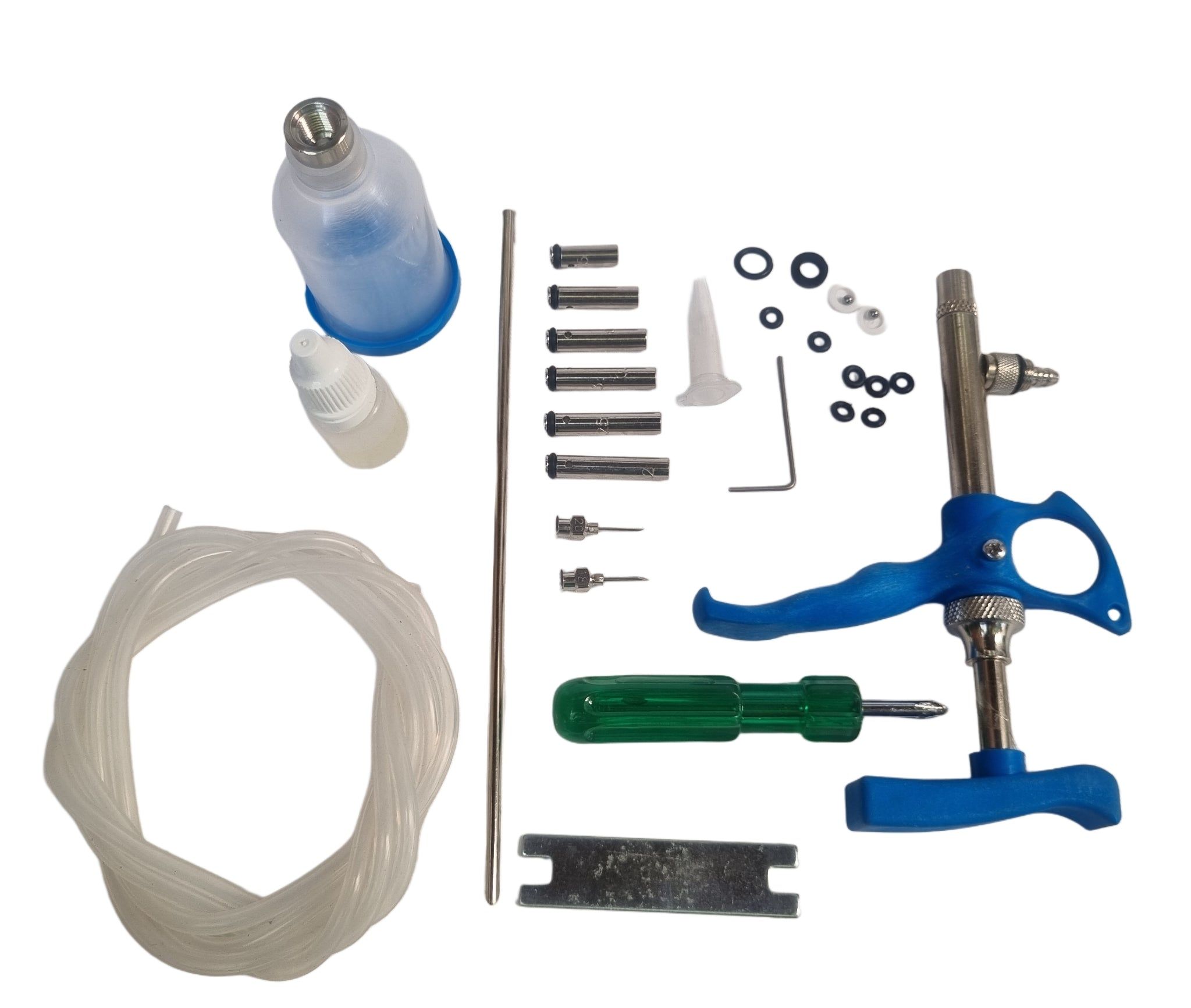

• Hand-held applicator body
• Manual trigger or push mechanism
• Internal dosing chamber and piston assembly
• Tube inlet connection
• Flexible vaccine supply tubing
• External vaccine bottle or reservoir connection
• Dispensing head or dropper nozzle according to configuration
• Seals, O-rings and service components

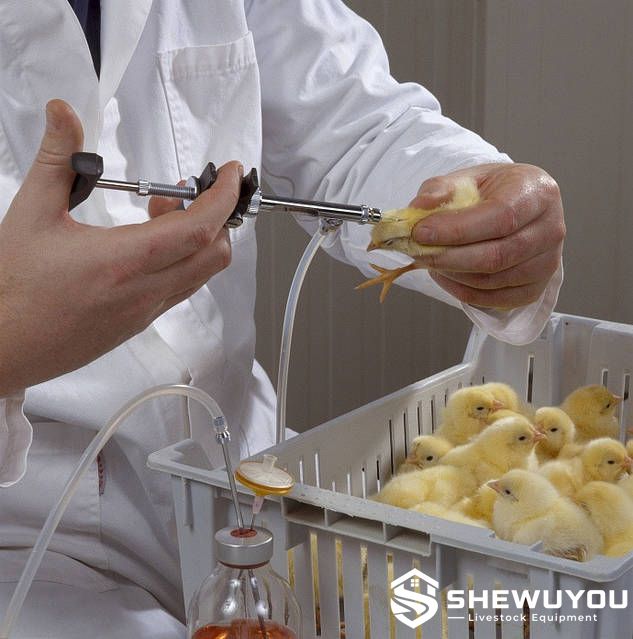

The vaccine container is positioned separately from the handpiece and connected to the applicator through flexible tubing. During the return or refill cycle, prepared vaccine is drawn through the tube into the dosing chamber.

When the operator activates the hand mechanism, the measured volume is discharged through the selected dispensing head. The refill-and-dose cycle can then repeat without removing the handpiece from the working position, supporting efficient flock vaccination.

Final dose settings and administration method must follow the instructions supplied with the specific poultry vaccine.

• Commercial poultry hatcheries
• Broiler vaccination programs
• Layer and pullet vaccination
• Breeder flock vaccination
• Poultry veterinary programs
• Large flock vaccination operations
• Livestock equipment distributors
• Agricultural and poultry project procurement

• Dose configuration according to project requirements.
• Different dispensing heads available upon request.
• Flexible tubing length can be customized.
• External bottle and reservoir connections available in different configurations.
• Handpiece grip and component configuration can be customized.
• Spare-parts and maintenance kits available upon request.
• OEM packaging and labeling according to project requirements.

No fixed installation is required. Connect the flexible tube securely between the applicator inlet and the prepared vaccine reservoir, then prime the liquid path before beginning vaccination.

• Inspect tubing, seals and dispensing components before each use.
• Keep the vaccine container clean and properly positioned during operation.
• Prime the handpiece until liquid flow is free of excessive air bubbles.
• Confirm the required dose before starting flock vaccination.
• Keep prepared vaccine at the temperature specified by the vaccine manufacturer.
• Flush and clean vaccine-contact components after use.
• Replace worn tubing, O-rings and seals when required.
• Avoid disinfectant residues that may affect compatible live vaccines.

Q: What does tube-fed mean?
A: The applicator receives vaccine through flexible tubing connected to an external bottle or reservoir instead of carrying the full vaccine supply directly on the handpiece.

Q: What is the advantage of an external vaccine reservoir?
A: It can reduce repeated refilling of the handpiece and supports more continuous vaccination during large flock operations.

Q: Can the dose be customized?
A: Yes. Dose configuration can be supplied according to the selected vaccination protocol and project requirements.

Q: Can different tubing lengths be supplied?
A: Yes. Tubing length and connection configuration are customizable according to the working layout.

Q: Is this a drinking-water vaccine dosing pump?
A: No. It is a hand-operated individual vaccination device supplied through a flexible vaccine tube. Drinking-water vaccination requires separate water dosing equipment and procedures.
