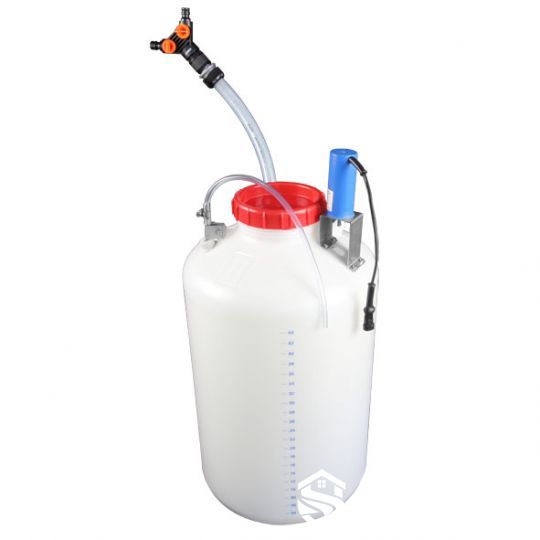

Poultry Vaccine Dilution Tank

The Poultry Vaccine Dilution Tank is a dedicated stock-solution vessel designed for preparing vaccines before proportional administration through poultry drinking water systems. It provides a clean and controlled container for mixing vaccine solution with suitable non-chlorinated water before the solution is drawn into a dosing pump.

For professional poultry vaccination systems, a dedicated plastic tank helps separate vaccine preparation from tanks used for medication, supplementation, acidification or other water treatments. The tank can be incorporated into drinking water vaccination installations serving broilers, layers, breeders, pullets and turkeys.

• Dedicated tank for poultry drinking water vaccination stock solution.
• Plastic construction suitable for vaccine preparation applications.
• Graduated tank configuration helps operators prepare the required stock-solution volume.
• Designed to minimize residual solution at the end of the vaccination cycle.
• Suitable for connection to proportional dosing pumps and poultry drinking water lines.
• Easy-access tank design supports filling, inspection, rinsing and routine sanitation.
• Helps separate vaccination equipment from medication and water-treatment equipment.
• Tank capacity, connections and supporting frame can be customized according to project requirements.

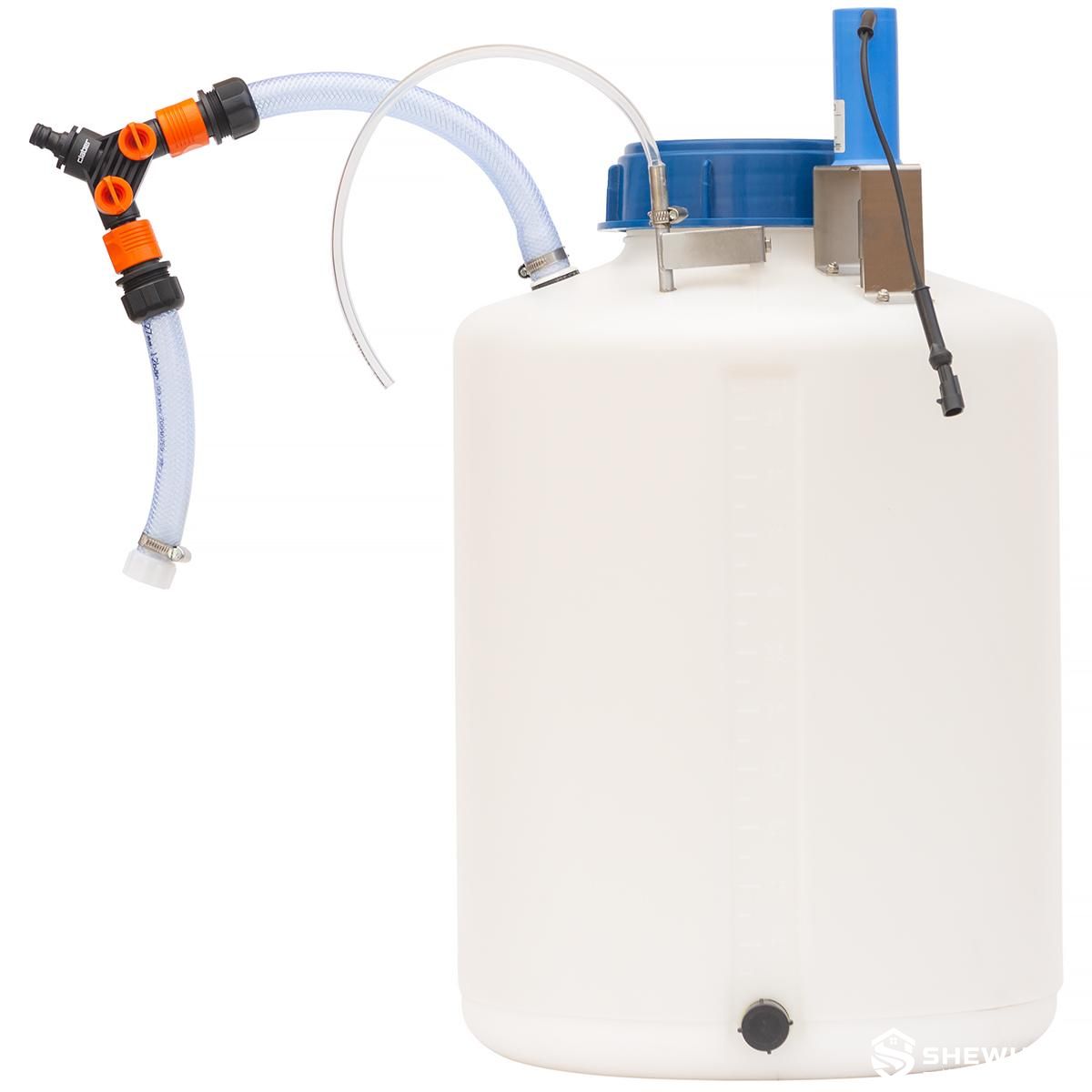

• Plastic Tank Body: Provides the main vessel for preparing and holding vaccine stock solution.
• Graduation Markings: Assist operators in preparing repeatable solution volumes.
• Top Filling Opening: Provides convenient access for water filling, vaccine preparation and cleaning.
• Cover or Lid: Helps protect the prepared solution from environmental contamination.
• Suction Connection: Allows connection to the dosing pump suction hose.
• Drain or Low-Point Outlet: Available according to configuration to simplify emptying and cleaning.
• Support Frame: Optional floor-standing or mobile support configurations are available upon request.

The tank is filled with the calculated volume of suitable water required for preparing the vaccine stock solution. Any approved vaccine stabilizer or chlorine-neutralizing product is prepared according to the vaccine supplier's instructions before the vaccine is introduced.

After preparation, the suction hose of the proportional dosing pump draws the stock solution from the tank. The dosing pump then meters the vaccine solution into the poultry drinking water stream at the selected proportion, allowing the diluted vaccine to be distributed through the drinking lines.

The exact preparation procedure, vaccine concentration, stabilizer use and administration time must follow the vaccine manufacturer's instructions, veterinary guidance and applicable local regulations.

• Broiler drinking water vaccination systems.
• Layer and pullet vaccination programs.
• Breeder poultry farms.
• Turkey production facilities.
• Commercial poultry houses with nipple drinking lines.
• Livestock dosing rooms and poultry water-treatment stations.
• New poultry house construction and drinking water system upgrade projects.
• Large-scale integrated poultry production facilities.

The Poultry Vaccine Dilution Tank can be configured according to flock size, poultry house layout, dosing pump specification and drinking water system design.

• Tank capacity: Customizable.
• Graduation scale: Available upon request.
• Tank inlet and outlet connections: According to project requirements.
• Suction hose and strainer configuration: Available upon request.
• Drain valve arrangement: Customizable.

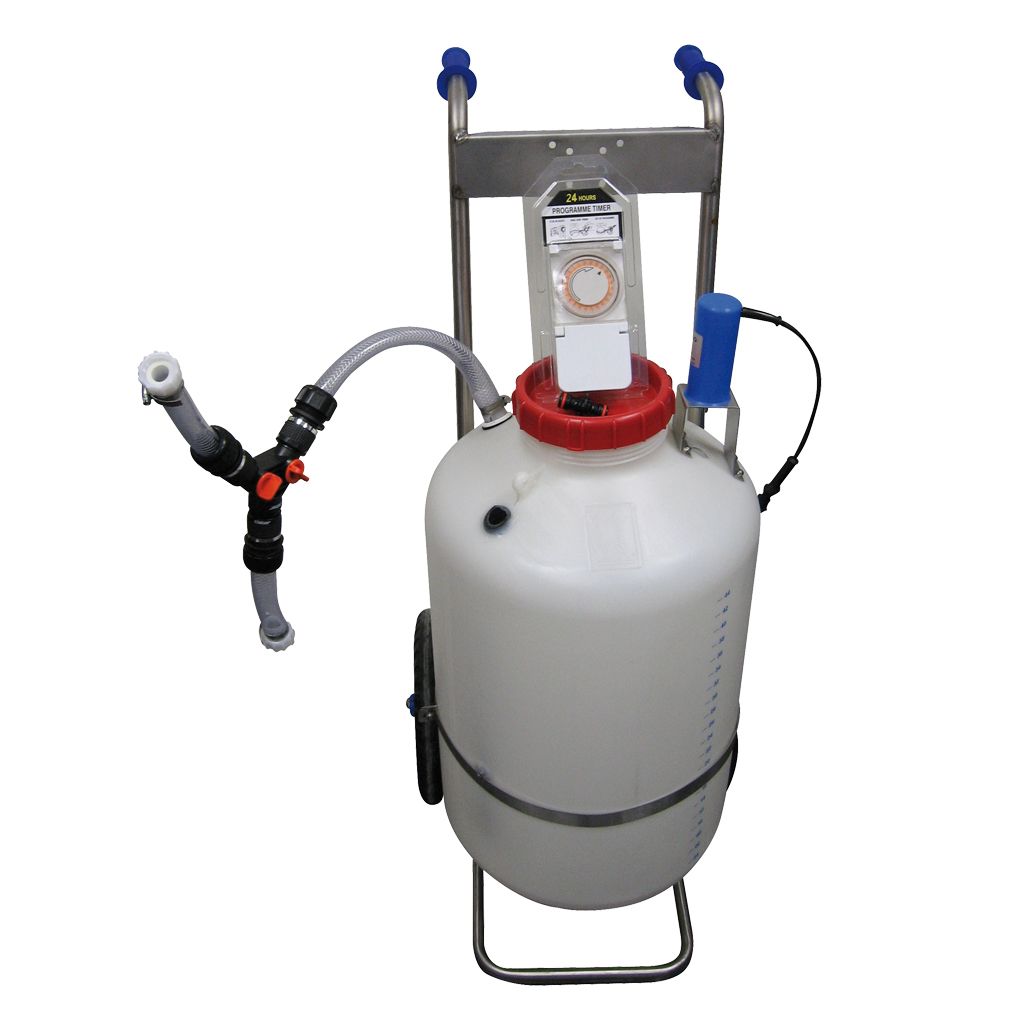

• Support frame or mobile trolley: Available upon request.
• Complete dosing station integration: According to poultry farm project requirements.

The tank should be installed in an accessible and clean location close to the vaccination dosing unit. The suction line should be connected securely and arranged to allow reliable pickup of the prepared stock solution.

• Use the tank exclusively for vaccination where required by the farm vaccination protocol.
• Rinse the tank thoroughly after each vaccination cycle.
• Flush the dosing system with suitable clean water after vaccination.
• Inspect suction hoses, strainers, fittings and valves regularly.
• Keep the tank covered and protected from contaminants during storage.
• Do not leave vaccine residues in the tank between vaccination procedures.
• Follow vaccine supplier and veterinarian instructions for water quality and sanitation.

The dilution tank can be integrated into a complete poultry drinking water vaccination station with a proportional dosing pump, filtration unit, water meter, pressure reducer, bypass valves, clear-water filling valve and fast-priming or flushing connection.

For new poultry house construction and steel structure building projects, equipment layout can be coordinated with the farm's water room, main drinking water pipeline and individual poultry house distribution system.

Q: Why should a separate tank be used for poultry vaccination?
A: A dedicated vaccination tank helps reduce the risk of residues from medication, acidification or other water treatments interfering with vaccine preparation.

Q: Can the tank work with a proportional dosing pump?
A: Yes. It is designed to hold the concentrated stock solution that is drawn into a proportional poultry dosing system.

Q: Does the tank require an electric agitator?
A: Not necessarily. The required preparation method depends on the vaccine and vaccination protocol. Some live vaccine preparation procedures specifically require gentle manual preparation rather than powered mixing.

Q: Can the tank size be customized?
A: Yes. Capacity can be selected according to flock size, expected water consumption, dosing percentage and poultry house requirements.

Q: Can it be supplied as part of a complete poultry vaccination system?
A: Yes. It can be supplied together with compatible dosing pumps, filters, valves, hoses, water meters and related drinking water vaccination equipment.
