Mini Chick Waterer

The Mini Chick Waterer is a compact poultry drinking unit designed for baby chicks, turkey poults and other young poultry during brooding and early rearing. Its shallow drinking bowl provides easy water access while helping reduce the risk associated with excessively deep open-water containers.

The product can be configured as a compact automatic waterer connected to a regulated water supply or as a small reservoir-type chick drinker according to project requirements. Automatic versions use a mechanical valve to maintain the required water level without repeated manual filling.

The low-profile structure is particularly suitable for day-old poultry because birds can locate and reach the water easily. Heavy-duty plastic construction provides corrosion resistance, simple cleaning and practical daily use in hatcheries, brooding houses and commercial poultry facilities.

• Extra-Shallow Drinking Area: Low water depth provides convenient access for newly hatched chicks and poults.
• Compact Footprint: Suitable for brooder rings, chick holding areas and smaller poultry pens.
• Automatic Refill Option: Mechanical valve configurations can maintain a continuous water supply from a pressurized line.
• Gravity-Fed Option: Reservoir-type models are available where simple manual filling is preferred.
• Durable Plastic Bowl: Heavy-duty molded plastic provides corrosion resistance and easy sanitation.
• Corrosion-Resistant Valve Components: Compatible automatic designs can use non-rusting metal water-control components.
• Easy Water Access: Open circular bowl allows several young birds to drink around the perimeter.
• Simple Installation: Compact automatic units can connect directly to suitable poultry water piping.
• Easy Cleaning: Smooth surfaces and accessible bowl geometry simplify washing between flocks.
• Commercial Brooding Use: Suitable for hatcheries, broiler farms, pullet rearing and breeder chick production.

• Shallow plastic drinking bowl
• Central water inlet
• Automatic valve assembly according to configuration
• Valve stem / fountain stem
• Water inlet connector
• Sealing components
• Optional pressure-control components
• Optional gravity reservoir
• Optional elevated base or support
• Pipe or hose adapter according to project requirements

In an automatic configuration, the Mini Chick Waterer is connected to a suitable poultry water supply. The internal valve allows water to enter the shallow bowl and maintains the designed operating level as chicks consume water.

As the water level falls, the mechanical valve admits additional water. Once the normal operating level is restored, the valve limits further flow. This provides a continuous supply without requiring workers to refill individual drinkers manually.

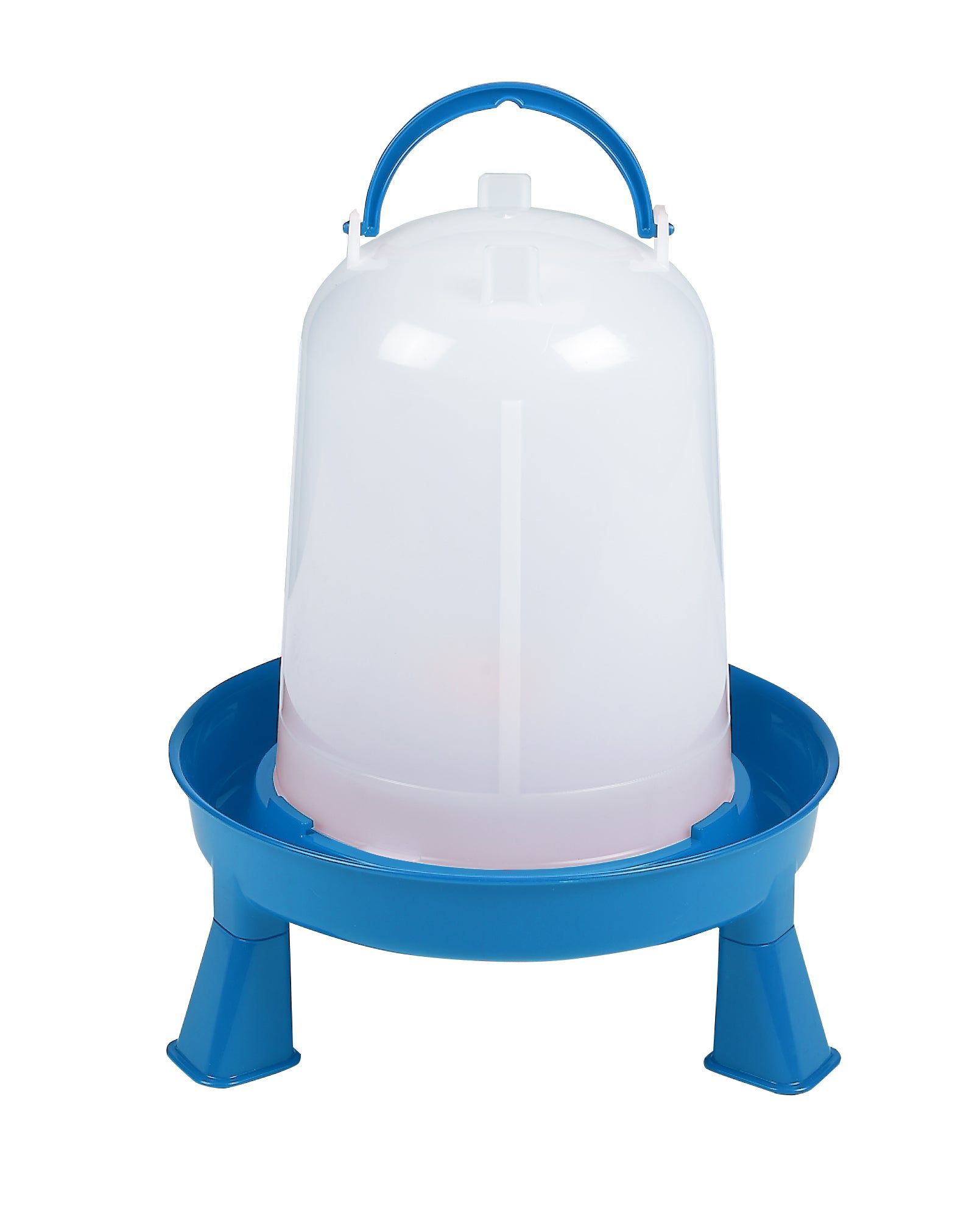

Gravity-reservoir versions operate without a pressurized pipe connection. Water stored in the reservoir is released into the drinking channel as the level decreases, using gravity and atmospheric pressure to control refill.

• Day-old broiler chick houses
• Turkey poult brooding areas
• Hatchery chick holding rooms
• Pullet rearing facilities
• Broiler breeder chick houses
• Small poultry pens
• Brooder rings
• Commercial poultry farms
• Steel structure poultry buildings
• Starter-equipment packages for poultry projects

The Mini Chick Waterer is especially useful during the first stage of poultry production when small birds require shallow, clearly visible and easily accessible drinking points.

In commercial houses, mini drinkers can supplement automatic nipple lines during chick placement or serve as dedicated brooding waterers where an open shallow bowl is preferred.

• Automatic or gravity-fed configuration
• Bowl diameter and depth
• Reservoir capacity
• Water inlet connection
• Valve specification
• Pipe or hose adapter
• Raised support or removable legs
• Plastic material specification
• Product color
• Packaging quantity
• OEM configuration available upon request

The final configuration can be selected according to bird type, flock capacity, brooding layout, water-supply system and project requirements.

Placement: Position mini waterers evenly around the brooding area where chicks can locate them quickly after placement.

Stable Surface: Keep the bowl level to maintain consistent water depth around the entire drinking edge.

Water Connection: For automatic versions, connect the inlet to a compatible pipe or hose and ensure the supply pressure is within the operating range of the selected valve.

Initial Inspection: Confirm that the valve opens and closes correctly and that the water level remains shallow and stable before chicks are placed.

Daily Cleaning: Remove feed particles, litter and organic contamination from the drinking bowl frequently.

Water Quality: Use clean poultry drinking water and appropriate filtration where required.

Valve Maintenance: Inspect the valve stem, seals and connection fittings regularly for leakage, deposits or restricted movement.

Between Flocks: Thoroughly wash, disinfect and rinse all components before the next production cycle.

In commercial broiler brooding areas, multiple mini chick waterers can be placed between starter feeder trays to provide additional water access immediately after placement.

In turkey poult houses, shallow automatic drinking bowls can provide an easily accessible water source during early rearing before birds transition to larger drinking equipment.

For new steel structure poultry projects, automatic mini waterers can be connected to dedicated low-level water distribution lines or incorporated into starter-equipment packages according to the farm design.

Q1: What is a Mini Chick Waterer?
It is a compact, shallow drinking unit designed to provide easily accessible water for newly hatched chicks and other young poultry.

Q2: Why is the bowl shallow?
A shallow bowl is easier for small chicks to use and helps reduce the risk associated with excessively deep drinking containers.

Q3: Can it supply water automatically?
Yes. Automatic configurations use a mechanical valve connected to a poultry water line to maintain the required water level.

Q4: Are gravity-fed versions available?
Yes. Compact reservoir-type designs can be supplied where a pressurized water connection is not required.

Q5: Does the waterer require electricity?
No. Standard automatic valves and gravity-fed configurations operate without electricity.

Q6: What is the reference size of the automatic chick fount?
The comparable Miller model uses a bowl approximately 7.25 inches in diameter and 1.75 inches deep.

Q7: What pressure does the comparable automatic model require?
The reference Miller automatic chick fount is specified for approximately 20–50 psi.

Q8: How many chicks can one automatic unit serve?
The comparable Miller reference states a capacity of up to approximately 200 baby chicks. Final farm design should consider bird age, temperature and water demand.

Q9: Can the drinker be raised from the floor?
Yes. Raised supports or removable-leg configurations can be supplied where cleaner drinking access is required as birds grow.

Q10: Can the Mini Chick Waterer be customized?
Yes. Bowl dimensions, valve type, reservoir capacity, connection size, support structure and packaging can be supplied according to project requirements.
