Broiler Chick Drinker System

The Broiler Chick Drinker System is an automatic nipple watering line designed to provide reliable drinking-water access from day-old chick placement through the complete broiler grow-out cycle. The system combines easy-trigger nipple valves, square water pipes, pressure-control equipment, support rails and adjustable suspension equipment into a complete commercial poultry watering solution.

The chick-oriented nipple design requires low triggering force and retains a visible water droplet at the activation pin, helping newly placed chicks locate water quickly. As birds grow and apply greater upward force to the pin, the internal metering mechanism can provide increased water flow to match changing consumption requirements.

The closed drinking line helps reduce contact between drinking water and litter, feed or airborne contamination compared with open drinking systems. Optional drip cups can collect occasional droplets and support dry litter conditions in environmentally controlled broiler houses.

The system is suitable for new poultry projects, steel structure broiler houses and drinking-line renovation projects. Line length, nipple quantity, support structure, regulator configuration and flushing equipment can be selected according to house dimensions, flock capacity and local project requirements.

• Easy Chick Triggering: Low operating force allows day-old chicks to activate the nipple with minimal effort.
• 360-Degree Side Action: Compatible nipple configurations can be triggered from multiple directions for easier early access.

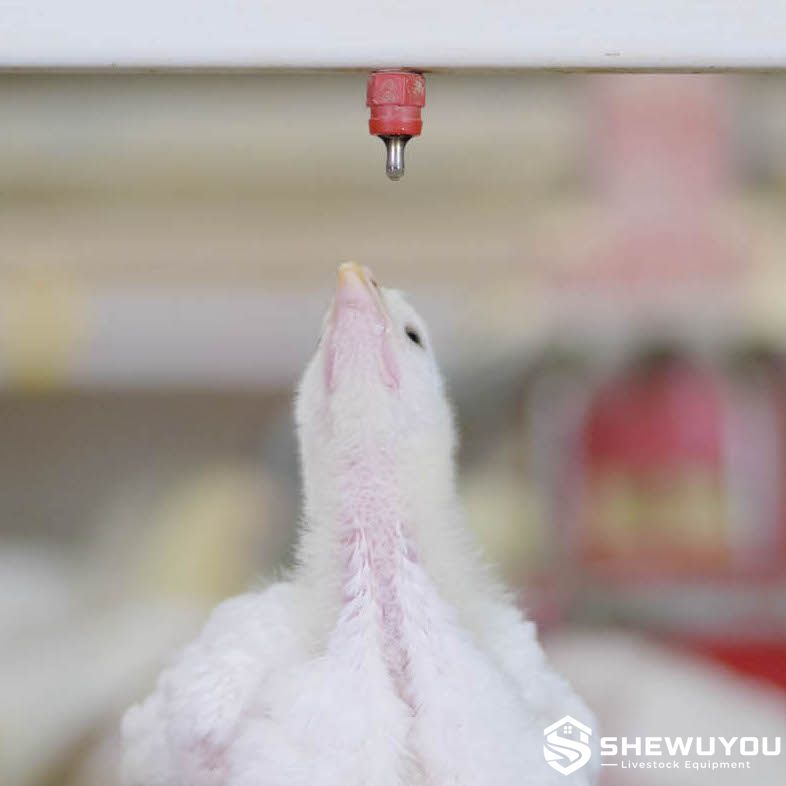

• Droplet Retention: Enlarged trigger-pin geometry helps retain a visible droplet that attracts newly placed chicks.
• Progressive Water Delivery: Multi-stage metering technology allows water delivery to increase as growing birds apply more upward force.
• Square Water Pipe: Prevents pipe rotation and keeps nipples correctly oriented throughout the drinking line.
• Raised Water Entry Point: The inlet position inside the pipe helps reduce the possibility of sediment entering the nipple mechanism.
• Optional Drip Cups: One-arm and two-arm cup configurations are available to collect occasional droplets.
• Adjustable Pressure: Pressure regulators and clear sight tubes allow operators to manage the drinking-line water column.
• Manual or Automatic Flushing: Suitable regulator and solenoid configurations can support routine line flushing.
• Pre-Assembled Sections: Modular drinking-line sections simplify installation in commercial poultry houses.

• Broiler chick nipple drinkers
• Multi-stage metering pins
• Square PVC drinking water pipe
• Optional one-arm drip cups
• Optional two-arm drip cups
• Aluminum support rail or conduit support
• Pressure regulator
• Clear plastic sight tube
• Water-column float ball
• Flush breather unit
• Expansion couplers
• Holding clips
• Galvanized rail connectors
• Suspension hangers
• Suspension cables
• Central lifting winch
• Optional shocker / anti-roost wire
• Optional automatic flushing solenoid
• Optional slope reducer

Filtered water enters the system through a pressure regulator that reduces and stabilizes the supply pressure before water enters the square drinking pipe.

When a chick touches the nipple trigger pin, the internal valve opens and releases water. The low trigger force and side-action capability help young birds activate the nipple during the first days after placement.

The internal metering design responds to how strongly the nipple is activated. Young chicks receive smaller quantities of water, while older broilers naturally apply more upward force and receive increased flow as their water demand rises.

The regulator controls the water column inside the drinking line. A transparent standpipe with a float ball provides a visual reference for pressure adjustment. During flushing, the system is switched to a higher-flow condition to move water and suspended material rapidly through the pipe toward the flushing end.

The complete drinking line is suspended above the litter and raised progressively as birds grow, maintaining the correct relationship between bird height, nipple position and drinking angle.

• Day-old broiler chick placement
• Commercial broiler growing houses
• Broiler chick brooding zones
• Pullet and breeder-rearing projects with suitable configuration
• Environmentally controlled poultry houses
• Closed-house broiler production
• Steel structure poultry buildings
• Turnkey poultry farm construction
• Existing nipple-line renovation projects

The system is particularly suitable for intensive broiler production where consistent water availability, dry litter and simple flock management are essential throughout the growing cycle.

For complete poultry-house projects, the drinking lines can be coordinated with automatic pan feeding systems, feed silos, heating, ventilation, evaporative cooling, lighting and environmental-control equipment.

• Nipple flow configuration
• Nipple quantity per section
• Nipple spacing
• Cupless configuration
• One-arm drip cup
• Two-arm drip cup
• Square water pipe specification
• Aluminum rail or conduit support
• Pressure regulator configuration
• Manual or automatic flushing
• Automatic flushing solenoid
• Slope reducer for uneven house floors
• Line length and number of drinking lines
• Suspension and lifting equipment
• Retrofit adapters for compatible existing systems
• OEM configuration available upon request

The complete drinking system can be designed according to broiler breed, flock density, house length, floor slope, water quality, climate and project requirements.

Line Layout: Determine the number and spacing of drinking lines according to poultry-house width, flock capacity and feeder-line arrangement.

Suspension: Install suspension points at appropriate intervals so the drinking pipe remains straight and stable throughout the house.

Day-One Height: Position nipples approximately at chick eye level at placement so newly arrived birds can locate and trigger them easily.

Progressive Height Adjustment: Raise the line as chicks grow. During normal grow-out, birds should generally extend the neck upward when drinking rather than drinking from an excessively low nipple.

Pressure Adjustment: Set the regulator according to bird age, temperature and litter conditions. Avoid pressure settings that produce persistent dripping or wet floors.

Water Filtration: Use suitable filtration upstream of the system to reduce sediment and suspended particles entering drinking equipment.

Line Flushing: Flush drinking lines between flocks and as required during production, especially after using compatible water-soluble supplements through the water system.

Nipple Inspection: Check nipple movement, droplet formation, abnormal leakage and restricted flow during routine flock inspections.

Between Flocks: Clean and sanitize the complete water system according to the farm biosecurity and water-management program.

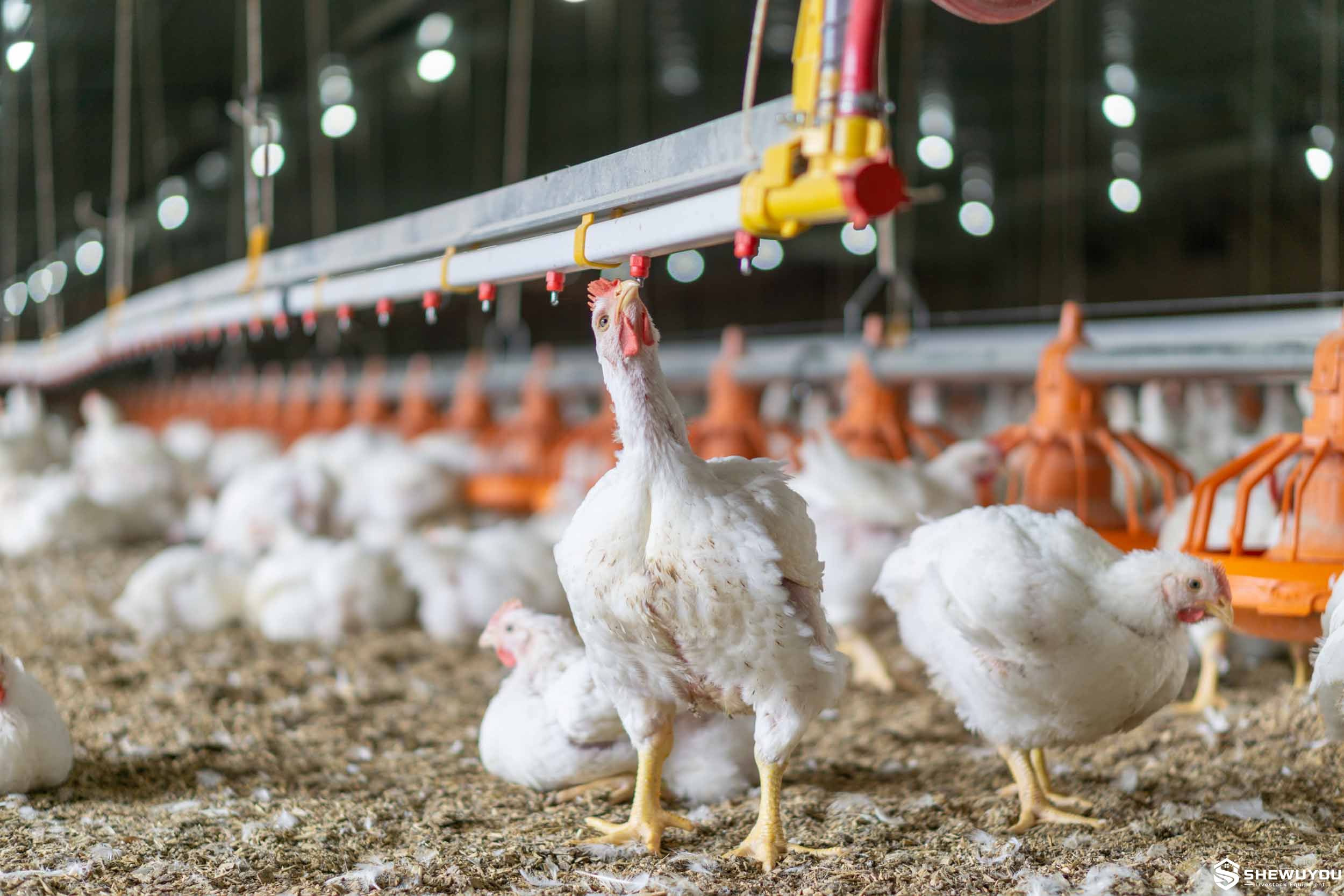

In a commercial broiler house, several parallel nipple drinking lines can be installed between automatic feed lines so chicks have uniform water access from placement through market age.

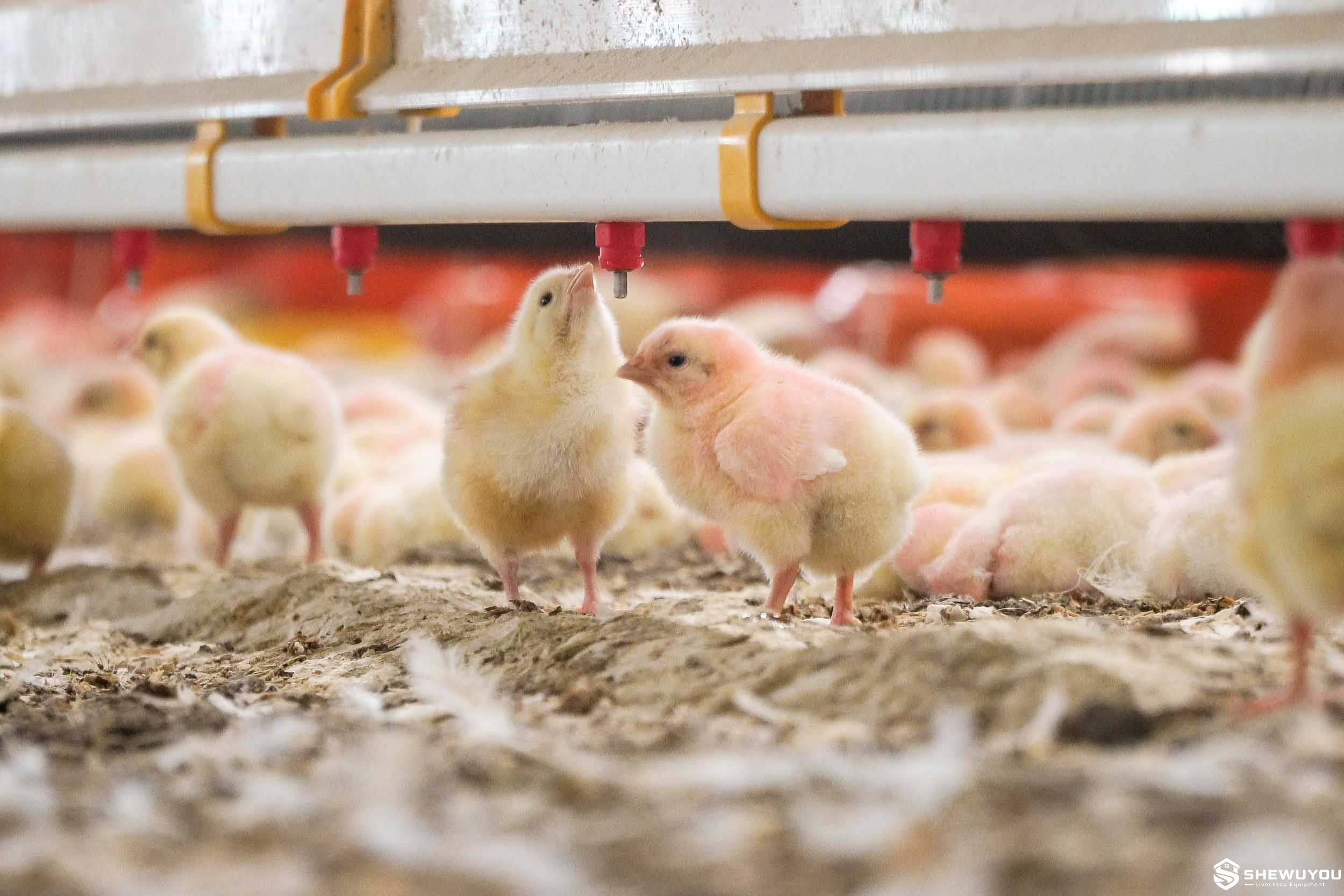

For day-old chick placement, low-trigger-force nipples and visible retained droplets help encourage rapid drinking-system recognition without requiring temporary open-water equipment throughout the full production cycle.

For long steel structure poultry houses, modular drinking sections can be combined with pressure regulators, flushing units, suspension winches and slope-control components according to house length and floor conditions.

Q1: Can day-old chicks use the nipple drinking system?
Yes. Chick-oriented broiler nipples use low triggering force and multi-direction activation to provide accessible water from the first day.

Q2: Why is droplet retention important?
A visible water droplet attracts newly placed chicks to the nipple and helps them identify the drinking point quickly.

Q3: Does water flow increase as broilers grow?
Multi-stage nipple designs can increase water delivery when older birds apply greater upward force to the trigger pin.

Q4: Are drip cups required?
Not necessarily. Cupless systems and configurations with one-arm or two-arm drip cups are available according to water flow, litter-management requirements and farm preferences.

Q5: Why is a square water pipe used?
The square profile prevents rotation and keeps nipple drinkers in the intended downward orientation.

Q6: Can the system be flushed automatically?
Yes. Compatible pressure regulators can be equipped with solenoids and control equipment for scheduled automatic flushing.

Q7: Can the system be installed in a house with a sloping floor?
Yes. Suitable slope reducers can be incorporated to compensate for elevation differences and help maintain appropriate water pressure.

Q8: Can existing drinker lines be upgraded?
Yes. Compatible pipe and rail adapters can allow selected nipple sections to be incorporated into suitable existing suspension and support systems.

Q9: What is the maximum drinking-line length?
The comparable LUBING OptiGROW reference recommends a maximum system length of approximately 80 m per regulator. Final system design should follow hydraulic conditions and project requirements.

Q10: Can the complete broiler drinking system be customized?
Yes. Nipple type, spacing, pipe sections, drip cups, regulators, flushing equipment, suspension hardware and line layout can be configured according to project requirements.
