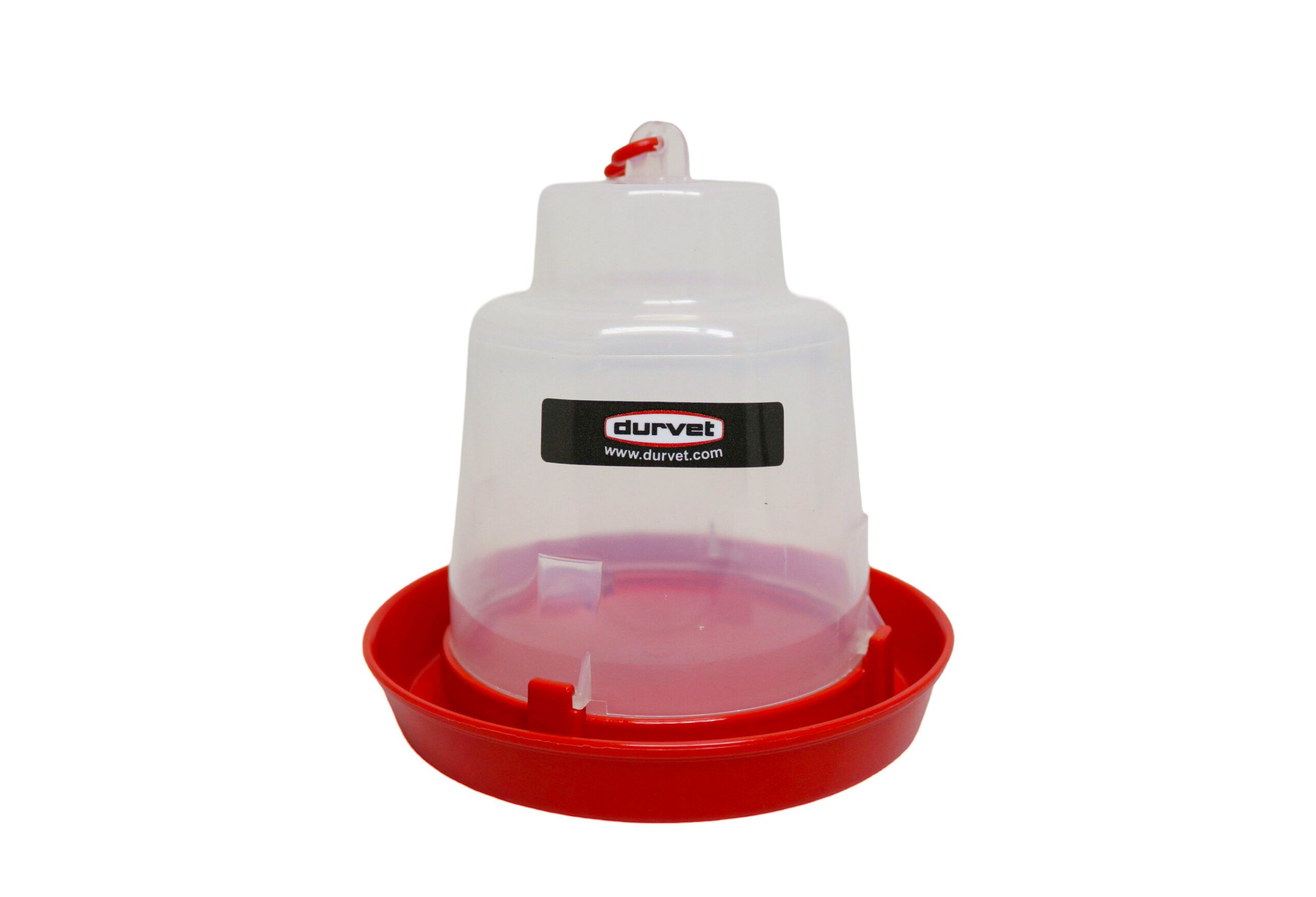

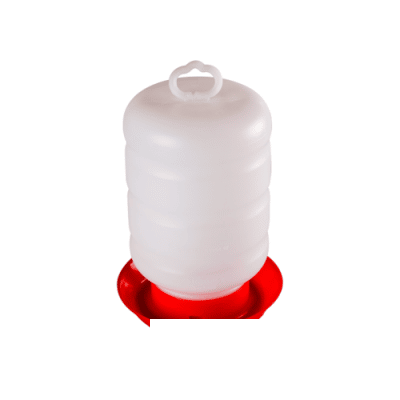

Plastic Chick Drinker

The Plastic Chick Drinker is a compact gravity-fed poultry waterer designed for day-old chicks, broiler chicks, pullets, quail and other young poultry during brooding and early rearing. Its simple reservoir-and-tray construction provides continuous access to drinking water without electricity or complicated plumbing.

The translucent or semi-transparent plastic reservoir allows farm staff to monitor the remaining water level quickly. Water is released automatically into the circular drinking channel as chicks consume it, maintaining a relatively constant level through the gravity and vacuum principle.

A low-profile drinking tray gives young birds convenient access while helping reduce the risk of birds entering the water reservoir. The unit is lightweight, easy to fill, easy to disassemble and suitable for commercial brooding houses, hatchery holding areas, poultry rearing facilities and temporary chick placement applications.

• Gravity-Fed Water Supply: Maintains water in the drinking tray automatically as chicks consume it.
• Chick-Friendly Low Profile: Shallow drinking access is suitable for newly placed and young poultry.
• Visible Water Level: Semi-transparent reservoir allows quick visual inspection of remaining water.
• Durable Plastic Construction: Molded poultry-grade plastic provides corrosion resistance and convenient daily handling.
• Easy Two-Piece Design: Reservoir and drinking pan can be separated for filling, washing and disinfection.
• Stable Circular Base: Wide tray improves stability on brooder-house floors or suitable raised platforms.
• Narrow Drinking Channel: Helps limit excessive water exposure for small chicks and reduces unnecessary contamination.
• No Electricity Required: Standard operation depends only on gravity and atmospheric pressure.
• Portable: Lightweight construction supports fast relocation between brooding zones.
• Multiple Capacities: Different reservoir volumes can be supplied according to flock size and management requirements.

• Plastic water reservoir
• Circular drinking tray
• Gravity water outlet
• Reservoir-to-base locking connection
• Wide-mouth filling opening according to configuration
• Integrated or removable carrying handle according to model
• Raised anti-litter drinking rim
• Optional elevated stand or legs

The reservoir is filled with clean drinking water and connected securely to the drinking tray. After the assembled drinker is positioned upright, water flows from the reservoir into the circular channel.

Once the water reaches the designed outlet level, atmospheric pressure and the sealed reservoir prevent continuous uncontrolled discharge. As chicks drink and the tray level falls below the outlet, a small quantity of air enters the reservoir and additional water flows into the tray.

This repeating gravity-feed cycle maintains a usable water level without a mechanical valve, pump or electrical connection. The system is therefore suitable for brooding areas requiring simple and dependable drinking equipment.

• Day-old chick brooding houses
• Commercial broiler farms
• Pullet rearing houses
• Breeder chick rearing facilities
• Hatchery chick holding areas
• Quail rearing systems
• Small poultry pens
• Temporary chick placement zones
• Steel structure poultry buildings
• Poultry farm starter-equipment packages

The drinker is particularly useful during the first stage of chick placement, when easily visible and readily accessible drinking points help birds locate water quickly.

On larger commercial poultry farms, portable chick drinkers can be used as supplementary drinking points during brooding before birds fully transition to automatic nipple drinking lines.

• Reservoir capacity
• Reservoir shape
• Drinking tray diameter
• Drinking channel depth
• Wide-mouth filling design
• Handle configuration
• Floor-standing or raised-leg version
• Reservoir and base color
• Packaging quantity
• OEM configuration available upon request

Dimensions, capacity and packaging can be configured according to poultry type, brooding density, distribution requirements and project specifications.

Initial Placement: Position drinkers where newly placed chicks can locate water easily without blocking feeders, heaters or ventilation paths.

Stable Surface: Keep each unit level to maintain an even water depth around the circular tray.

Correct Height: The drinker can be placed directly on clean flooring for very young chicks or gradually elevated on a suitable stand as birds grow.

Clean Water: Fill the reservoir with potable water suitable for poultry production.

Daily Inspection: Check water level frequently during the first days after chick placement because consumption can change rapidly.

Tray Cleaning: Remove litter, feed particles and organic contamination from the drinking channel regularly.

Reservoir Cleaning: Wash and disinfect the internal reservoir to prevent sediment and biofilm accumulation.

Between Flocks: Separate all removable components, thoroughly wash and disinfect them, and allow them to dry before storage or reuse.

In commercial broiler houses, plastic chick drinkers can be positioned around the brooding area during placement to provide additional visible water sources close to feed trays and heating zones.

For pullet and breeder rearing projects, portable gravity drinkers can support the transition period before young birds become fully accustomed to automatic nipple drinking equipment.

For poultry distributors and turnkey farm projects, different drinker capacities can be combined in starter-equipment packages according to flock size and brooding-management requirements.

Q1: How does a plastic chick drinker work?
Water flows from the reservoir into the tray by gravity. Vacuum inside the reservoir limits additional discharge until chicks lower the tray water level.

Q2: Is it suitable for day-old chicks?
Yes. Low-profile plastic drinkers are commonly designed to provide easily accessible water during early brooding.

Q3: Does the drinker require electricity?
No. Standard gravity drinkers operate without electricity, pumps or pressure regulators.

Q4: What capacity is available?
Different capacities can be supplied. Compact 1-liter models and larger chick-drinker configurations are commonly available.

Q5: Why use a translucent reservoir?
It allows poultry-house staff to check the approximate remaining water level without opening the drinker.

Q6: Can the drinker be raised as chicks grow?
Yes. It can be placed on a stable stand or supplied with a compatible raised-base configuration where required.

Q7: Can it be used together with nipple drinking lines?
Yes. Portable chick drinkers can provide supplementary water during initial brooding while chicks learn to use automatic nipple lines.

Q8: How should the drinker be cleaned?
Separate the reservoir and base, wash away organic material, disinfect according to the farm sanitation program and rinse thoroughly before refilling.

Q9: How many chicks can use one drinker?
Capacity depends strongly on drinker size, bird age, climate and management. Comparable professional models range from small units serving only a few chicks to larger units designed for substantially larger groups.

Q10: Can the product be customized?
Yes. Capacity, tray dimensions, handle design, raised stand, colors and packaging can be supplied according to project requirements.
