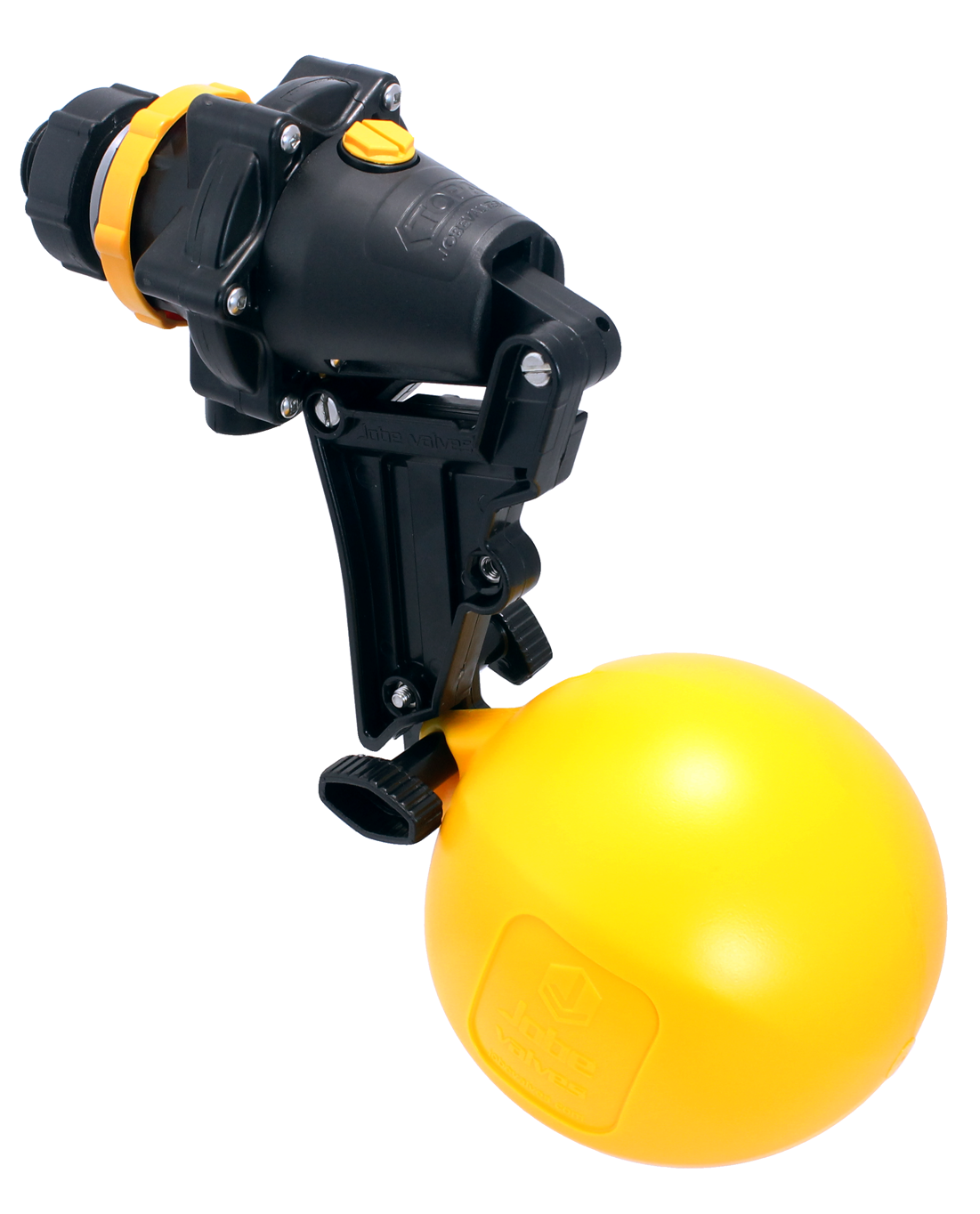

Livestock Water Trough Float Valve

The Float Valve for Livestock Water Trough is an automatic water-level control component designed for cattle drinking troughs, stock tanks, livestock water tanks and farm water-storage systems. The valve opens automatically as the water level falls and closes when the preset level is restored.

High-flow configurations are especially suitable for commercial dairy farms, beef operations, feedlots and pasture watering systems where rapid replenishment is required during peak drinking periods. Compact non-corrosive valve bodies and adjustable float mechanisms provide practical installation in a wide range of trough designs.

Inlet size, flow capacity, mounting arrangement and float configuration can be selected according to water pressure, herd size, trough capacity and livestock project requirements.

• Automatic Water-Level Control: Opens and closes according to the position of the float without requiring manual operation.
• High Refill Capacity: High-flow configurations support rapid recovery of trough water levels during heavy cattle drinking periods.

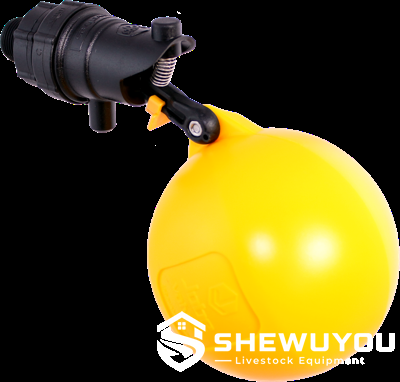

• Compact Valve Body: Practical for installation inside or beside livestock water troughs where available space is limited.
• Non-Corrosive Construction: Engineering polymer components provide good resistance to water, agricultural environments and routine livestock use.
• Adjustable Water Level: Float position can be adjusted according to the required operating level and trough configuration.
• Multiple Inlet Sizes: Different threaded inlet connections are available for farm plumbing systems.
• Flexible Mounting: Top, side or bottom-entry configurations can be selected according to valve design and project requirements.
• Low Maintenance: Serviceable internal components simplify routine inspection and cleaning.
• Livestock Watering Integration: Suitable for galvanized, polyethylene, concrete and stainless steel cattle trough systems.
• Project Customization: Flow rate, inlet size and installation accessories can be configured according to farm conditions.

• Engineering polymer valve body
• Water inlet connection
• Main diaphragm valve
• Pilot valve mechanism
• Adjustable float arm or linkage
• Buoyant float
• Valve seat and sealing components
• Mounting nut and sealing washer
• Internal filter or screen according to model
• Optional arm extension
• Optional protective mounting accessories

The float moves vertically as the trough water level changes. When cattle consume water and the level falls, the float lowers and activates the valve mechanism.

On pilot-operated high-flow designs, float movement opens a small pilot valve, which controls the main diaphragm and allows a larger volume of water to enter the trough. As the water level rises, the float returns toward its preset position and closes the valve.

This automatic cycle maintains a consistent livestock drinking-water level while reducing overflow and eliminating routine manual filling.

Final flow rate depends on inlet size, water pressure, valve model and plumbing conditions. Exact technical specifications should be confirmed according to project requirements.

• Dairy cattle water troughs
• Beef cattle drinking systems
• Pasture stock tanks
• Feedlot cattle troughs
• Calf and heifer drinking systems
• Livestock water storage tanks
• Automatic pasture watering stations
• Horse and large-animal troughs
• Steel structure livestock building projects
• Commercial farm water-supply systems
• Water storage cisterns
• Agricultural water-management projects

SHEWUYOU can configure livestock trough valve solutions according to herd size, trough design, farm water pressure and livestock construction requirements.

• Low-flow or high-flow valve configuration
• 15 mm, 20 mm, 25 mm or 32 mm inlet options
• BSP or NPT thread options according to project requirements
• Top, side, bottom or underwater installation
• Adjustable water-level setting
• Different float sizes and shapes
• Float-arm extension accessories
• Protective mounting accessories
• Cold-climate protection accessories
• Complete trough and float-valve packages
• OEM labeling
• Bulk packaging for livestock equipment projects

The float valve should be positioned where the float can move freely without interference from the trough wall, livestock contact or other plumbing components.

• Select an inlet size suitable for the required flow rate and available water pressure.
• Install the valve in the mounting position specified for the selected model.
• Use suitable sealing washers or threaded sealing materials on plumbing connections.
• Adjust the float position to establish the required water level.
• Confirm that the float moves freely through the complete operating range.
• Test the shut-off function before placing the trough into livestock service.
• Protect exposed valve components where cattle could cause mechanical damage.
• Inspect the inlet filter, diaphragm and seals periodically.
• Remove sediment or mineral deposits that could restrict valve operation.
• Provide suitable frost protection in freezing climates.

Q1: What does a livestock trough float valve do?

It automatically controls water entering the trough, opening when the water level drops and closing when the preset level is restored.

Q2: Why use a high-flow float valve for cattle?

Large cattle groups can consume water rapidly. A high-flow valve helps the trough recover quickly during peak drinking periods.

Q3: What inlet sizes are available?

Common high-flow configurations include 15 mm, 20 mm, 25 mm and 32 mm connections, while other sizes may be available according to project requirements.

Q4: Can the water level be adjusted?

Yes. Compatible float mechanisms allow the shut-off level to be adjusted for different trough designs.

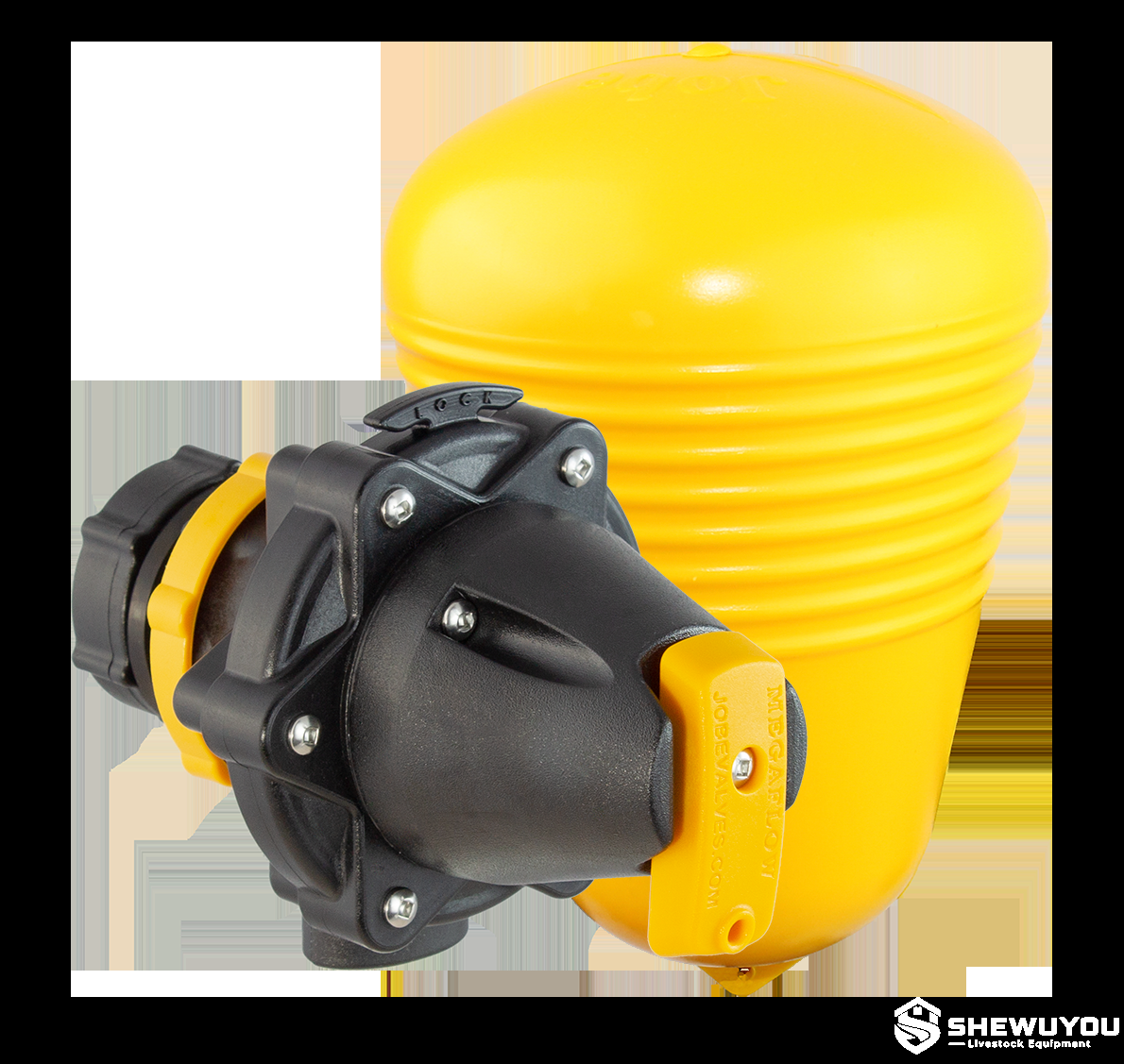

Q5: Can the valve be mounted underwater?

Yes. Specialized underwater trough valves are available, while other models are designed for above-water, side, top or bottom installation.

Q6: Is the valve suitable for commercial dairy and beef farms?

Yes. Different flow capacities can be selected for dairy barns, feedlots, pasture systems and large commercial cattle operations.

Q7: What determines the actual refill rate?

Actual flow depends on inlet pressure, pipe size, valve size, plumbing restrictions and the selected valve configuration.

Q8: Can SHEWUYOU supply valves together with cattle water troughs?

Yes. Float valves, drinking troughs, inlet fittings, drainage components and related livestock watering equipment can be configured according to project requirements.
