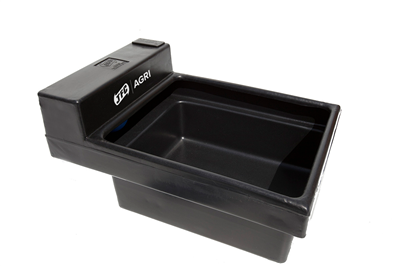

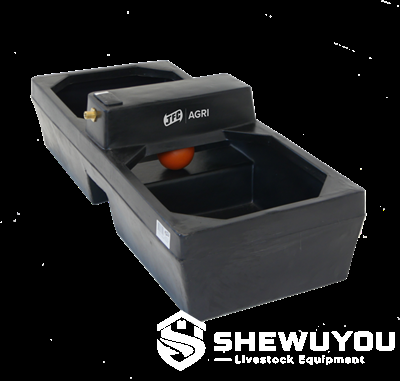

Plastic Livestock Water Trough

The Plastic Livestock Water Trough is a durable drinking-water solution designed for cattle farms, dairy operations, beef units, feedlots, pasture systems and other livestock facilities. Manufactured from tough polyethylene, the trough combines impact resistance, low maintenance and smooth animal-safe surfaces for dependable daily use.

Depending on the selected configuration, the trough can be supplied with a float-controlled water inlet that automatically maintains the required drinking-water level. Protected valve compartments help reduce accidental damage from animals while allowing convenient access for inspection and servicing.

Different capacities, shapes and inlet configurations are available for indoor cattle houses, outdoor yards and grazing areas. The lightweight plastic construction also simplifies transportation, positioning and farm installation compared with many traditional heavy trough materials.

• Tough polyethylene construction for demanding livestock environments.
• Impact-resistant body suitable for dairy cattle, beef cattle and other farm animals.
• Smooth rounded surfaces help improve animal safety around the drinking area.
• Non-porous interior supports easier washing and routine farm hygiene.
• Optional automatic float valve maintains a consistent water level.
• Protected valve compartment reduces interference and accidental damage by livestock.
• Drain outlet or removable bung options simplify emptying and cleaning.
• UV-resistant and frost-resistant configurations available according to product specification.
• Lightweight structure simplifies transport, placement and farm relocation.
• Multiple sizes and capacities available according to herd and project requirements.

• Polyethylene Trough Body: Moulded reservoir designed to hold drinking water while resisting normal livestock impact.
• Rounded Drinking Edge: Smooth upper rim reduces sharp contact points around the drinking area.
• Float Valve: Optional automatic inlet valve controls water supply according to the water level.
• Float Assembly: Activates or closes the inlet valve as the trough water level changes.
• Valve Protection Compartment: Shields the water-control mechanism from direct animal contact.
• Water Inlet Connection: Connects the trough to the farm water-supply pipeline.
• Drain Outlet: Enables faster emptying during cleaning and maintenance.
• Reinforced Body Sections: Structural ribs or moulded reinforcement can improve rigidity on larger-capacity models.

In an automatic configuration, the trough is connected to the farm water line through a float-operated inlet valve. As livestock drink and the water level falls, the float moves downward and opens the valve.

Fresh water then enters the reservoir until the preset level is restored. As the float rises, the valve progressively closes and stops the incoming water supply.

This simple mechanical principle provides livestock with continuous access to drinking water while reducing the need for manual filling. Valve flow capacity should be selected according to herd size, available water pressure and peak drinking demand.

• Dairy cattle barns
• Beef cattle farms
• Feedlots and finishing units
• Cattle holding yards
• Pasture and grazing systems
• Calf and young-stock areas with suitable trough dimensions
• Breeding centers and livestock stations
• Commercial livestock housing projects
• Steel structure cattle barns
• Farm renovation and water-supply modernization projects

• Trough capacity customizable according to herd requirements.
• Rectangular, oval and circular configurations available upon request.
• Standard-fill or fast-fill float valve options available.
• Water inlet size selected according to project requirements.
• Drain outlet configuration available according to model.
• Valve protection cover available for automatic systems.
• Installation layout can be designed according to cattle pen and water-pipeline arrangement.
• Complete farm drinking-water systems can be configured for new livestock construction projects.

Positioning: Install the trough on a stable, level surface where cattle can approach safely without creating excessive congestion around the drinking area.

Water Connection: Connect the float valve to a suitable clean-water pipeline using compatible fittings. Water pressure and pipe diameter should meet the required refill demand.

Valve Adjustment: Set the float position to maintain the required operating water level while preventing unnecessary overflow.

Drainage: Position the trough so discharged cleaning water can flow toward the farm drainage or manure-management system without creating persistent wet areas.

Cleaning: Empty and wash the trough routinely to remove sediment, feed contamination and biological buildup. Smooth plastic surfaces simplify brushing and rinsing.

Maintenance: Inspect the float valve, water connection, drain plug and trough body regularly. Replace damaged seals, valves or fittings when required.

In commercial cattle farms, larger plastic water troughs can be positioned along shared pen boundaries or outdoor drinking areas to provide access for multiple animals. Fast-refill float valves are useful where herd drinking demand is high and rapid water recovery is required.

For integrated livestock projects, SHEWUYOU can configure plastic water troughs together with water pipelines, valves, cattle housing equipment, feeding systems, ventilation equipment and steel structure farm buildings according to project requirements.

Q: What material is the livestock water trough made from?
A: The trough is typically manufactured from durable polyethylene selected for impact resistance, easy cleaning and long-term farm use.

Q: Can the trough refill automatically?
A: Yes. Automatic configurations use a float-controlled inlet valve to maintain the required water level.

Q: Is it suitable for outdoor cattle?
A: Yes. UV-resistant and frost-resistant polyethylene configurations are available for outdoor livestock applications.

Q: What capacity should I select?
A: Capacity should be selected according to animal numbers, drinking demand, refill rate, water pressure and the number of available drinking points.

Q: Is the trough easy to clean?
A: Yes. Smooth non-porous plastic surfaces and optional drain outlets help simplify routine emptying, washing and disinfection.

Q: Can the float valve be serviced?
A: Yes. Models with protected valve compartments are designed to allow convenient inspection and replacement of the valve components.

Q: Can it be installed in a steel structure cattle barn?
A: Yes. The trough can be integrated with water pipelines, drainage systems, pen layouts and other livestock equipment according to the building design.

Q: Can SHEWUYOU customize a complete cattle watering system?
A: Yes. Trough capacity, valve configuration, pipeline layout and related livestock drinking equipment can be configured according to farm and project requirements.
