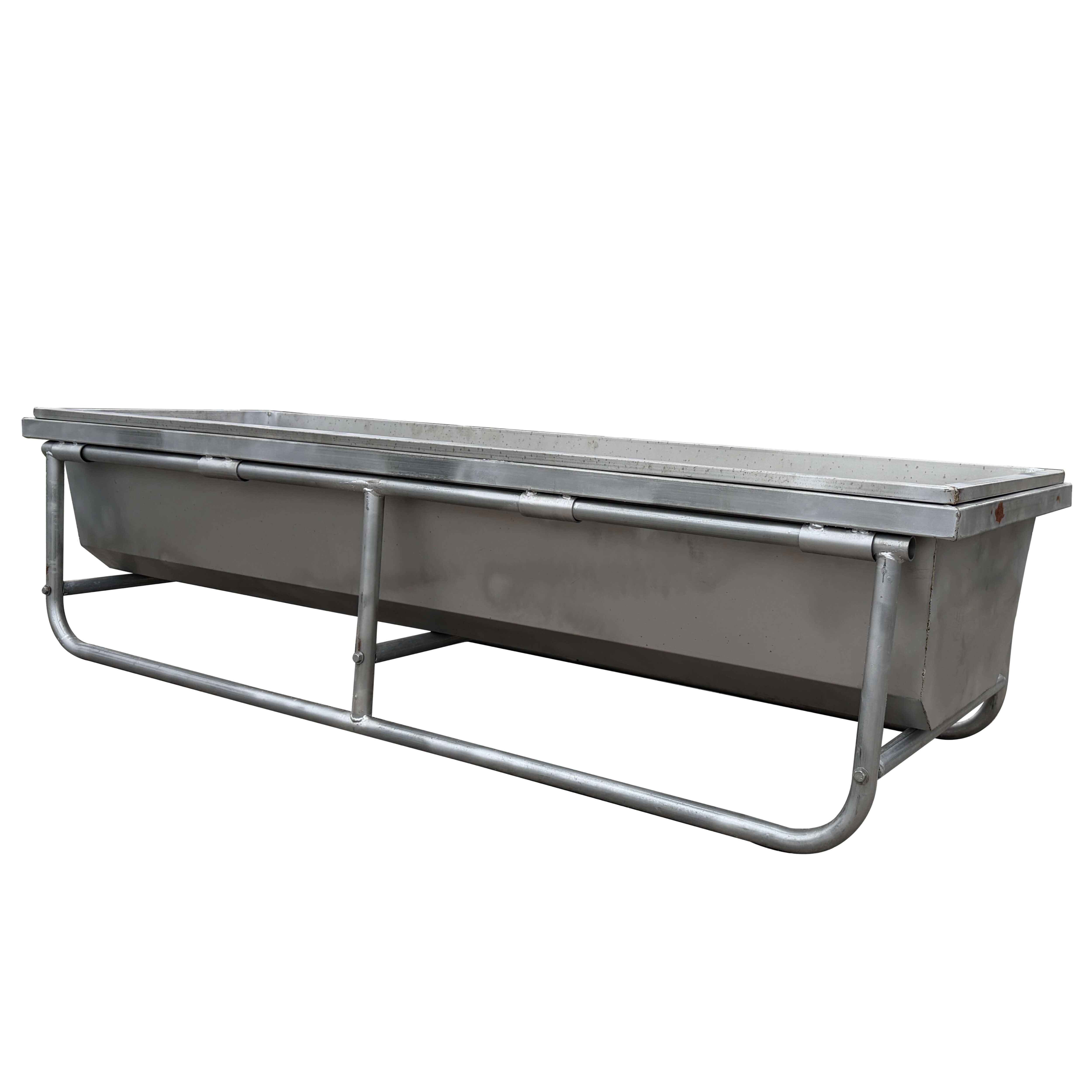

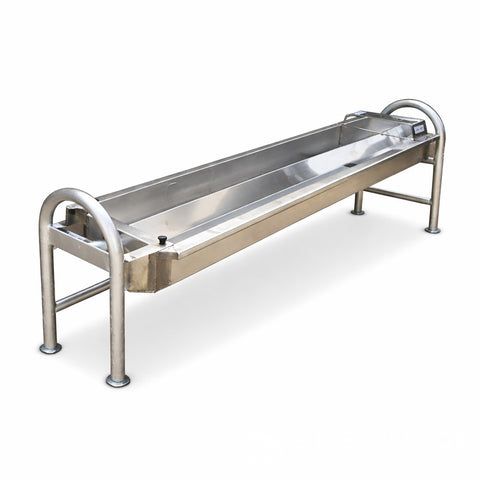

Stainless Steel Cattle Water Trough

The Stainless Steel Cattle Water Trough is a heavy-duty livestock drinking system designed to provide dairy cows, beef cattle and replacement heifers with convenient access to clean drinking water. Its corrosion-resistant stainless steel construction is suitable for intensive commercial livestock environments where hygiene, durability and efficient daily cleaning are essential.

The trough can be configured with an automatic float valve to maintain a consistent water level as animals drink. Smooth internal surfaces, reinforced edges and an accessible drainage system simplify routine flushing and sanitation, while floor-mounted, wall-mounted or support-frame configurations can be selected according to barn layout.

For large dairy farm and steel structure cattle housing projects, trough length, capacity, water inlet position, drainage arrangement and optional frost-protection equipment can be designed according to herd size, local climate and project requirements.

• Stainless Steel Construction: Corrosion-resistant structure suitable for intensive dairy and beef cattle operations.
• Automatic Water Level: Optional float valve automatically replenishes water as cattle drink.
• High-Flow Configuration: Valve and inlet capacity can be selected according to herd size and peak drinking demand.
• Hygienic Interior: Smooth surfaces help reduce dirt accumulation and simplify washing.
• Quick Drainage: Large drain outlet options support rapid emptying during cleaning and maintenance.
• Reinforced Structure: Strong trough body and support frame withstand normal livestock contact in commercial barns.
• Multiple Mounting Options: Floor-standing, wall-mounted and support-frame configurations are available.
• Easy Maintenance: Float valve, drain and water connection can be positioned for convenient servicing.
• Cold-Climate Options: Heating and frost-protection systems are available according to local climate requirements.
• Project Customization: Length, capacity, height and connection configuration can be customized.

• Stainless steel drinking basin
• Reinforced upper rim
• Stainless steel or galvanized support frame according to configuration
• Automatic float valve
• Protected valve compartment
• Water inlet connection
• Large drainage outlet
• Drain plug or quick-drain mechanism
• Adjustable support legs or mounting brackets
• Optional anti-impact protection frame
• Optional heating element
• Optional frost-protection heating cable

The trough is connected to the farm water supply through an inlet pipe and compatible valve assembly. In automatic configurations, a float mechanism monitors the water level inside the basin.

As cattle consume water, the float drops and opens the inlet valve. Fresh water enters the trough until the preset level is restored, after which the float closes the valve. This provides continuous water availability without manual filling.

The open drinking surface allows several animals to drink according to trough length and barn layout. During cleaning, the drain plug or quick-drain outlet is opened to empty the basin rapidly before rinsing and refilling.

• Commercial dairy farms
• Beef cattle farms
• Free-stall dairy barns
• Loose housing cattle systems
• Replacement heifer facilities
• Cattle feeding and resting areas
• Milking center holding areas
• Livestock yards and paddocks
• Cattle breeding centers
• Large-scale agricultural projects
• Steel structure livestock buildings
• Pasture and outdoor watering installations

The trough can be installed along feed alleys, crossovers, resting areas or designated drinking stations according to cattle traffic and barn design. Adequate clearance should be maintained so animals can approach and leave the drinking area without restricting livestock movement.

For complete dairy farm construction projects, the watering system can be coordinated with stainless steel pipelines, cattle headlocks, freestall systems, manure handling equipment and steel structure building layouts.

• SS304 stainless steel configuration
• Custom trough length
• Custom width and drinking height
• Capacity according to herd requirements
• Automatic float valve
• High-flow inlet valve
• Left-side or right-side water connection
• Large quick-drain outlet
• Floor-mounted support frame
• Wall-mounting brackets
• Anti-impact protection frame
• Tipper / tilting cleaning configuration
• Optional electric heating
• Optional insulated structure
• Cold-climate frost-protection package

Dimensions, valve configuration, mounting height and water supply arrangement can be designed according to herd size, local climate, barn layout and project requirements.

Location Planning: Install the trough where cattle can approach easily without creating excessive congestion in feed alleys or barn crossovers.

Mounting: Secure floor-mounted legs, support frames or wall brackets to a suitable concrete or structural surface according to the selected configuration.

Water Connection: Connect the inlet to the farm water supply using suitable valves, pipes and fittings. Flush the supply line before commissioning.

Float Adjustment: Adjust the float valve to maintain the required operating water level while leaving adequate freeboard to reduce overflow.

Drain Connection: Position the drainage outlet so wastewater can be directed toward the barn drainage or manure-management system.

Routine Cleaning: Drain and rinse the basin regularly to remove feed particles, sediment and biological contamination.

Valve Inspection: Check the float, valve seat and inlet periodically for wear, blockage or leakage.

Cold Weather: Where freezing conditions occur, use a suitable heating system, insulated pipeline or frost-protection arrangement designed according to local climate conditions.

Stainless steel cattle water troughs are suitable for new dairy farm construction, existing barn renovation and livestock watering system upgrades. Different trough lengths can be allocated to milking groups, dry cows, replacement heifers and beef cattle according to animal numbers and available drinking space.

In large steel structure cattle barns, water troughs can be positioned at crossovers or group boundaries and connected to centralized water supply and drainage systems. High-flow float valves and quick-drain structures help reduce service time in intensive commercial operations.

For cold-region projects, optional heating and frost-protection systems can be incorporated into the trough and supply pipeline according to local winter conditions.

Q1: What material is recommended for a commercial cattle water trough?
SS304 stainless steel is a widely used option because of its corrosion resistance, hygienic surface and suitability for demanding livestock environments.

Q2: Can the trough refill automatically?
Yes. An automatic float valve can maintain the required water level as cattle consume water.

Q3: Can the dimensions be customized?
Yes. Length, width, drinking height, capacity and mounting structure can be selected according to project requirements.

Q4: Is a quick-drain system available?
Yes. Large drainage outlets and quick-emptying configurations can be supplied to simplify routine cleaning.

Q5: Can the trough be installed in a free-stall dairy barn?
Yes. Stainless steel troughs are suitable for free-stall barns, loose housing systems and other commercial cattle facilities.

Q6: Can several cattle drink at the same time?
Yes. Long-trough configurations provide multiple drinking positions. The required trough length should be selected according to herd size and barn management.

Q7: Is frost protection available?
Yes. Heating elements, heated pipelines and other frost-protection options can be provided according to local climate requirements.

Q8: Can the trough be wall mounted?
Wall-mounted, floor-mounted and support-frame configurations are available according to product design and installation conditions.

Q9: Can it be used outdoors?
Yes. Stainless steel construction is suitable for outdoor livestock applications when the water supply and frost-protection system are designed for local conditions.

Q10: Can complete cattle watering systems be supplied?
Yes. Water troughs, float valves, piping accessories, mounting structures and project-specific watering layouts can be configured according to farm requirements.
