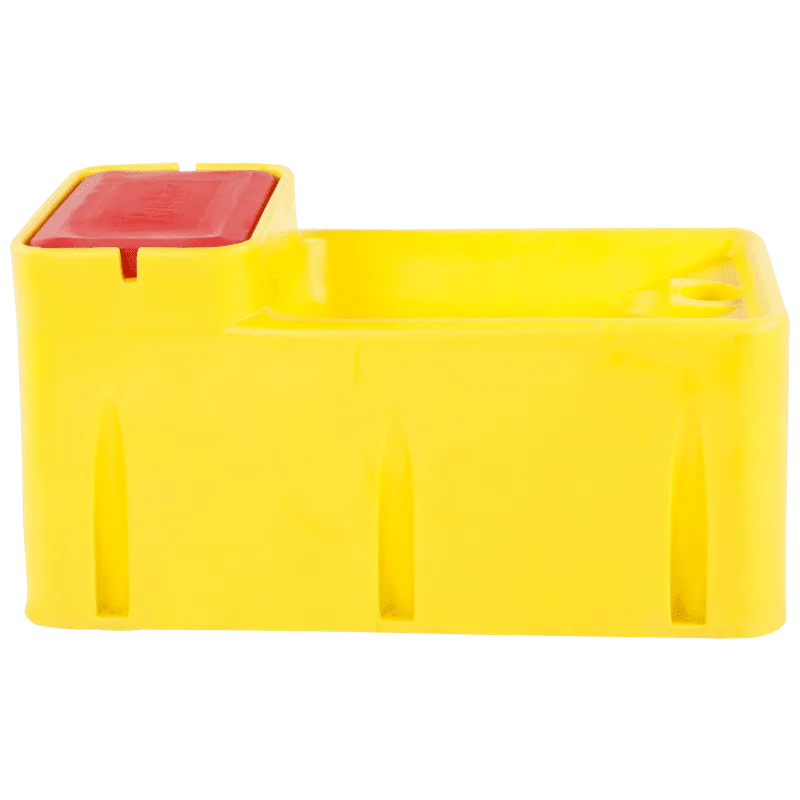

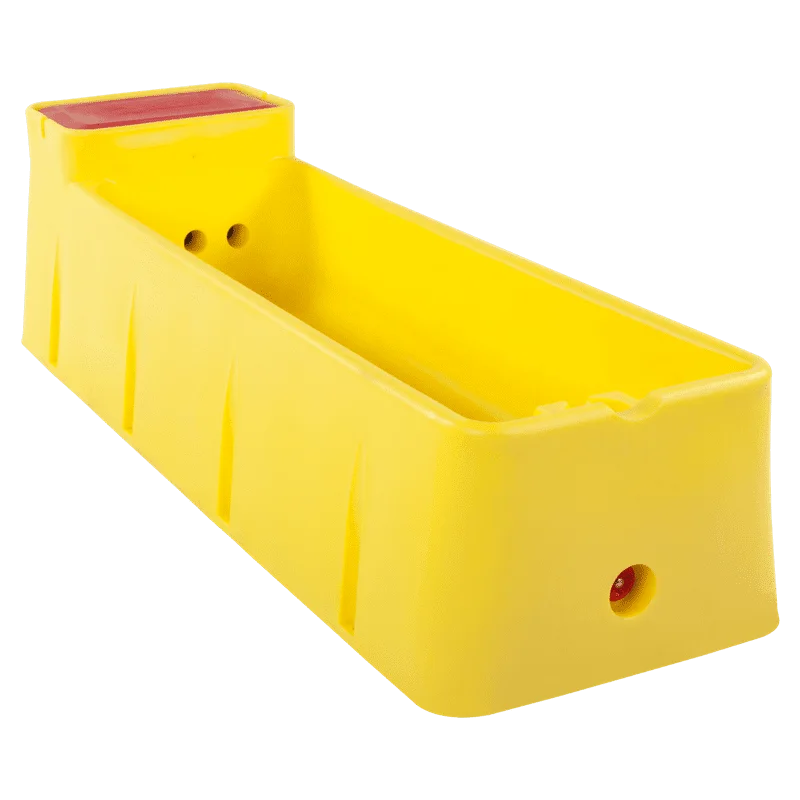

Pasture Cattle Water Trough

The Pasture Cattle Water Trough is a heavy-duty livestock watering solution designed for beef cattle, dairy cattle, replacement heifers and other large livestock in pasture, paddock and outdoor pen applications.

Durable trough construction provides reliable water access under demanding farm conditions, while an automatic refill valve can maintain the required drinking level as cattle consume water. Wide drinking access makes the system suitable for group watering and split-fence installations.

The trough can be integrated into pasture water networks, cattle handling areas, feedlots and steel structure livestock building projects. Capacity, water inlet configuration, insulation and cold-weather accessories can be selected according to herd size, climate and farm water-supply conditions.

• Pasture-Ready Construction: Designed for outdoor cattle watering in paddocks, grazing areas and livestock pens.
• Automatic Water Refill: Compatible float or quick-refill valves maintain the drinking level automatically.
• Heavy-Duty Trough Body: Impact-resistant polyethylene or other livestock-grade materials are available according to configuration.
• Wide Drinking Access: Long trough configurations provide convenient access for multiple cattle.
• Easy Drainage: Sloped trough surfaces and large drain outlets can simplify emptying and routine cleaning.
• Fresh Water Management: Fast refill options help reduce the need for excessive stored water in the trough.
• Split-Fence Installation: Wide trough designs can serve cattle groups from both sides of a fence line.
• Cold-Weather Options: Immersion heaters, supply-line heating and insulated configurations are available upon request.
• UV-Resistant Options: Outdoor-grade materials can be selected for long-term exposure to sunlight.
• Project Customization: Dimensions, capacity and accessories can be configured according to pasture layout and herd requirements.

• Heavy-duty livestock trough body
• Integrated drinking basin
• Automatic water inlet valve
• Adjustable float assembly
• Protected valve compartment
• Service access cover
• Large drain outlet
• Water inlet connection
• Optional thermal supply tube
• Optional immersion heater
• Optional self-regulating heat cable
• Optional anchoring hardware

The trough is connected to the farm water supply through an inlet valve. As cattle drink, the water level falls and the float mechanism opens the valve to allow fresh water into the trough.

When the preset water level is restored, the float closes the inlet valve automatically. This provides a continuous drinking-water supply without requiring frequent manual filling.

For cleaning, the trough can be drained through the lower outlet. Cold-climate installations can incorporate insulation, an immersion heater or supply-line heat protection according to local winter conditions.

Final capacity, dimensions, refill rate, inlet connection and cold-weather configuration should be confirmed according to cattle numbers, pasture layout, water pressure and local climate.

• Beef cattle pastures
• Dairy cattle grazing systems
• Rotational grazing paddocks
• Feedlots and finishing yards
• Outdoor cattle pens
• Replacement heifer facilities
• Cattle breeding farms
• Ranches and cow-calf operations
• Split-fence watering stations
• Livestock collection yards
• Steel structure cattle barn projects
• Commercial livestock farm modernization

SHEWUYOU can configure pasture cattle water troughs according to herd size, grazing system, available water supply and livestock project requirements.

• Trough length and overall dimensions
• Water storage capacity
• Drinking height
• Automatic refill valve capacity
• Water inlet size and position
• Single-side or all-around drinking access
• Split-fence installation configuration
• Drain outlet arrangement
• Constant-flow option
• Immersion heater and supply-line heat protection
• Anchoring accessories
• OEM labeling and project-specific configuration

Install the trough on a stable, level base where cattle have safe access and where livestock traffic will not damage water lines or valves. A concrete pad is recommended for permanent high-traffic installations.

• Select a well-drained location that can be reached easily by the cattle group.
• Prepare a stable, level base before positioning the trough.
• Anchor the waterer where required for permanent installations.
• Connect the water inlet to a supply capable of meeting peak herd demand.
• Protect exposed pipework from cattle impact and vehicle traffic.
• Adjust the float valve to maintain the desired operating level.
• Test the refill rate before placing the trough into full service.
• Drain and clean the trough regularly to remove sediment and organic material.
• Inspect the valve, float and inlet fittings periodically for leakage or wear.
• Provide suitable frost protection for the water line and trough in cold climates.

Q1: What is a pasture cattle water trough?

It is a livestock drinking trough designed to provide cattle with accessible water in pastures, paddocks, outdoor pens and other grazing environments.

Q2: Can the trough refill automatically?

Yes. Compatible models use a float or quick-refill valve to maintain the required drinking-water level automatically.

Q3: What size trough is required for a cattle herd?

The required size depends on herd numbers, water consumption, refill rate, pasture layout and the number of available drinking points.

Q4: Can one trough serve two pasture sections?

Yes. Wide troughs can be positioned along a fence line so cattle can drink from both sides when the installation layout permits.

Q5: Is a drain outlet available?

Yes. Large drain openings or drain plugs can be included to simplify emptying, washing and sediment removal.

Q6: Can the trough be used in freezing climates?

Yes. Insulation, immersion heaters, heat cables and thermal supply-line protection can be configured according to local winter conditions.

Q7: Is the trough suitable for commercial beef operations?

Yes. Large trough and fast-refill configurations are suitable for ranches, feedlots and commercial beef cattle production.

Q8: Can SHEWUYOU customize a complete pasture watering system?

Yes. Trough capacity, dimensions, inlet valves, drainage, cold-weather accessories and installation requirements can be configured according to the farm project.
