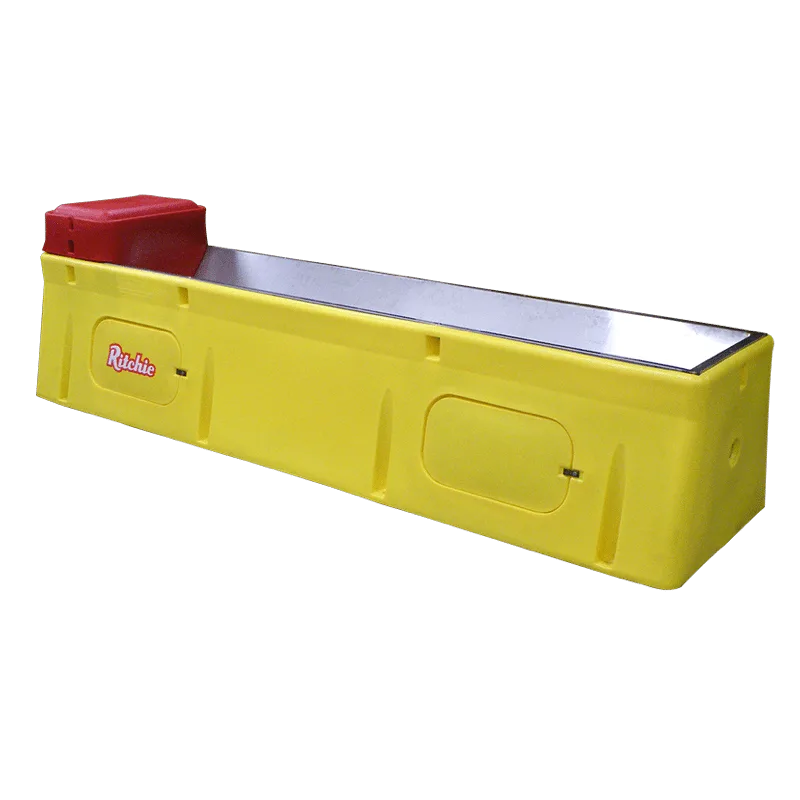

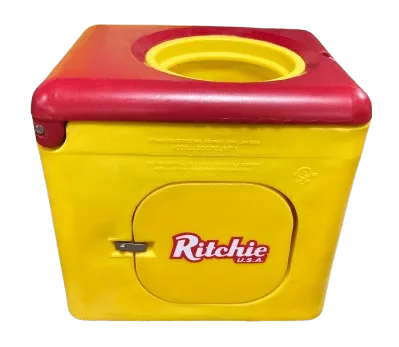

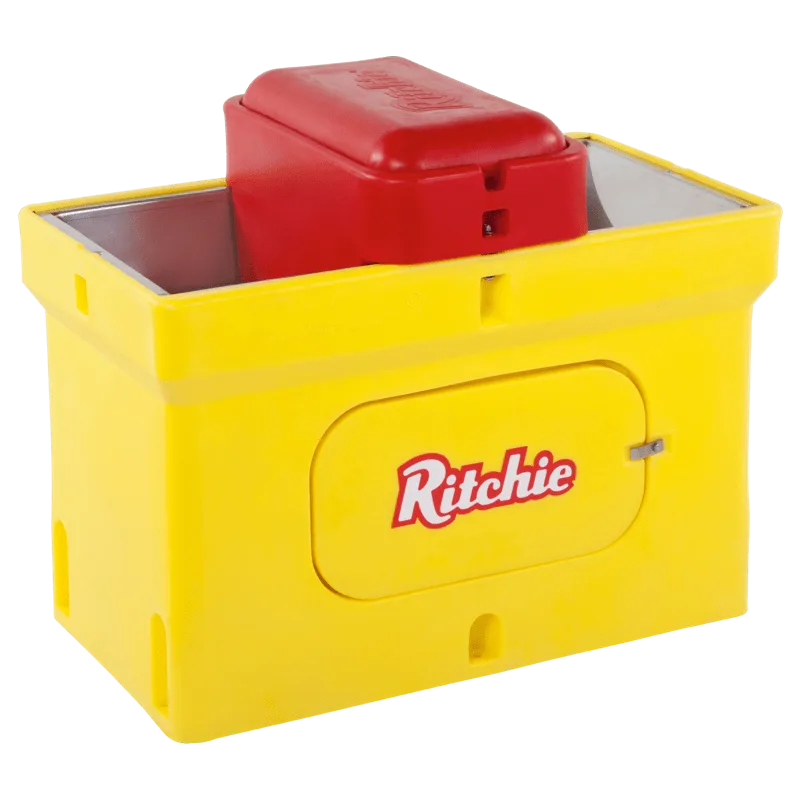

Heated Cattle Water Trough

The Heated Cattle Water Trough / Frost-Free Waterer is an automatic livestock drinking system developed for reliable winter operation in dairy farms, beef cattle facilities, feedlots and outdoor cattle yards. An insulated body works together with thermostatically controlled heating components to help prevent the drinking area and internal water system from freezing during low-temperature conditions.

The system can combine a durable polyethylene cabinet, stainless steel drinking trough, automatic refill valve and protected heating assembly in one compact unit. Fresh water is replenished automatically as cattle drink, reducing manual filling requirements and helping maintain dependable water availability throughout the day.

Different drinking capacities and trough configurations can be selected for small cattle pens, commercial dairy barns, large beef herds and steel structure livestock building projects. Electrical specification, insulation level, water inlet arrangement and winter protection can be configured according to local climate and farm conditions.

• Frost-Free Winter Operation: Heating components help maintain usable drinking water during freezing conditions.
• Thermostatic Heat Control: Heating operates according to temperature conditions to improve energy efficiency.
• Insulated Cabinet: High-insulation construction helps reduce heat loss and protects internal plumbing.
• Automatic Water Refill: Float or quick-refill valve maintains the required drinking-water level automatically.
• Stainless Steel Drinking Area: Compatible configurations provide corrosion resistance, durability and convenient cleaning.
• Heavy-Duty Polyethylene Body: Impact-resistant molded construction is suitable for demanding livestock environments.
• Animal-Friendly Edges: Smooth and rounded drinking surfaces help reduce sharp livestock contact points.
• Easy Maintenance Access: Removable or hinged covers provide access to valves, heaters and internal plumbing components.
• Multiple Herd Capacities: Single-drink, double-drink and large-capacity trough configurations are available.
• Commercial Farm Integration: Suitable for new cattle barn construction, pasture systems and livestock facility modernization.

• Insulated polyethylene or composite outer cabinet
• Stainless steel or durable livestock drinking trough
• Thermostatically controlled heating element
• Automatic float or quick-refill valve
• Water-level control assembly
• Cold-resistant water inlet connection
• Insulated access cover
• Drain or clean-out provision according to model
• Electrical connection box
• Optional supply-line heating cable
• Optional thermal tube for underground water-line protection
• Floor anchoring hardware

The waterer is connected to the farm water supply through a protected inlet line. As cattle drink and the water level drops, the float or refill mechanism opens the inlet valve and automatically restores the preset drinking level.

During cold weather, a thermostat activates the heating system when temperatures fall toward the configured operating range. Heat is transferred to the drinking trough and, where configured, to critical valve or supply-line areas to reduce the risk of ice formation.

The insulated housing limits heat loss and helps separate the internal water system from cold ambient air. Correct installation of the water line below the local frost depth and suitable electrical protection are important for dependable winter performance.

Final dimensions, heating capacity, electrical requirements, water inlet size and herd capacity should be confirmed according to local winter temperatures, cattle numbers and project conditions.

• Commercial dairy farms
• Beef cattle farms and ranches
• Cold-climate feedlots
• Free-stall dairy barns
• Outdoor cattle pens
• Pasture and paddock watering stations
• Heifer and replacement cattle facilities
• Cattle breeding centers
• Winter livestock watering systems
• Steel structure cattle barn projects
• Livestock facility modernization
• Large-scale agricultural projects

SHEWUYOU can configure heated cattle watering systems according to herd size, winter temperature, livestock building design and farm utility conditions.

• Single or multiple drinking positions
• Water capacity according to herd requirements
• Drinking height
• Insulation configuration
• Heating power according to climate requirements
• Electrical voltage and frequency
• Automatic water valve capacity
• Water inlet size and position
• Thermal supply-line protection
• Drain and clean-out arrangement
• Mounting and anchoring accessories
• OEM labeling and project-specific configuration

The waterer should be installed on a stable, level concrete pad or livestock floor with suitable water and electrical services prepared before positioning the unit.

• Install the incoming water line below the local frost depth where required.
• Use an insulated thermal tube or approved cold-weather supply-line protection around the riser.
• Anchor the waterer securely to the prepared concrete base.
• Connect the water inlet according to the required operating pressure and valve specification.
• Have electrical heating components connected according to local electrical codes.
• Provide suitable grounding and electrical protection for wet livestock environments.
• Test the automatic refill valve and thermostat before winter operation.
• Clean the drinking trough regularly to remove feed, sediment and organic contamination.
• Inspect heating elements, thermostats and supply-line protection before freezing weather.
• Check seals, covers, valves and insulation periodically for damage or wear.

Q1: How does a heated cattle waterer prevent freezing?

An insulated cabinet and thermostatically controlled heating system help protect the drinking trough, valve and critical water components when ambient temperatures fall below freezing.

Q2: Does the waterer refill automatically?

Yes. Compatible systems use an automatic float or quick-refill valve to restore the drinking-water level as cattle consume water.

Q3: Is continuous heating required?

Thermostatically controlled systems activate heating according to temperature conditions rather than operating at full heating output continuously.

Q4: Can the system be used for large cattle herds?

Yes. Different trough lengths, refill capacities and drinking positions can be configured for small groups or large commercial cattle herds.

Q5: Does the underground water line also need frost protection?

Yes. The supply line should be installed according to local frost-depth requirements, with thermal tubing or supplementary protection where necessary.

Q6: Can it be installed outdoors?

Yes. Frost-free livestock waterers are widely used in outdoor cattle pens and pastures when the installation and electrical system are designed for the local climate.

Q7: Can the waterer be integrated into a steel structure cattle barn?

Yes. Water lines, electrical conduits, drainage and waterer locations can be coordinated with the livestock building layout during project design.

Q8: Can SHEWUYOU customize the heating and electrical configuration?

Yes. Heating capacity, electrical supply, water inlet, drinking capacity and winter protection can be configured according to project requirements and local climate conditions.
