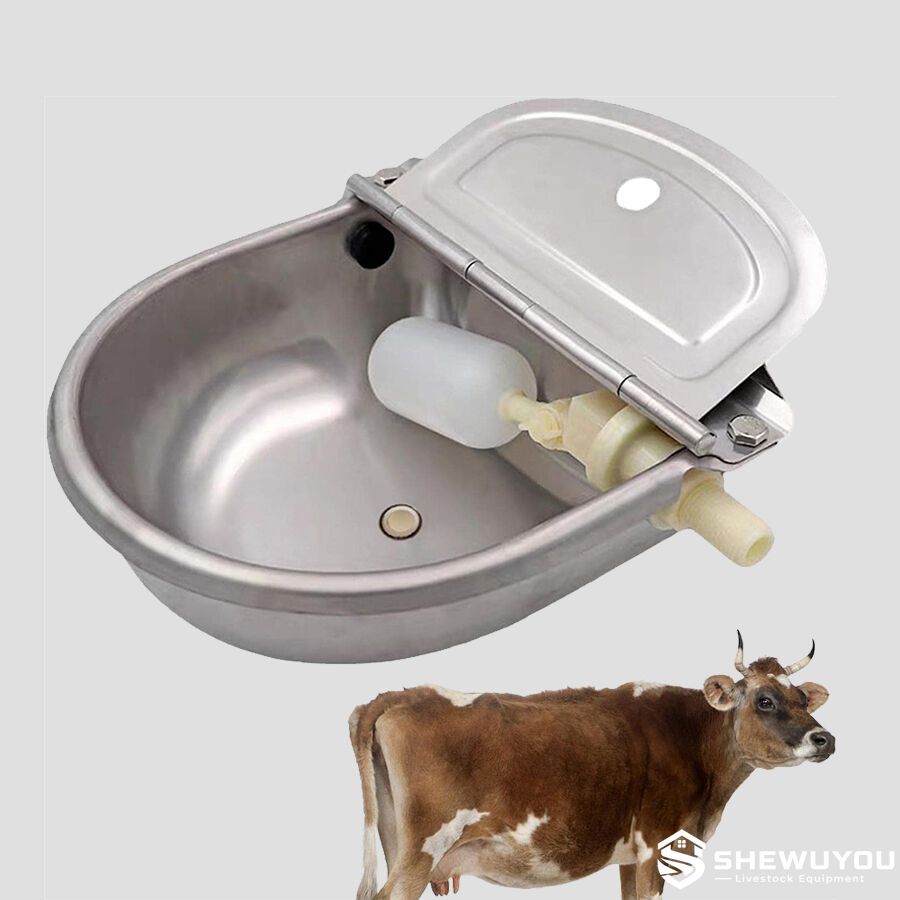

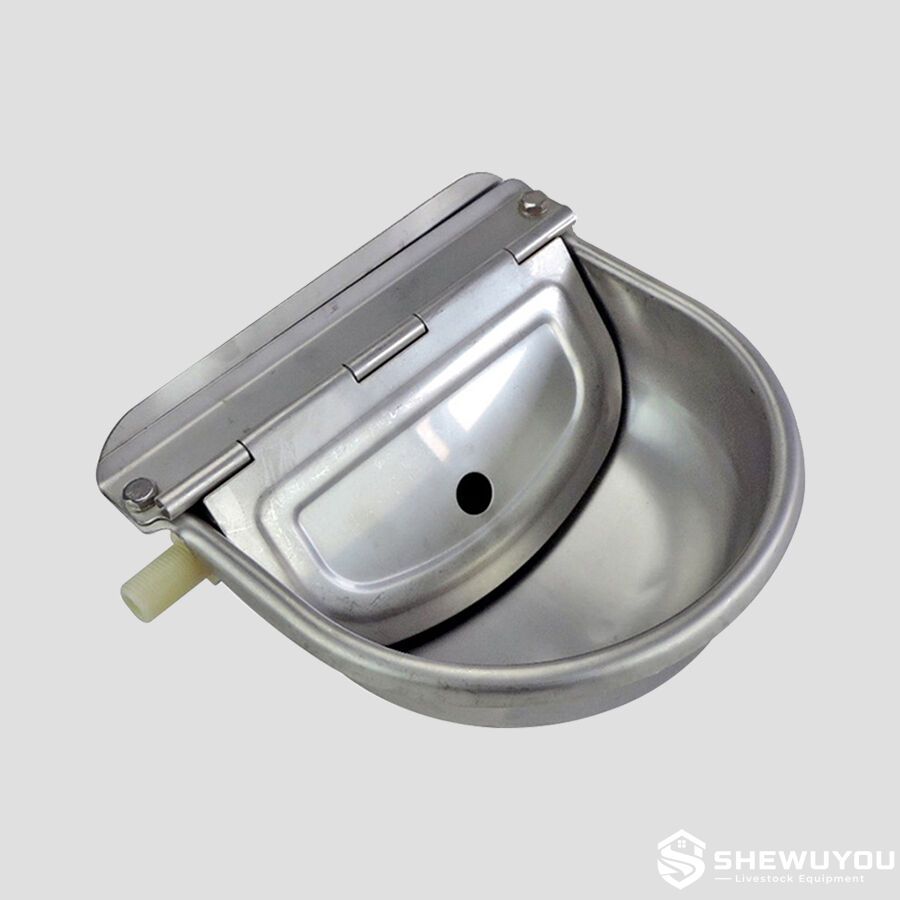

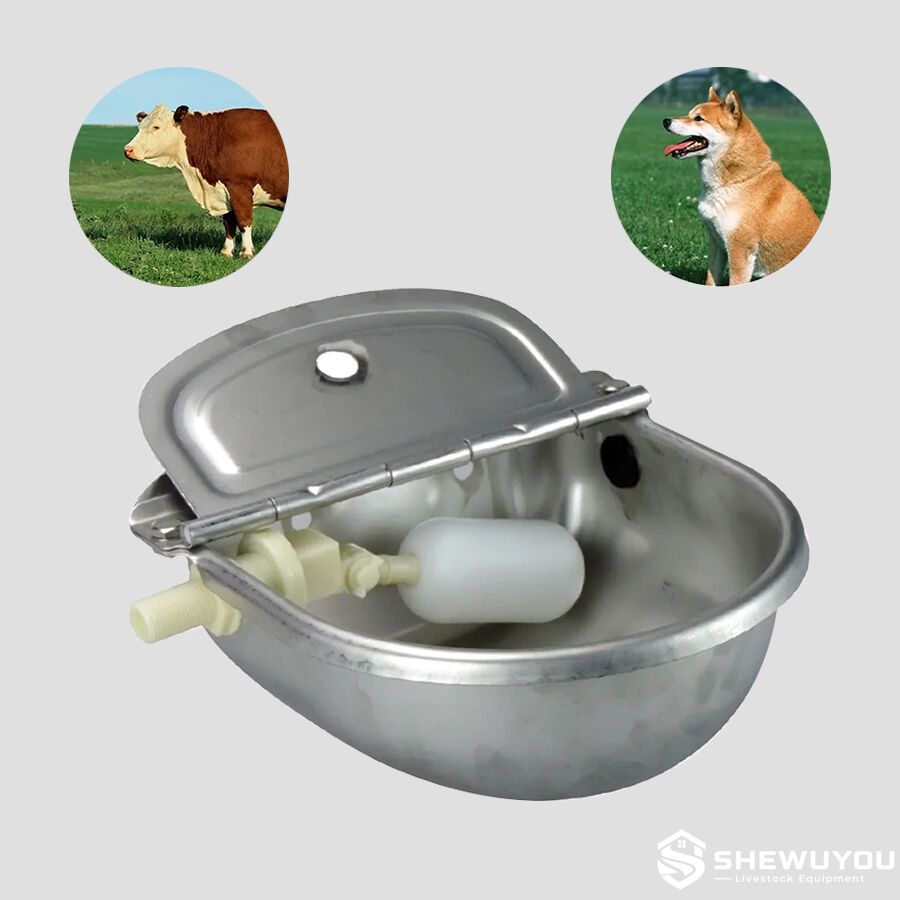

Automatic Cattle Drinking Bowl

The Automatic Cattle Drinking Bowl is a practical livestock watering solution developed for commercial dairy farms, beef cattle facilities, breeding farms, cattle barns and pasture-based operations. It combines a robust stainless steel drinking bowl with an automatic water-control mechanism to maintain a readily available drinking supply while reducing routine manual filling.

The smooth bowl surface supports efficient cleaning and sanitation, while the reinforced construction is suitable for demanding agricultural environments where equipment is exposed to moisture, organic matter, frequent washing and daily animal contact.

For livestock equipment distributors, farm engineering companies and agricultural project contractors, the bowl can be specified as part of a complete watering system and integrated with existing water supply lines, livestock penning, steel pipe structures, concrete walls and steel-structure livestock buildings.

• Stainless steel construction for corrosion resistance and long service life.
• Automatic water-level control helps keep drinking water available without continuous manual filling.
• Smooth internal surfaces facilitate routine washing, inspection and sanitation.
• Rounded bowl geometry provides a practical drinking area for cattle and supports easy cleaning.
• Protective cover helps shield the water-control assembly from direct animal impact and farm debris.
• Wall-mounted installation is suitable for cattle pens, barn partitions and other fixed livestock structures.
• Low-maintenance mechanical operation with no routine electrical connection required for the standard float-valve configuration.
• Suitable for OEM, distributor and project-based procurement programs.

• Drinking Bowl: Formed stainless steel basin with smooth, animal-friendly edges.

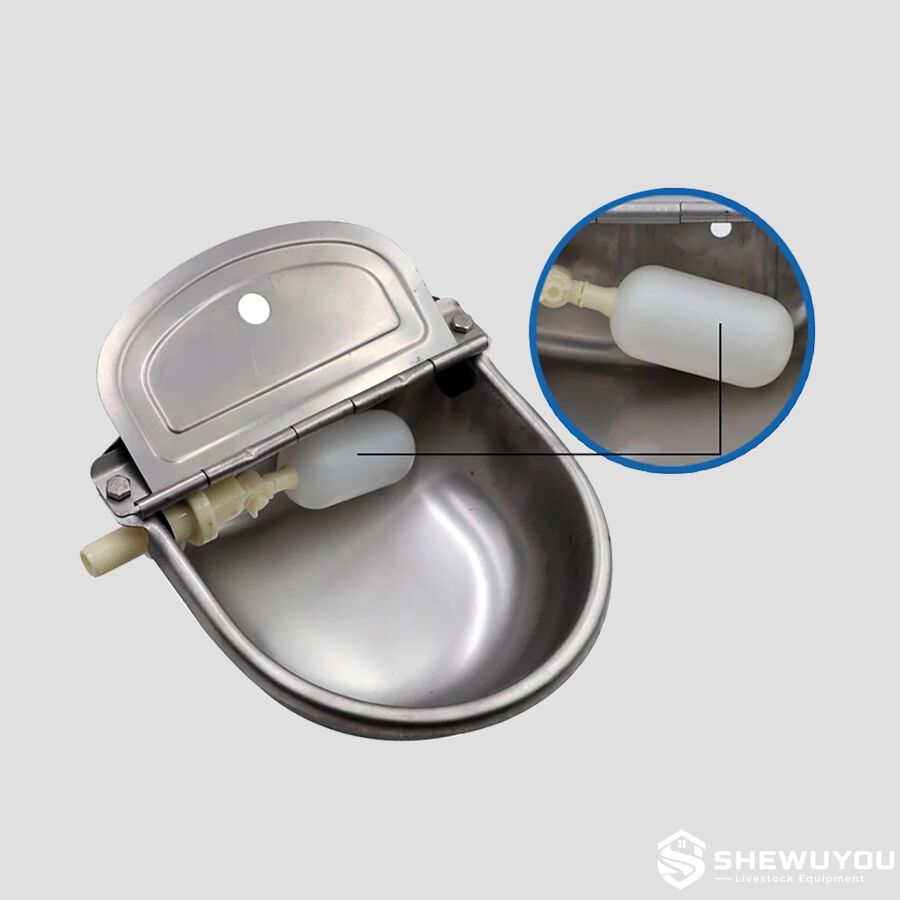

• Float Valve Assembly: Controls water inlet according to the water level inside the bowl.
• Float: Moves with the water level and actuates the valve to regulate automatic replenishment.
• Protective Cover: Helps protect the valve and inlet components from accidental impact and contamination.
• Drain Outlet: Supports emptying and routine cleaning of the bowl.
• Mounting Points: Designed for secure fixing to a suitable wall, steel support, pipe frame or other engineered mounting surface.
• Water Inlet: Connection configuration available according to the selected valve and project requirements.

The standard automatic configuration uses a float-operated water valve. When cattle consume water and the level inside the bowl falls, the float moves downward and opens the inlet valve. Fresh water then enters the bowl until the preset operating level is restored. As the float rises, the valve closes to stop further water flow.

This simple mechanical principle provides automatic replenishment without requiring continuous operator intervention. Valve type, inlet orientation, operating pressure and connection specification can be selected according to the water supply system and local farm conditions.

The Automatic Cattle Drinking Bowl is suitable for:

• Commercial dairy farms and milking facilities
• Beef cattle farms and feedlots
• Calf and young cattle housing
• Cattle barns, free-stall housing and livestock pens
• Breeding farms and agricultural demonstration projects
• Pasture watering points and semi-open livestock facilities
• New-build livestock housing and farm renovation projects
• Steel-structure barns, concrete livestock buildings and integrated farm construction projects

For international B2B projects, the drinking bowl can be configured around the farm's water network, animal housing system and installation conditions.

• Stainless steel grade and material configuration

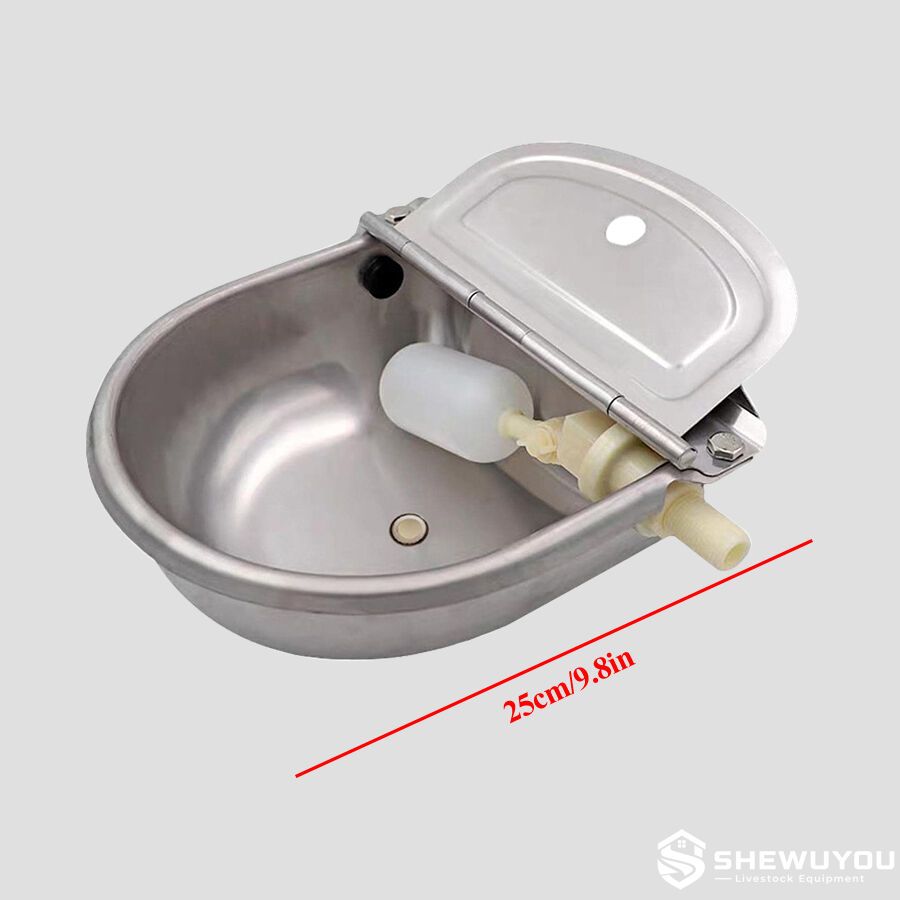

• Bowl dimensions and capacity
• Float valve specification and water-flow configuration
• Water inlet direction and connection specification
• Wall, pipe-frame or project-specific mounting arrangement
• Protective components for intensive livestock housing
• Frost-protection or heating configuration where required
• OEM branding, packaging and bulk-order requirements

Final specifications can be designed according to local climate, water pressure, animal category, building structure and farm management requirements.

Installation: Fix the bowl to a structurally sound wall, steel support or livestock pen frame at an appropriate drinking height. Connect the water inlet to the farm water supply using compatible fittings, then adjust and test the float valve to achieve the required operating water level.

Farm Construction Integration: During new barn construction, mounting points and water lines can be coordinated with steel columns, partition rails, concrete walls, service corridors and other livestock equipment to simplify installation and future maintenance.

Maintenance: Inspect and wash the bowl regularly. Check the float, valve, inlet connection and sealing points for contamination, wear or leakage. In cold regions, the water line and valve should be protected against freezing according to local climate and system design.

Q1. How does the automatic cattle drinking bowl refill?

The float valve responds to changes in the bowl water level. When water is consumed, the valve opens to replenish the bowl and closes after the preset level is restored.

Q2. Does the standard automatic bowl require electricity?

The standard mechanical float-valve configuration does not require electricity. Heating or frost-protection options, where specified, require a suitable electrical supply.

Q3. Can the bowl be installed on a steel livestock pen?

Yes. A suitable mounting arrangement can be selected for concrete walls, steel structures, pipe rails or other engineered supports according to the farm layout.

Q4. Is stainless steel suitable for commercial livestock facilities?

Yes. Stainless steel is widely used for livestock watering equipment because it provides good corrosion resistance, a smooth cleanable surface and durable performance in wet agricultural environments.

Q5. Can the product be customized for an overseas farm project?

Yes. Dimensions, valve configuration, water connection, mounting arrangement, material specification, packaging and other project requirements can be customized according to order and local farm conditions.
