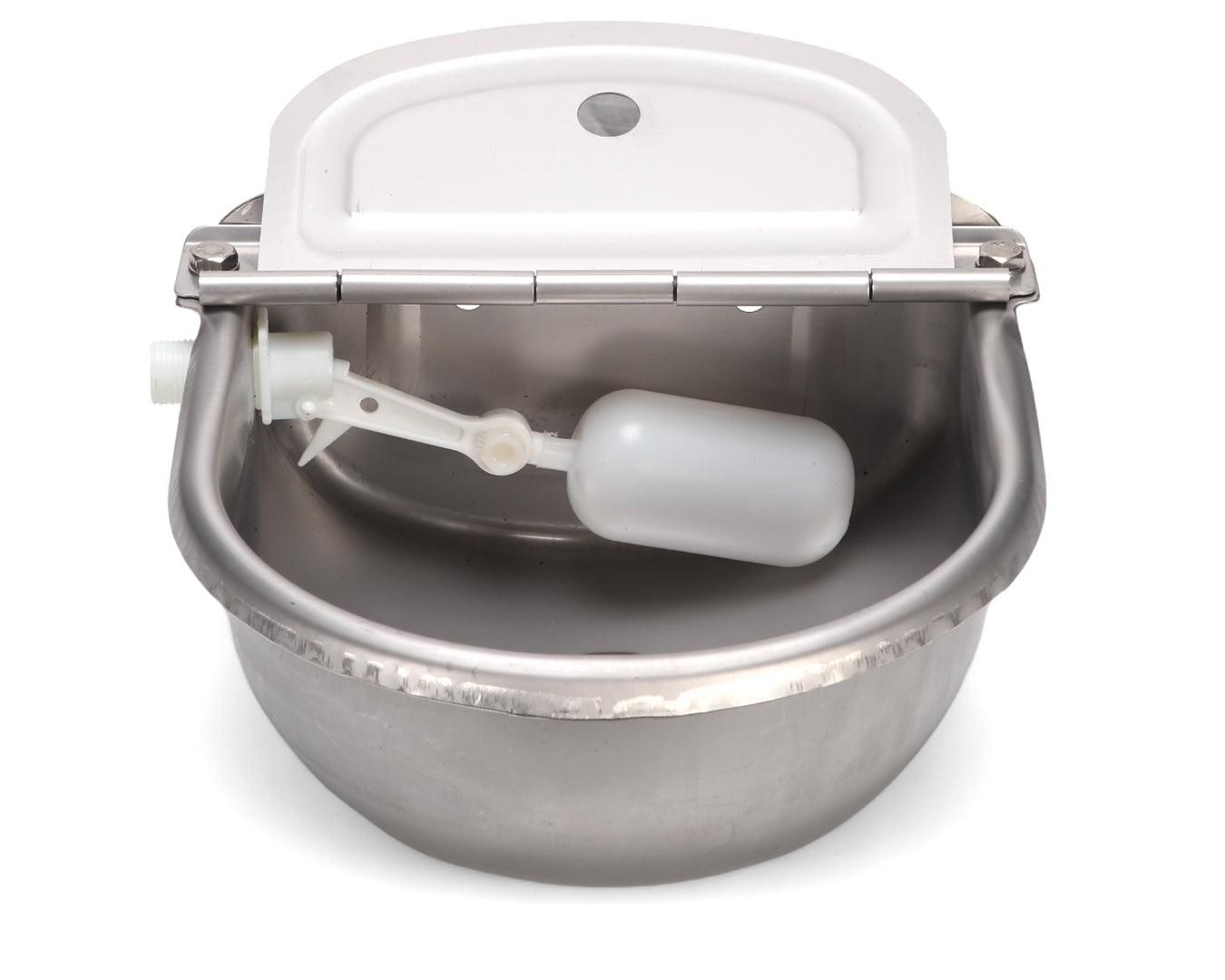

Automatic Calf Drinking Bowl

The Automatic Calf Drinking Bowl is a compact livestock watering solution designed to provide calves and young cattle with convenient access to fresh drinking water. An integrated float valve automatically controls water refill as animals drink, reducing manual filling requirements in daily farm management.

The drinking bowl can be manufactured from corrosion-resistant stainless steel or other durable livestock-grade materials according to the required configuration. Smooth drinking surfaces, a protected valve area and a practical mounting structure make the unit suitable for intensive dairy and calf-rearing environments.

Designed for individual calf pens, group calf housing, calf nurseries and commercial dairy projects, the drinking bowl can be integrated with livestock water-supply pipelines and steel structure farm buildings. Material, valve, inlet connection and mounting arrangements are customizable according to project requirements.

• Automatic Water Refill: Float-operated valve maintains the required drinking-water level as calves consume water.
• Continuous Water Availability: Connection to the farm water line reduces repeated manual filling.
• Durable Construction: Stainless steel configurations provide good corrosion resistance and mechanical durability.
• Calf-Friendly Drinking Area: Smooth surfaces and rounded drinking edges provide comfortable muzzle access.
• Protected Valve Assembly: The water-control mechanism is positioned to reduce direct livestock interference.
• Easy Cleaning: Open bowl geometry provides convenient access for washing and routine sanitation.
• Compact Installation: Suitable for mounting in calf pens, partitions and livestock housing structures.
• No Electricity Required: Standard float-valve operation is mechanically controlled by the water level and supply pressure.
• Reduced Water Waste: Automatic shut-off helps control unnecessary overflow.
• Project Customization: Bowl material, dimensions, valve and installation accessories can be configured for different farm projects.

• Livestock drinking bowl
• Automatic float valve
• Water-level float
• Float linkage mechanism
• Water inlet fitting
• Valve seat and sealing components
• Protective valve housing or cover
• Rounded drinking rim
• Drainage provision according to configuration
• Rear mounting structure
• Optional pipe fittings and installation hardware

The automatic drinking bowl is connected directly to the livestock water-supply pipeline. A float inside the bowl follows changes in the drinking-water level and mechanically operates the inlet valve.

When a calf drinks, the water level decreases and the float moves downward. The inlet valve opens automatically and allows fresh water to enter the bowl.

As the bowl refills, the float rises. When the preset water level is reached, the valve closes automatically. This repeated filling cycle provides reliable water availability while helping prevent excessive overflow.

Final dimensions, bowl capacity, inlet size, water flow, valve specification and mounting configuration should be confirmed according to calf housing layout, water pressure and project requirements.

• Individual calf pens
• Calf hutches
• Group calf housing
• Dairy calf nurseries
• Replacement heifer facilities
• Calf-rearing centers
• Young livestock pens
• Commercial dairy farms
• Indoor livestock housing
• Outdoor calf-rearing areas
• Steel structure livestock buildings
• Livestock farm construction and modernization projects

SHEWUYOU can configure automatic calf drinking bowls according to animal age, calf housing layout, farm water pressure and livestock project requirements.

• Bowl material and surface treatment
• Bowl dimensions and capacity
• Float valve configuration
• Water inlet size
• Water inlet position
• Operating water level
• Drainage configuration
• Valve protection structure
• Mounting arrangement
• Water pipe and fitting accessories
• Cold-climate accessories
• OEM labeling and bulk project packaging

The drinking bowl should be mounted securely at a height appropriate for the calf group and connected to a clean livestock water-supply pipeline.

• Select a mounting position that provides convenient drinking access without obstructing animal movement.
• Secure the drinking bowl to a structurally suitable wall, pen partition or mounting frame.
• Flush the water-supply pipeline before connecting the inlet valve.
• Use compatible fittings and suitable sealing materials for the water connection.
• Check that the float moves freely through its operating range.
• Set the required water level where adjustment is provided by the selected valve.
• Check the inlet and fittings for leakage after installation.
• Drain and wash the bowl regularly to remove feed residue, bedding and sediment.
• Inspect the float, valve seal and linkage periodically.
• Provide suitable pipe insulation or frost protection in freezing climates.

Q1: How does the automatic calf drinking bowl maintain the water level?

The float drops as the water level decreases and opens the inlet valve. When the required level is restored, the float rises and closes the valve automatically.

Q2: Does the standard drinking bowl require electricity?

No. A standard float-valve drinking bowl operates mechanically using the farm water supply and does not require electricity.

Q3: Is stainless steel available?

Yes. Stainless steel configurations are available for livestock facilities requiring corrosion resistance, durability and convenient sanitation.

Q4: Can it be installed in an individual calf pen?

Yes. The compact drinking bowl is suitable for individual calf pens and hutches when mounted at the correct drinking height.

Q5: Can it be used in group calf housing?

Yes. Multiple units can be arranged according to calf numbers, pen layout and required drinking access.

Q6: Can the float valve be replaced?

Yes. Serviceable valve, float and sealing components can be replaced according to the selected product configuration.

Q7: Can it be used in freezing conditions?

Standard drinking bowls require suitable water-line frost protection in freezing climates. Heated or cold-climate configurations are available upon request.

Q8: Can SHEWUYOU customize the product for a livestock project?

Yes. Bowl material, dimensions, valve, inlet connection, mounting arrangement and related accessories can be configured according to project requirements.
