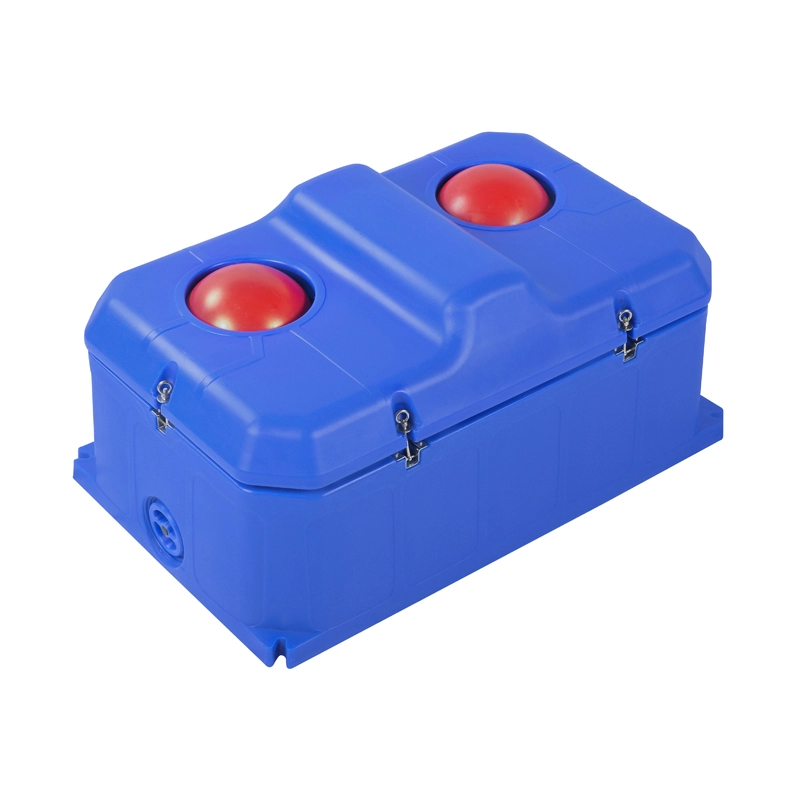

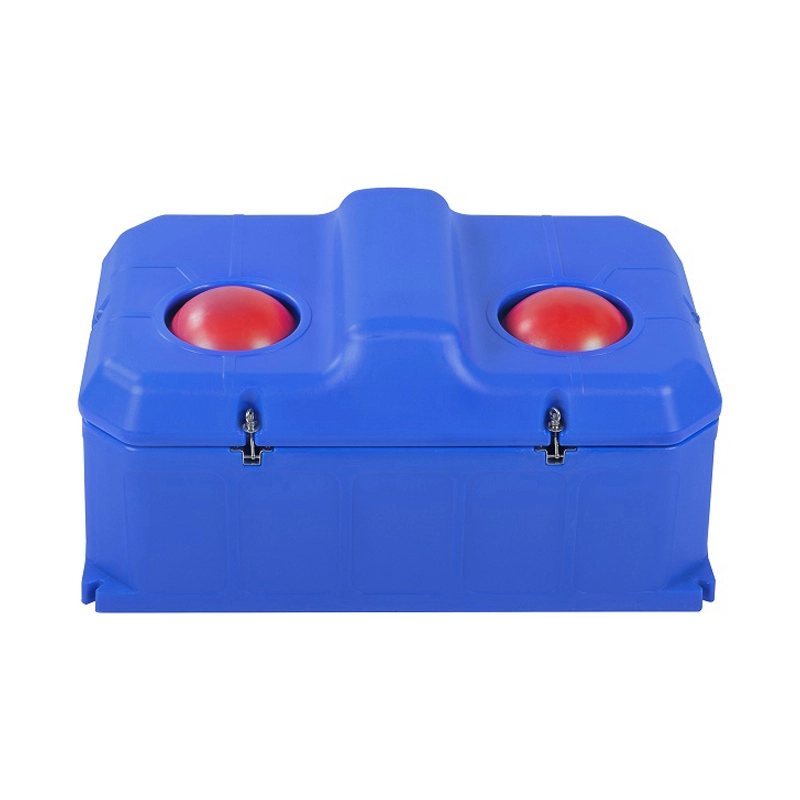

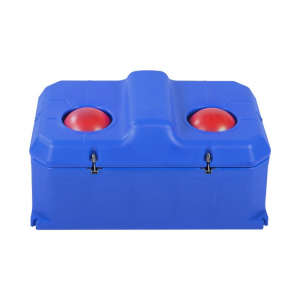

Calf Water Trough

The Calf Water Trough is an automatic livestock watering solution designed for dairy calves, replacement heifers and young cattle in group pens, calf-rearing facilities and commercial dairy farms. Its durable trough body provides convenient drinking access while supporting continuous fresh-water availability.

The trough can be equipped with an automatic high-flow float valve that maintains a preset water level as animals drink. Heavy-duty polyethylene construction provides excellent impact resistance, while insulated configurations help moderate water temperature and improve performance in variable farm environments.

Compact and large-capacity versions can be selected according to calf numbers, drinking-space requirements and barn layout. The system is suitable for integration into steel structure calf barns, modular livestock housing and commercial farm construction projects.

• Automatic Water Supply: Float-controlled refill maintains a consistent drinking-water level without frequent manual filling.
• Impact-Resistant Body: Heavy-duty molded polyethylene is suitable for demanding livestock environments.
• Calf-Friendly Design: Rounded edges and suitable drinking height provide comfortable access for young animals.
• Insulated Construction: Polyurethane insulation can help stabilize water temperature in both cold and warm conditions.
• High-Flow Valve Option: Rapid water replenishment supports group calf housing during peak drinking periods.
• Corrosion Resistant: Polyethylene body does not rust and is suitable for humid dairy environments.
• Easy Cleaning: Smooth internal surfaces and accessible service areas simplify routine sanitation.
• Protected Valve Area: Valve components can be enclosed to reduce livestock interference and contamination.
• Stable Installation: Molded feet and anchoring options support secure floor installation.
• Project Customization: Capacity, length, valve configuration and accessories are available according to project requirements.

• Heavy-duty polyethylene trough body
• Livestock drinking basin
• Optional polyurethane insulation layer
• Automatic float valve
• Water-level control float
• Valve protection cover
• Water inlet connection
• Braided or flexible connection hose according to configuration
• Drain outlet or cleaning port
• Rounded livestock-safe edges
• Offset or molded mounting feet
• Optional floor anchoring hardware

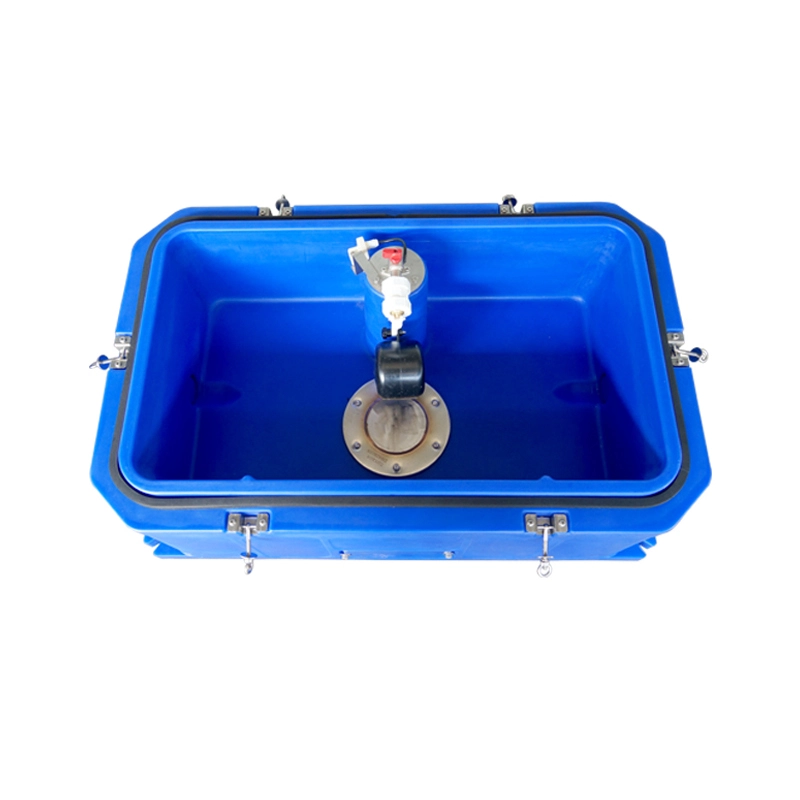

The calf water trough is connected to the farm water-supply system through an automatic float valve. The float moves with the water level inside the trough.

As calves drink and the water level falls, the float lowers and opens the inlet valve. Fresh water enters the trough until the preset operating level is restored.

When the required level is reached, the float rises and closes the valve automatically. This constant-level principle provides reliable drinking-water availability while helping reduce overflow and unnecessary water loss.

Final dimensions, capacity, drinking height, flow rate, insulation and valve configuration should be confirmed according to calf numbers, housing layout, water pressure and project requirements.

• Dairy calf group pens
• Calf-rearing centers
• Replacement heifer housing
• Young cattle pens
• Calf nursery facilities
• Commercial dairy farms
• Indoor calf barns
• Outdoor calf-rearing areas
• Livestock breeding facilities
• Steel structure calf barns
• Farm modernization projects
• Automatic livestock watering systems

SHEWUYOU can configure calf water troughs according to calf group size, housing layout, water pressure and livestock project requirements.

• Trough length, width and height
• Water storage capacity
• Drinking height
• Polyethylene color
• Polyurethane insulation
• Automatic high-flow float valve
• Water inlet size and position
• Drainage arrangement
• Valve protection cover
• Cold-climate heating option
• Mounting and anchoring accessories
• OEM labeling and project-specific packaging

Install the trough on a stable, level surface where calves have unobstructed drinking access and the water-supply line can be protected from livestock impact.

• Choose a location with convenient calf access and adequate surrounding drainage.
• Prepare a stable concrete or livestock-floor base.
• Position and anchor the trough where required.
• Flush the farm water line before connecting the automatic valve.
• Connect the inlet using compatible livestock plumbing fittings.
• Adjust the float to establish the required drinking-water level.
• Confirm that the valve provides adequate refill capacity during peak consumption.
• Drain and clean the trough regularly to remove feed, bedding and sediment.
• Inspect the float valve, seals and hose connections periodically.
• Provide suitable frost protection where freezing temperatures are expected.

Q1: What is a calf water trough?

It is a livestock drinking trough designed to provide calves and young cattle with convenient access to fresh water in individual or group housing systems.

Q2: Can the trough refill automatically?

Yes. An automatic float valve can maintain the preset water level as calves drink.

Q3: Is polyethylene suitable for calf housing?

Yes. Heavy-duty polyethylene is impact resistant, corrosion resistant and convenient to clean, making it suitable for commercial livestock facilities.

Q4: Is an insulated version available?

Yes. Polyurethane foam insulation can be supplied according to climate and farm requirements.

Q5: How is the trough cleaned?

The water supply can be isolated and the trough drained through the cleaning outlet before the internal surfaces are washed and flushed.

Q6: Can several calves drink at the same time?

Yes. Open-trough configurations can provide multiple drinking positions, depending on trough length and calf-group size.

Q7: Can the trough be used in cold climates?

Yes. Insulated and supplementary heated configurations can be selected according to local winter conditions.

Q8: Can SHEWUYOU customize the trough for a calf barn project?

Yes. Capacity, dimensions, drinking height, float valve, drainage, insulation and installation accessories can be configured according to project requirements.
