Heated Calf Waterer

The Heated Calf Waterer is an automatic insulated livestock drinking system designed to maintain dependable water access for calves and other compatible young livestock throughout cold winter weather and warm-season operation.

The reference design combines a durable polyethylene body, thick wall insulation, an insulated valve cover and a densely insulated frost-resistant base. A low-wattage infrared heating pad is isolated from the animal drinking area and operates automatically according to water temperature.

An automatic non-siphoning float valve maintains the required drinking level and reduces manual filling work. The compact trough height makes this configuration particularly suitable for calf-rearing facilities, young-stock pens and mixed-livestock operations.

• Automatic heated drinking system designed for year-round livestock watering.
• Durable polyethylene construction resists rust, corrosion, warping and normal farm exposure.
• Thick insulation in the body and valve cover reduces heat loss during freezing weather.
• Frost-resistant insulated base helps protect the plumbing area from severe cold.
• Low-wattage infrared heating pad is isolated from the animal drinking basin.
• Automatic temperature control reduces unnecessary heater operation.
• Non-siphoning float valve maintains a consistent water level and helps prevent backflow.
• Self-cleaning valve design helps reduce hard-water and mineral accumulation.
• Smooth curved edges provide an animal-friendly drinking area.
• Removable drain plug simplifies emptying and routine cleaning.
• Built-in anchoring points support secure installation on a prepared base.
• Easy-access service panels simplify plumbing and electrical maintenance.

• Polyethylene Waterer Body: Heavy-duty moulded housing designed for livestock environments and outdoor exposure.
• Open Drinking Trough: Low drinking area suited to calves and compatible small livestock.
• Insulated Valve Cover: Protects the automatic refill mechanism while reducing winter heat loss.
• Automatic Float Valve: Opens as the water level falls and closes when the preset level is restored.
• Non-Siphoning Valve Body: Helps prevent backflow into the livestock water-supply system.
• Infrared Heat Pad: Provides controlled low-wattage heat beneath the water area.
• Temperature Control: Automatically activates or deactivates heating according to water temperature.
• Insulated Base: Dense insulation helps protect the lower plumbing area and maintain winter performance.
• Drain Plug: Allows quick removal of water for cleaning and maintenance.
• Service Access: Removable or accessible panels provide convenient access to internal components.

The waterer connects to a pressurized livestock water line. As calves drink, the water level falls and the float-controlled valve opens automatically. Fresh water enters the trough until the normal operating level is restored.

During cold weather, the temperature-control system monitors water conditions. The infrared heat pad activates when the water becomes sufficiently cold and transfers controlled heat to the drinking-water area.

Once the water temperature rises above the thermostat's upper operating threshold, the heating system switches off automatically. Thick insulation reduces heat loss and therefore limits unnecessary electrical consumption.

This combination of automatic refill, insulation and thermostatically controlled heating provides dependable water availability without requiring continuous manual frost management.

• Commercial calf-rearing facilities
• Dairy calf group pens
• Replacement-heifer housing
• Cold-climate calf barns
• Outdoor calf and young-stock yards
• Mixed-livestock pasture systems
• Sheep and goat facilities
• Breeding and nursery areas
• Steel structure livestock buildings
• Farm renovation and winter watering projects

• Waterer capacity selectable according to livestock group size.
• Heating capacity available according to local climate and project requirements.
• Electrical configuration available according to local standards.
• Water-pressure regulation available according to supply conditions.
• Valve configuration available upon request.
• Concrete pad and anchoring layout customizable according to installation conditions.
• Water-line frost-protection arrangements available for cold-climate projects.
• Complete calf drinking-water systems available according to project requirements.

Base Preparation: Install the waterer on a stable, level concrete pad or suitable structural base and secure it using the integrated anchoring points.

Water Supply: Connect the automatic valve to a clean livestock water line. The reference valve performs best within the specified pressure range, with a suitable regulator used when required.

Cold-Climate Plumbing: In freezing regions, route the incoming water line according to local frost-depth requirements and protect exposed plumbing from cold-air penetration.

Electrical Installation: Connect the heating system through an appropriately protected electrical circuit in accordance with local electrical codes and qualified installation practices.

Winter Commissioning: Confirm heater, thermostat, float valve and insulation condition before sustained freezing weather begins.

Cleaning: Remove the drain plug to empty the trough and wash away feed contamination, sediment and biological buildup.

Maintenance: Inspect the float valve, heater pad, thermostat, water connections, drain plug, insulation and electrical components periodically. Replacement heating pads are available for serviceable configurations.

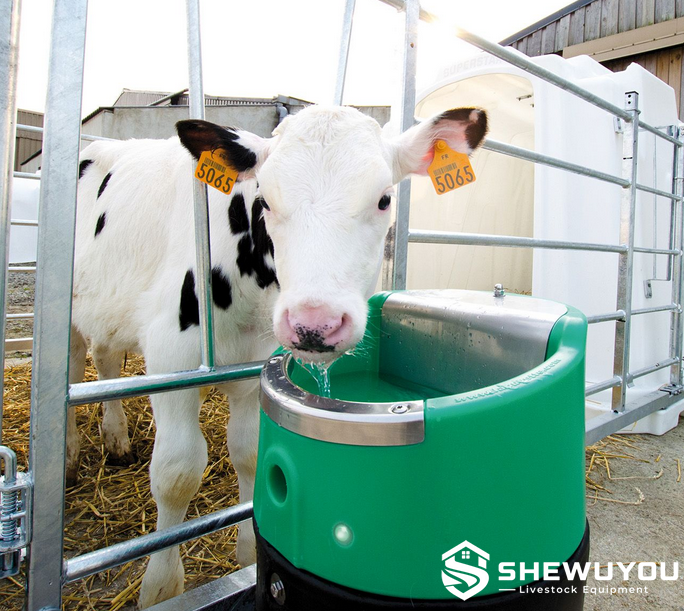

In a commercial calf-rearing facility, the heated waterer can be installed in a shared young-stock pen and connected to the farm's insulated water pipeline. Automatic refill allows calves to access water continuously while the thermostatically controlled heating system protects the drinking area during freezing conditions.

For integrated dairy projects, SHEWUYOU can configure heated calf waterers together with underground or insulated water lines, calf pens, drainage, milk-feeding equipment, ventilation systems and steel structure calf barns according to project requirements.

Q: How does the heated calf waterer prevent freezing?
A: The unit combines thick body insulation, an insulated frost-resistant base and a thermostatically controlled infrared heat pad to protect the drinking-water area during cold weather.

Q: Does it refill automatically?
A: Yes. A float-controlled non-siphoning valve automatically restores the water level as calves drink.

Q: Is the heater exposed to the animals?
A: No. In the reference design, the low-wattage infrared heating pad and related components are isolated from the drinking basin.

Q: Does the heater run continuously?
A: No. The reference temperature control activates heating when the water temperature drops below approximately 42°F and shuts it off after the temperature rises above approximately 73°F.

Q: How many animals can the reference unit serve?

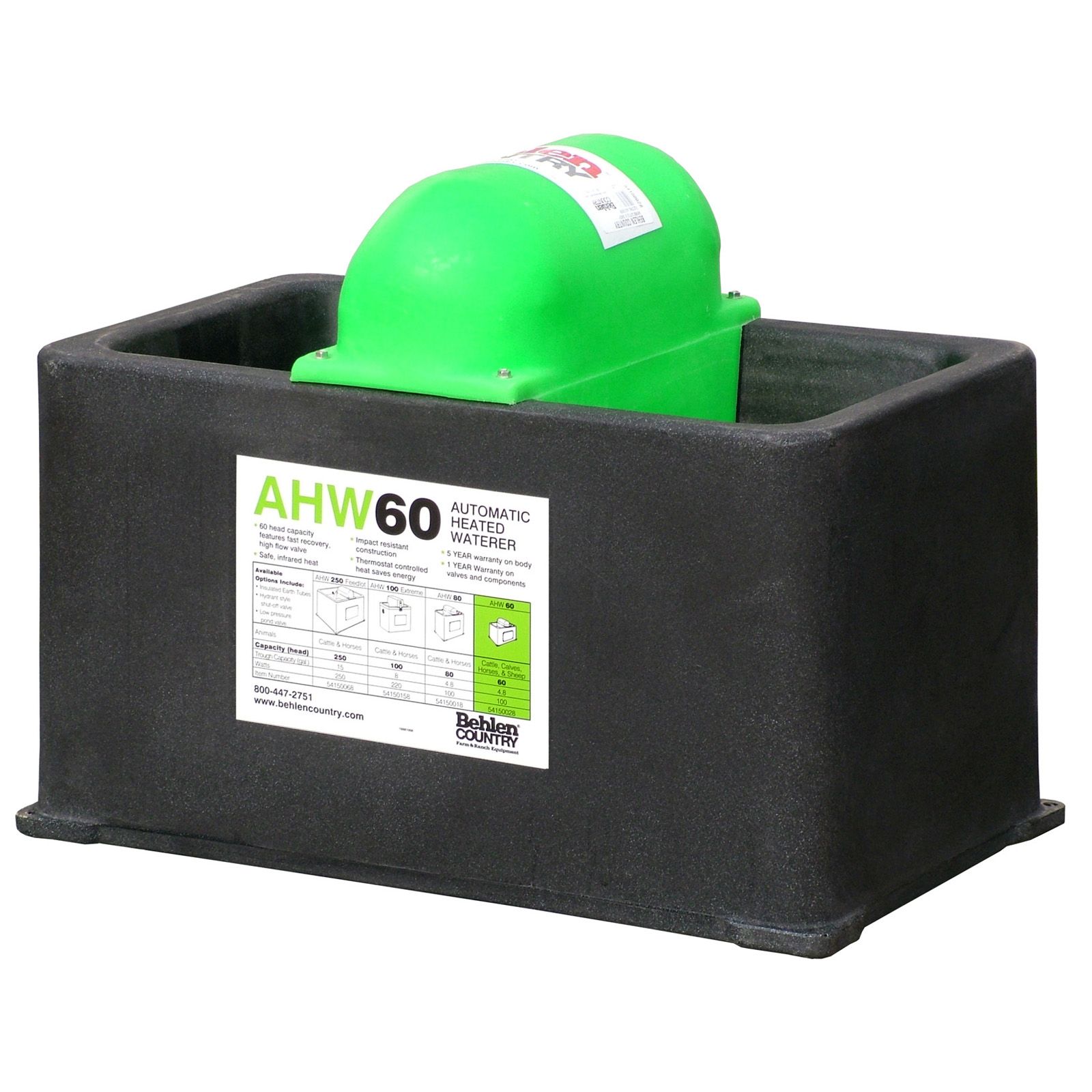

A: The reference AHW60 configuration is rated for approximately 60 animals. Actual farm sizing should consider animal type, climate, water availability and drinking access.

Q: What water pressure is recommended?
A: The reference non-siphoning valve is designed primarily for approximately 25 - 55 psi. A suitable pressure regulator should be used outside that range.

Q: Is the body corrosion resistant?
A: Yes. The polyethylene construction does not rust and is designed for humid livestock and outdoor environments.

Q: Is routine cleaning difficult?
A: No. A removable drain plug allows rapid emptying, while the open trough provides convenient access for rinsing and brushing.

Q: Can SHEWUYOU configure a complete winter calf-watering project?
A: Yes. Waterers, insulated pipelines, electrical protection, concrete bases, calf pen layouts and related livestock equipment can be configured according to local climate and project requirements.
