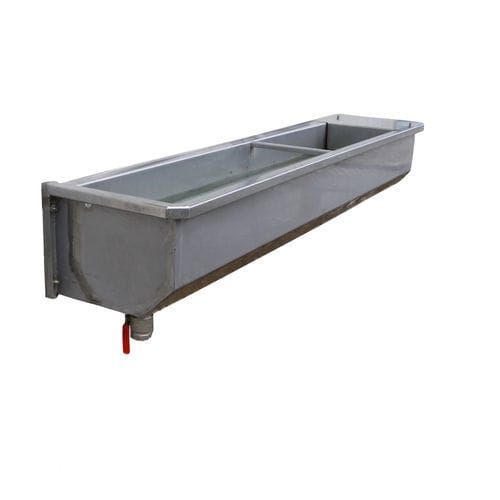

Stainless Steel Calf Drinker

The Stainless Steel Calf Drinker is a durable livestock watering solution designed for dairy calves, replacement heifers and young cattle in individual or group housing systems. Its stainless steel trough provides a smooth, corrosion-resistant drinking surface that supports good hygiene and convenient daily cleaning.

The drinker can be equipped with an automatic float valve or constant-level water control system to maintain an appropriate drinking level as calves consume water. A drainage outlet, release valve or tip-over configuration can be supplied to simplify emptying and sanitation.

Wall-mounted, floor-mounted and protected heavy-duty configurations are available for calf barns, group pens, calf-rearing centers and steel structure livestock buildings. Dimensions, water capacity, valve type and mounting arrangement can be selected according to project requirements.

• Stainless Steel Construction: Corrosion-resistant trough construction is suitable for humid calf housing and frequent washing.
• Automatic Water Supply: Float-valve or constant-level configurations maintain drinking water without repeated manual filling.
• Easy-Clean Design: Smooth internal surfaces help reduce dirt accumulation and simplify sanitation.
• Fast Drainage: Drain outlet, lever valve or tip-over options allow the trough to be emptied quickly for cleaning.
• Calf-Friendly Drinking Height: Installation height and trough depth can be matched to young cattle.
• Multi-Access Trough: Longer versions allow several calves to drink from the same water point.

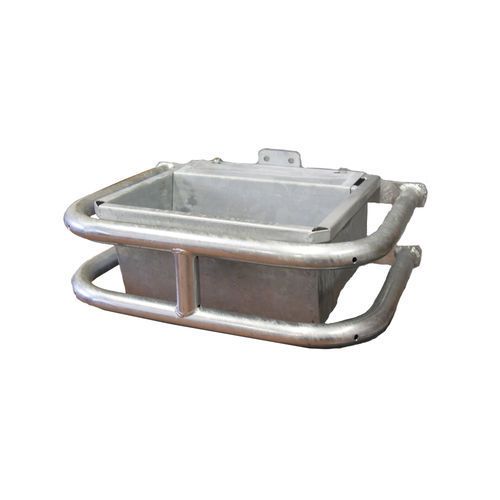

• Heavy-Duty Protection: Optional tubular surrounds protect the trough from livestock impact and farm machinery.
• Flexible Mounting: Wall-mounted, floor-mounted or livestock-rail installation can be selected according to barn layout.
• Indoor and Outdoor Use: Suitable configurations are available for enclosed calf barns and outdoor rearing areas.
• Project Customization: Trough length, capacity, inlet, valve and mounting system can be configured according to farm requirements.

• Stainless steel drinking trough
• Reinforced upper rim
• Automatic float valve or constant-level valve
• Float and water-level control assembly
• Water inlet connection
• Drain outlet or release valve
• Optional tip-over mechanism
• Wall or floor mounting brackets
• Optional tubular protection surround
• Optional valve protection compartment
• Fasteners and installation hardware

The calf drinker is connected to the farm water supply through an automatic valve. As calves drink and the water level falls, the float mechanism moves downward and opens the inlet valve.

Fresh water enters the trough until the preset operating level is restored. The float then closes the valve automatically, helping maintain a consistent water supply while reducing overflow.

For routine sanitation, the trough can be emptied through a drain outlet or, on compatible models, tilted using a tip-over mechanism. This allows sediment, feed contamination and stale water to be removed efficiently.

Final dimensions, capacity, stainless steel grade, valve specification and mounting arrangement should be confirmed according to calf numbers, barn layout, water pressure and project requirements.

• Commercial dairy calf barns
• Group calf pens
• Replacement heifer housing
• Calf-rearing centers
• Young cattle housing
• Calf nursery facilities
• Livestock breeding farms
• Indoor calf pens
• Outdoor calf-rearing areas
• Steel structure livestock buildings
• Dairy farm modernization projects
• Integrated livestock watering systems

SHEWUYOU can configure stainless steel calf drinking systems according to calf numbers, housing layout, water pressure and farm construction requirements.

• Trough length, width and depth
• Water capacity
• Stainless steel specification
• Automatic float valve
• Constant-level water control
• Water inlet position and connection size
• Drain plug or lever drain valve
• Tip-over cleaning mechanism
• Wall or floor mounting brackets
• Heavy-duty tubular protection surround
• Cold-climate accessories
• OEM labeling and project-specific packaging

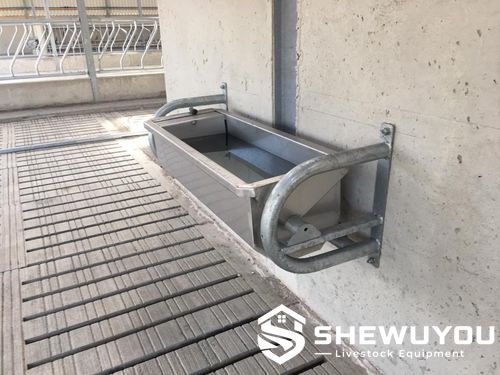

The drinker should be installed at a suitable height for the calf group and securely fixed to a wall, livestock rail or prepared floor structure. Adequate drainage around the unit is recommended for commercial calf housing.

• Select a drinking height appropriate for calf age and body size.
• Mount the trough securely using the specified brackets and fixing points.
• Flush the farm water line before connecting the valve.
• Connect the inlet and adjust the float to the required operating level.
• Test automatic shut-off and inspect all connections for leakage.
• Provide clear access around the trough for calves and routine cleaning.
• Drain stale water regularly and remove feed, bedding and sediment.
• Clean stainless steel surfaces with farm-appropriate cleaning products.
• Inspect the float valve, seals and drainage mechanism periodically.
• Provide suitable frost protection where the drinker is exposed to freezing conditions.

Q1: Why use stainless steel for a calf drinker?

Stainless steel provides corrosion resistance, mechanical durability and a smooth surface that is convenient to clean in intensive calf-rearing facilities.

Q2: Can the drinker refill automatically?

Yes. An automatic float valve or constant-level system can maintain the required water level as calves drink.

Q3: Is the drinker suitable for group calf pens?

Yes. Multi-access trough configurations can provide drinking space for several calves in group housing.

Q4: How is the trough emptied for cleaning?

Depending on configuration, the trough can use a drain plug, lever-operated drain valve or tip-over mechanism for fast emptying.

Q5: Can the drinker be mounted on a wall?

Yes. Wall-mounted models are suitable for calf pens where keeping floor space clear is important.

Q6: Is a protective frame available?

Yes. Heavy-duty tubular surrounds can be added where extra protection from livestock or machinery impact is required.

Q7: Can the trough size be customized?

Yes. Length, capacity and drinking access can be configured according to calf group size and barn layout.

Q8: Can SHEWUYOU supply the complete calf watering system?

Yes. Stainless steel troughs, float valves, drainage components, mounting brackets and related livestock water-supply accessories can be configured according to project requirements.
