Plastic Automatic Calf Drinker

The Plastic Automatic Calf Drinker is a compact animal-activated watering bowl designed for calves, young cattle and other compatible livestock. It provides water on demand while reducing the need for manual filling and helping keep drinking areas cleaner than open buckets or conventional containers.

The moulded plastic bowl is lightweight, corrosion resistant and suitable for repeated farm use. A metal nose paddle operates the internal valve when the animal presses it with the muzzle, allowing fresh water to enter the bowl only when required.

The drinker can be installed on calf pen walls, posts or suitable livestock housing structures. Its compact size and simple mechanical design make it suitable for calf hutches, nursery pens, dairy replacement facilities and commercial livestock projects.

• Automatic animal-activated water supply reduces manual filling work.
• Durable plastic bowl is corrosion resistant and easy to handle.
• Metal nose paddle provides simple and reliable valve activation.
• Compact bowl design is suitable for calves and young livestock.
• Smooth internal surfaces support routine cleaning and farm hygiene.
• Wall or pipe mounting options provide flexible installation.
• Threaded water inlet supports connection to livestock water pipelines.
• U-bolt mounting accessories can be used for installation on suitable round posts or rails.
• Simple mechanical structure supports easy inspection and maintenance.
• Suitable for calf hutches, individual pens and commercial calf-rearing facilities.

• Plastic Drinking Bowl: Moulded reservoir designed for direct livestock drinking access.

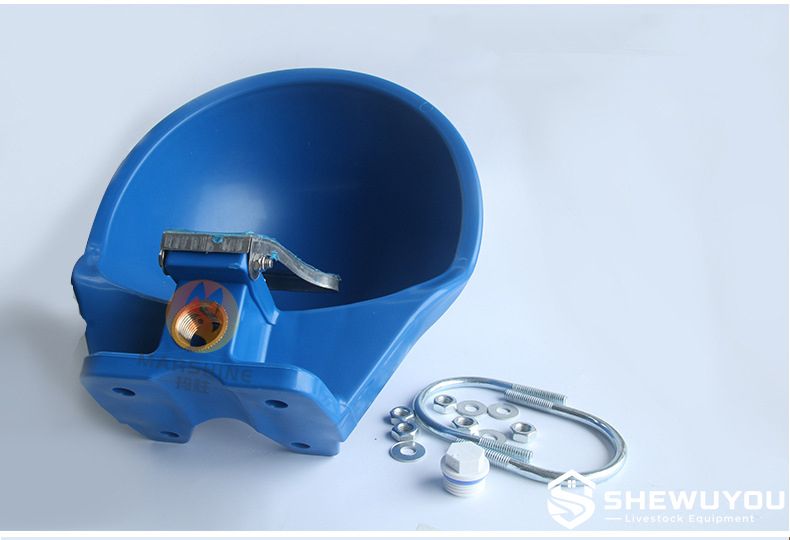

• Nose Paddle: Metal actuator pressed by the animal to open the water valve.
• Internal Valve: Controls water flow according to paddle movement.
• Brass Water Inlet: Threaded connection for integration with the livestock water supply.
• Mounting Flange: Rear structural section used for secure wall installation.
• Mounting Holes: Allow direct fixing to a suitable wall or pen component.
• U-Bolt Mounting Set: Optional hardware for fixing the drinker to pipes or livestock pen rails.
• Drain or Plug Port: Available according to configuration for cleaning or water-line setup.

The drinker uses an animal-operated paddle valve. When a calf pushes the metal paddle with its muzzle, the paddle activates the internal valve and allows fresh water to flow into the drinking bowl.

Water continues to enter while the animal maintains pressure on the paddle. When the calf stops drinking and releases the paddle, the valve closes automatically.

This on-demand operating principle helps reduce unnecessary standing water while providing calves with direct access to fresh water whenever required.

• Individual calf hutches
• Calf nursery pens
• Dairy replacement-heifer facilities
• Calving and maternity areas
• Young cattle housing
• Small livestock pens
• Veterinary and treatment areas
• Steel structure calf barns
• Commercial dairy farm projects
• Livestock housing renovation projects

• Plastic color customizable according to project requirements.
• Valve configuration available according to farm water pressure.
• Water inlet size available upon request.
• Wall and pipe mounting accessories available.
• U-bolt mounting sets available for livestock pen installations.
• Protective brackets available for high-contact livestock areas.
• Complete calf drinking-water layouts can be designed according to calf pen configuration.
• OEM branding and project packaging available upon request.

Mounting: Fix the drinker securely to a stable wall, post or livestock pen rail using suitable fasteners or U-bolt hardware.

Installation Height: Select a height that allows calves to reach the paddle naturally without excessive stretching or lowering of the head.

Water Connection: Connect the threaded inlet to a clean livestock water line and confirm that available pressure is compatible with the selected valve.

Valve Testing: Press the paddle manually after installation to verify smooth movement, sufficient flow and proper shut-off.

Cleaning: Rinse and brush the bowl regularly to remove milk residue, feed particles, sediment and biological contamination.

Maintenance: Inspect the paddle, valve, brass fitting, mounting hardware and water-line connection periodically and replace worn components when required.

In an individual calf housing project, one automatic drinker can be mounted to each calf pen partition and connected to a common livestock water pipeline. This arrangement provides calves with on-demand water while reducing the labor required for bucket filling.

For integrated dairy projects, SHEWUYOU can configure calf drinkers together with calf hutches, pen systems, milk feeding equipment, water pipelines, drainage, ventilation and steel structure calf barns according to project requirements.

Q: How does the automatic calf drinker work?
A: The calf presses the metal nose paddle with its muzzle, opening the internal valve and allowing fresh water to enter the bowl.

Q: Is the bowl suitable for individual calf pens?
A: Yes. Its compact dimensions and wall-mounting design make it well suited to individual calf hutches and nursery pens.

Q: Does the drinker need electricity?
A: No. Standard configurations operate mechanically using water pressure and the animal-activated paddle.

Q: Is the plastic bowl resistant to corrosion?
A: Yes. Plastic does not rust and is suitable for humid livestock housing environments.

Q: Can the drinker be mounted on a pipe?
A: Yes. Suitable U-bolt hardware can be used to mount the bowl to compatible round pipes or livestock pen rails.

Q: How much water does the reference bowl hold?
A: The reference configuration has a nominal capacity of approximately 2.6 litres.

Q: Is it easy to clean?
A: Yes. The open bowl design and smooth plastic surface allow routine rinsing and brushing.

Q: Can SHEWUYOU supply a complete calf watering system?
A: Yes. Drinkers, pipelines, mounting hardware, calf pens, hutches and related livestock equipment can be configured according to project requirements.
