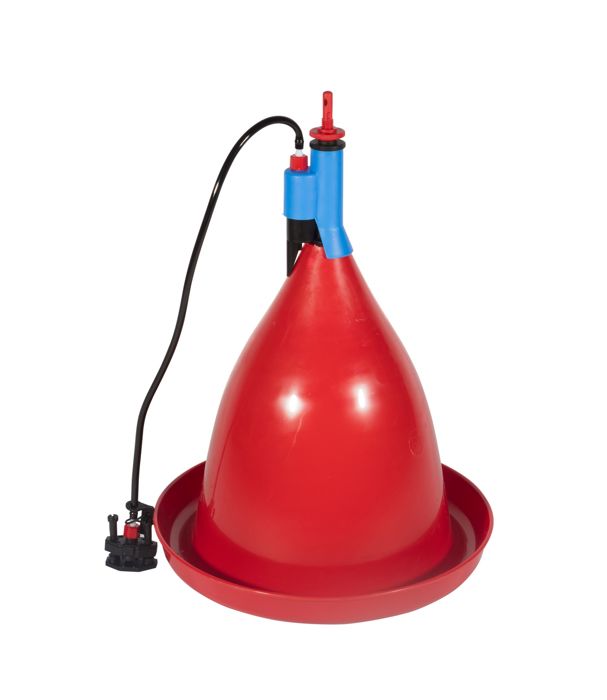

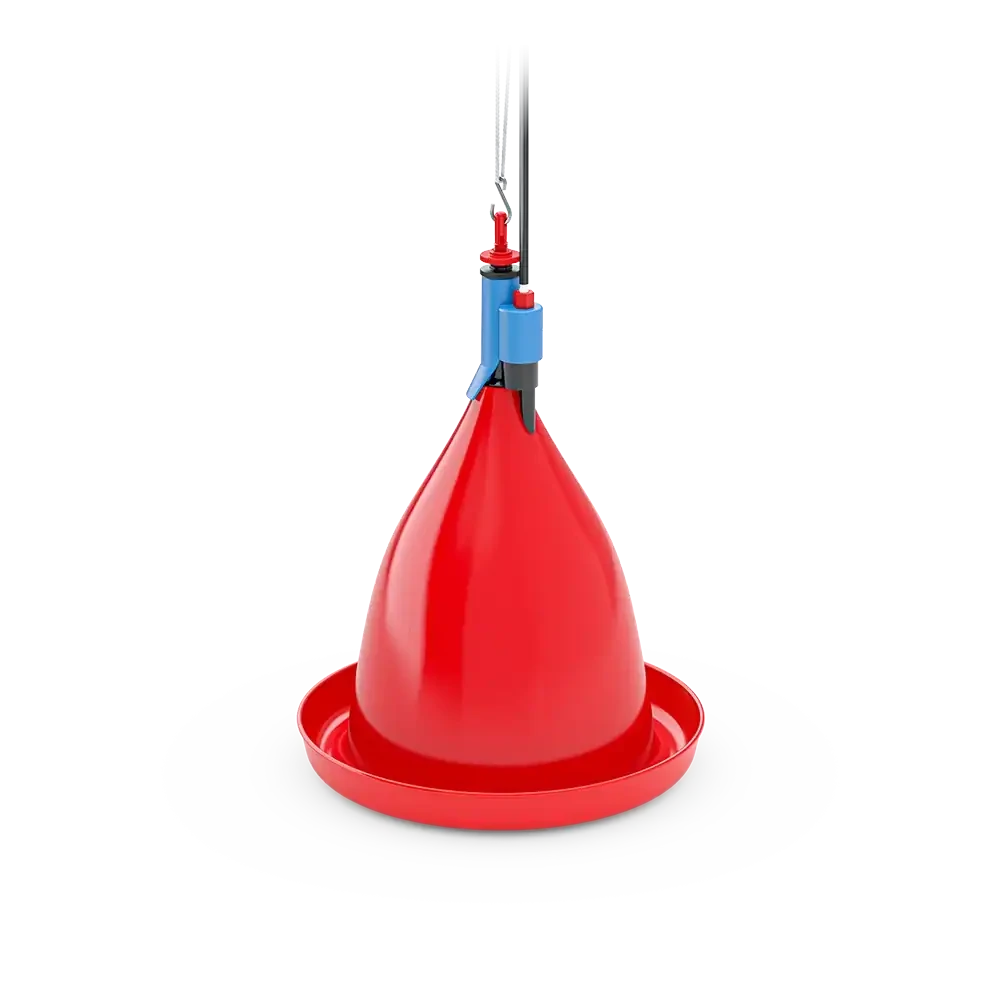

JUMBO-B Bell Drinker

The JUMBO-B Bell Drinker is an automatic open-water poultry drinker designed for broilers, broiler breeders, layers and lighter turkey applications. Its circular drinking rim provides convenient multi-bird access while an internal low-pressure valve maintains a consistent water level during flock operation.

The bell-shaped body incorporates a stabilized ballast system that reduces unnecessary movement and helps protect the water-control mechanism. A narrow water stream flows along the bell surface, helping reduce splash-over, water loss and litter moisture.

The drinker can be installed suspended from the poultry-house structure or positioned on the floor according to management requirements. It is suitable for commercial broiler houses, breeder facilities and steel structure poultry buildings from chick placement through finishing.

• Automatic Water Level Control: Low-pressure valve automatically replenishes the drinking rim as birds consume water.
• Multi-Bird Access: Wide circular rim allows many birds to drink around the unit simultaneously.
• Reduced Water Splash: Controlled water flow along the bell surface helps minimize unnecessary overflow.
• Dry-Litter Support: Reduced spillage helps limit excessive litter moisture and associated ammonia formation.
• Ballast Stabilization: Integrated ballast increases drinker stability without placing excessive load on the valve mechanism.
• Adjustable Water Level: Drinking depth can be set precisely according to bird age and management requirements.
• Low-Pressure Operation: Suitable for regulated poultry water lines or correctly designed header-tank systems.
• Flexible Installation: Can be suspended or used on the floor according to poultry-house layout.
• Durable Plastic Construction: Corrosion-resistant components are suitable for intensive poultry-house environments.
• Easy Cleaning: Open drinking rim and accessible components simplify washing between production cycles.
• Commercial Farm Integration: Suitable for new poultry projects and equipment modernization programs.

• Bell-shaped drinker body
• Circular drinking rim
• Automatic low-pressure valve
• Water-level control mechanism
• Valve collar and sealing components
• Stem and spring assembly
• Ballast body
• Water inlet connector
• Flexible water hose
• Shut-off saddle
• Suspension cord
• Cord adjuster
• Suspension hook
• Optional chick ring

The drinker is connected to a regulated poultry water supply through a flexible hose. Water enters the internal valve assembly and flows into the circular drinking rim.

As birds drink and the water level decreases, the valve mechanism allows additional water to enter. When the selected water depth is restored, the valve closes automatically.

The ballast body stabilizes the drinker independently of the valve, helping reduce movement and maintain accurate water-level control. This structure is especially useful in busy commercial poultry houses where birds regularly contact the equipment.

Correct suspension height and water level should be maintained throughout the production cycle to ensure convenient bird access and minimize water waste.

Reference technical values are based on professional JUMBO-B configurations. Final bird capacity, pressure, water level and installation spacing should be selected according to bird live weight, climate, house layout and farm management requirements.

• Commercial broiler houses
• Broiler breeder farms
• Layer poultry houses
• Light turkey production
• Day-old chick rearing
• Floor-reared poultry systems
• Environmentally controlled poultry houses
• Open-sided poultry buildings
• Steel structure poultry houses
• Large-scale poultry farm projects
• Poultry equipment modernization projects

SHEWUYOU can configure JUMBO-B type bell drinking systems according to poultry-house dimensions, bird type, flock capacity, water pressure and project requirements.

• Drinker quantity and spacing
• Water inlet connection
• Flexible hose specification
• Low-pressure regulator
• Header-tank arrangement
• Water-level setting
• Suspension cord length
• Height-adjustment hardware
• Chick ring accessory
• Main poultry water-line layout
• Water filtration and metering
• Medication dosing equipment
• OEM color and packaging

The drinkers should be distributed evenly throughout the poultry house and connected to a stable low-pressure water supply. Suspended installations should be attached to suitable roof members or designated steel structure components.

• Determine drinker quantity and spacing according to flock size and bird type.
• Install the poultry water-supply line above the drinker locations.
• Connect each drinker using compatible flexible hose and fittings.
• Fill the ballast with water or suitable material according to the selected configuration.
• Adjust drinking height for convenient bird access.
• Set the water level within the recommended operating range.
• Check valve operation and hose connections for leakage.
• Wash the drinking rim regularly to remove feed and litter contamination.
• Clean valve and filter components between production cycles.
• Inspect suspension cords, hooks and height adjusters periodically.
• Flush the main poultry water line according to the farm sanitation program.

Q1: Which birds can use a JUMBO-B bell drinker?

It is suitable for broilers, broiler breeders, layers and lighter turkey applications when correctly configured.

Q2: Can the drinker be used from the first day?

Yes. Professional JUMBO-B configurations can be used from chick placement, with suitable water-level and height adjustment.

Q3: Why is a ballast used?

The ballast stabilizes the drinker and reduces unnecessary movement, helping maintain consistent valve operation and water level.

Q4: Can the water level be adjusted?

Yes. The water-level control allows the drinking depth to be set according to bird age and farm management requirements.

Q5: Can the drinker be installed on the floor?

Yes. Compatible JUMBO-B configurations can be operated either suspended or positioned on the floor.

Q6: How does the design help keep litter dry?

The narrow water flow along the bell and controlled water level help reduce splash-over and unnecessary water loss.

Q7: Can medication be supplied through the drinker system?

Yes. Compatible proportional dosing equipment can be installed upstream in the poultry water system.

Q8: Can SHEWUYOU design the complete watering layout?

Yes. Drinker quantity, spacing, water lines, regulators, filters and installation accessories can be configured according to poultry-house dimensions and project requirements.
